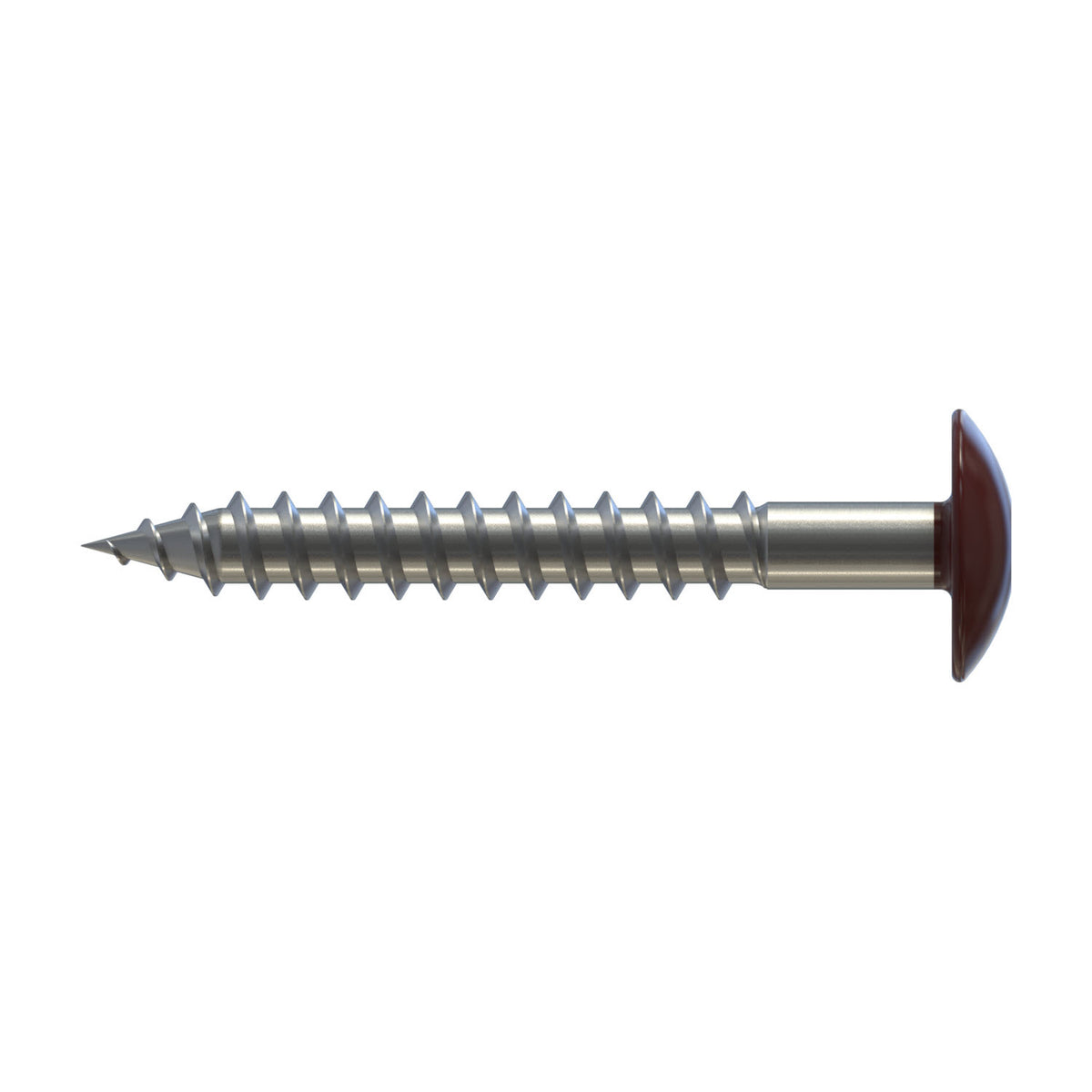

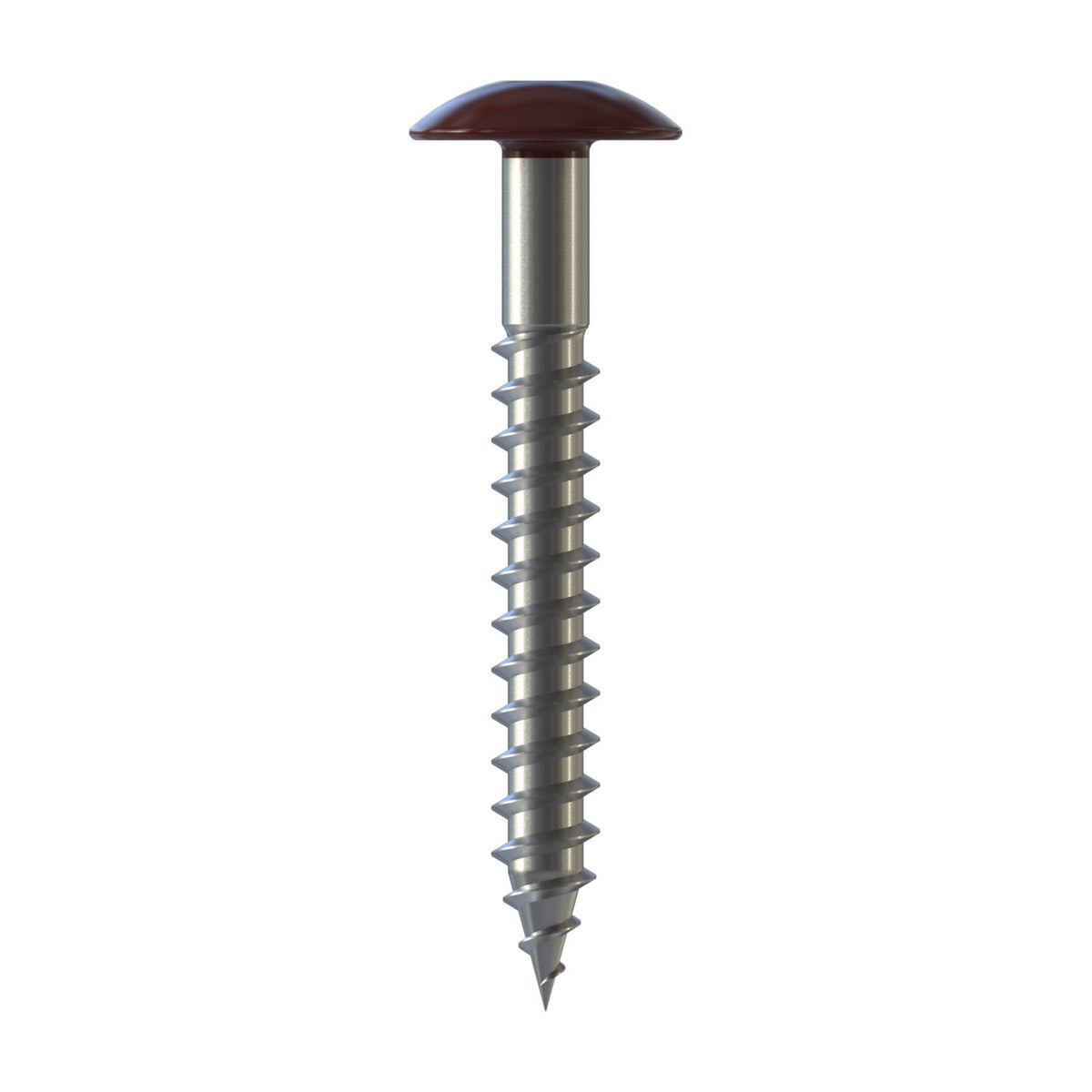

CF-FPS Façade panel screw, Truss head, 5.5 x 55, Partial thread (L1), TX 20, Stainless steel A2, pickled, passivated, Cedral C33 Oxide red, 100 Pcs.

SKU: 17778
Barcode: 4005674073943
Pack Size: 100
£21.82

CF-FPS Façade panel screw, Truss head, 5.5 x 55, Partial thread (L1), TX 20, Stainless steel A2, pickled, passivated, Cedral C33 Oxide red, 100 Pcs. is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix FPS Façade Panel Screw is a premium fastening solution specifically engineered for securing façade cladding to wooden substructures. Crafted from high-grade A4 stainless steel, these screws offer exceptional resistance to corrosion, making them the ideal choice for exposed outdoor environments and demanding architectural applications. The design features a single-start partial thread that provides a high load-bearing capacity, ensuring a stable and long-lasting hold for various cladding materials. Equipped with a precision TX 20 drive, the FPS screw ensures excellent power transmission and eliminates slipping during installation, allowing for secure and efficient processing. The specialized truss head is a key highlight, providing a large, flat contact surface that delivers high contact pressure without damaging the panel. This results in a perfect fit and a clean, professional finish that enhances the overall aesthetic of the building's exterior.

Technical Datasheet

Tech Datasheet:

Applications

Wood screw for fixing façade cladding to wooden substructures.
Façade cladding

Features

TX: Excellent power transmission, no slipping, secure processing.
Truss head: Large flat contact surface, high contact pressure, perfect fit and neat finish.
Single-start thread: High load-bearing capacity.

Specifications
  • Brand
    Certifix
  • Colour
    Cedral C33 Oxide Red
  • Diameter (mm)
    5.50
  • Driver Type
    TX20
  • Head Diameter (mm)
    12.00
  • Head Type
    Truss head
  • Length (mm)
    55
  • Material
    Stainless steel A2
  • Pack Size
    100
  • Thread Form
    Partial thread (L1)
  • Thread Length (mm)
    37
  • Thread Type
    Wood thread
  • Type
    Self drilling screw
  • Weight
    736.00 g
