fischer FXA 10/10 M10 x 86 Zinc through bolt [523133]

Barcode: 4048962183511
Pack Size: 50
£24.99

Usually shipped in 1-2 days

fischer FXA 10/10 M10 x 86 Zinc through bolt [523133] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Introducing the fischer FXA 10/10 M8 x 86 - an ETA-approved, cost-effective through-bolt solution for non-cracked concrete installations. The fischer FXA delivers maximum load-bearing capacities with fewer fixing points and smaller anchor plates, making it an economical choice for various construction projects. Its simple installation process requires just a few hammer blows into a pre-drilled hole and minimal torque slippage. The drive-in pin protects the thread from damage, ensuring a faster and more efficient installation. The FXA is suitable for pre-positioned and push-through installations, and under specific conditions, it can also be used for stand-off installations. To ensure optimal anchoring, place the hexagon nut in the optimal position before applying torque, causing the cone bolt to be pulled into the expansion clip and expand it securely against the drill hole wall. The head embossing simplifies anchoring control. Approved for non-cracked concrete C20/25 to C50/60, the FXA is a versatile solution for a wide range of applications, including steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, gates, and façades.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

Steel constructions

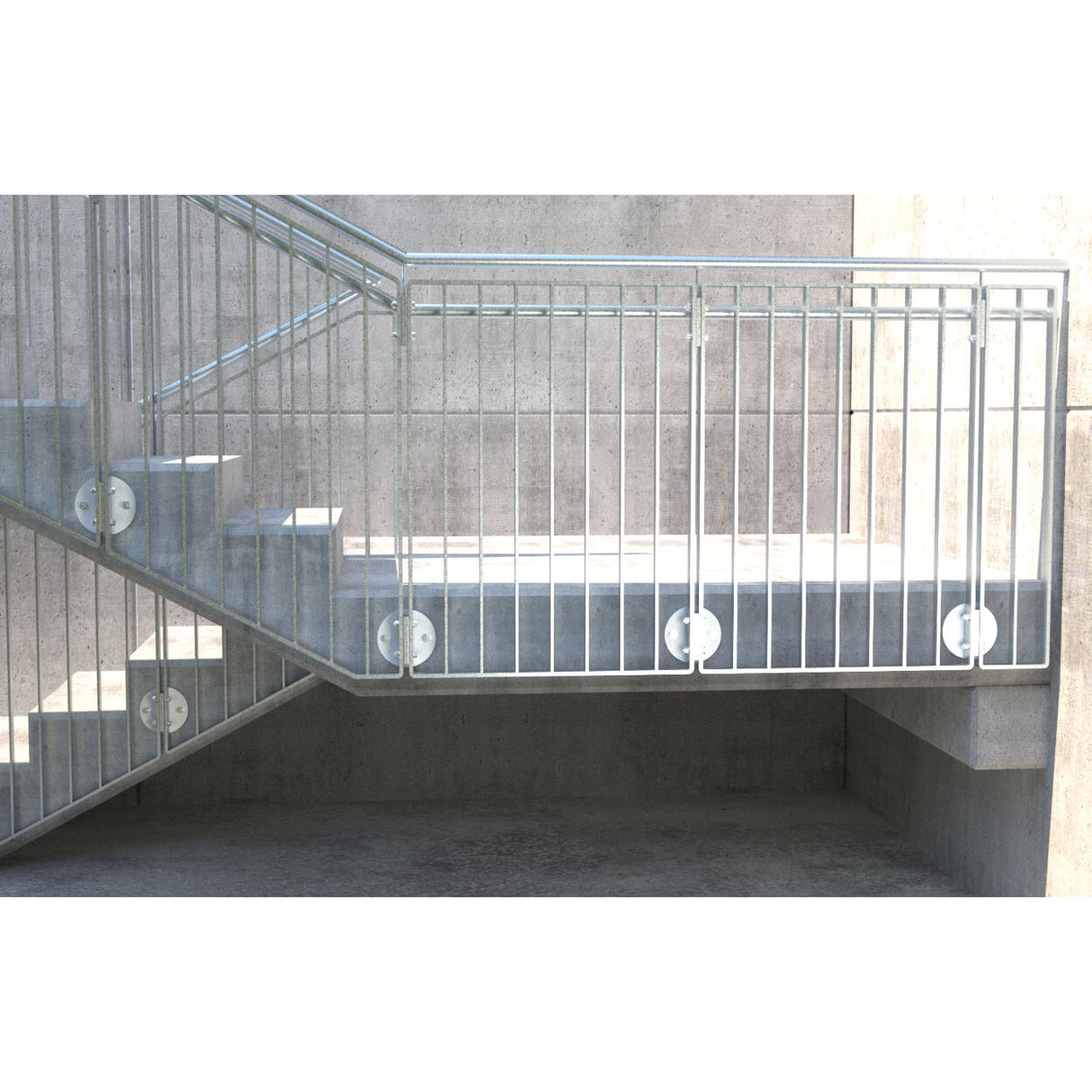

Guard rails

Consoles

Ladders

Cable trays

Machines

Staircases

Gates

Façades

Building Materials

Approved for:

Concrete C20/25 to C50/60, non-cracked

You can find detailed information on building materials in the registration document.

Certifications

ETA-13/0772
DoP No. 0193

Features

The standard anchorage depth achieves the maximum loadbearing capacities: Fewer fixing points and smaller anchor plates are required.
Only a few hammer blows required and minimal torque slippage: Installation is a simple process.
The drive-in pin protects the thread from damage. Ensures a faster installation and dismantling of the attachment.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-13/0772
    DoP No. 0193
  • Drill Diameter (MM)
    10
  • Functionality
    The FXA is suitable for pre-positioned and push through installation, also suitable for stand off installation under certain conditions.
    Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
    When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
    The head embossing offers a simple control of the anchoring.
  • Length (MM)
    86
  • Material
    Zinc-Plated
  • Min Drill Hole Depth for Through Fixings (MM)
    78
  • Pack Size
    50
  • Type
    Through bolt
  • Width Across Nut (MM)
    17

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FXA 10/10 M10 x 86 Zinc through bolt [523133]

£24.99
Introducing the fischer FXA 10/10 M8 x 86 - an ETA-approved, cost-effective through-bolt solution for non-cracked concrete installations. The fischer FXA delivers maximum load-bearing capacities with fewer fixing points and smaller anchor plates, making it an economical choice for various construction projects. Its simple installation process requires just a few hammer blows into a pre-drilled hole and minimal torque slippage. The drive-in pin protects the thread from damage, ensuring a faster and more efficient installation. The FXA is suitable for pre-positioned and push-through installations, and under specific conditions, it can also be used for stand-off installations. To ensure optimal anchoring, place the hexagon nut in the optimal position before applying torque, causing the cone bolt to be pulled into the expansion clip and expand it securely against the drill hole wall. The head embossing simplifies anchoring control. Approved for non-cracked concrete C20/25 to C50/60, the FXA is a versatile solution for a wide range of applications, including steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, gates, and façades.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

10

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Through bolt

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

86

Min Drill Hole Depth for Through Fixings (MM)

78

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

17

Features

The standard anchorage depth achieves the maximum loadbearing capacities: Fewer fixing points and smaller anchor plates are required.
Only a few hammer blows required and minimal torque slippage: Installation is a simple process.
The drive-in pin protects the thread from damage. Ensures a faster installation and dismantling of the attachment.
