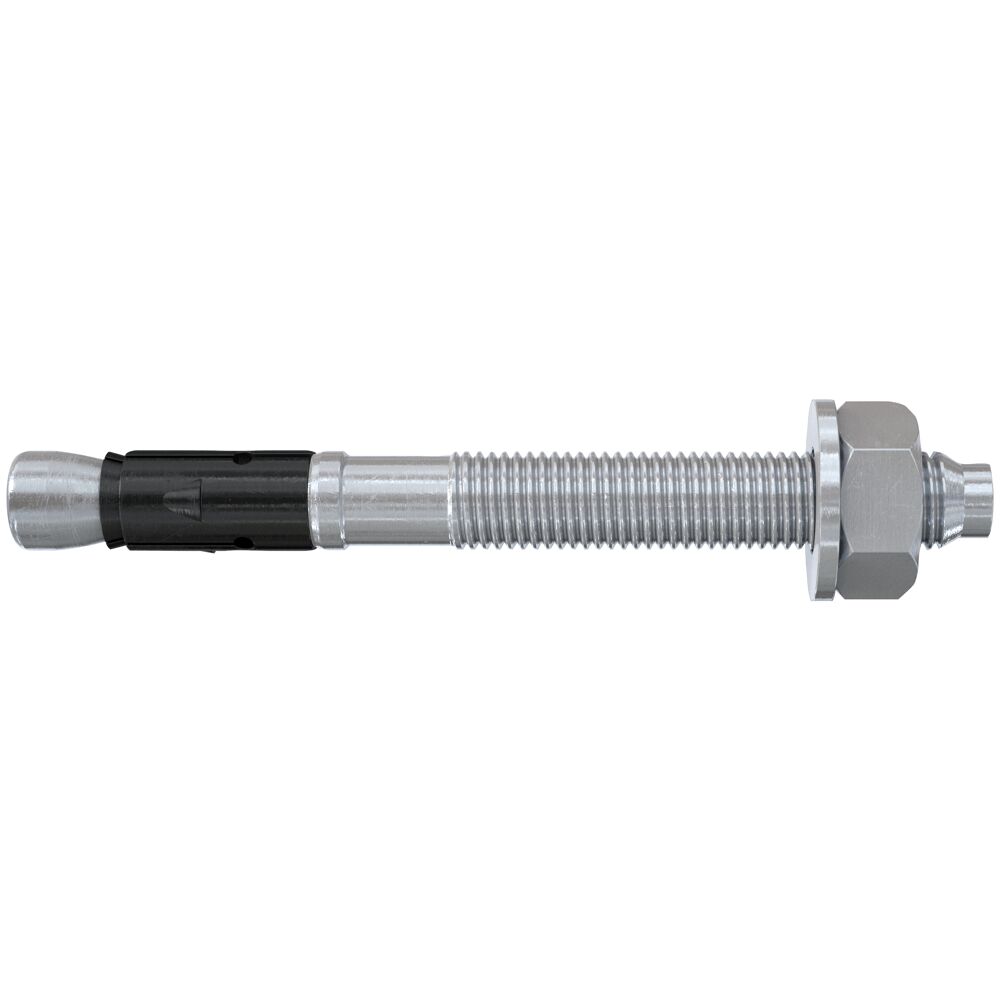

fischer FAZ II PLUS 16/200 ZP M16 x 323 zinc through bolt [564599]

Barcode: 4048962462241
Pack Size: 10
£82.70

Usually shipped in 1-2 days

fischer FAZ II PLUS 16/200 ZP M16 x 323 zinc through bolt [564599] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Fischer FAZ II PLUS 16/100 ZP M16 x 323 zinc is a high-tensile strength steel anchor for non-cracked/cracked concrete. It uses a tried-and-tested expansion clip to safely introduce loads into the concrete, enabling an immediately loadable high load-bearing capacity. It is ideal for anchoring railings, cable trays, and consoles.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

FM Approval Document:

Load Table Document:

Applications

Steel constructions

Guard rails

Consoles

Ladders

Cable trays

Machines

Staircases

Façades

Timber constructions

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15 (classification available)

Concrete C80/95 (classification available)

Steel fibre concrete (classification available)

Solid sand-lime brick (classification available)

You can find detailed information on building materials in the registration document.

Features

The first bolt anchor M6 with ETA evaluation option 1: Ensures a safe and approved anchorage.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), the tensile strengths increase decisively: Fewer fixing points and anchors are required.

ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

Specifications
  • Brand
    Fischer
  • Drill Diameter (MM)
    16
  • Functionality
    The FAZ II Plus is suitable for pre-positioned and push-through installation, and is also ideal for stand-off installation thanks to the long thread.

    When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.

    The anchor is set in line with the approval once the preset installation torque is achieved.

    In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
  • Installation Torque (TINST) (NM)
    110
  • Length (MM)
    323
  • Material
    Zinc-Plated
  • Max Usable Length HEF Stand/HEF Min
    200 / 220mm
  • Min Drill Hole Depth for Through Fixings (MM)
    310
  • Pack Size
    10
  • Seismic Approval
    C1 / C2
  • Thread
    M16 x 189mm
  • Type
    Through bolt
  • Width Across Nut (MM)
    24
