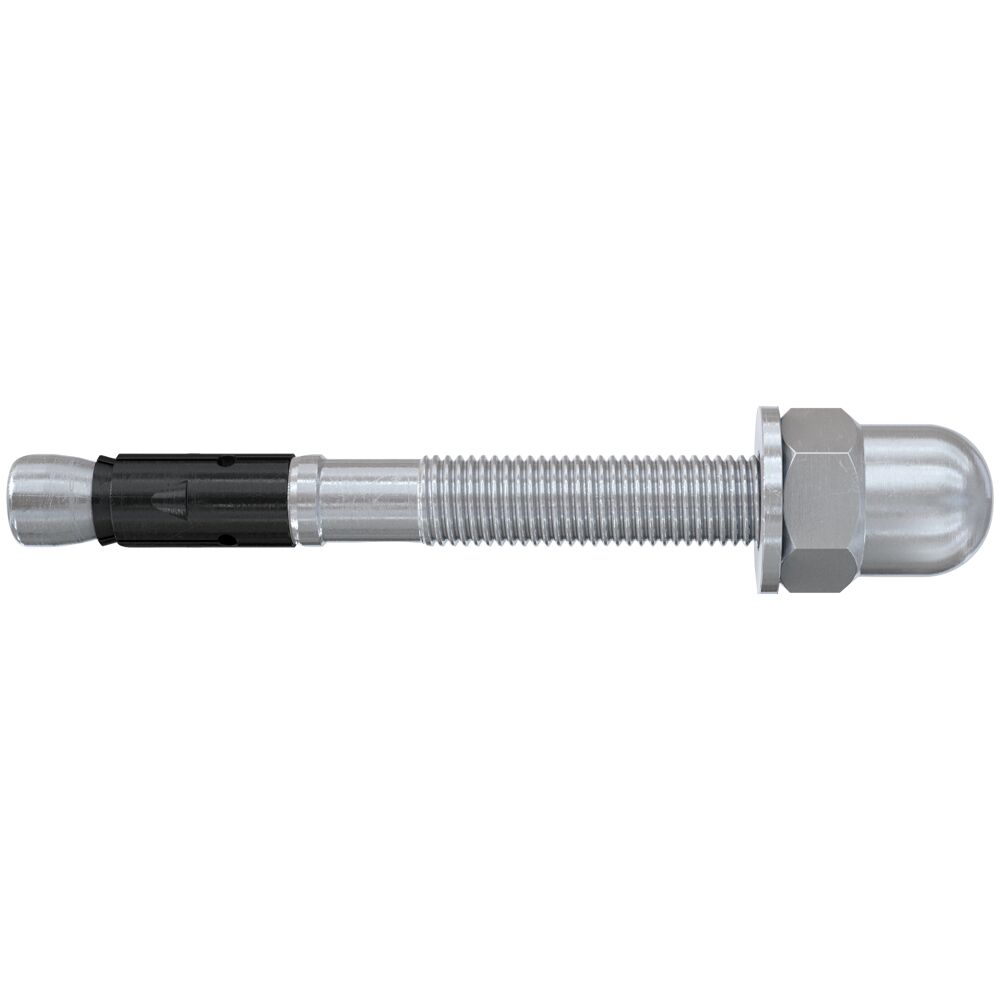

fischer FAZ II PLUS 10/20 H ZP M10 x 105 zinc plated through bolt with cap nut [564688]

Pack Size: 20
£172.85
The fischer bolt anchor FAZ II PLUS 10/20 H ZP M10 x 105 is the ideal solution for architecturally sophisticated applications. Its variable anchorage depths and easy installation make it versatile, while the tried-and-trusted expansion clip ensures a high load-bearing capacity. Perfect for anchoring railings in visible areas, the cap nut offers both refined design and accident-free installation.

fischer FAZ II PLUS 10/20 H ZP M10 x 105 zinc plated through bolt with cap nut [564688] is backordered and will ship as soon as it is back in stock.

Applications

Steel constructions

Guard rails

Consoles

Ladders

Cable trays

Machines

Staircases

Façades

Timber constructions

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15 (classification available)

Concrete C80/95 (classification available)

Steel fibre concrete (classification available)

Solid sand-lime brick (classification available)

You can find detailed information on building materials in the registration document.

Certifications

ETA-19/0520

DoP 0334

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.

Specifications

Reviews (0)

Delivery & Returns

For full delivery details please see our delivery page

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FAZ II PLUS 10/20 H ZP M10 x 105 zinc plated through bolt with cap nut [564688]

£172.85
The fischer bolt anchor FAZ II PLUS 10/20 H ZP M10 x 105 is the ideal solution for architecturally sophisticated applications. Its variable anchorage depths and easy installation make it versatile, while the tried-and-trusted expansion clip ensures a high load-bearing capacity. Perfect for anchoring railings in visible areas, the cap nut offers both refined design and accident-free installation.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

10

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Through bolt

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

M10 x 63mm

Size

N/A

Pack Size

20

Package Contents

N/A

Material

Zinc-Plated

Length (MM)

105

Min Drill Hole Depth for Through Fixings (MM)

97

Max Usable Length HEF Stand/HEF Min

20 / 40mm

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

17

Features

No need for drill hole cleaning (M8-M24): Quick and easier assembly.

Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fibre concrete, solid sand-lime brick): Increase the number of applications and fields of use.

With the new assessment (ETA), tensile strengths increase decisively: Fewer fixing points and anchors are required.

The ETA evaluation, together with other test reports (RWS, ZTV, ETK): High loads in case of fire.

Variable anchorage depths: Allows a millimetre-accurate adjustment to the loads.

The FAZ II Plus allows the absorption of high seismic loads of performance category C1 with and without the use of the filling disc FFD at installation: Flexible.
