CF-DSH-2-Z Distance set, Hexagon head with pressed-on washer, 5.5 x 50 (21-24), Partial thread (L1), AF 8, Bi-metal (A2 stainless steel/steel)/plastic, RUSPERT®, E16+SD19, 100 Pcs.

SKU: 17744
Barcode: 4005674702669
Pack Size: 100
£95.86

CF-DSH-2-Z Distance set, Hexagon head with pressed-on washer, 5.5 x 50 (21-24), Partial thread (L1), AF 8, Bi-metal (A2 stainless steel/steel)/plastic, RUSPERT®, E16+SD19, 100 Pcs. is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

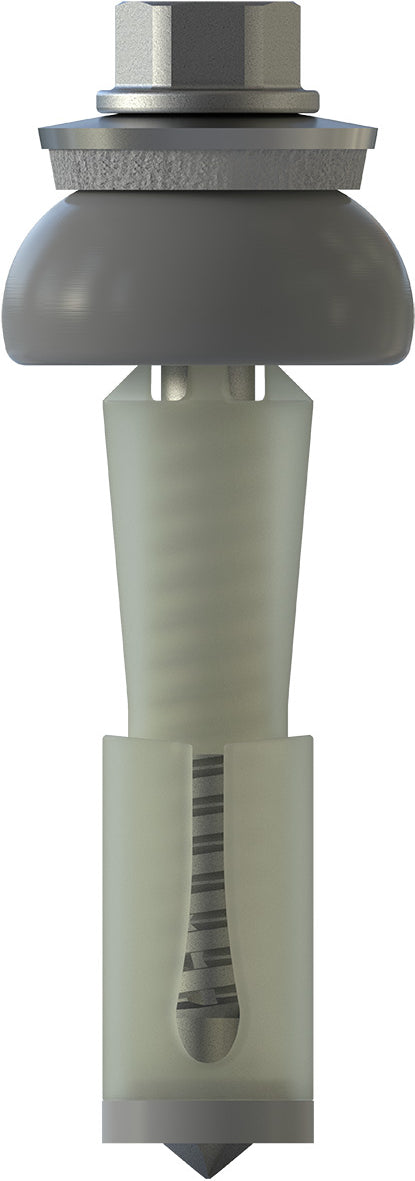

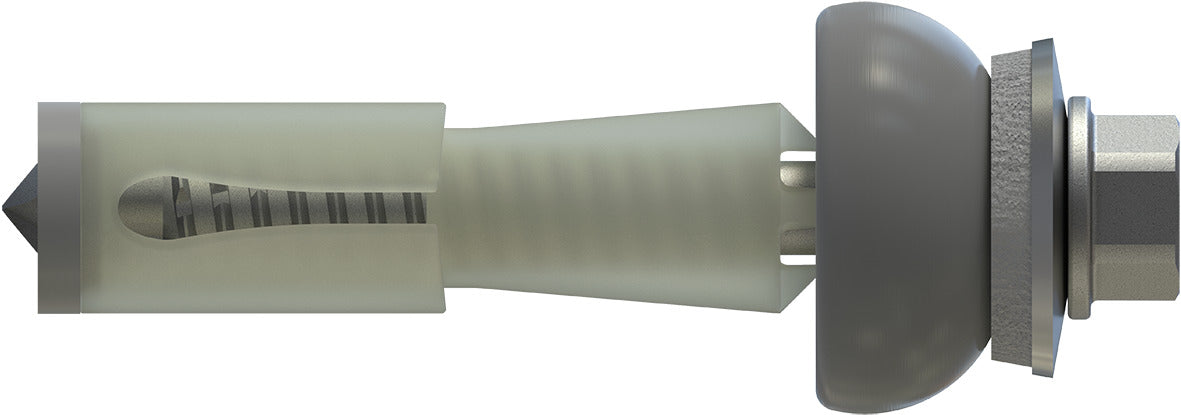

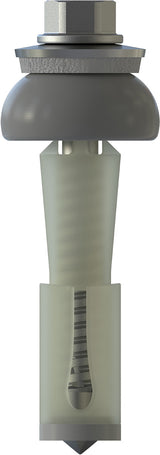

The Certifix CF-DSH-2-Z Distance Set is a premium fastening solution specifically designed for fixing light panels to steel and aluminum substructures. Ideal for projects like carports, pergolas, and canopies, this set features a bi-metal construction (A2 stainless steel and steel) with a high-performance RUSPERT® coating for superior corrosion resistance. The AF 8 hexagon head with a pressed-on washer ensures secure driving, while the partial thread design provides precise anchoring for roofing applications. This "one-person" installation system replaces cumbersome traditional methods, significantly reducing labor time and complexity. Each set is delivered as a complete, pre-assembled package containing the screw, seal, and sleeve, allowing it to be processed straight from the box. For enhanced protection, the large umbrella sealing system (E16+SD19) adapts perfectly to the shape of the profiles during compression, offering significantly improved sealing—especially on corrugated surfaces.

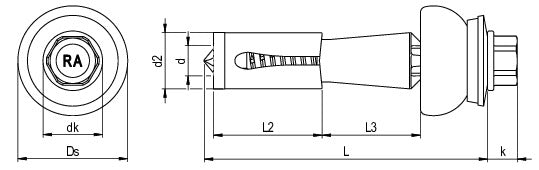

Technical Datasheet

Tech Datasheet:

Applications

Fasteners for fixing light panels to steel and aluminium substructures.
Carports, pergolas, canopies

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal and sleeve and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    5.50
  • Drilling Capacity
    Component 1 [mm]: Light panel 1 - 2 Component 2 [mm]: Steel 1.5 - 5.25; Aluminium 2.0 - 4.0
  • Driver Type
    AF 8
  • Head Diameter (mm)
    10.50
  • Head Type
    Hexagon Head with Pressed-on washer
  • Length (mm)
    50
  • Material
    Bi-metal (A2 stainless steel/steel)/plastic
  • Pack Size
    100
  • Thread Form
    Partial thread (L1)
  • Thread Length (mm)
    37
  • Thread Type
    Sheet metal thread
  • Type
    Self drilling screw
  • Washer Diameter (mm)
    16
  • Weight
    990.00 g

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Questions & Answers loading...
Certifix

CF-DSH-2-Z Distance set, Hexagon head with pressed-on washer, 5.5 x 50 (21-24), Partial thread (L1), AF 8, Bi-metal (A2 stainless steel/steel)/plastic, RUSPERT®, E16+SD19, 100 Pcs.

£95.86
The Certifix CF-DSH-2-Z Distance Set is a premium fastening solution specifically designed for fixing light panels to steel and aluminum substructures. Ideal for projects like carports, pergolas, and canopies, this set features a bi-metal construction (A2 stainless steel and steel) with a high-performance RUSPERT® coating for superior corrosion resistance. The AF 8 hexagon head with a pressed-on washer ensures secure driving, while the partial thread design provides precise anchoring for roofing applications. This "one-person" installation system replaces cumbersome traditional methods, significantly reducing labor time and complexity. Each set is delivered as a complete, pre-assembled package containing the screw, seal, and sleeve, allowing it to be processed straight from the box. For enhanced protection, the large umbrella sealing system (E16+SD19) adapts perfectly to the shape of the profiles during compression, offering significantly improved sealing—especially on corrugated surfaces.

Clamping Range (MM)

N/A

Diameter (MM)

5.50

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

16

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

37

Thread

N/A

Size

N/A

Pack Size

100

Package Contents

N/A

Material

N/A

Length (MM)

50

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal and sleeve and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.
