CF-FixFlex, Hexagon head, 9.5 x 22, Full thread, AF 8, Stainless steel A2 / EPDM, pickled, passivated, E16, 50 Pcs.

SKU: 17747
Pack Size: 50
£38.04

CF-FixFlex, Hexagon head, 9.5 x 22, Full thread, AF 8, Stainless steel A2 / EPDM, pickled, passivated, E16, 50 Pcs. is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix CF-FixFlex is a specialized expansion fastener designed for the secure connection of profiles made from various materials, particularly plastic and steel. This hexagon head (AF 8) solution features a full thread and is manufactured from pickled and passivated A2 stainless steel for lasting durability. It provides a fast, easy mounting solution that can be processed entirely from above, making it ideal for creating flexible butt joints and effectively sealing misdrilled holes. Equipped with an E16 EPDM seal, the CF-FixFlex ensures optimized sealing in joint areas through extensive compression. This high-quality EPDM component is specifically engineered to absorb thermal expansion, which helps prevent the development of stress cracks in light panels. By providing both a watertight seal and structural flexibility, the CF-FixFlex maintains the integrity of profile connections in demanding environments.

Technical Datasheet

Tech Datasheet:

Applications

Expansion fastener for profile connections made of various materials.
Flexible butt joint of plastic profiles and steel profiles, sealing of misdrilled holes

Features

Fast, easy mounting solution completely from above.
Optimised sealing in joint areas thanks to extensive compressed EPDM sealing.
Prevents stress cracks in light panels due to particularly good absorption of the expansion by the EPDM.

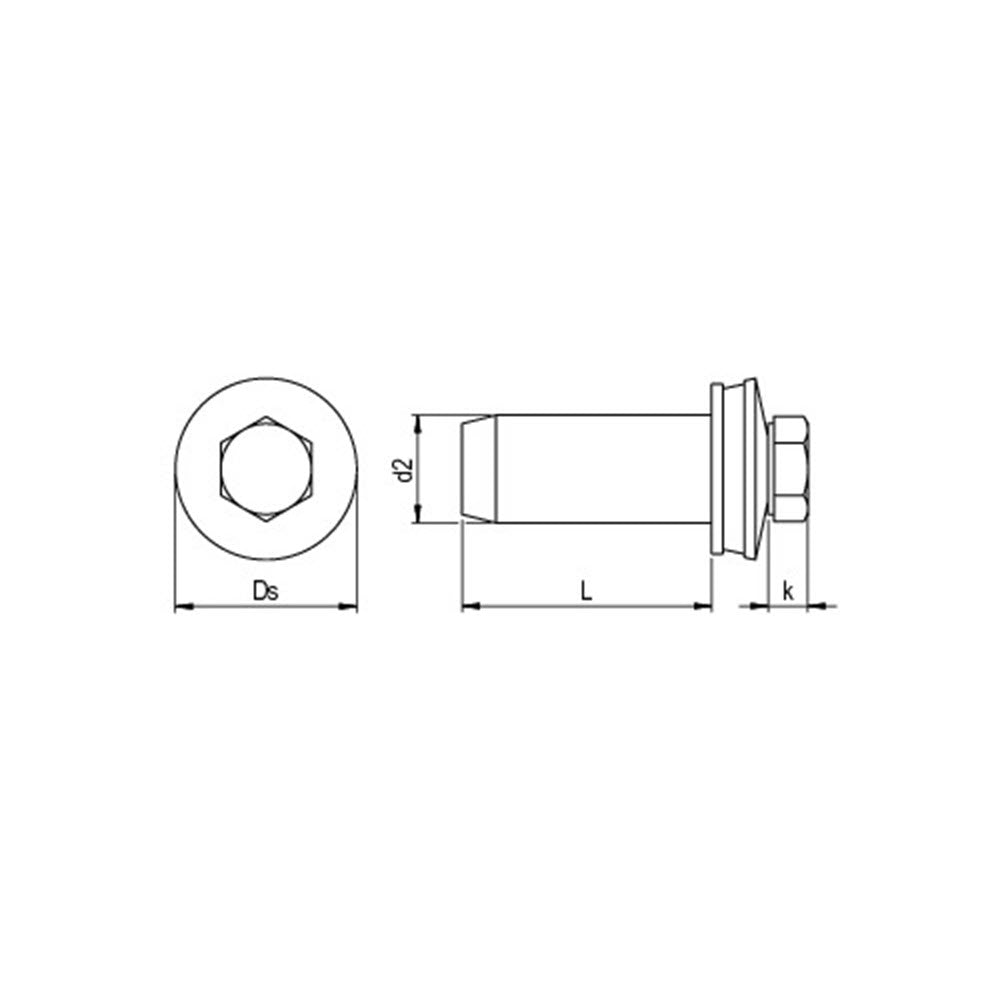

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    9.50
  • Drilling Capacity
    Component 1 [mm]: Light panel; Steel Component 2 [mm]: Light panel
  • Driver Type
    AF 8
  • Head Diameter (mm)
    7.80
  • Head Height (mm)
    3.80
  • Head Type
    Hexagon head
  • Length (mm)
    22
  • Material
    Stainless steel A2 / EPDM
  • Pack Size
    50
  • Thread Form
    Full thread
  • Thread Type
    Metric thread
  • Type
    Self drilling screw
  • Washer Diameter (mm)
    16
  • Weight
    430.00 g

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Questions & Answers loading...
Certifix

CF-FixFlex, Hexagon head, 9.5 x 22, Full thread, AF 8, Stainless steel A2 / EPDM, pickled, passivated, E16, 50 Pcs.

£38.04
The Certifix CF-FixFlex is a specialized expansion fastener designed for the secure connection of profiles made from various materials, particularly plastic and steel. This hexagon head (AF 8) solution features a full thread and is manufactured from pickled and passivated A2 stainless steel for lasting durability. It provides a fast, easy mounting solution that can be processed entirely from above, making it ideal for creating flexible butt joints and effectively sealing misdrilled holes. Equipped with an E16 EPDM seal, the CF-FixFlex ensures optimized sealing in joint areas through extensive compression. This high-quality EPDM component is specifically engineered to absorb thermal expansion, which helps prevent the development of stress cracks in light panels. By providing both a watertight seal and structural flexibility, the CF-FixFlex maintains the integrity of profile connections in demanding environments.

Clamping Range (MM)

N/A

Diameter (MM)

9.50

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

16

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

22

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Fast, easy mounting solution completely from above.
Optimised sealing in joint areas thanks to extensive compressed EPDM sealing.
Prevents stress cracks in light panels due to particularly good absorption of the expansion by the EPDM.
