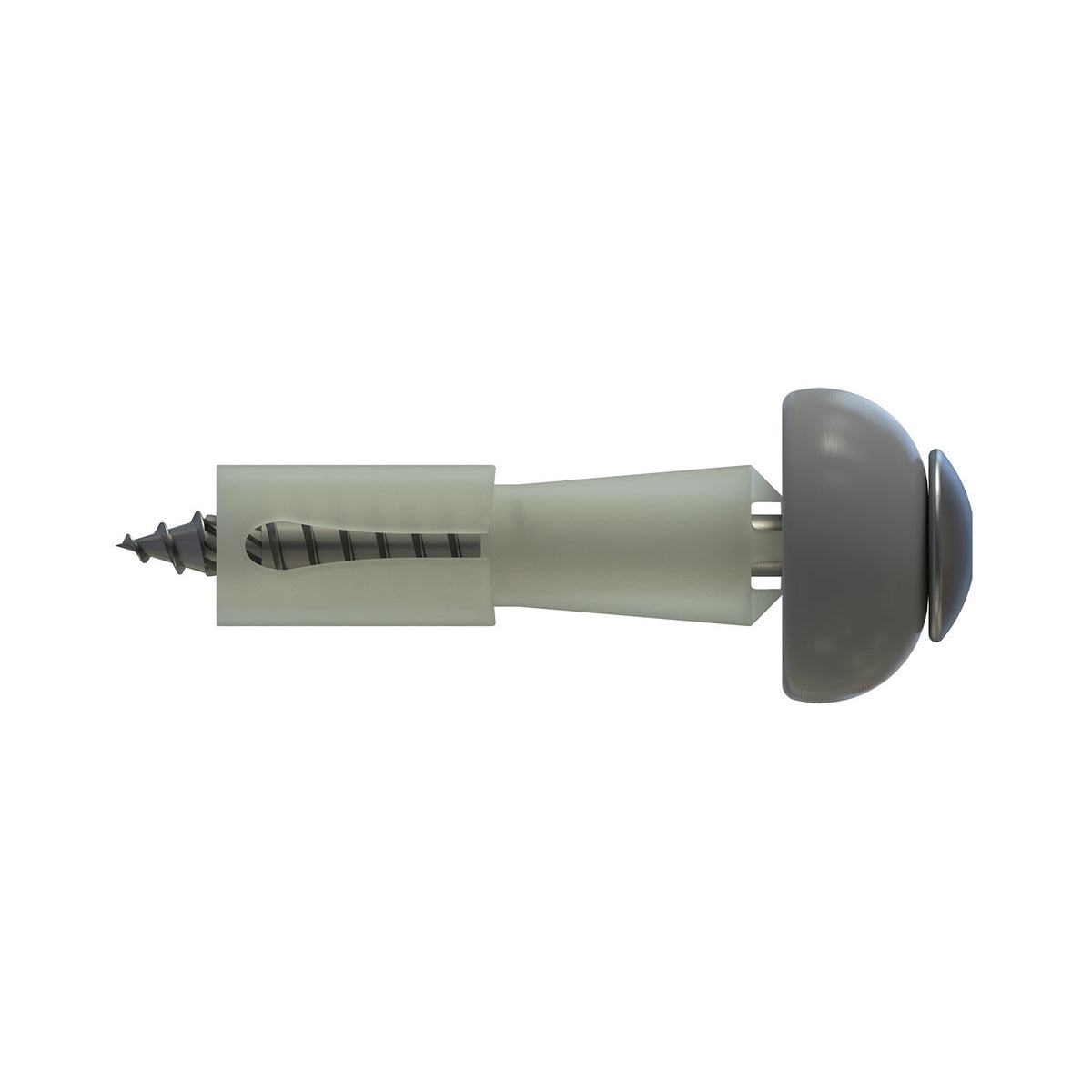

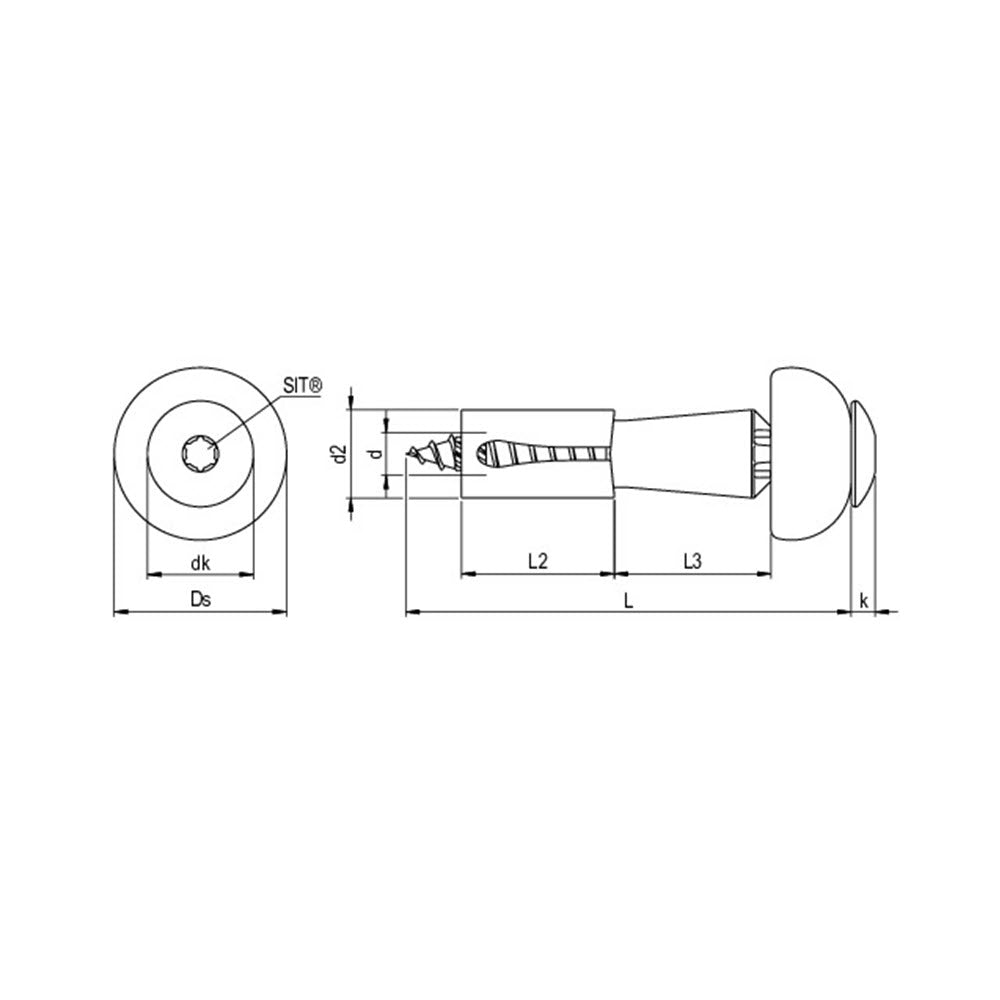

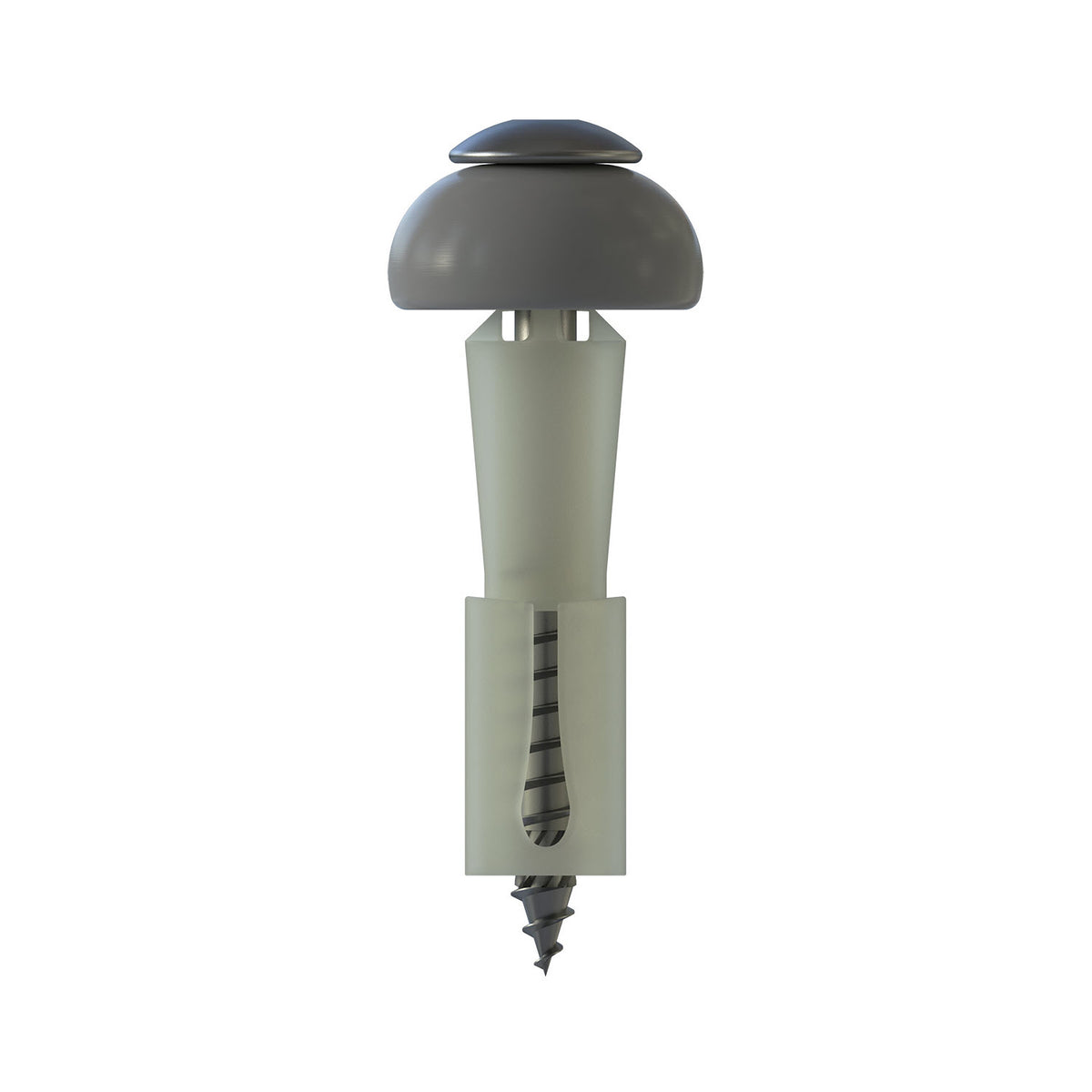

CF-DSH-2-A Distance set, Truss head, 4.8 x 50 (17-20), Partial thread, SIT® 20, A2 stainless steel/plastic SD19

SKU: 17572
Barcode: 4005674615013
Pack Size: 100
£54.02

CF-DSH-2-A Distance set, Truss head, 4.8 x 50 (17-20), Partial thread, SIT® 20, A2 stainless steel/plastic SD19 is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Certifix CF-DSH-2-A Distance set, Truss head, 4.8 x 50 (17-20), Partial thread, SIT® 20, A2 stainless steel/plastic SD19

Technical Datasheet

Tech Datasheet:

Applications

Fasteners for fixing light panels to wooden substructures.
Carports, pergolas, canopies.

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal, and sleeve, and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.
DRIBO® drill element to reduce splitting effect in the wood.
SIT®-drive ensures stable fastening without wobbling."

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    4.80
  • Drilling Capacity
    Component 1 [mm]: Light panel 1 - 2 Component 2 [mm]: Wood
  • Driver Type
    SIT® 20
  • Head Diameter (mm)
    12.00
  • Head Type
    Truss
  • Length (mm)
    50
  • Material
    A2 Stainless Steel / EPDM
  • Pack Size
    100
  • Thread Form
    Partial thread (L1)
  • Thread Length (mm)
    30
  • Thread Type
    Wooden thread
  • Type
    Self drilling screw
  • Washer Diameter (mm)
    19
  • Weight
    990.00 g

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Questions & Answers loading...
Certifix

CF-DSH-2-A Distance set, Truss head, 4.8 x 50 (17-20), Partial thread, SIT® 20, A2 stainless steel/plastic SD19

£54.02
Certifix CF-DSH-2-A Distance set, Truss head, 4.8 x 50 (17-20), Partial thread, SIT® 20, A2 stainless steel/plastic SD19

Clamping Range (MM)

N/A

Diameter (MM)

4.80

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

19

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

30

Thread

N/A

Size

N/A

Pack Size

100

Package Contents

N/A

Material

N/A

Length (MM)

50

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal, and sleeve, and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.
DRIBO® drill element to reduce splitting effect in the wood.
SIT®-drive ensures stable fastening without wobbling."
