1 10

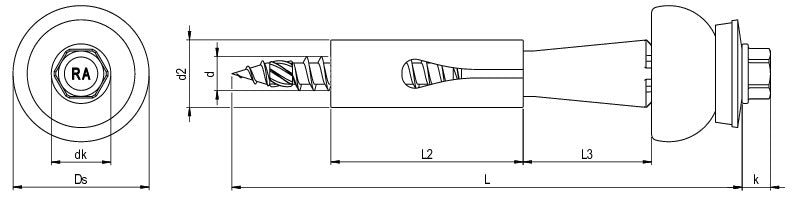

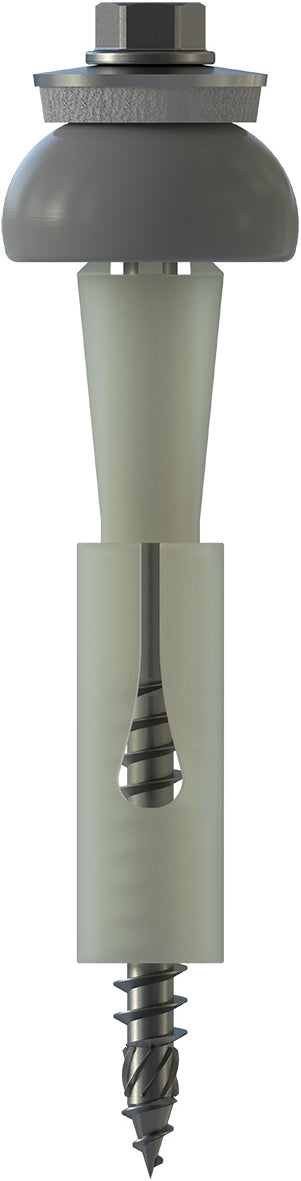

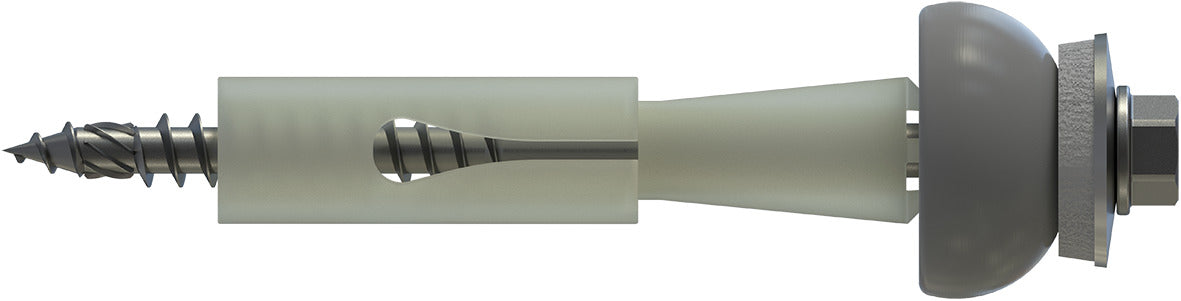

CF-DSH-2-A Distance set, Hexagon head with pressed-on washer, 6.0 x 90 (34-38), Partial thread (L1), AF 8, A2 stainless steel/plastic E19+SD24

SKU: 17732
Barcode: 4005674694414
Pack Size: 100
£162.26

CF-DSH-2-A Distance set, Hexagon head with pressed-on washer, 6.0 x 90 (34-38), Partial thread (L1), AF 8, A2 stainless steel/plastic E19+SD24 is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix CF-DSH-2-A Distance Set is a specialized fastening system engineered for the efficient installation of light panels onto wooden substructures. Crafted from pickled, passivated, and lubricated A2 stainless steel, this set is ideal for outdoor structures such as carports, pergolas, and canopies. By providing a complete, pre-assembled package—including the screw, seal, and sleeve—it transforms the traditionally cumbersome two-person task into a fast, easy-to-install one-person solution that can be processed immediately out of the box. This set features a truss head with a SIT® 20 drive for superior power transmission and a partial thread designed specifically for timber anchoring. The inclusion of a large SD19 umbrella sealing washer ensures a significantly improved seal, particularly on corrugated profiles, by adapting perfectly to the material's surface during compression. This ensures a watertight finish while protecting the panel from over-tightening.

Technical Datasheet

Tech Datasheet:

Applications

Fasteners for fixing light panels to wooden substructures.
Carports, pergolas, canopies

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal and sleeve and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.

Specifications
  • Brand
    Certifix
  • Drilling Capacity
    Component 1 [mm]: Light panel 1 - 2 Component 2 [mm]: Wood
  • Driver Type
    AF 8
  • Head Diameter (mm)
    10.50
  • Head Type
    Hexagon Head with Pressed-on washer
  • Length (mm)
    90
  • Material
    A2 Stainless Steel / EPDM
  • Pack Size
    100
  • Thread Form
    Partial thread (L1)
  • Thread Length (mm)
    41
  • Thread Type
    Wooden thread
  • Type
    Self drilling screw
  • Washer Diameter (mm)
    19
  • Weight
    2,370.00 g

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Questions & Answers loading...
Certifix

CF-DSH-2-A Distance set, Hexagon head with pressed-on washer, 6.0 x 90 (34-38), Partial thread (L1), AF 8, A2 stainless steel/plastic E19+SD24

£162.26
The Certifix CF-DSH-2-A Distance Set is a specialized fastening system engineered for the efficient installation of light panels onto wooden substructures. Crafted from pickled, passivated, and lubricated A2 stainless steel, this set is ideal for outdoor structures such as carports, pergolas, and canopies. By providing a complete, pre-assembled package—including the screw, seal, and sleeve—it transforms the traditionally cumbersome two-person task into a fast, easy-to-install one-person solution that can be processed immediately out of the box. This set features a truss head with a SIT® 20 drive for superior power transmission and a partial thread designed specifically for timber anchoring. The inclusion of a large SD19 umbrella sealing washer ensures a significantly improved seal, particularly on corrugated profiles, by adapting perfectly to the material's surface during compression. This ensures a watertight finish while protecting the panel from over-tightening.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

19

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

41

Thread

N/A

Size

N/A

Pack Size

100

Package Contents

N/A

Material

N/A

Length (MM)

90

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal and sleeve and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.
