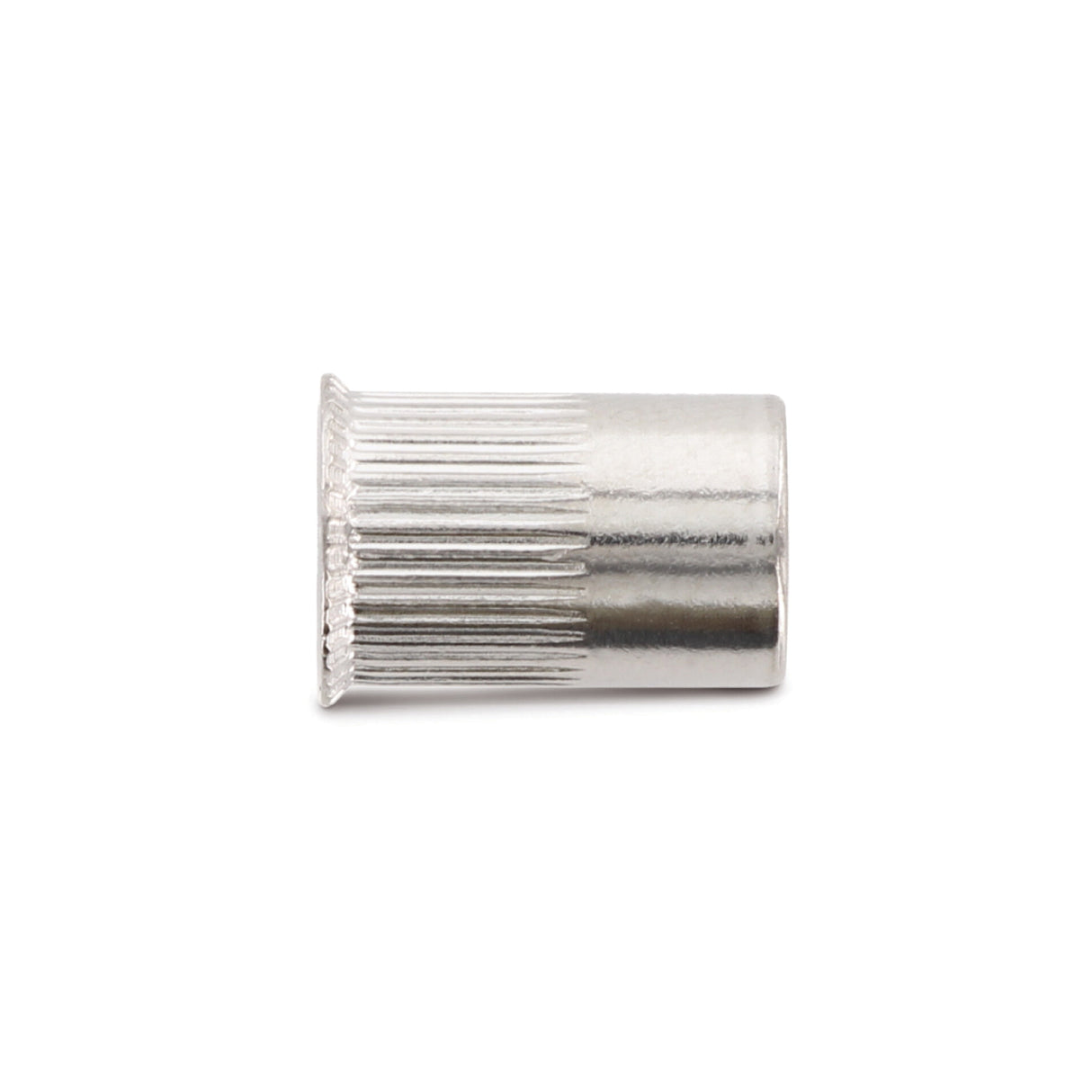

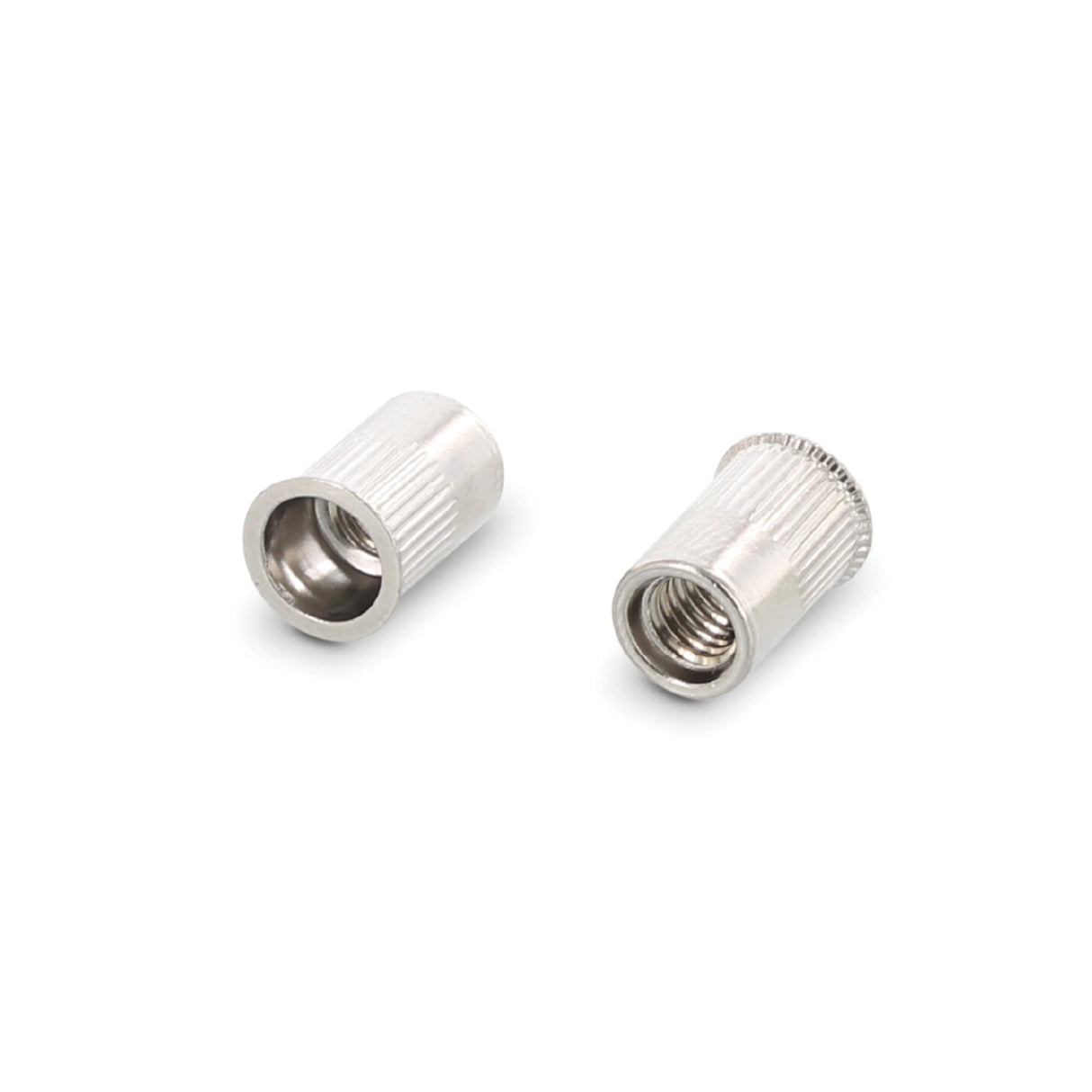

Certifix reduced countersunk head knurled insert nut A4 stainless M8 x 15.5

Pack Size: 500
£66.83

Certifix reduced countersunk head knurled insert nut A4 stainless M8 x 15.5 is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Rivet nuts with small CSK head, open type, knurled

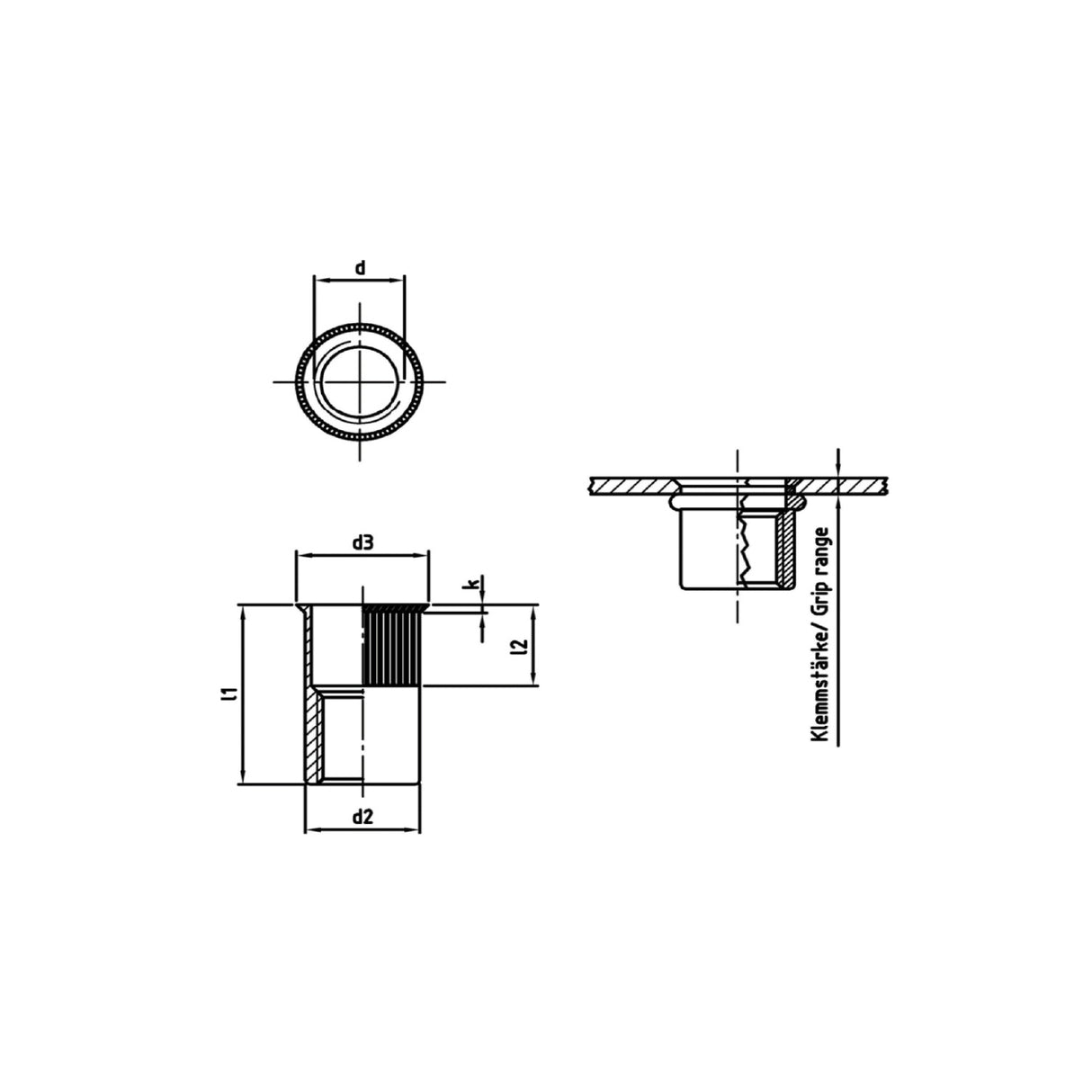

Technical Datasheet

Tech Datasheet:

Applications

Blind rivet nuts with knurled round shank is used when an application using the hex shank is not possible. This knurling is an additional security against rotation with hard materials as opposed to unknurled blind rivets.
The tightening torque specifications are guide values depending on the material of the original component and must be checked by testing the component.

Features

Surface-terse processing
The blind rivet can be sunk by the small countersunk shortly with the surface.

Specifications
  • Brand
    Certifix
  • Clamping Area
    0.5-3.0
  • coated
    No
  • Head Height (mm)
    0.80
  • Internal Diameter (mm)
    8.00
  • Length (MM)
    16
  • Material
    A4 Stainless Steel
  • Pack Size
    500
  • Size
    M8
  • Type
    Blind rivet nut

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix reduced countersunk head knurled insert nut A4 stainless M8 x 15.5

£66.83
Rivet nuts with small CSK head, open type, knurled

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Blind rivet nut

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M8

Pack Size

500

Package Contents

N/A

Material

N/A

Length (MM)

16

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Surface-terse processing
The blind rivet can be sunk by the small countersunk shortly with the surface.
