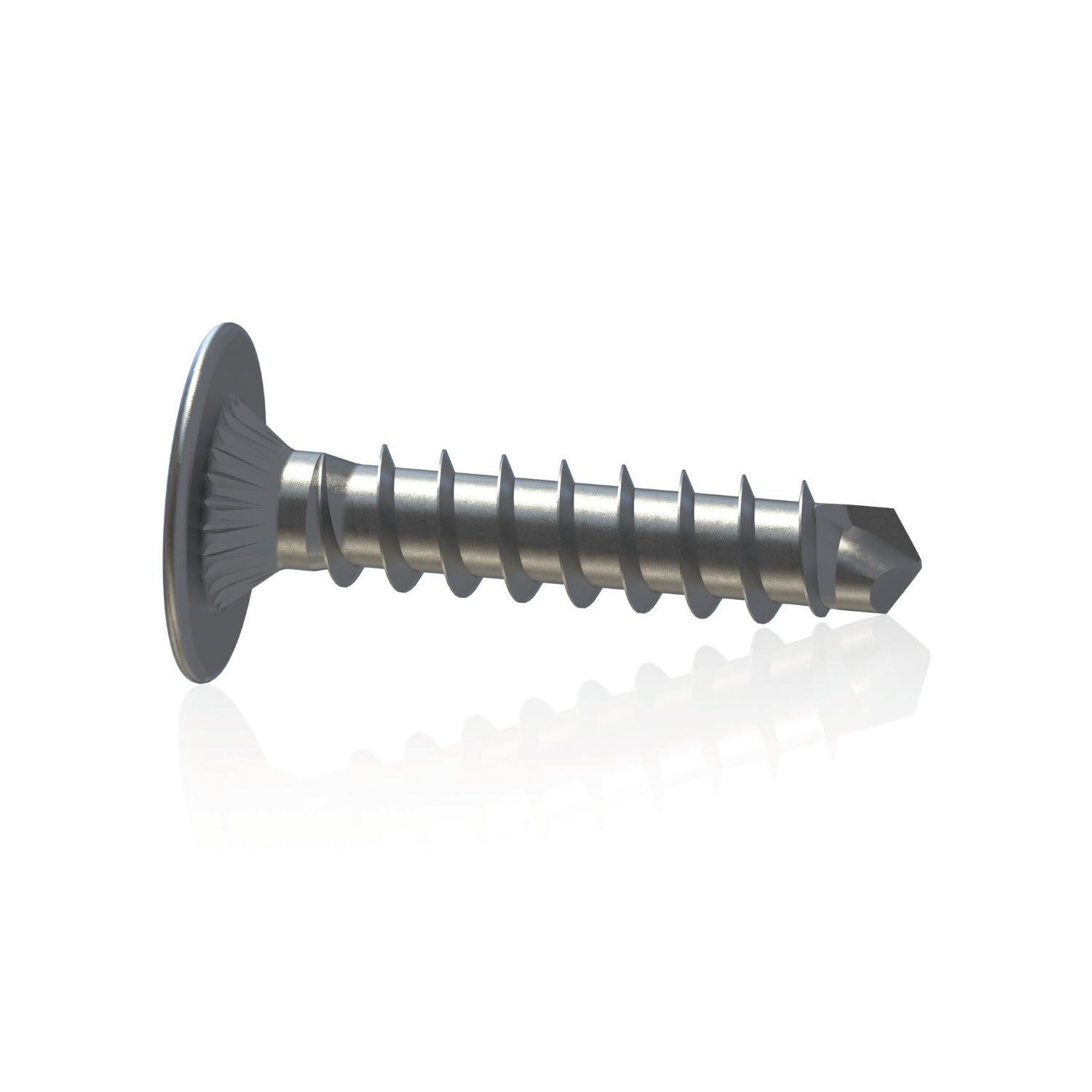

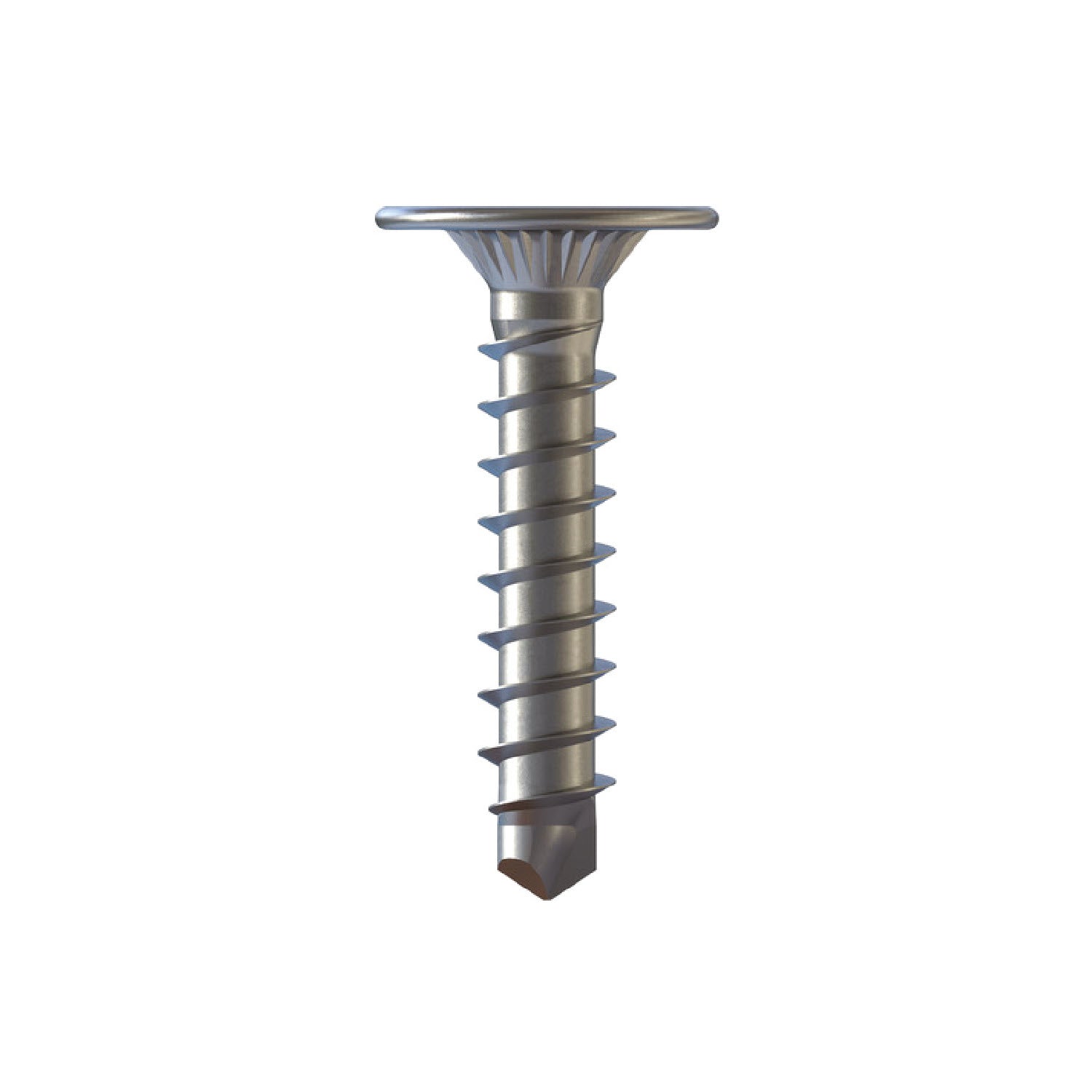

Certifix CFTSF2 4.9×24 TX20 BiMetal A2, Countersunk with SIT®20 cleat screw

Pack Size: 200
£20.00

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The CERTIFIX CFTSF2 4.9×24 TX20 BiMetal A2 Cleat Screw is a high-performance, specialised drilling screw designed for the direct and frictionless fastening of standing seam cleats onto metal substructures. This screw integrates a drilling process with the fastening solution, offering significant time and cost savings during installation on both aluminium and structural steel roof and façade components. The screw's design is optimized for standing seam systems. Its flat, washer countersunk head ensures a low-profile contact surface, guaranteeing both high contact pressure and a friction-free path for the standing seam sheets to slide over, accommodating thermal expansion without causing damage. The advanced SIT®20 drive provides wobble-free screwing, maximum power transmission, and compatibility with standard TX bits. Crucially, the inclusion of a locking serration prevents both overwinding during installation and inadvertent unscrewing over time, enhancing the fastener's longevity and security. The robust single start thread ensures a high load capacity, while the sharp drill tip handles simultaneous drilling into the substrate, making the CFTSF2 a professional, efficient, and reliable solution for fixing cleats, comb fillers, edge parts, and metal sheets. Positioning can also be corrected and dismantled without damaging the cleats.

Technical Datasheet

Tech Datasheet:

Applications

Drilling screw for fastening standing seam cleats to aluminium and steel substructures.
For fixing standing seam cleats, plastic and aluminium eaves comb fillers, edge parts and metal sheets to the roof and the façade

Features

SIT® drive: Quick drive finding, wobble-free screwing in, maximum power transmission without the risk of overspeeding and processing with Standard TX bits possible.
Washer countersunk head: Flat contact surface, high contact pressure and perfect fit.
Locking serration: Inhibits overwinding and inadvertent unscrewing.
Single start thread: high load capacity.
Drill tip: drills aluminium and structural steel.
Time and cost savings thanks to the screwing solution with simultaneous drilling process.
Position can be easily corrected without damaging the cleats and can be dismantled.
Flat head for friction-free sliding of standing seam sheets.
Inhibiting effect against over & reverse rotation due to locking serration.

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    4.90
  • Drilling Capacity
    Component 1 [mm]: A2 stainless steel (pre-punched)/plastic/aluminium 0.5 - 1.0 Component 2 [mm]: Wood
  • Driver Type
    TX20
  • Head Diameter (mm)
    12.00
  • Head Height (mm)
    0.80
  • Head Type
    Countersunk
  • Length (MM)
    24
  • Material
    A2 Stainless Steel Bi-Metal
  • Pack Size
    200
  • Thread Length (MM)
    20
  • Type
    Cleat screw

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix CFTSF2 4.9×24 TX20 BiMetal A2, Countersunk with SIT®20 cleat screw

£20.00
The CERTIFIX CFTSF2 4.9×24 TX20 BiMetal A2 Cleat Screw is a high-performance, specialised drilling screw designed for the direct and frictionless fastening of standing seam cleats onto metal substructures. This screw integrates a drilling process with the fastening solution, offering significant time and cost savings during installation on both aluminium and structural steel roof and façade components. The screw's design is optimized for standing seam systems. Its flat, washer countersunk head ensures a low-profile contact surface, guaranteeing both high contact pressure and a friction-free path for the standing seam sheets to slide over, accommodating thermal expansion without causing damage. The advanced SIT®20 drive provides wobble-free screwing, maximum power transmission, and compatibility with standard TX bits. Crucially, the inclusion of a locking serration prevents both overwinding during installation and inadvertent unscrewing over time, enhancing the fastener's longevity and security. The robust single start thread ensures a high load capacity, while the sharp drill tip handles simultaneous drilling into the substrate, making the CFTSF2 a professional, efficient, and reliable solution for fixing cleats, comb fillers, edge parts, and metal sheets. Positioning can also be corrected and dismantled without damaging the cleats.

Clamping Range (MM)

N/A

Diameter (MM)

4.90

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Cleat screw

Torque Moment (NM)

N/A

Thread Length (MM)

20

Thread

N/A

Size

N/A

Pack Size

200

Package Contents

N/A

Material

N/A

Length (MM)

24

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

SIT® drive: Quick drive finding, wobble-free screwing in, maximum power transmission without the risk of overspeeding and processing with Standard TX bits possible.
Washer countersunk head: Flat contact surface, high contact pressure and perfect fit.
Locking serration: Inhibits overwinding and inadvertent unscrewing.
Single start thread: high load capacity.
Drill tip: drills aluminium and structural steel.
Time and cost savings thanks to the screwing solution with simultaneous drilling process.
Position can be easily corrected without damaging the cleats and can be dismantled.
Flat head for friction-free sliding of standing seam sheets.
Inhibiting effect against over & reverse rotation due to locking serration.
