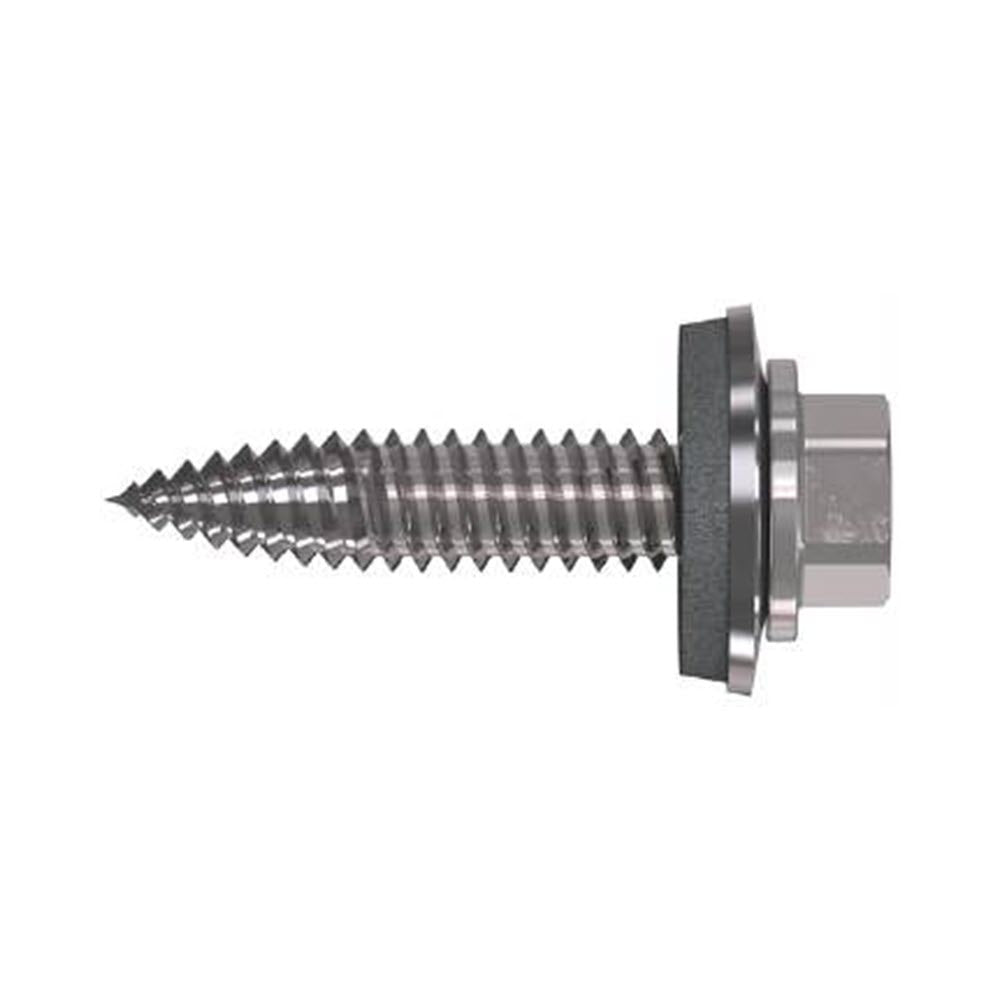

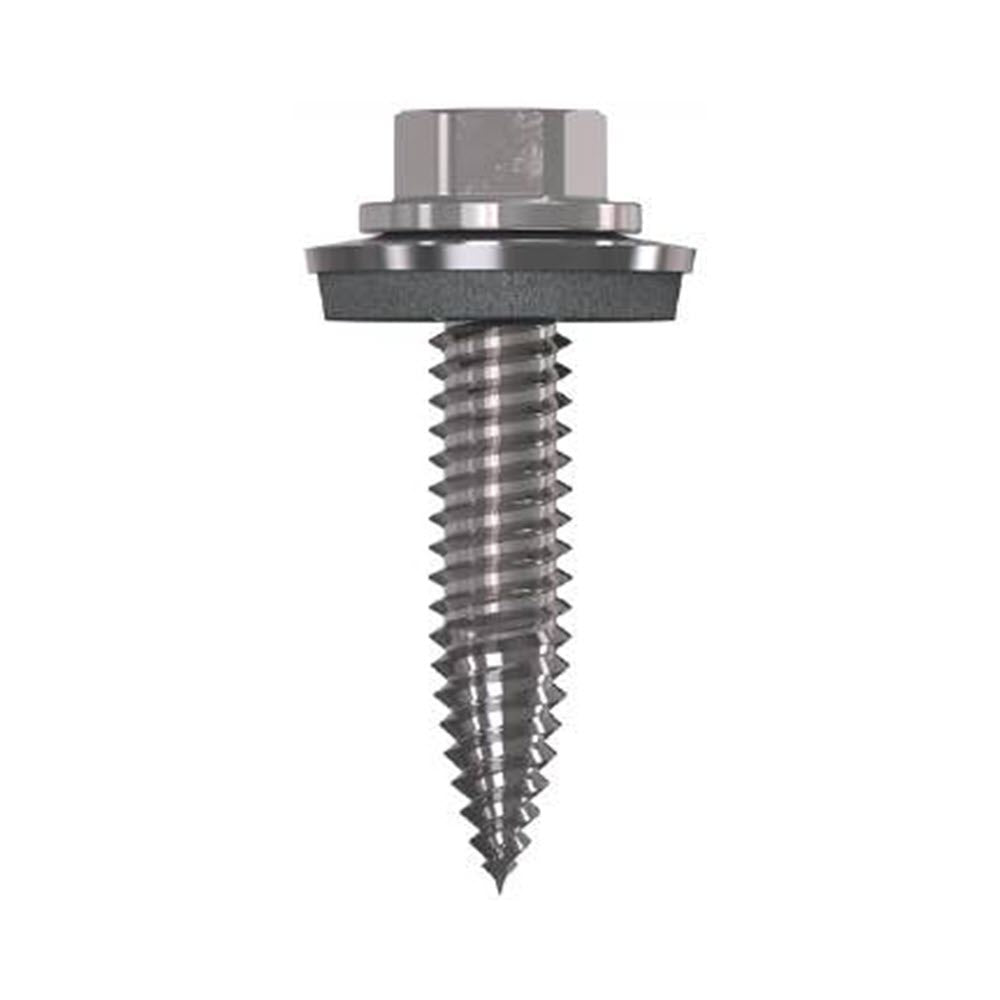

Certifix CFSSH2 BiMetal A2, 6.0 x 25mm Hex Head, 16mm bonded washer thin sheet screw

SKU: 10518
Pack Size: 100
£94.36

Usually shipped in 1-2 business days

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix CFSSH2 BiMetal A2, 6.0 x 25mm Hex Head, 16mm bonded washer thin sheet screw is a ETA-certified, thin sheet screw for fastening of aluminium and steel profile sheets or standing seam holders to metal substructures

Technical Datasheet

Tech Datasheet:

Applications

Fastening aluminium and steel profile sheets to aluminium and steel.
Fixing aluminium standing seam holders to steel substructures.

Features

High pull-out values even in thin-walled components. More thread turns are formed in the displaced material owing to the thin sheet metal tip.
Fast screw-in speed due to double thread.
No subsequent cleaning of the roof surface is needed thanks to chip-free fastening = time and cost savings.
Hexagon head: High power transmission.
Pressed on washer: Robust and insensitive to dirt, ideal for head painting and no damage to the component by the screw-in tool.
EPDM sealing washer: long lasting, UV-stable and prevents the ingress of water whilst providing a long-lasting seal for the connection.
Double threaded thin sheet metal thread: High pull-out forces. Guarantees fast screw-in speeds.
Thin sheet metal tip: Chip-free penetration of thin sheet and aluminium. Higher folding forces, more threads involved due to funnel formation.

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    6.00
  • Drilling Capacity
    Component 1 [mm]: Steel 0.4 - 1.0; Aluminium 0.5 - 1.0 Component 2 [mm]: Steel 0.4 - 1.25; Aluminium 0.5 - 1.5
  • Driver Type
    AF 8
  • Head Diameter (mm)
    6.80
  • Head Height (mm)
    1.00
  • Head Type
    Hexagonal Washer
  • Length (MM)
    25
  • Material
    Bimetal (stainless steel A2/steel)
  • Pack Size
    100
  • Thread Length (MM)
    25
  • Thread Type
    Double threaded thin sheet metal thread
  • Type
    Self drilling screw
  • Washer Diameter (MM)
    16
  • Weight
    798.00 g

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix CFSSH2 BiMetal A2, 6.0 x 25mm Hex Head, 16mm bonded washer thin sheet screw

£94.36
The Certifix CFSSH2 BiMetal A2, 6.0 x 25mm Hex Head, 16mm bonded washer thin sheet screw is a ETA-certified, thin sheet screw for fastening of aluminium and steel profile sheets or standing seam holders to metal substructures

Clamping Range (MM)

N/A

Diameter (MM)

6.00

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

16

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

25

Thread

N/A

Size

N/A

Pack Size

100

Package Contents

N/A

Material

N/A

Length (MM)

25

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

High pull-out values even in thin-walled components. More thread turns are formed in the displaced material owing to the thin sheet metal tip.
Fast screw-in speed due to double thread.
No subsequent cleaning of the roof surface is needed thanks to chip-free fastening = time and cost savings.
Hexagon head: High power transmission.
Pressed on washer: Robust and insensitive to dirt, ideal for head painting and no damage to the component by the screw-in tool.
EPDM sealing washer: long lasting, UV-stable and prevents the ingress of water whilst providing a long-lasting seal for the connection.
Double threaded thin sheet metal thread: High pull-out forces. Guarantees fast screw-in speeds.
Thin sheet metal tip: Chip-free penetration of thin sheet and aluminium. Higher folding forces, more threads involved due to funnel formation.
