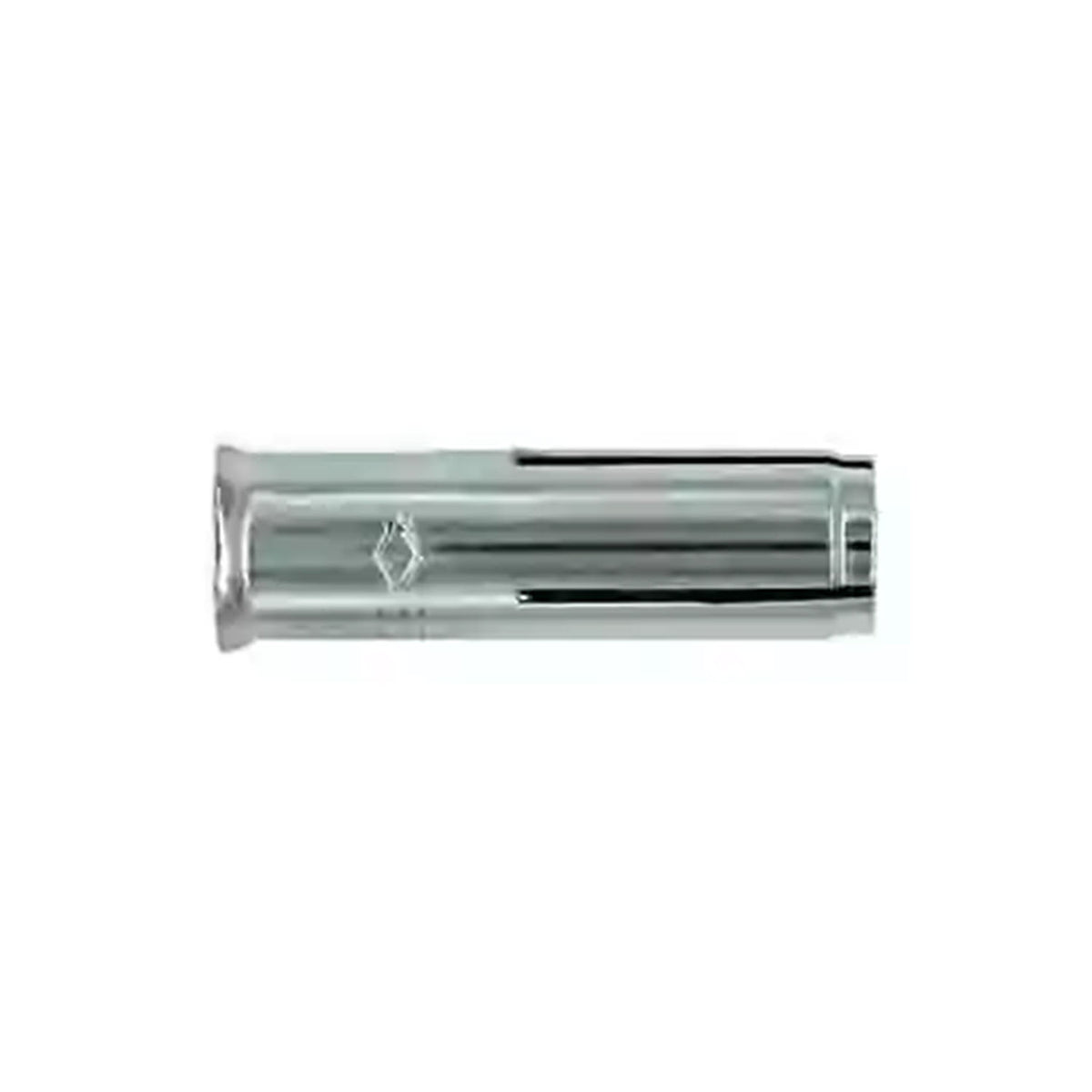

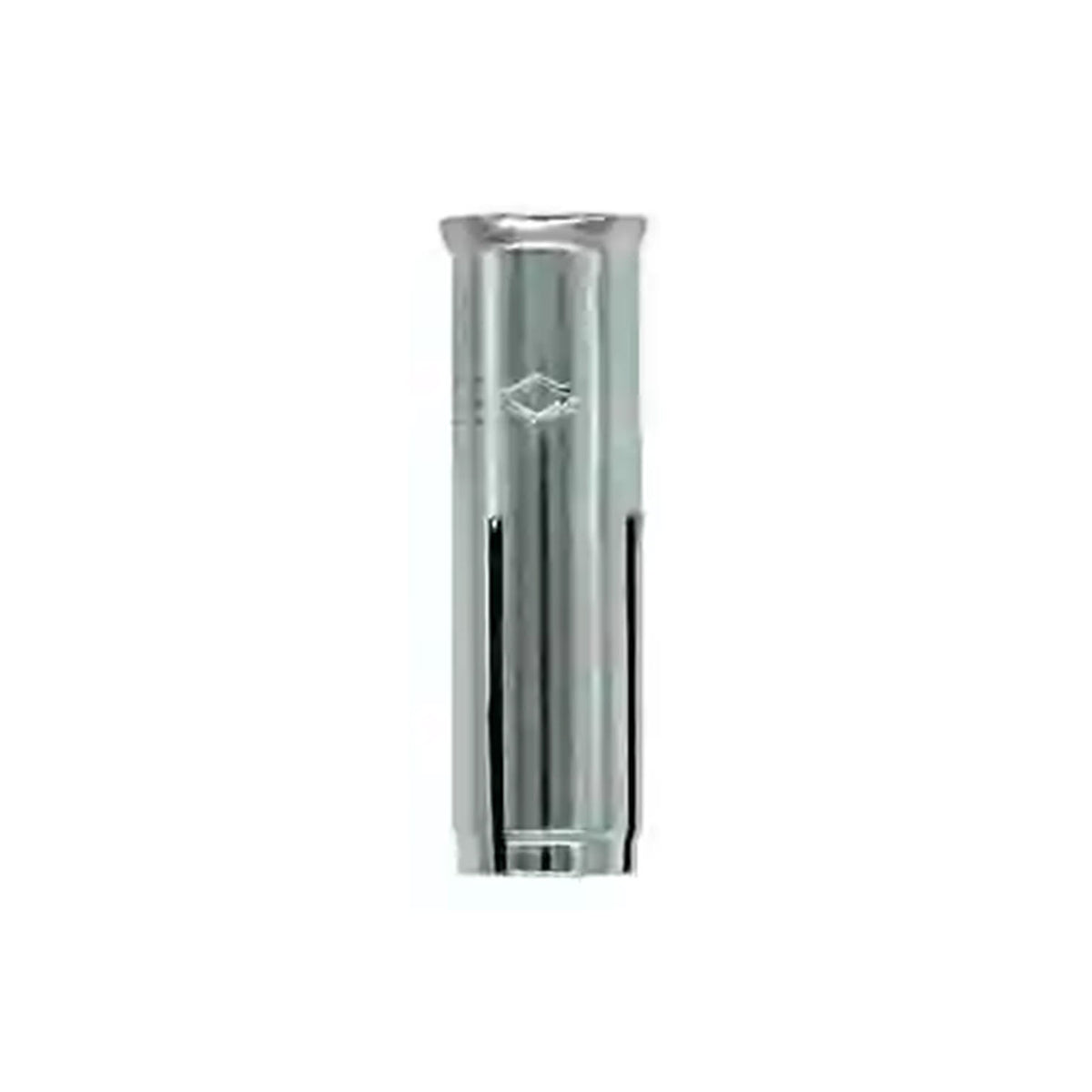

Certifix CFES A4 stainless drop in hammerset anchor M12 x 50

SKU: 17751
Pack Size: 50
£199.63

Certifix CFES A4 stainless drop in hammerset anchor M12 x 50 is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Drop-in Anchor CFE/CFES A4 / E HCR is approved as single anchor in uncracked concrete, as well as for redundant fastening use for nonstructural applications in cracked and uncracked concrete. The Drop-in Anchor CFE/CFES A4 / E HCR is placed into the drill hole in pre-setting installation and expanded reliably by means of a manual or hammer drill setting tool. Using a detachable setting tool with a stop drill bit (ASW) allows for quick and efficient, high volume installations. Using the marking setting tool produces a visible marking on the anchor sleeve which confirms the correct installation. The use of coated screws is necessary in order to be able to remove the fixture.

Technical Datasheet

FM Approval Document:

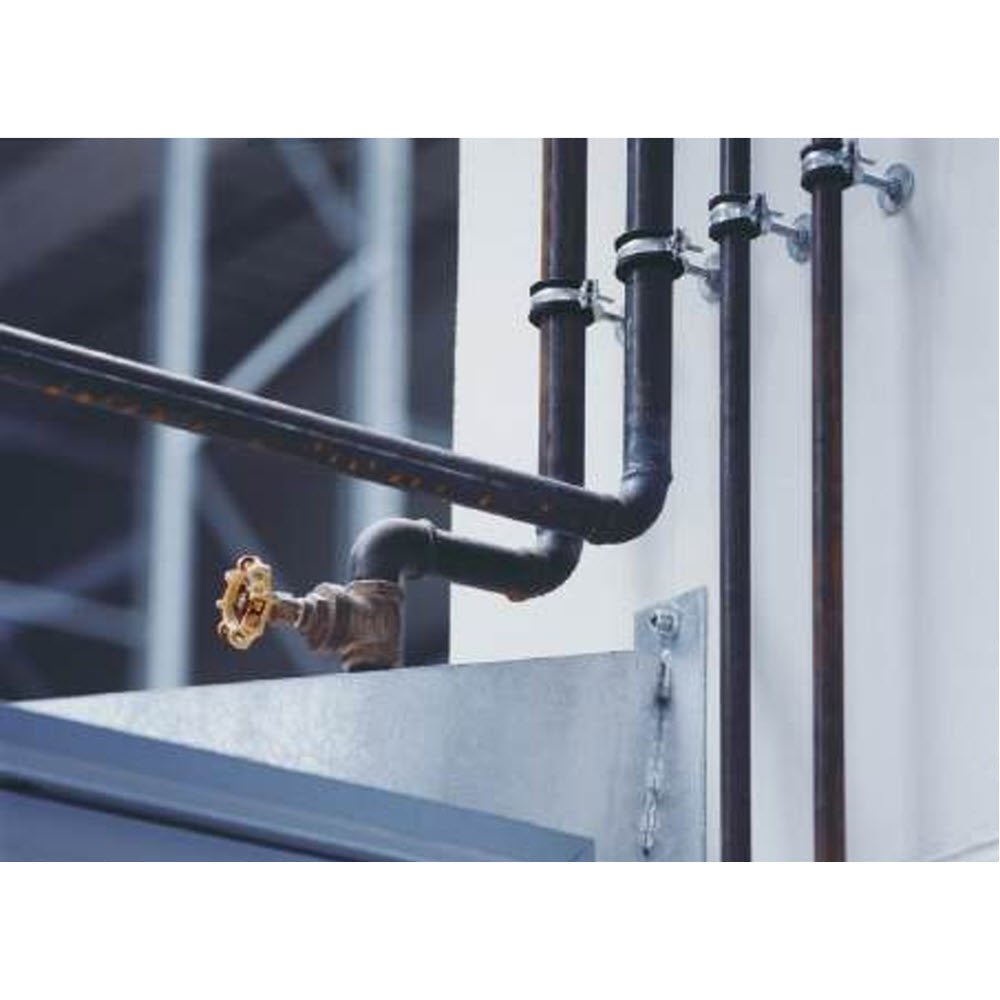

Applications

Attaching suspended ceilings
Ventilation
Sprinkler systems
Structural steel
Brackets
Threaded rods

Features

Approved for use as multiple fixing in cracked and uncracked concrete.
Approved for use as single fixing in uncracked concrete.
Quick, efficient and energy - saving installation thanks to stop drill bit and plug-on setting tool.
Simple visual inspection with marking tool.
Many possible applications due to the use of standard metric screws and threaded rods.
FM approval for the installation of sprinkler systems (M10-M20).
Suitable for the installation of sprinkler systems according to the requirements of damage prevention VDS, GmbH.
Fire resistance tested in concrete C20/25 to C50/60.
Lipped Drop-in for installations in a bottomless hole.

Specifications
  • Brand
    Certifix
  • Drill Diameter (mm)
    15
  • Drill Hole Depth (mm)
    50
  • Functionality
    The EA II is suitable for pre-positioned installation.

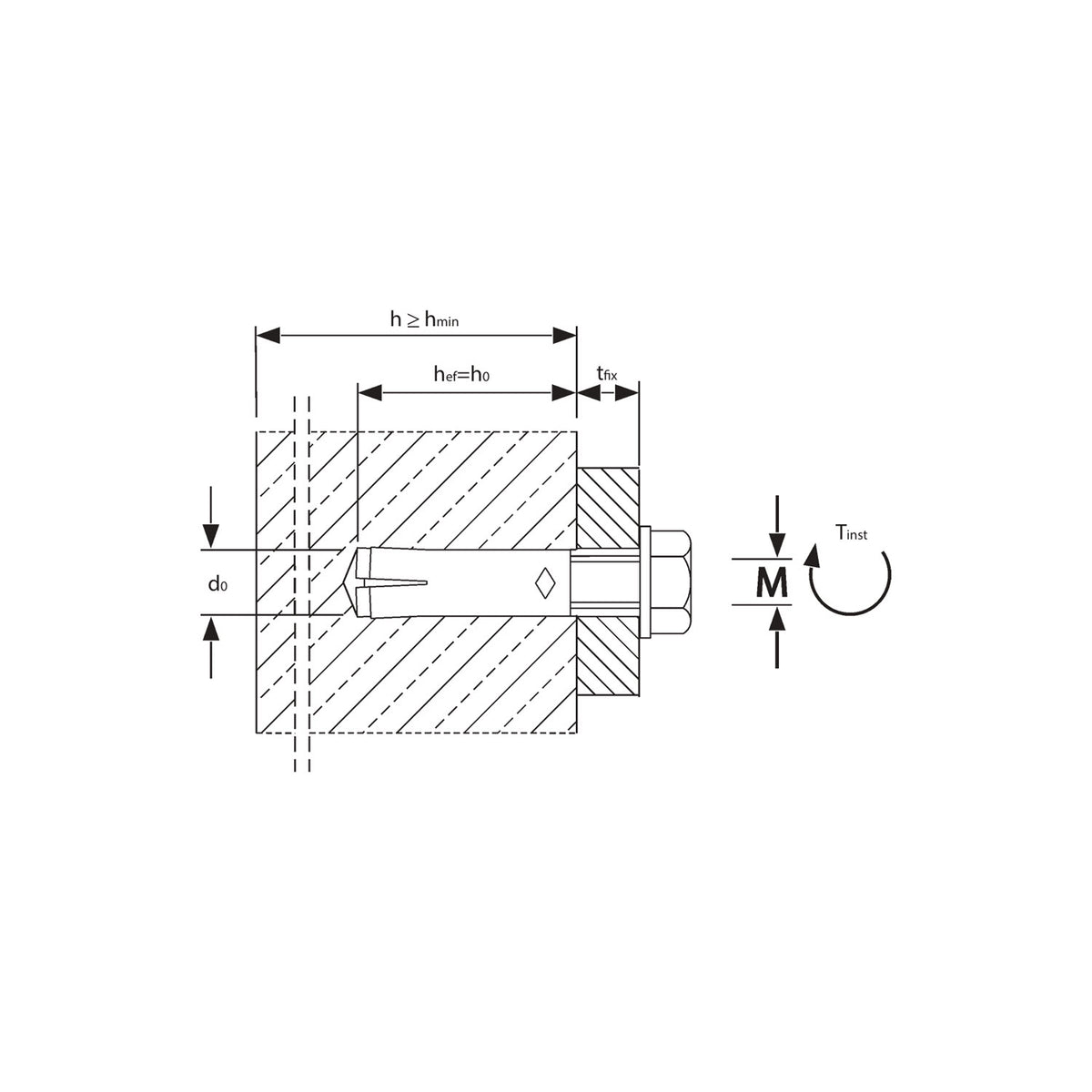

    Position the hammerset anchor in the drill hole and drive in flush to the surface of the anchor base using the hammer.
    The sleeve is then expanded by driving in the internal bolt with the EHS Plus setting tool (alternative: EMS machine setting tool), and expanded against the drill hole wall.
    The setting tools must sit on the rim of the anchor to ensure correct expansion.
  • Length (mm)
    50
  • Material
    A4 Stainless Steel
  • Pack Size
    50
  • Size
    M12
  • Thread
    M12 x 18mm
  • Thread Length (mm)
    18
  • Type
    Drop-in anchor

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Questions & Answers loading...
Certifix

Certifix CFES A4 stainless drop in hammerset anchor M12 x 50

£199.63
The Drop-in Anchor CFE/CFES A4 / E HCR is approved as single anchor in uncracked concrete, as well as for redundant fastening use for nonstructural applications in cracked and uncracked concrete. The Drop-in Anchor CFE/CFES A4 / E HCR is placed into the drill hole in pre-setting installation and expanded reliably by means of a manual or hammer drill setting tool. Using a detachable setting tool with a stop drill bit (ASW) allows for quick and efficient, high volume installations. Using the marking setting tool produces a visible marking on the anchor sleeve which confirms the correct installation. The use of coated screws is necessary in order to be able to remove the fixture.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

15

Drill Hole Depth (MM)

50

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Drop-in anchor

Torque Moment (NM)

N/A

Thread Length (MM)

18

Thread

M12 x 18mm

Size

M12

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

50

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Approved for use as multiple fixing in cracked and uncracked concrete.
Approved for use as single fixing in uncracked concrete.
Quick, efficient and energy - saving installation thanks to stop drill bit and plug-on setting tool.
Simple visual inspection with marking tool.
Many possible applications due to the use of standard metric screws and threaded rods.
FM approval for the installation of sprinkler systems (M10-M20).
Suitable for the installation of sprinkler systems according to the requirements of damage prevention VDS, GmbH.
Fire resistance tested in concrete C20/25 to C50/60.
Lipped Drop-in for installations in a bottomless hole.
