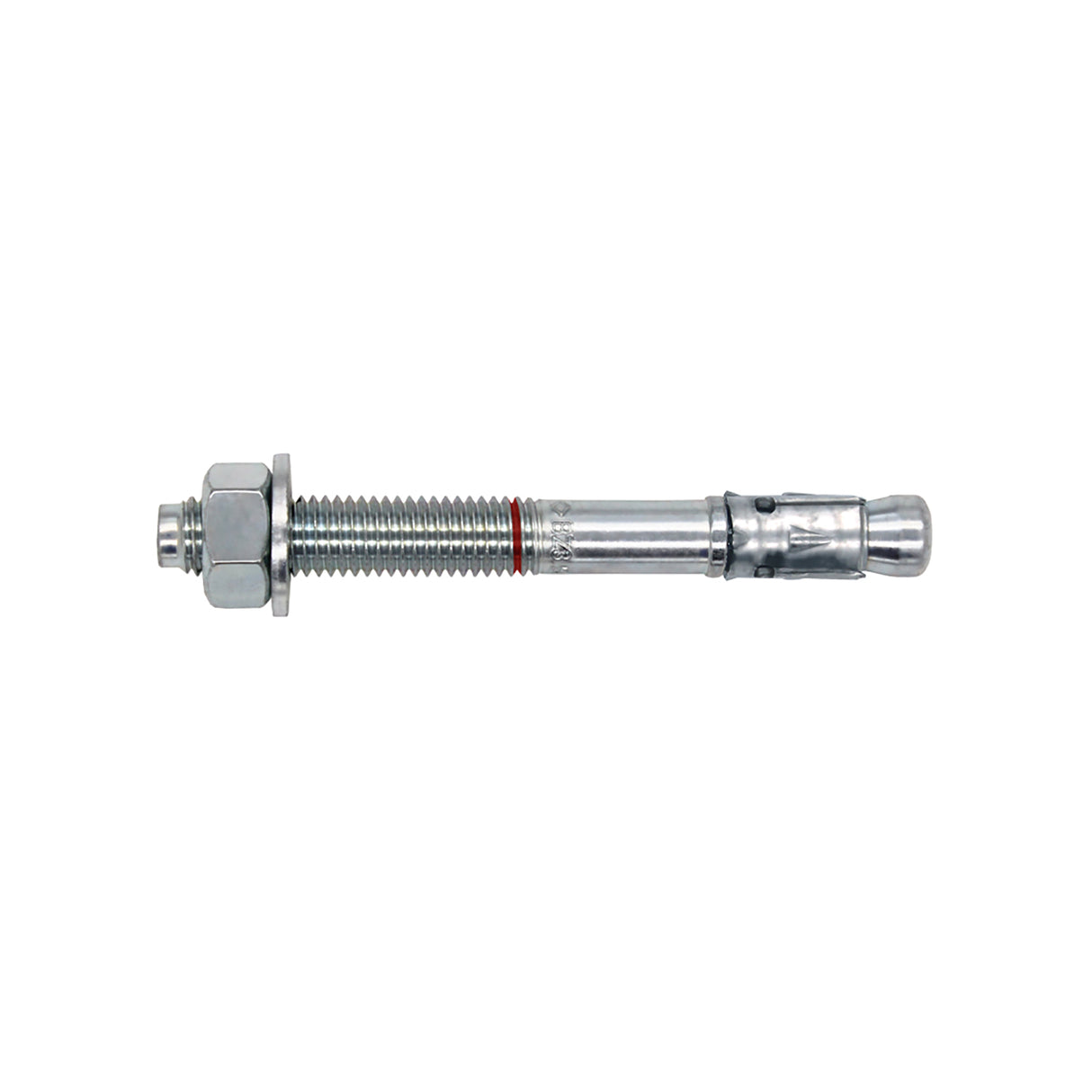

Certifix CFBZ3 12/15 12 x 110 A4 stainless through bolt

Pack Size: 25
£272.27

Certifix CFBZ3 12/15 12 x 110 A4 stainless through bolt is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix CFBZ3 Through Bolt Anchor combines variable anchorage depths with the highest approved tensile and shear loads to set new standards in performance and flexibility for mechanical expansion anchors. Ideal for anchoring medium to heavy loads in facades, cracked and non-cracked concrete, steel beams, cable and pipe routes and wooden constructions, the Certifix CFBZ3 allows higher loads in the same depth settings as before, which can be further increased by a deeper setting. This can also mean savings on fixing points or fastenings and reduced drilling and setting. Through the combination of the highest approved tensile and shear loads with variable anchorage depths, the newly developed Certifix CFBZ3 Through Bolt Anchor with European Technical Assessment, sets standards in performance and flexibility of mechanical Expansion anchors. In many cases, with the same setting depth as before, the CFBZ3 allows higher loads, which can be further increased by deeper setting. This can save fixing points or fastenings can be realised, that have not been possible with a through bolt anchor. However, setting with a reduced anchorage depth reduces drilling and setting effort and reduces the risk of reinforcement hits. The innovative calculation method in dependence of anchorage depth and concrete thickness, enables smallest center and edge distances for the respective application. This flexibility allows a perfect adaptation to the installation situation and allows more economical fastenings. By optimization of the material, the geometry and the manufacturing process, performance under the influence of earthquakes was significantly increased. This performance and flexibility allows an optimal adaptation to the installation situation and for example enables railing fastenings with less mounting points, smaller anchor plates and larger post spacing, as has been possible with wedge anchors so far. Fewer turns until the tightening torque is reached and a coloured marking of the minimum anchorage depth enable shorter processing times with higher installation safety.

Technical Datasheet

Tech Datasheet: Certifix cfbz3 through bolt anchor tds-compressed

Applications

Anchoring of medium to heavy loads in cracked and
non-cracked concrete: columns
steel beams railings
cable routes
pipe routes
wooden constructions
consoles
facades.
Fastenings in earthquake areas etc.

Building Materials

Cracked and non-cracked concrete

Features

The Certifix CFBZ3 Through Bolt Anchor offers low minimumanchorage depths.

Increased flexibility of depth allows adaptation to a variety of installation situations.

Setting with a reduced anchorage depth reduces drilling and the risk of reinforcement hits.

Enables the smallest centre and edge distances for the respective application.

Fewer turns until the tightening torque is reached for shorter processing times.

Coloured marking of the minimum anchorage depth for higher installation safety.

The Through Bolt Anchor with the highest approved loads and variable anchoring depths.

European Technical Assessment in cracked and non-crackend concrete (option 1), under seismic action of category C1 and C2 and for use in fire (R30 - R120).

Fire test report for F180.

For higher loads under seismic action, the annular gap between the CFBZ3 and the fixture can be filled with adhesive, by using the Filling Washer VS A4.

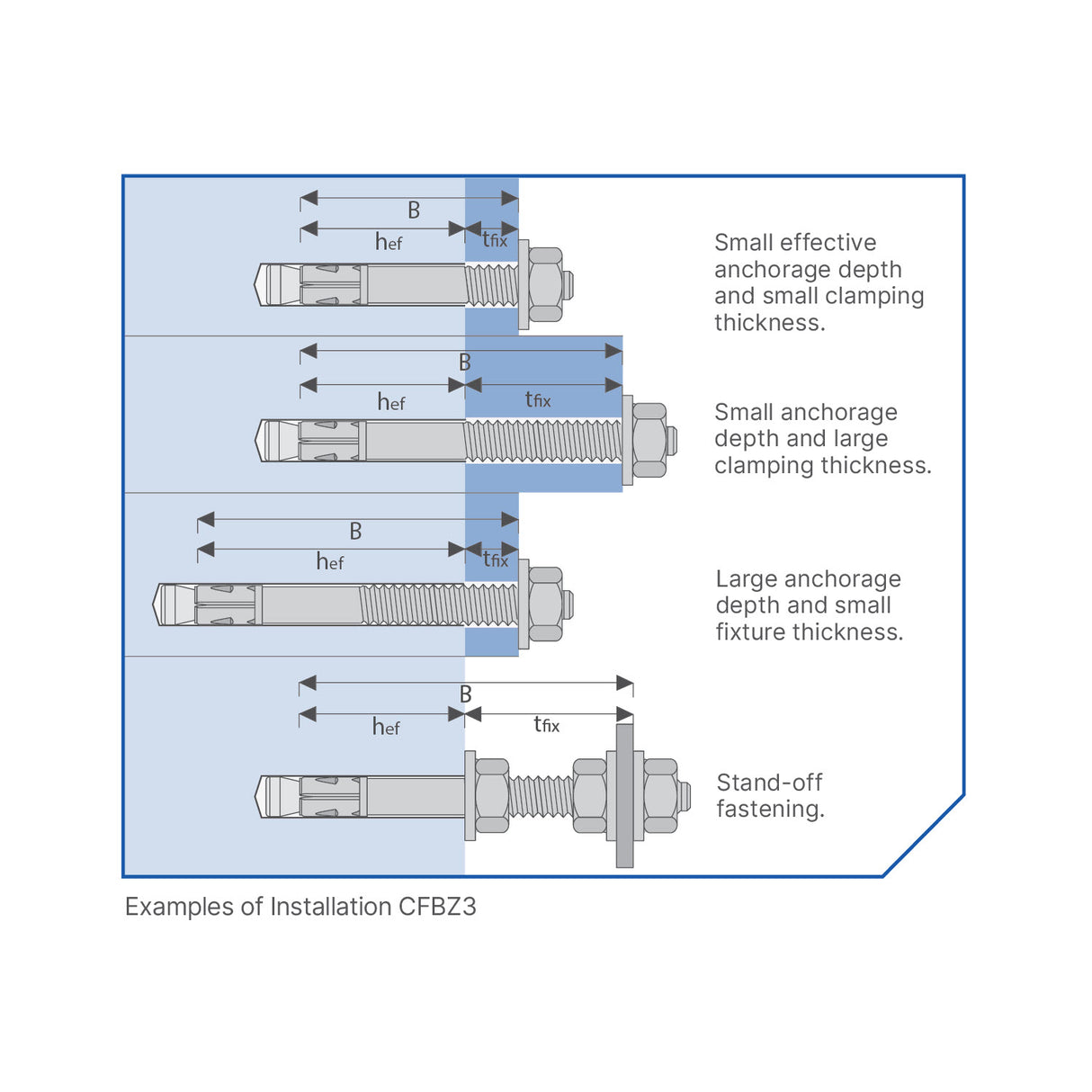

Low minimum anchorage depths.

New calculation method in dependence of the anchorage depth and the thickness of the concrete component.

The high flexibility enables the optimal adaptation to the installation situation for maximum efficiency.

Extra short versions.

Fewer turns until the tightening torque is reached.

Coloured marking of the minimum anchorage depth.

Specifications
  • Brand
    Certifix
  • coated
    No
  • Drill Diameter (MM)
    12
  • Length (MM)
    110
  • Material
    A4 Stainless Steel
  • Pack Size
    25
  • Proposed Internal Reference
    CFBZ3-4-12x110/15
  • Seismic Approval
    C1 / C2
  • Shipped from warehouse
    true
  • Size
    M12
  • Supplier
    MKT Metall-Kunststoff-Technik GmbH & Co.KG
  • Thread
    M12 x 55mm
  • Type
    Through bolt
  • Width Across Nut (MM)
    19
