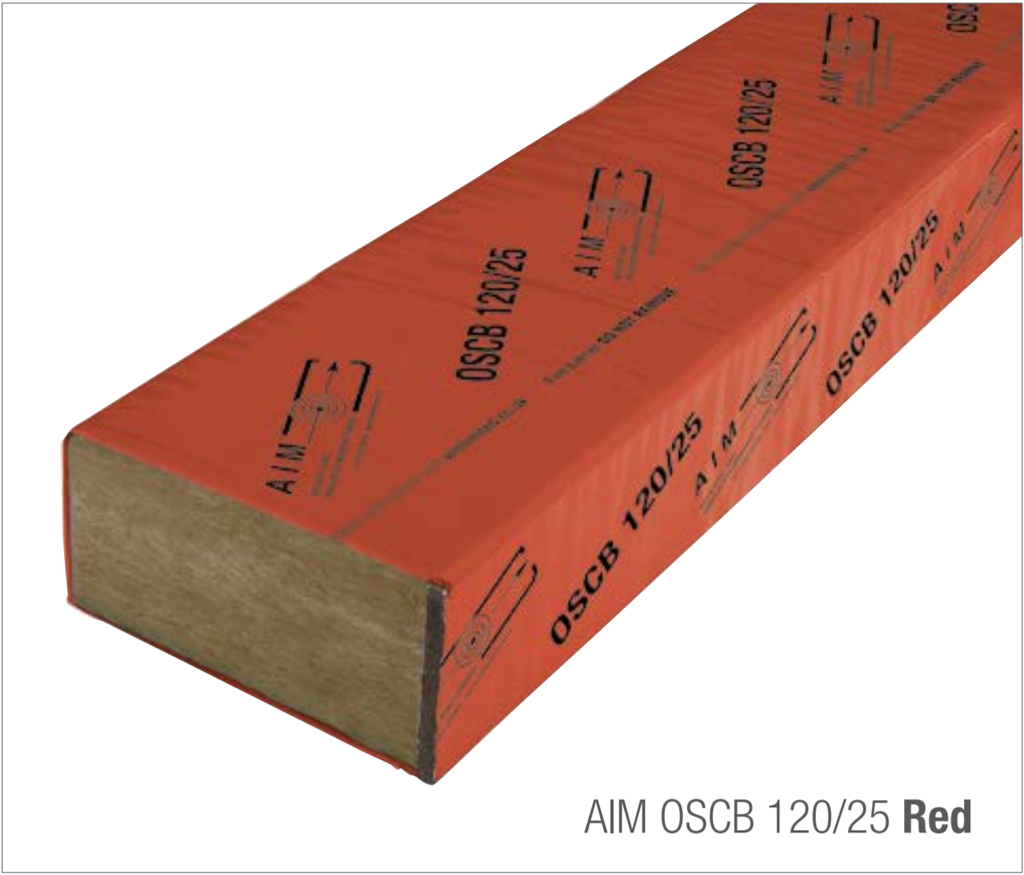

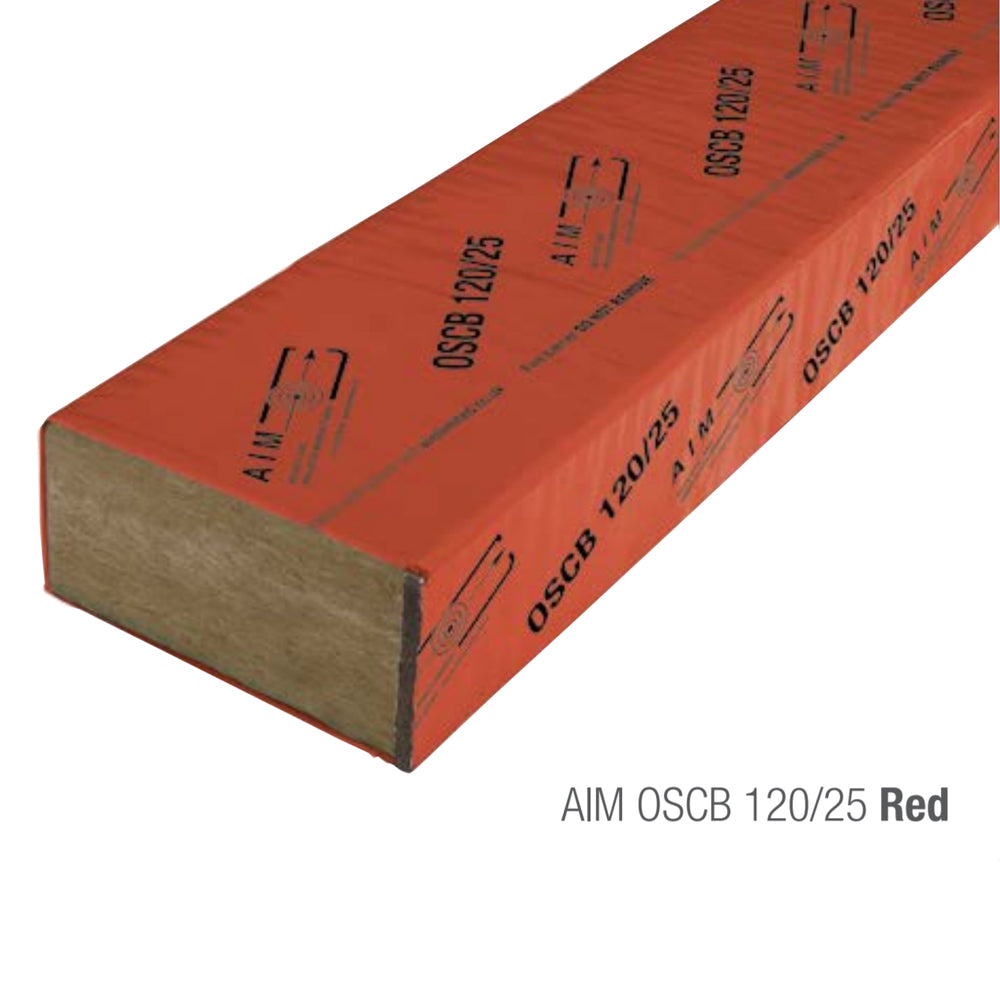

AIM OSCB 120/25 Red 1000 x 90 x 100mm to suit a 125mm cavity c/w fixing clips and course wound screws

Pack Size: 1
£78.42

AIM OSCB 120/25 Red 1000 x 90 x 100mm to suit a 125mm cavity c/w fixing clips and course wound screws is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

AIM Open State Cavity Barriers (OSCB's) are high-performance fire barriers that are manufactured from high-density Rockwool stone wool and faced with an intumescent strip. The intumescent strip expands quickly in the event of a fire to fully close the cavity, preventing the spread of fire. AIM OSCB's are designed and tested for use within ventilated rainscreen façades and timber frame construction. They allow free airflow and drainage, while still providing an effective fire barrier. AIM OSCB's offer a superior fire rating of up to 120 minutes insulation & integrity with ventilated air spaces within the cavity. They have been tested to TGD 19 & the general principles of BS EN 1363-1, and offer an effective fire barrier for ventilated voids up to 425mm in width. The AIM OSCB range is available to provide either a 25 or 44mm air gap. For simplicity the range also offers either a 60 or 120 minute rating for both Integrity and Insulation.

Technical Datasheet

Installations Instructions Document:

Tech Datasheet:

Applications

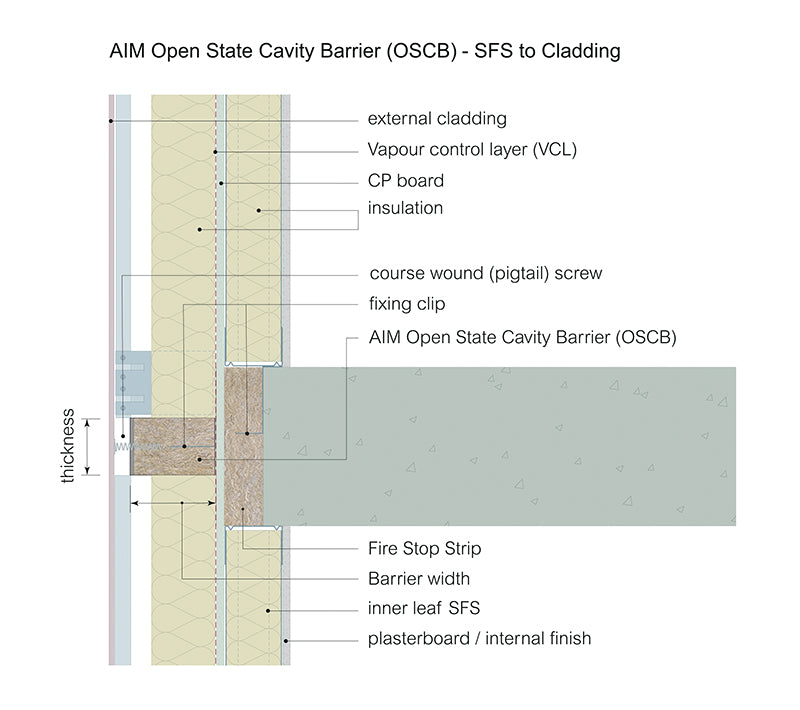

OSCB’s are a polythene sleeved ROCKWOOL® stone wool and intumescent material designed for use within open state cavities (e.g. Rainscreen systems), allowing ventilation and drainage of the cavity under normal conditions while providing up to 120 minutes insulation and integrity performance in the event of a fire.

The AIM OSCB range has been successfully tested to TGD 19 & the general principles of BS EN 1363-1 with a variety of substrates so that they can be used in a multitude of cavity wall constructions.

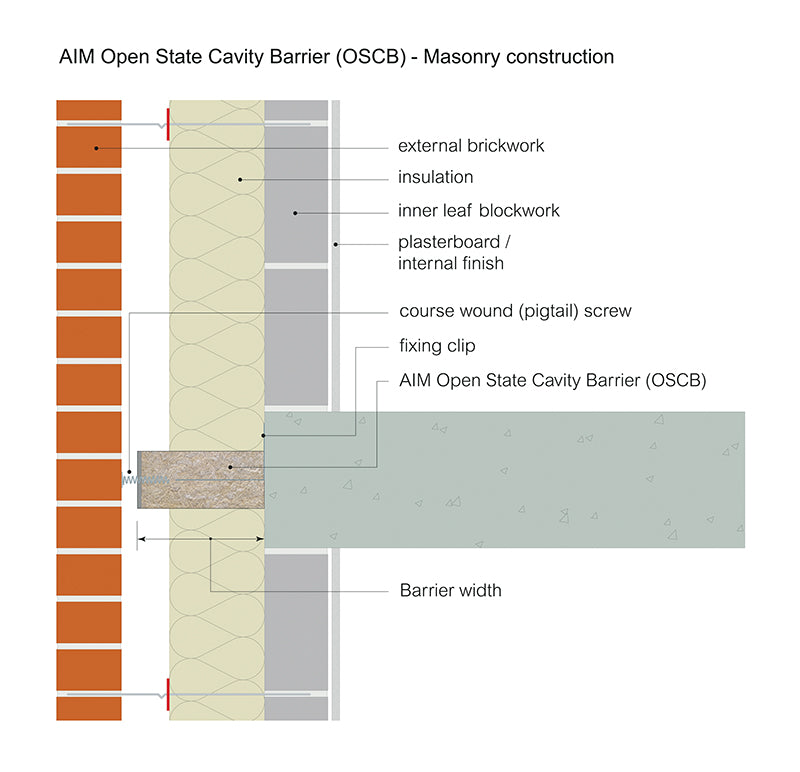

The OSCB 60/25 has also been tested for use vertically in a masonry cavity up to 425mm.

The AIM OSCB range has been tested to provide solutions that accommodate cladding rails interrupting the line of the barrier.

Features

Provides a 25mm or 44mm airspace
Fire rated solutions for cavity voids up to 425*mm: Provides up to 120 minutes integrity and insulation performance.
Heat activates the intumescent strip: Expands quickly to fully close the cavity
Tested in accordance with ASFP Technical Guidance Document 19 (TGD 19) & to the general principles of BS EN 1363-1
Galvanised steel fixing bracket supplied as standard
Stainless steel metal brackets available as a tested option
* The OSCB25 range can be used in cavities up to 600mm where the barrier is supported by Rockwool Duoslab insulation or equivalent
In the event of a fire, provides an effective barrier to the passage of hot smoke and fire behind the cladding system: Safe.
Designed to enable a continuous airflow behind a rainscreen and timber frame cladding system: Helps to prevent problems of condensation.

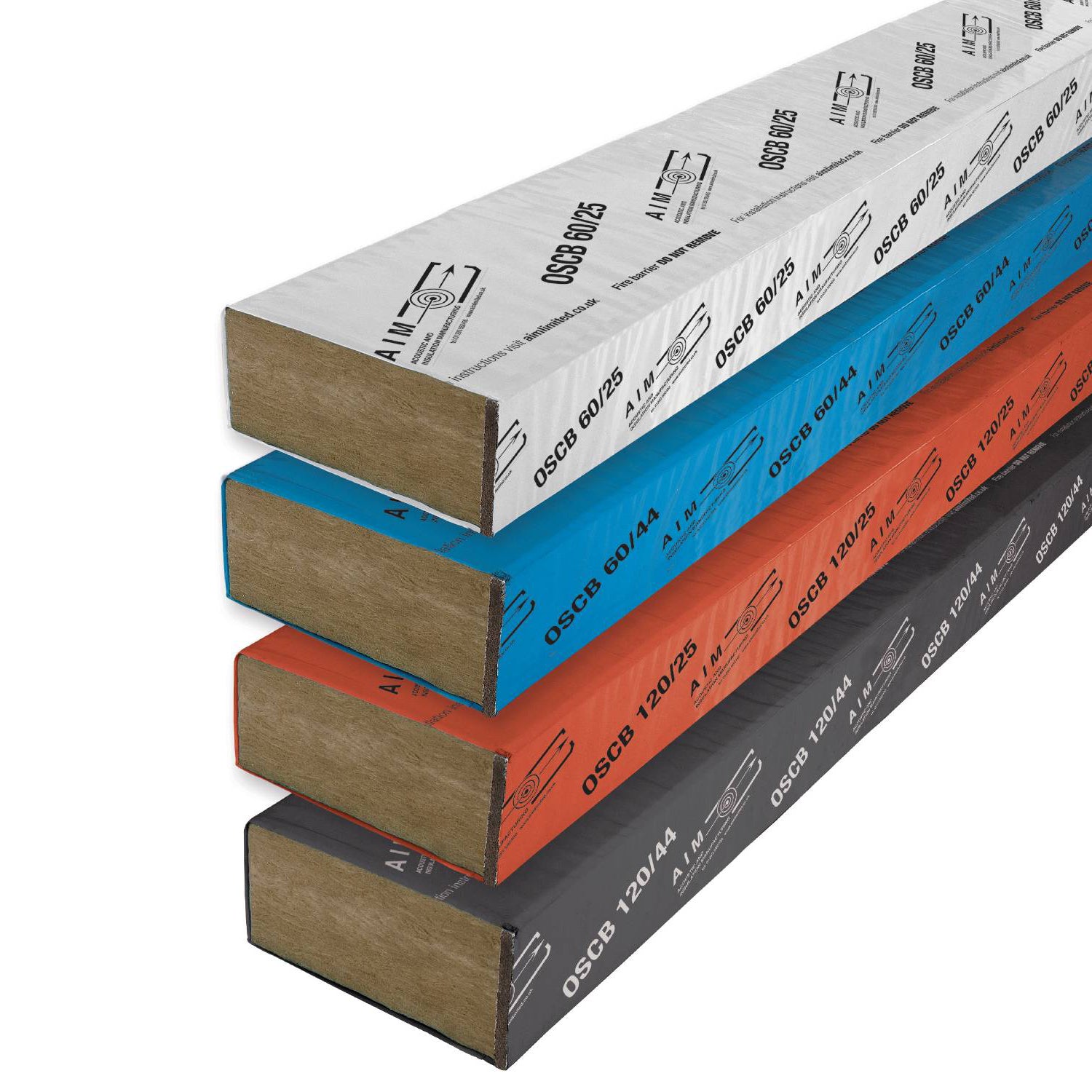

Choice of four OSCBs deliver insulation and integrity performance up to 120 minutes: Flexible specification.
Quick and cost effective installation.
Simple fixing procedure; OSCB25 range incorporates spring steel screws and steel hanging brackets. No specialist tools required: Easy to install.
Colour coded: For ease of identification.

Specifications
  • Brand
    AIM
  • Colour
    Red
  • Fire Rating (Integrity / Insulation) - Masonary To Masonary
    120/120
  • Fire Rating (Integrity / Insulation) - Sheeting Board To Masonary
    120/120
  • Length (MM)
    1,000
  • Pack Size
    1
  • Thickness (mm)
    90
  • Type
    Cavity barrier
  • Width (mm)
    100.00
