AIM FF102/50

AIM FF102/50 is backordered and will ship as soon as it is back in stock.

Product Enquiry

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

FF102/50 Ventilated Cavity Fire Barriers are made from a low smoke, zero halogen, high expansion intumescent material. They are designed to reinstate fire resistance to external wall cavities that need to be ventilated in non-fire conditions. The FF102/50 is manufactured from a rigid intumescent material, which allows it to be provided in a strip format. It is also covered with a protective layer of aluminum foil for ease of handling. In the event of a fire, the FF102/50 intumescent material will expand to close the external wall cavity, providing effective fire resistance for up to 120 minutes, depending on the construction of the external walls. The FF102/50 is designed for use within cavities of up to 50mm and once installed, it will close the remaining free air gap in front of the 6mm cavity barrier of up to a maximum of 44mm (depending on construction type).

Technical Datasheet

Applications

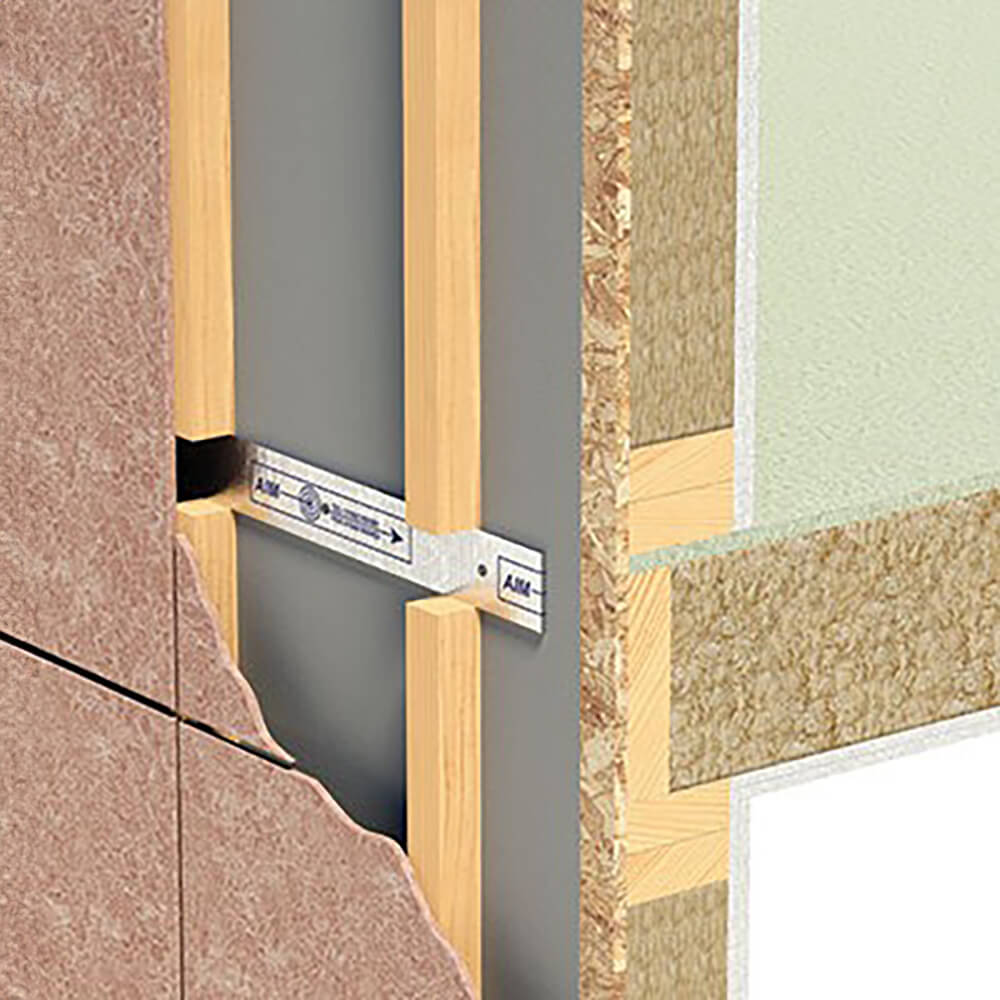

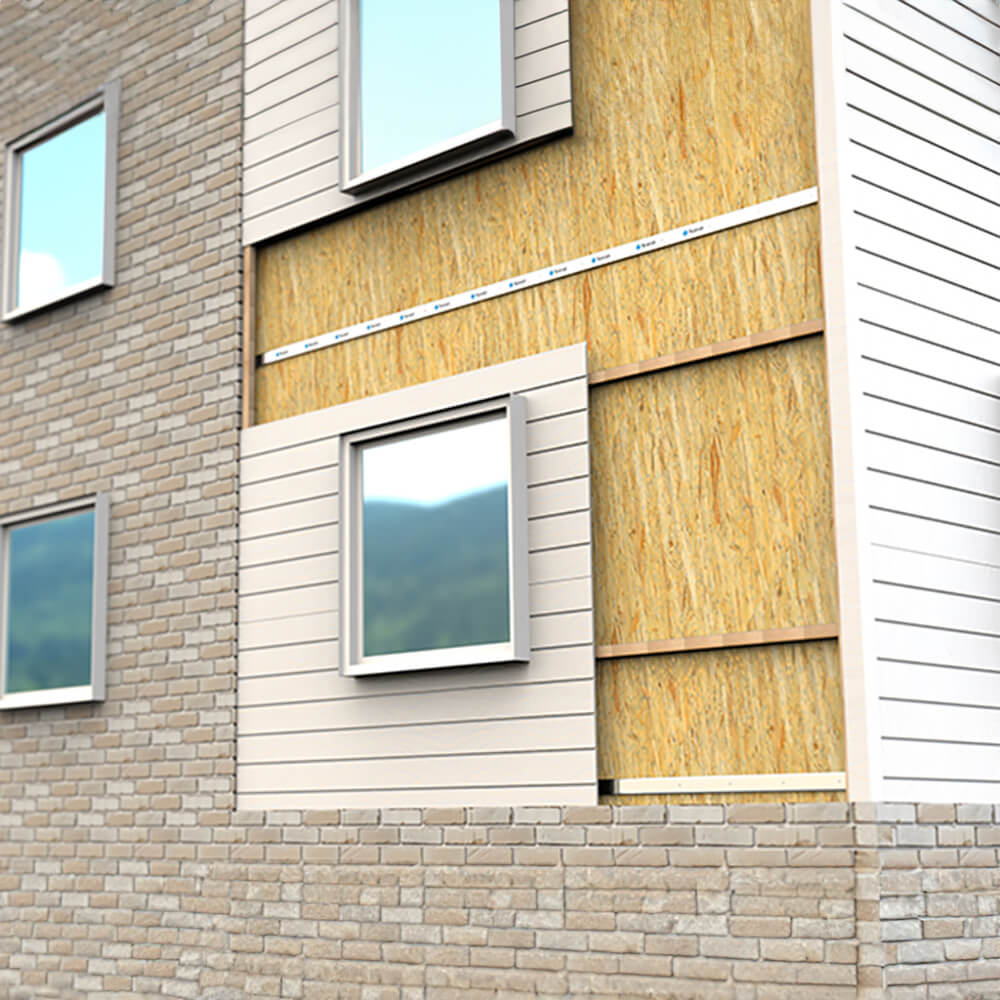

An “open state” cavity fire barrier for use horizontally within uninsulated, ventilated and drained cavities

Features

Fire Rated for up to 120 minutes for both integrity and insulation when tested to the general principles of BS EN 1363-1 following ASFP TGD 19 guidance.
Ventilated design: Developed to allow maximum ventilation and drainage of cavities reducing the need for cavity trays or weepholes.
Suitable for “open-state” ventilated cavities up to 50mm wide.
Provided in strips of 1m long, 75mm wide and 6mm thick.
Lightweight: Designed to be easily and quickly installed.
No maintenance required after installation: Time saving.

Specifications

  • Type
    Cavity barrier
  • Pack Size
    1
  • Length (MM)
    1,000
  • Tech Datasheet
  • Thickness (mm)
    6
  • Width (mm)
    75.00

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

AIM

AIM FF102/50

£0.00
FF102/50 Ventilated Cavity Fire Barriers are made from a low smoke, zero halogen, high expansion intumescent material. They are designed to reinstate fire resistance to external wall cavities that need to be ventilated in non-fire conditions. The FF102/50 is manufactured from a rigid intumescent material, which allows it to be provided in a strip format. It is also covered with a protective layer of aluminum foil for ease of handling. In the event of a fire, the FF102/50 intumescent material will expand to close the external wall cavity, providing effective fire resistance for up to 120 minutes, depending on the construction of the external walls. The FF102/50 is designed for use within cavities of up to 50mm and once installed, it will close the remaining free air gap in front of the 6mm cavity barrier of up to a maximum of 44mm (depending on construction type).

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Cavity barrier

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

N/A

Material

N/A

Length (MM)

1,000

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Fire Rated for up to 120 minutes for both integrity and insulation when tested to the general principles of BS EN 1363-1 following ASFP TGD 19 guidance.
Ventilated design: Developed to allow maximum ventilation and drainage of cavities reducing the need for cavity trays or weepholes.
Suitable for “open-state” ventilated cavities up to 50mm wide.
Provided in strips of 1m long, 75mm wide and 6mm thick.
Lightweight: Designed to be easily and quickly installed.
No maintenance required after installation: Time saving.
