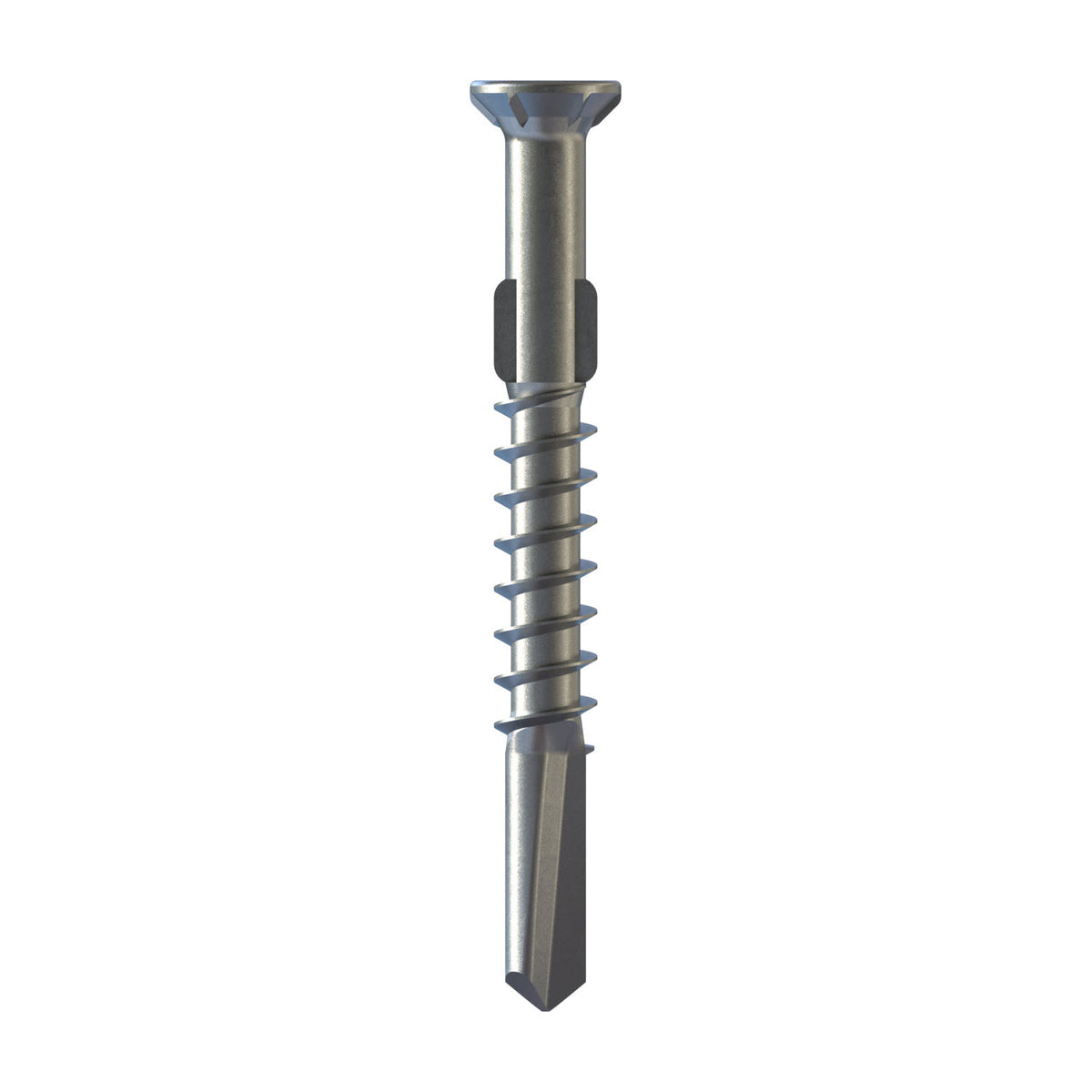

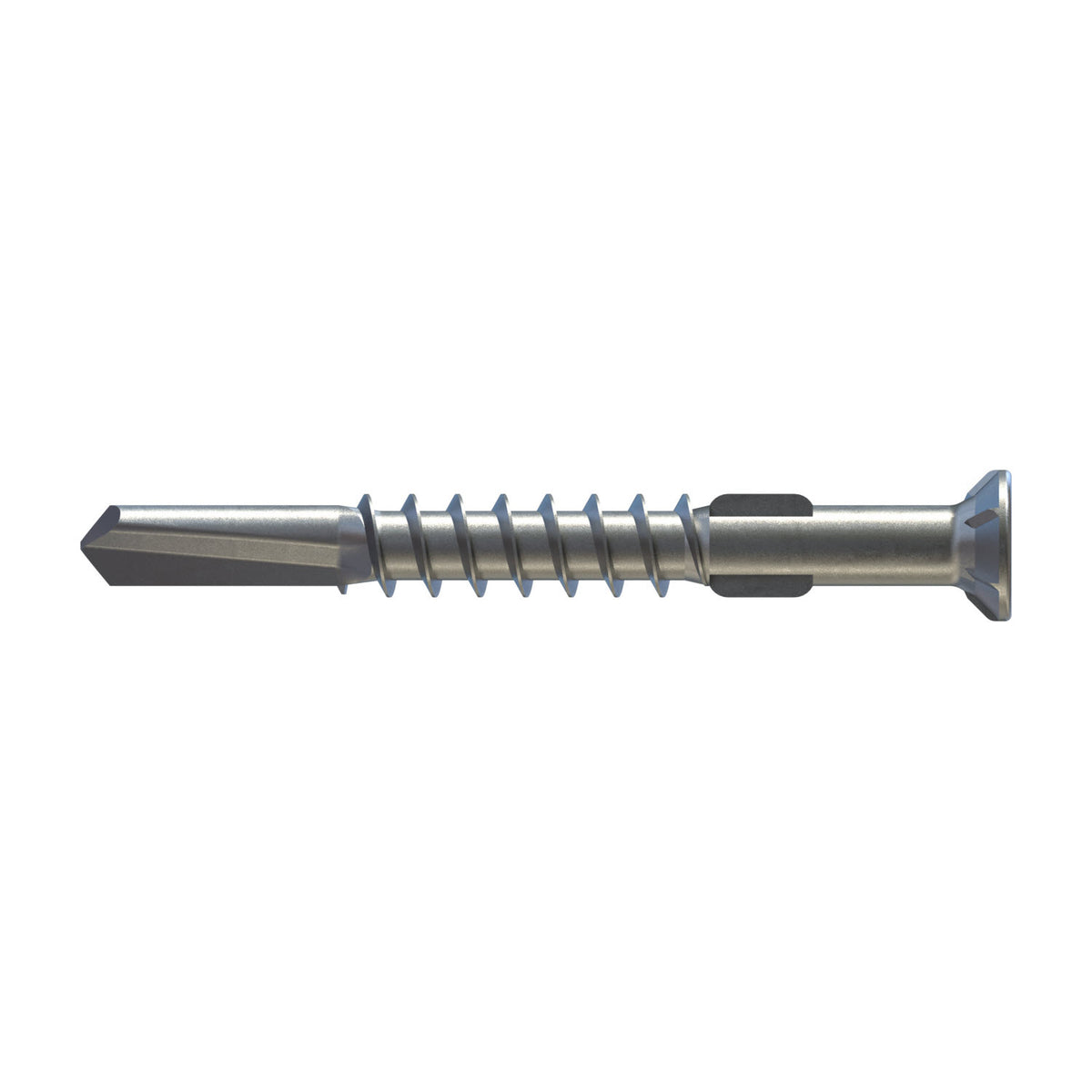

CF-SIDING Wing-type drilling screw, Countersunk head, 5.0 x 45, Partial thread (L1), SIT® 20, Stainless steel A2, pickled, passivated, lubricated, 500 Pcs.

SKU: 17749
Barcode: 4005674021111
Pack Size: 500
£214.58

CF-SIDING Wing-type drilling screw, Countersunk head, 5.0 x 45, Partial thread (L1), SIT® 20, Stainless steel A2, pickled, passivated, lubricated, 500 Pcs. is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix CF-SIDING Wing-type drilling screw is a high-performance solution specifically designed for attaching cement-bound façade panels directly to wooden substructures, particularly in overlapping fitting applications. Manufactured from pickled, passivated, and lubricated A2 stainless steel, these screws feature a long drill tip and specialized reaming wings that reduce screw-in resistance and drilling stress while preventing the wood from splitting. The single-start partial thread ensures a high load-bearing capacity, providing a secure and durable hold for demanding façade cladding projects. For a professional and efficient finish, the screw is equipped with a small countersunk head featuring integrated milling ribs, which allow for flush countersinking without the need for pre-drilling or pre-countersinking. The SIT® 20 drive system enables quick access and maximum power transmission with no tumbling motion, though it remains fully compatible with standard TX bits for added convenience on-site.

Technical Datasheet

Tech Datasheet:

Applications

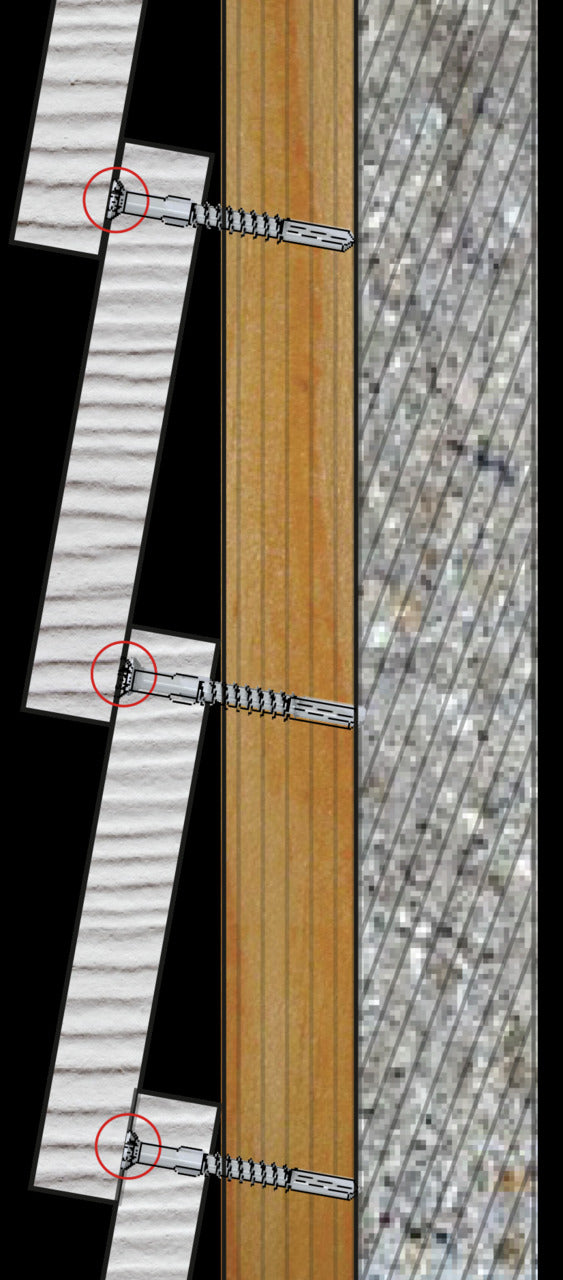

For attaching cement-bound facade panels directly to wooden substructures (overlapping fitting)
Façade cladding

Features

SIT®: Quickly access the drive. No tumbling motion. Maximum power transmission without the risk of over-tightening. Can be used with standard TX bit.

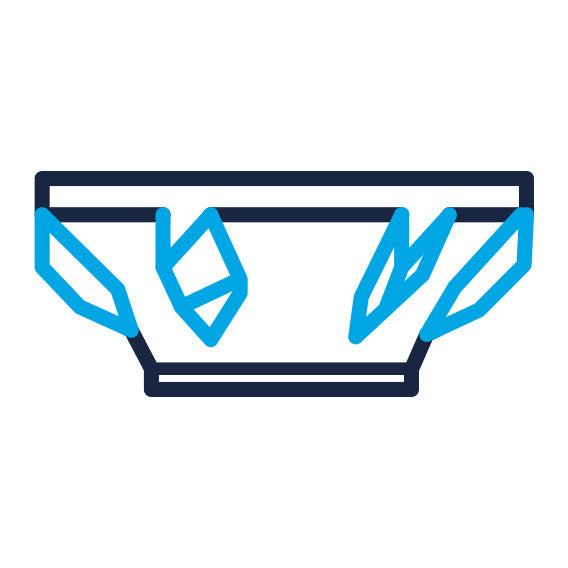

Small countersunk head with milling ribs: Milling ribs ensure effective milled recessing of the head in the material. No pre-drilling or pre-countersinking required. Flush countersinking.

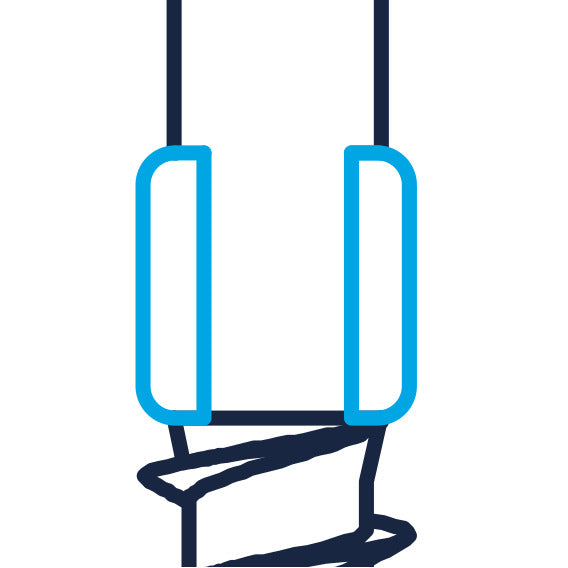

Reaming-wings: Reduction of screw-in resistance
Reduced stress on components.
Single-start thread: High load-bearing capacity.

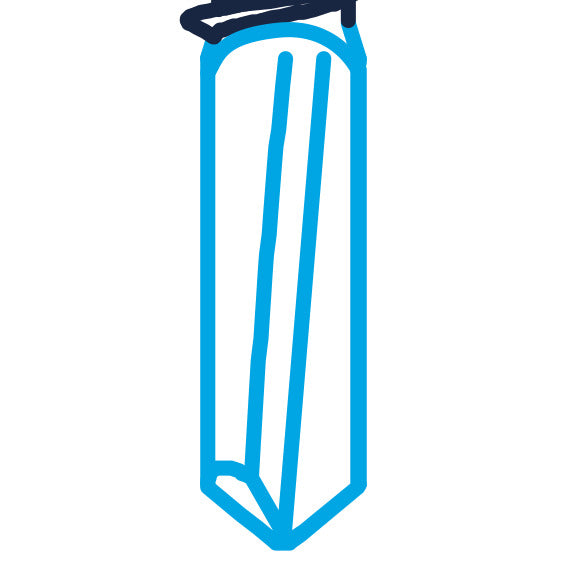

Long drill tip: Drills wood, wood materials and cement-bound materials. Prevents wood from splitting.

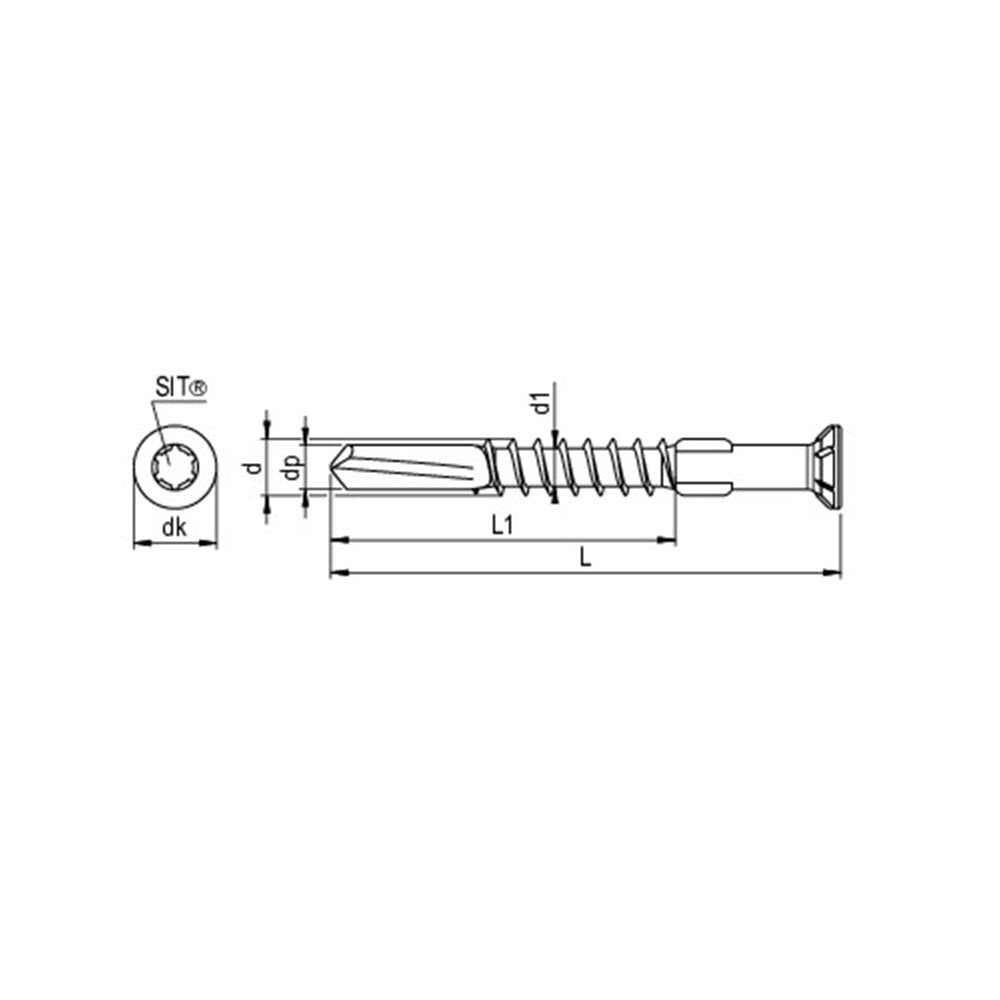

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    5.00
  • Driver Type
    SIT® 20
  • Head Diameter (mm)
    7.30
  • Head Type
    Countersunk head
  • Length (mm)
    45
  • Material
    Stainless steel A2
  • Pack Size
    500
  • Thread Form
    Partial thread (L1)
  • Thread Length (mm)
    30
  • Thread Type
    Single-start thread
  • Type
    Self drilling screw
  • Weight
    2,200.00 g

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Questions & Answers loading...
Certifix

CF-SIDING Wing-type drilling screw, Countersunk head, 5.0 x 45, Partial thread (L1), SIT® 20, Stainless steel A2, pickled, passivated, lubricated, 500 Pcs.

£214.58
The Certifix CF-SIDING Wing-type drilling screw is a high-performance solution specifically designed for attaching cement-bound façade panels directly to wooden substructures, particularly in overlapping fitting applications. Manufactured from pickled, passivated, and lubricated A2 stainless steel, these screws feature a long drill tip and specialized reaming wings that reduce screw-in resistance and drilling stress while preventing the wood from splitting. The single-start partial thread ensures a high load-bearing capacity, providing a secure and durable hold for demanding façade cladding projects. For a professional and efficient finish, the screw is equipped with a small countersunk head featuring integrated milling ribs, which allow for flush countersinking without the need for pre-drilling or pre-countersinking. The SIT® 20 drive system enables quick access and maximum power transmission with no tumbling motion, though it remains fully compatible with standard TX bits for added convenience on-site.

Clamping Range (MM)

N/A

Diameter (MM)

5.00

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

30

Thread

N/A

Size

N/A

Pack Size

500

Package Contents

N/A

Material

N/A

Length (MM)

45

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

SIT®: Quickly access the drive. No tumbling motion. Maximum power transmission without the risk of over-tightening. Can be used with standard TX bit.
Small countersunk head with milling ribs: Milling ribs ensure effective milled recessing of the head in the material. No pre-drilling or pre-countersinking required. Flush countersinking.
Reaming-wings: Reduction of screw-in resistance
Reduced stress on components.
Single-start thread: High load-bearing capacity.
Long drill tip: Drills wood, wood materials and cement-bound materials. Prevents wood from splitting.
