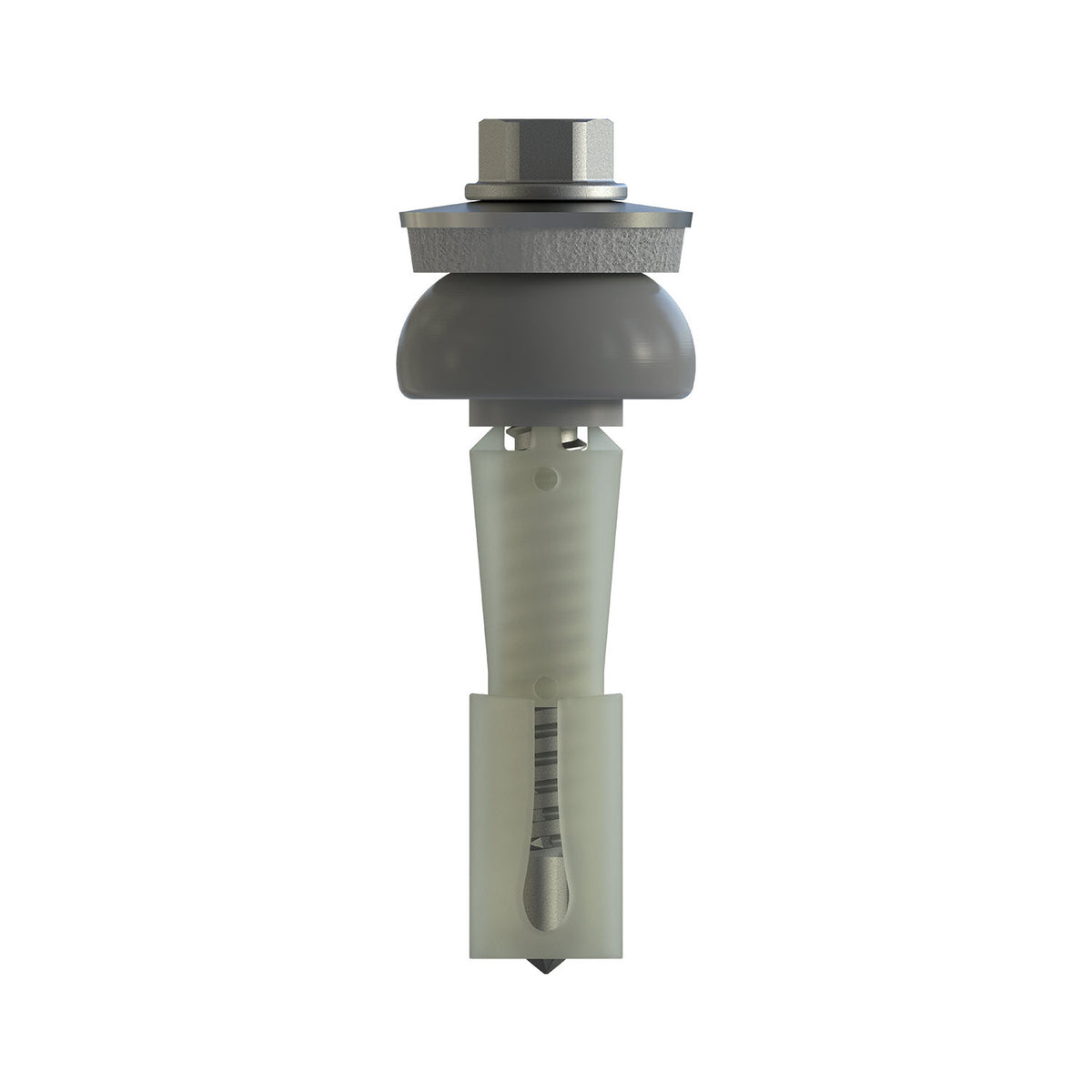

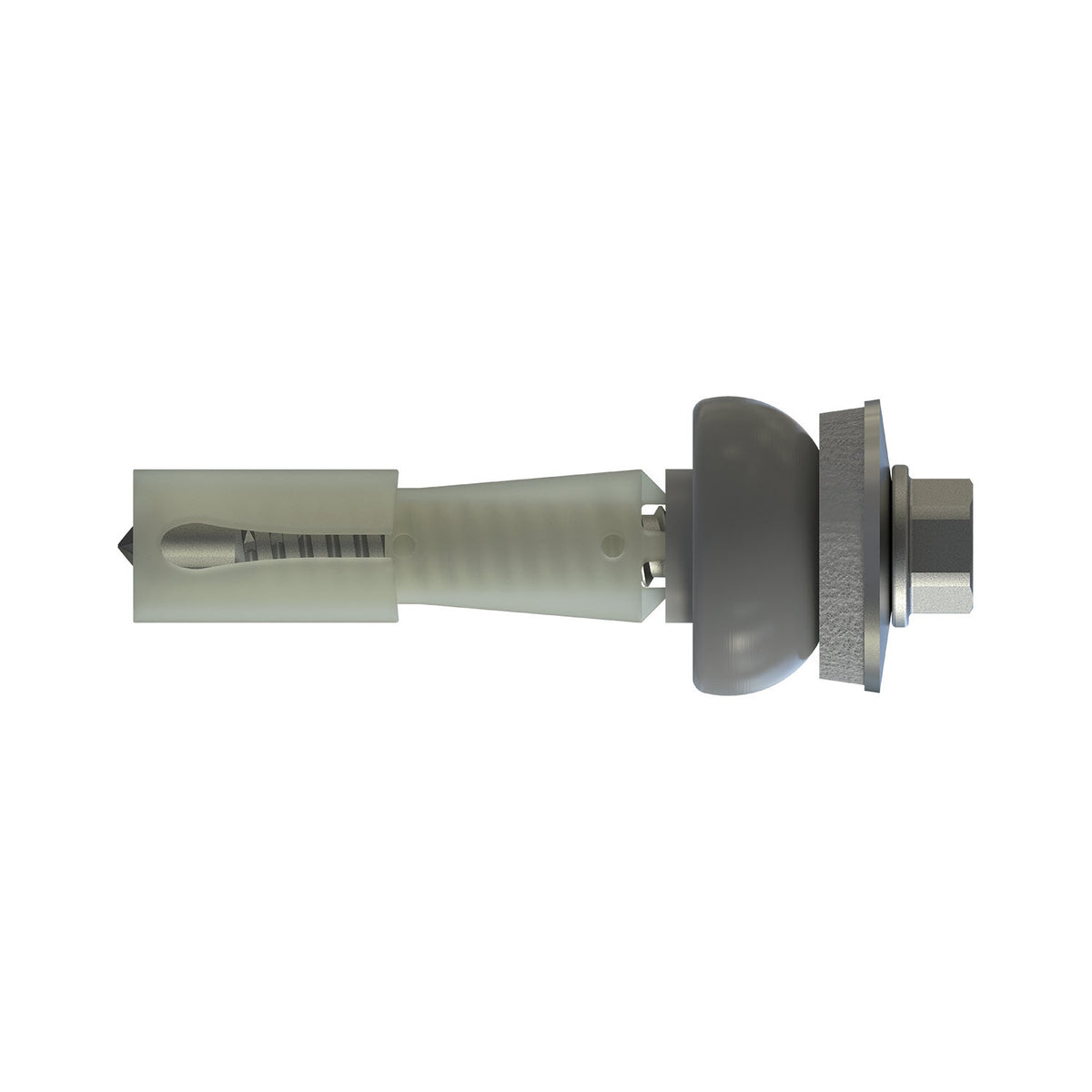

CF-DSH-3-Z Distance set, Hexagon head with pressed-on washer, 5.5 x 50 (17-20), Partial thread (L1), AF 8, Bi-metal (A2 stainless steel/steel)/plastic, RUSPERT®, E16+SD19, 100 Pcs.

SKU: 17745
Pack Size: 100
£95.86

CF-DSH-3-Z Distance set, Hexagon head with pressed-on washer, 5.5 x 50 (17-20), Partial thread (L1), AF 8, Bi-metal (A2 stainless steel/steel)/plastic, RUSPERT®, E16+SD19, 100 Pcs. is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The Certifix DSH-3-Z Distance Set is a high-performance, one-person fastening solution designed to simplify the installation of light panels on steel and aluminum substructures. Perfect for outdoor projects such as carports, pergolas, and canopies, this set arrives fully pre-assembled with the screw, seal, and sleeve integrated into a single unit. This "out-of-the-box" readiness eliminates the need for the traditionally cumbersome two-person installation process, allowing for a faster, more cost-effective workflow on the job site. Engineered for durability and precision, the set features a 5.5 x 50 bi-metal construction—combining A2 stainless steel and steel with a premium RUSPERT® coating for superior corrosion resistance. One of its standout features is the large umbrella sealing system (E16+SD19), which provides a significantly improved seal by adapting perfectly to the contours of corrugated profiles during compression. With a hexagon head for secure AF 8 driving and a partial thread design, the Certifix DSH-3-Z ensures a watertight, professional finish that protects the structural integrity of your roofing projects.

Technical Datasheet

Tech Datasheet:

Applications

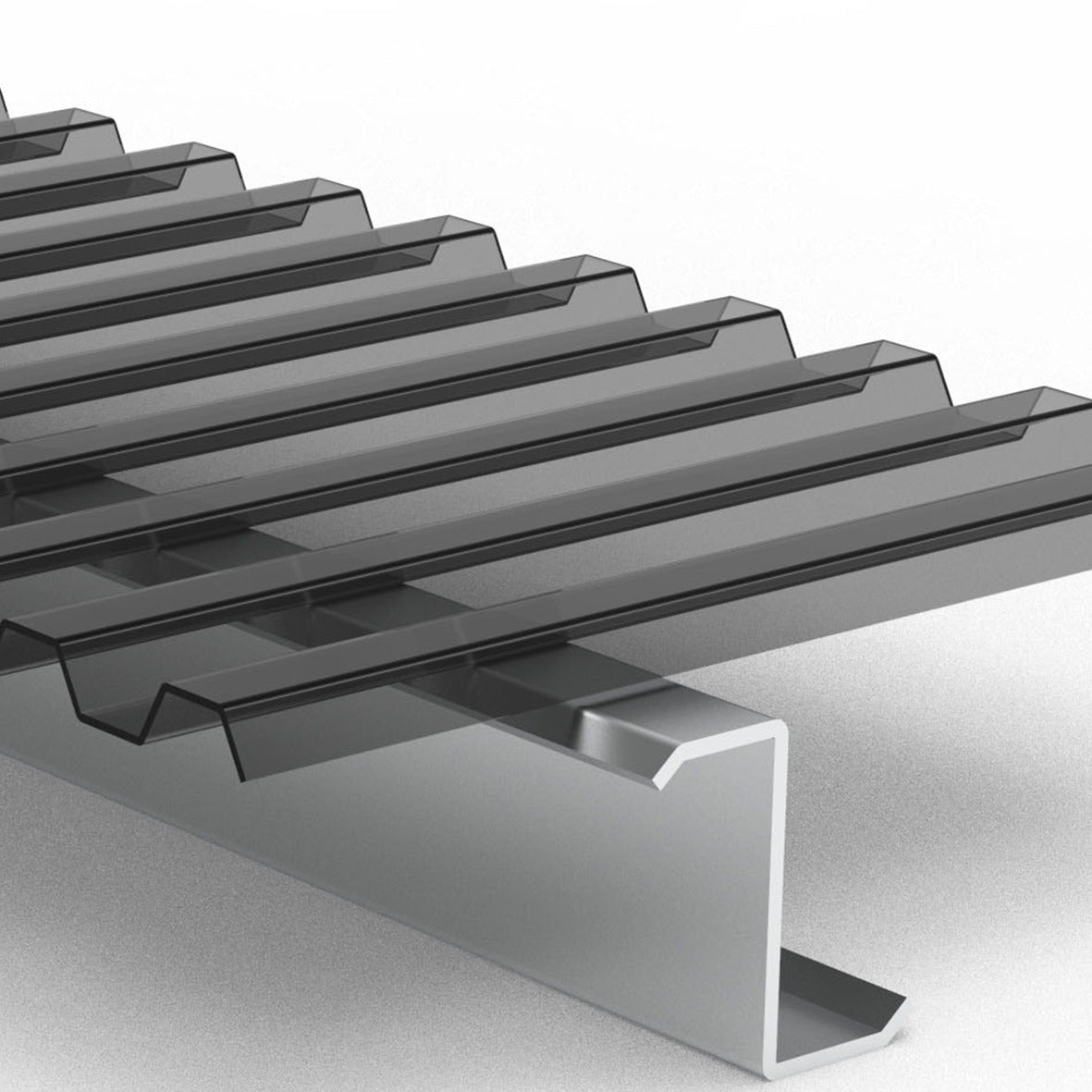

Fasteners for fixing light panels to steel and aluminium substructures.
Carports, pergolas, canopies

Features

Easy-to-install one-person fastening solution replaces the conventional, sometimes cumbersome two-person fastening version.
Complete package = Set comes fully pre-assembled with screw, seal and sleeve and can be processed straight away.
Significantly improved sealing (especially on corrugated profiles). Large umbrella sealing seals all over the area and adapts perfectly to the profiles during compression.

Specifications
  • Brand
    Certifix
  • Diameter (mm)
    5.50
  • Drilling Capacity
    Component 1 [mm]: Light panel 2 - 3 Component 2 [mm]: Steel 1.5 - 5.0; Aluminium 2.0 - 4.0
  • Driver Type
    AF 8
  • Head Diameter (mm)
    10.50
  • Head Height (mm)
    5.10
  • Head Type
    Hexagon Head with Pressed-on washer
  • Length (mm)
    50
  • Material
    Bi-metal (A2 stainless steel/steel)/plastic
  • Pack Size
    100
  • Thread Form
    Partial thread (L1)
  • Thread Length (mm)
    37
  • Thread Type

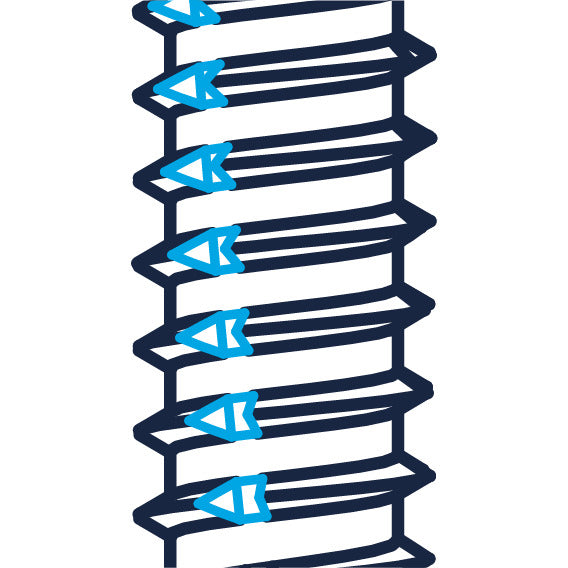

    Sheet metal thread
  • Type

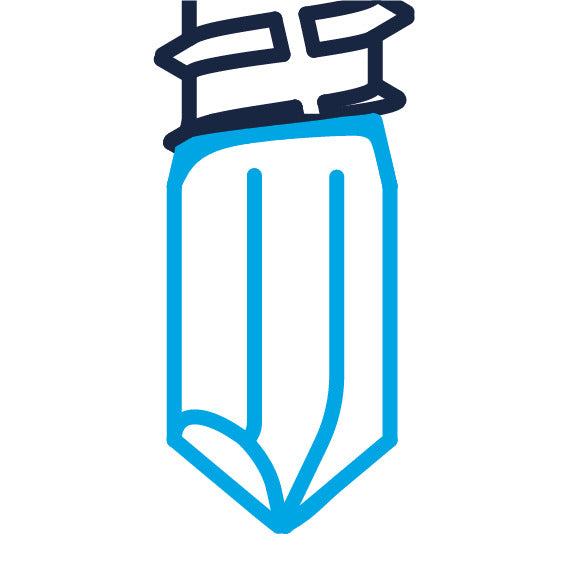

    Self drilling screw
  • Washer Diameter (mm)
    16
  • Weight
    990.00 g
