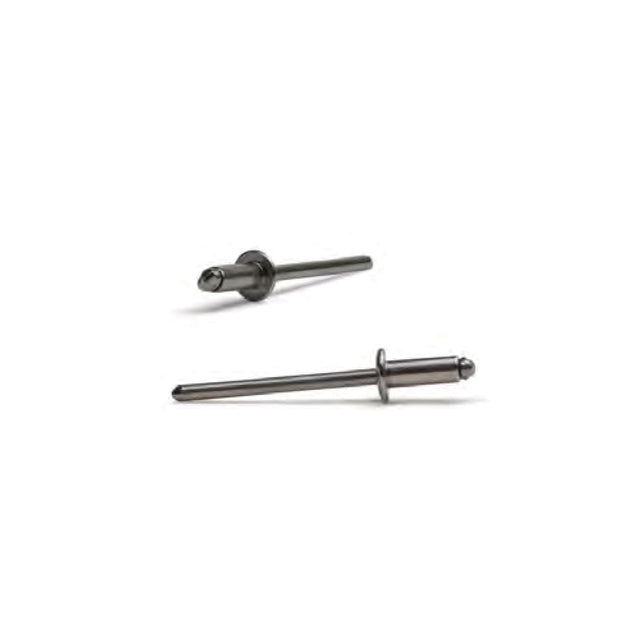

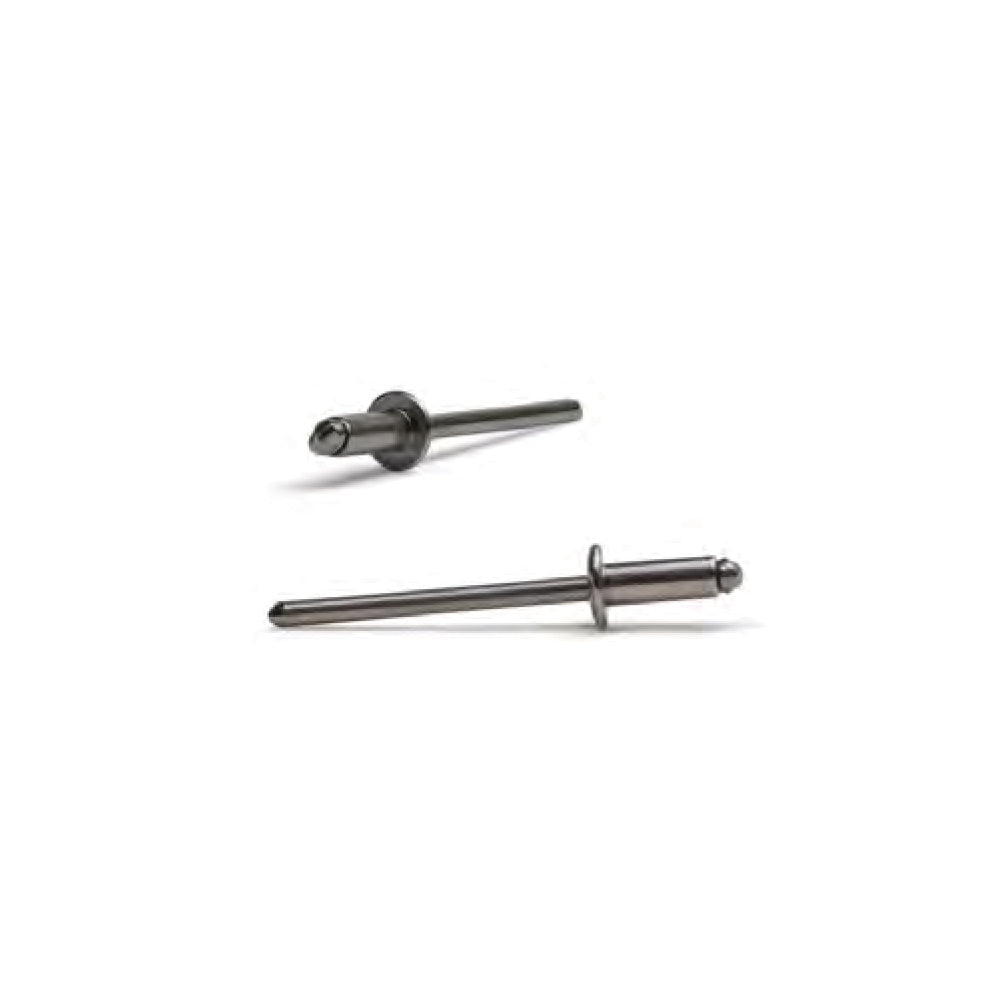

Certifix Rivet DIN 7337 / ISO 15983 A2/A2 4.8 x 10

Certifix Rivet DIN 7337 / ISO 15983 A2/A2 4.8 x 10 is backordered and will ship as soon as it is back in stock.

Product Enquiry

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

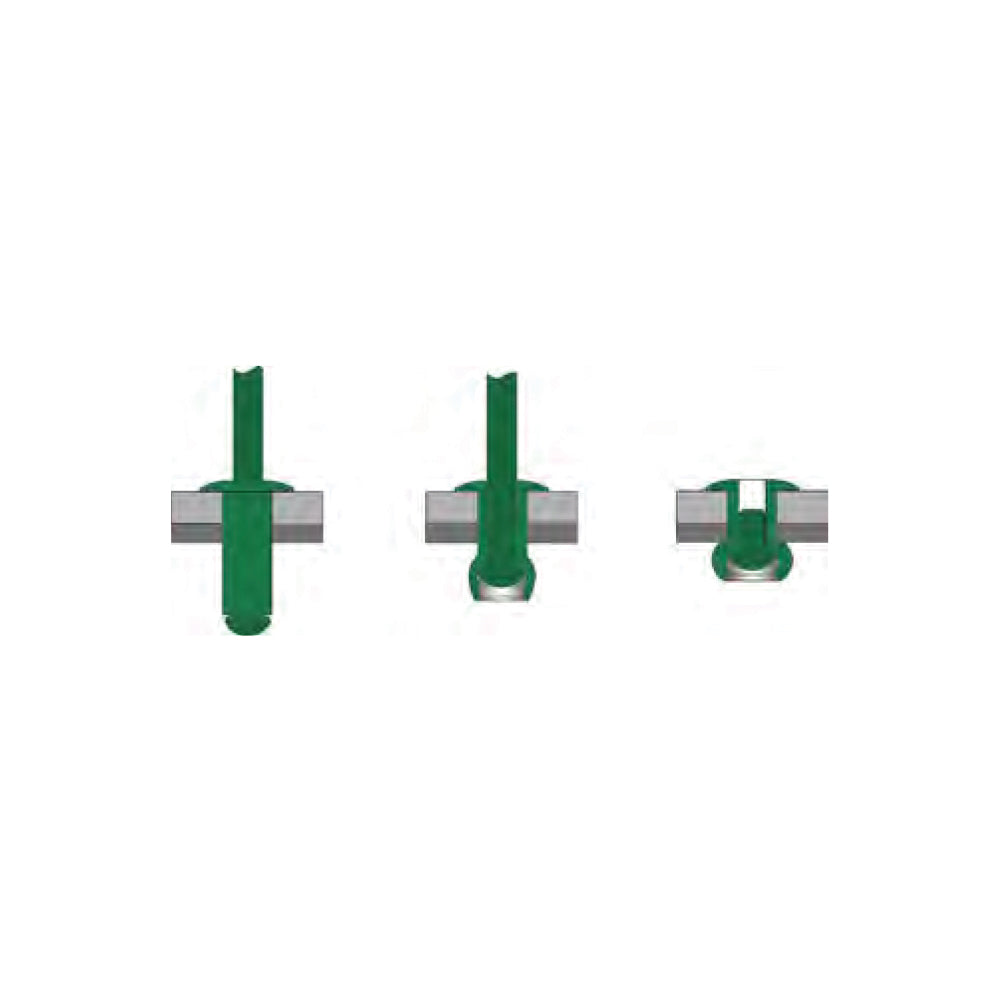

Certifix rivets to standards DIN 7337 / ISO 15983. With standard flat head, these 4.8 x 10 blind rivets are are made of A2 stainless steel for extra corrosion resistance in harsh conditions. With an integral mandrel designed to break on setting from the rivet body, these rivets are particularly intended for applications where the backside is not accessible once set.

Technical Datasheet

Tech Datasheet:

Applications

Automotive, bodywork, truck aluminium sidewalls, tarpaulins, industrial vehicle sectors.
Construction of ventilated facades, profiles, lifelines, metal structures, roofs and facilities.
Air conditioning, HVAC, lifting, furniture, gutters, containers, electrical appliances and home and industrial appliances.

Features

A2 stainless steel: Improved corrosion resistance.
Self plugging: Easy to install.

Specifications
  • Body Material
    A2 Stainless Steel
  • Brand
    Certifix
  • Diameter (mm)
    4.80
  • Drill Diameter (MM)
    5
  • Grip Range
    4-6mm
  • Head Diameter (mm)
    9.00
  • Length (MM)
    10
  • Mandrel Material
    A2 Stainless Steel
  • Material
    A2 Stainless Steel
  • Pack Size
    500
  • Shear (N)
    4000 N
  • Tensile (N)
    5000 N
  • Tensile N/mm
    5000 N
  • Type
    Rivet

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix Rivet DIN 7337 / ISO 15983 A2/A2 4.8 x 10

£0.00
Certifix rivets to standards DIN 7337 / ISO 15983. With standard flat head, these 4.8 x 10 blind rivets are are made of A2 stainless steel for extra corrosion resistance in harsh conditions. With an integral mandrel designed to break on setting from the rivet body, these rivets are particularly intended for applications where the backside is not accessible once set.

Clamping Range (MM)

N/A

Diameter (MM)

4.80

Drill Diameter (MM)

5

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Rivet

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

500

Package Contents

N/A

Material

N/A

Length (MM)

10

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

A2 stainless steel: Improved corrosion resistance.
Self plugging: Easy to install.
