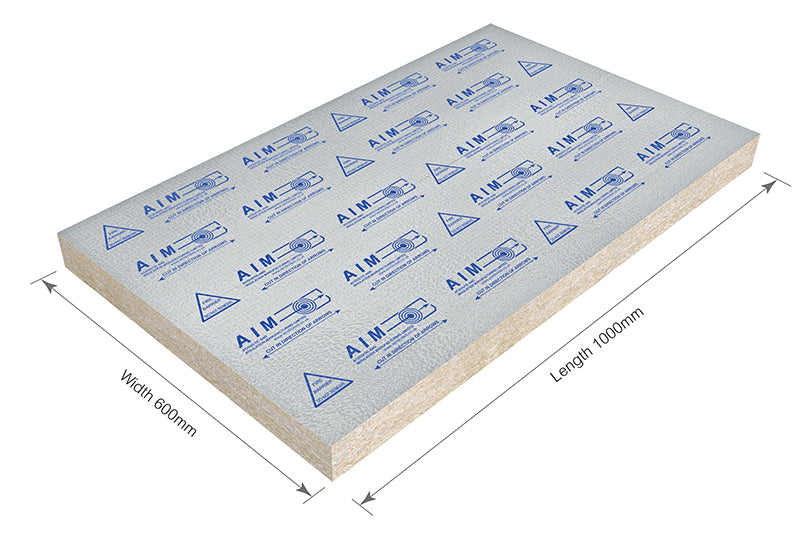

AIM WCFB 1 Hour 1000 x 75 x 236mm to suit a 225mm cavity c/w fixing clips and course wound screws

£31.67
AIM Wall Cavity Fire Barrier is a foil-faced, high-density Rockwool stone wool product that is suitable for use in all masonry cavity walls and between a curtain wall system and a concrete floor slab. The barrier prevents the passage of heat, flame, and smoke within the cavity it fills for one or two hour fire rating periods.

AIM WCFB 1 Hour 1000 x 75 x 236mm to suit a 225mm cavity c/w fixing clips and course wound screws is backordered and will ship as soon as it is back in stock.

Technical Datasheet

Download the technical datatsheet here.

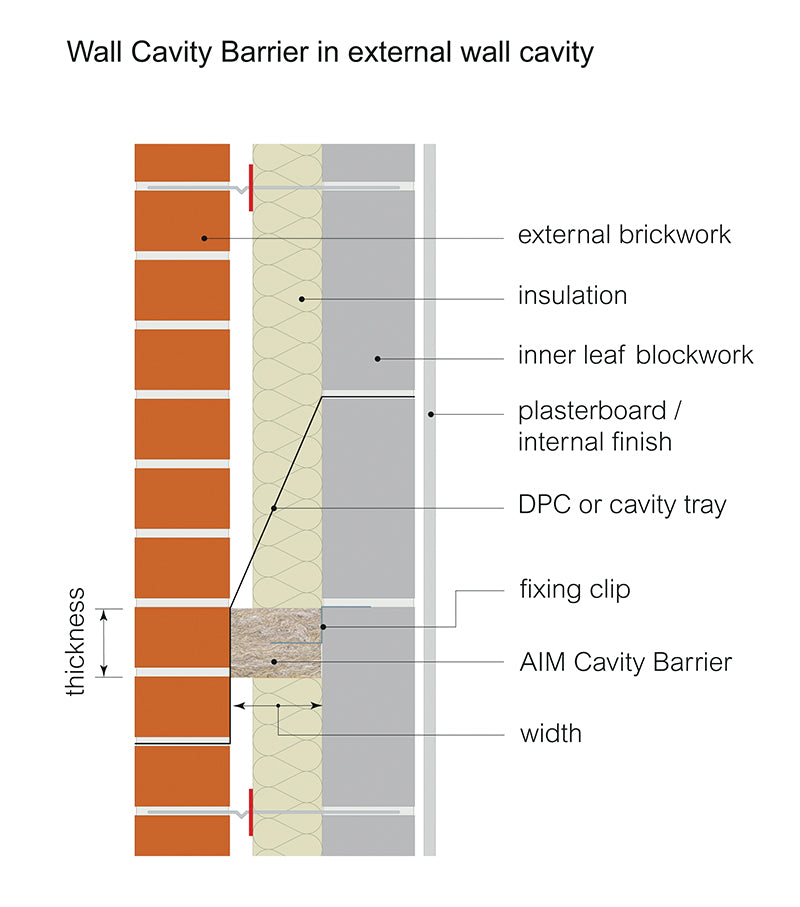

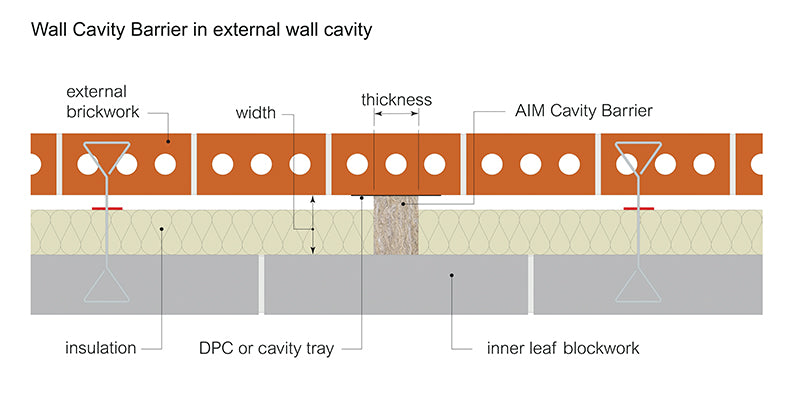

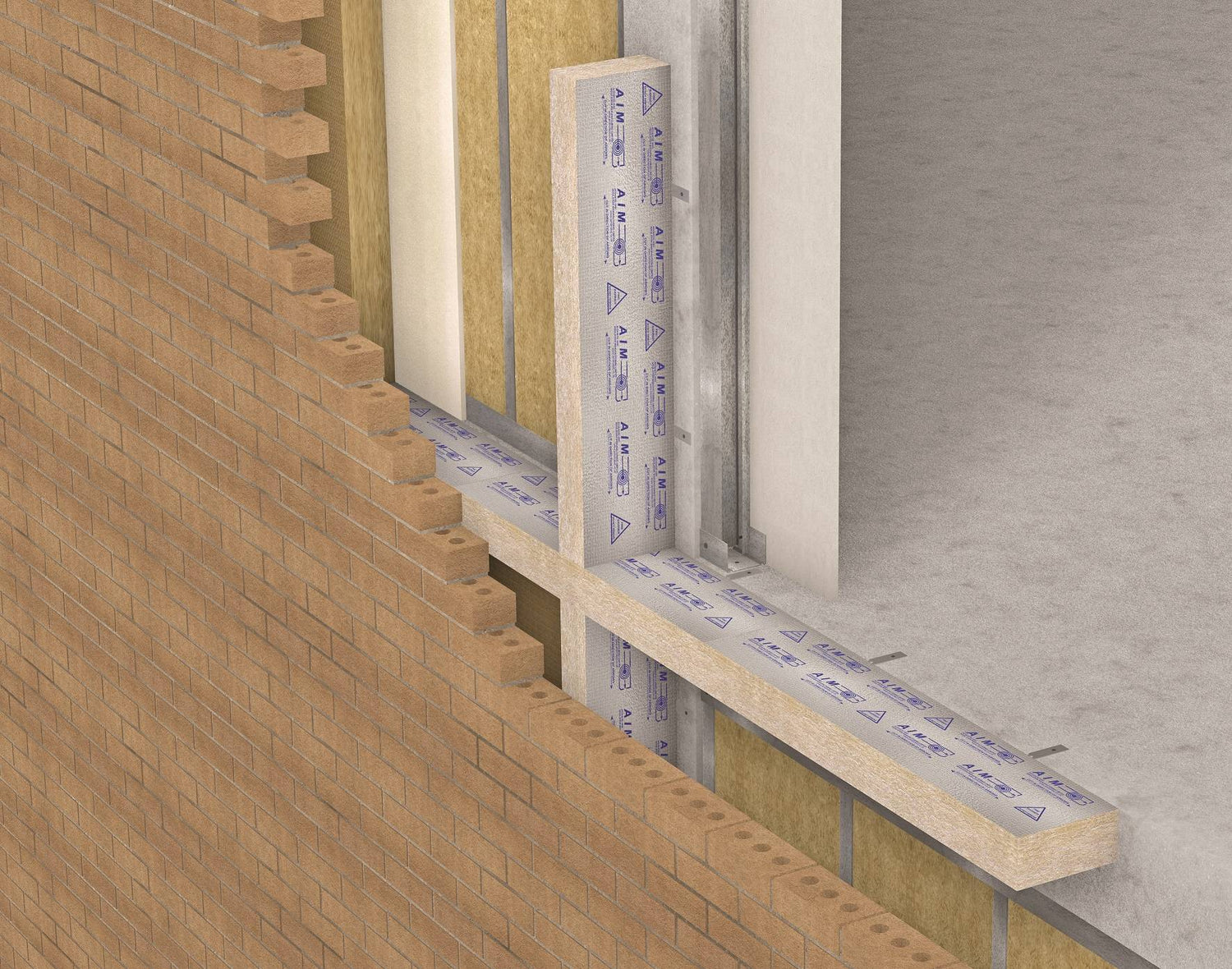

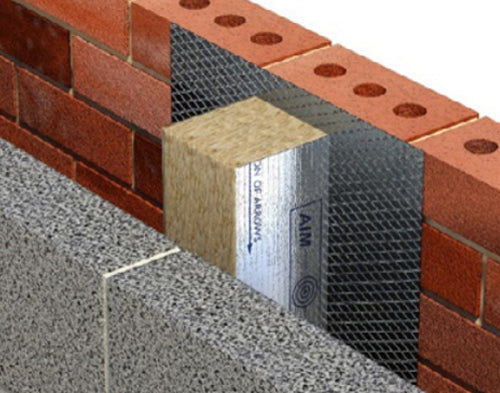

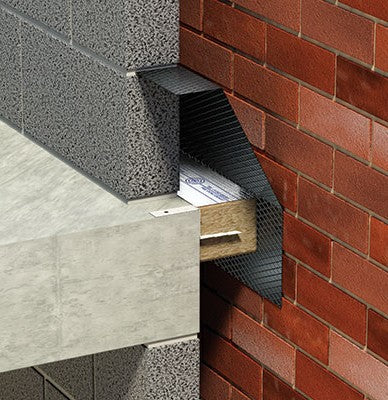

Applications

AIM Wall Cavity Fire Barrier may be used to provide
a fire barrier in masonry curtain wall systems and
masonry cavity walls. It is typically used vertically and
horizontally to provide a fully closed cavity fire barrier
along compartmentation lines in the outer leaf of the
building.

Building Materials

Certifications

Features

High density foil faced stone wool barrier: Thicknesses to provide 1 and 2 hour fire rating.
For use within voids up to 400mm.
Reduces airborne sound through the external
wall cavity by a minimum of 21dB RW: Sound barrier.
Provides up to 120 minutes integrity & insulation when tested to BS 476-20: Prevents the passage of Heat, Fire and Smoke through external wall cavities.

Specifications
  • Type
    Wall cavity fire barrier
  • Pack Size
    1
  • Length (MM)
    1,000
  • Tech Datasheet
    AIM_WCFB_1Hr_TDS.pdf
  • Thickness (mm)
    75
  • Width (mm)
    236.00
  • Fire Rating
    1 hour
  • To Suit Cavity Void Width
    225mm
