AIM WCB 30 mins 1000 x 1200 x 75 Red Edition

Download the technical datatsheet here.

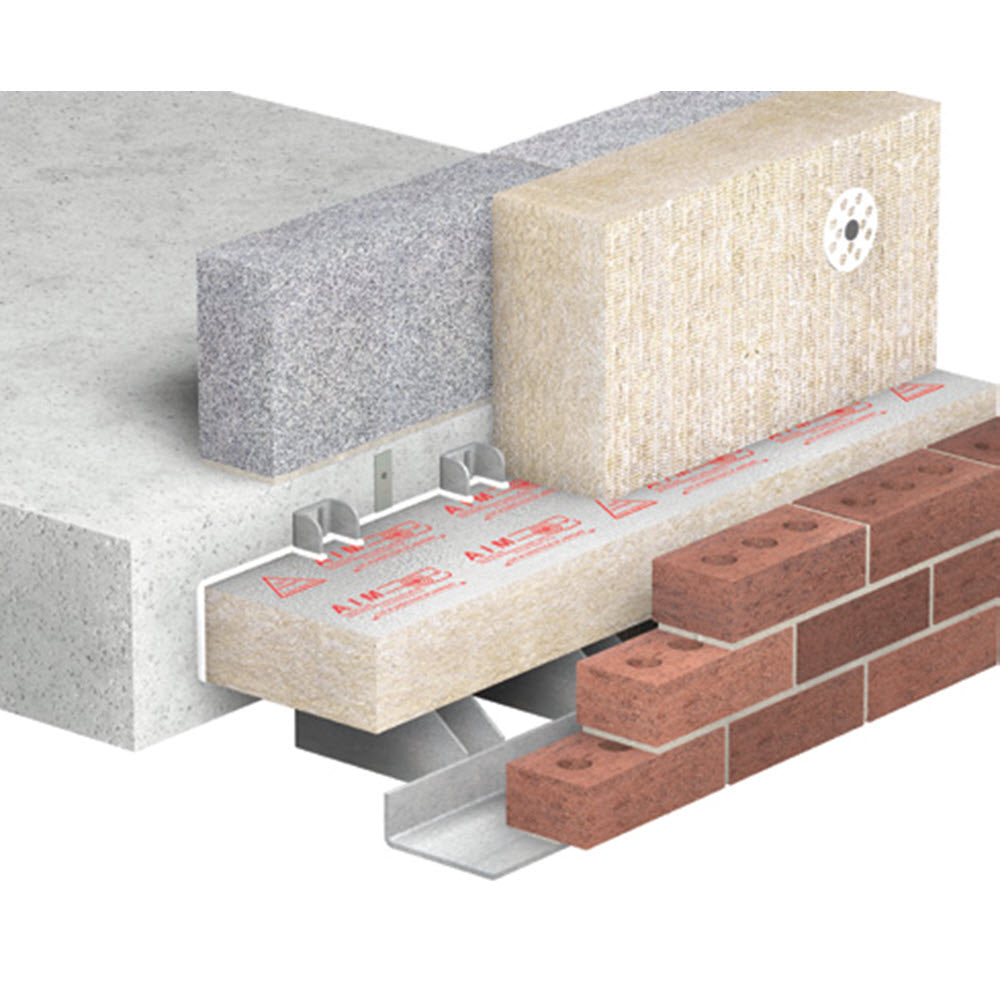

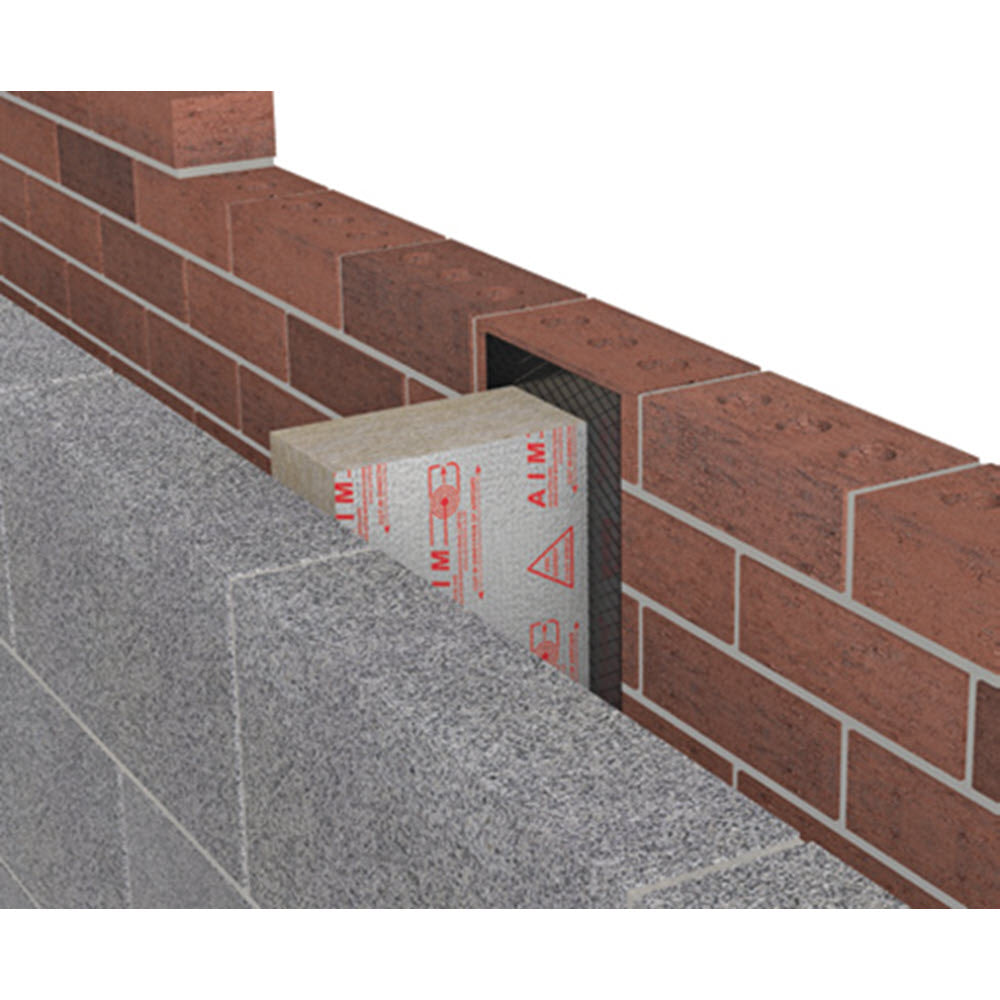

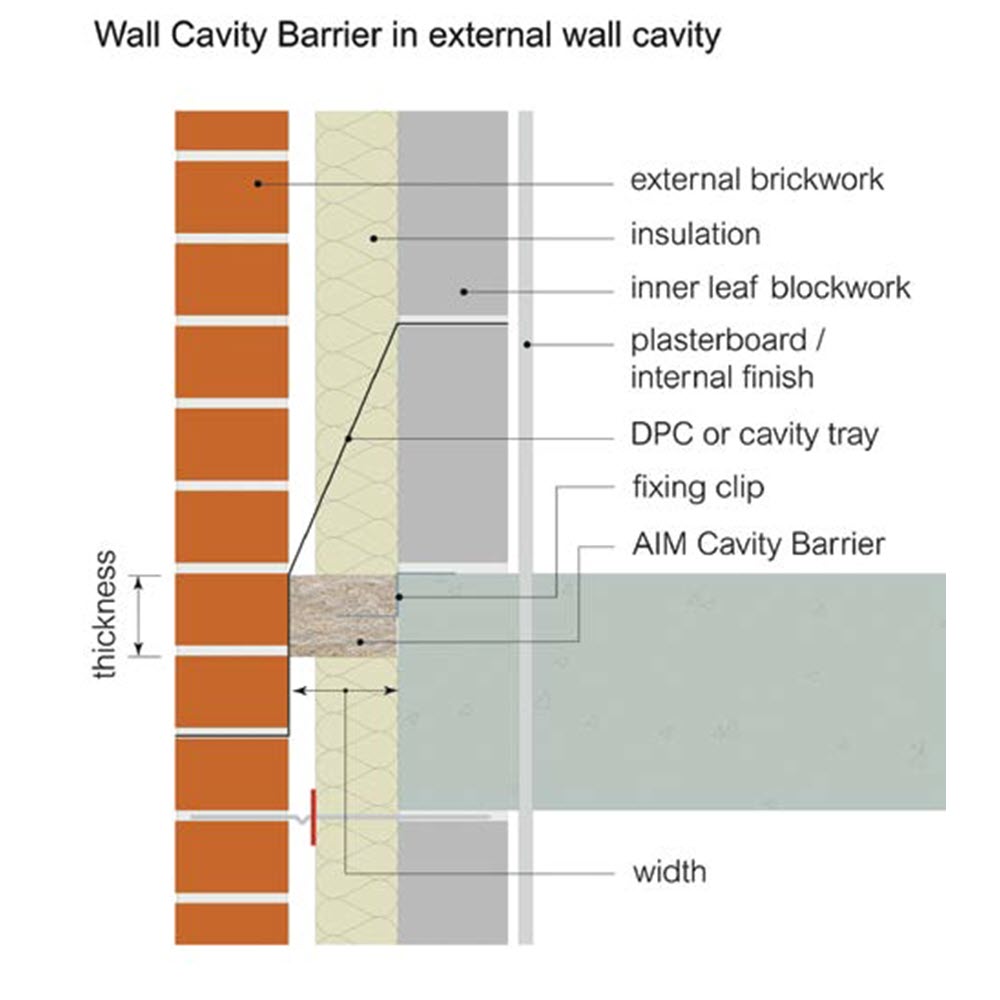

AIM Wall Cavity Barrier may be used to provide a fire barrier in masonry cavity walls as well as for fire stopping between a masonry wall system † an d a concrete floor slab. It is typically used vertically and horizontally to provide a fully closed cavity fire barrier along compartmentation lines in the outer leaf of the building. Certifix AIM Wall Cavity Barrier may be used in different or non-standard constructions, such as rainscreen cladding systems, with the approval of a competent person. † AIM Wall Cavity Barrier has not been tested for use with aluminium curtain wall systems.

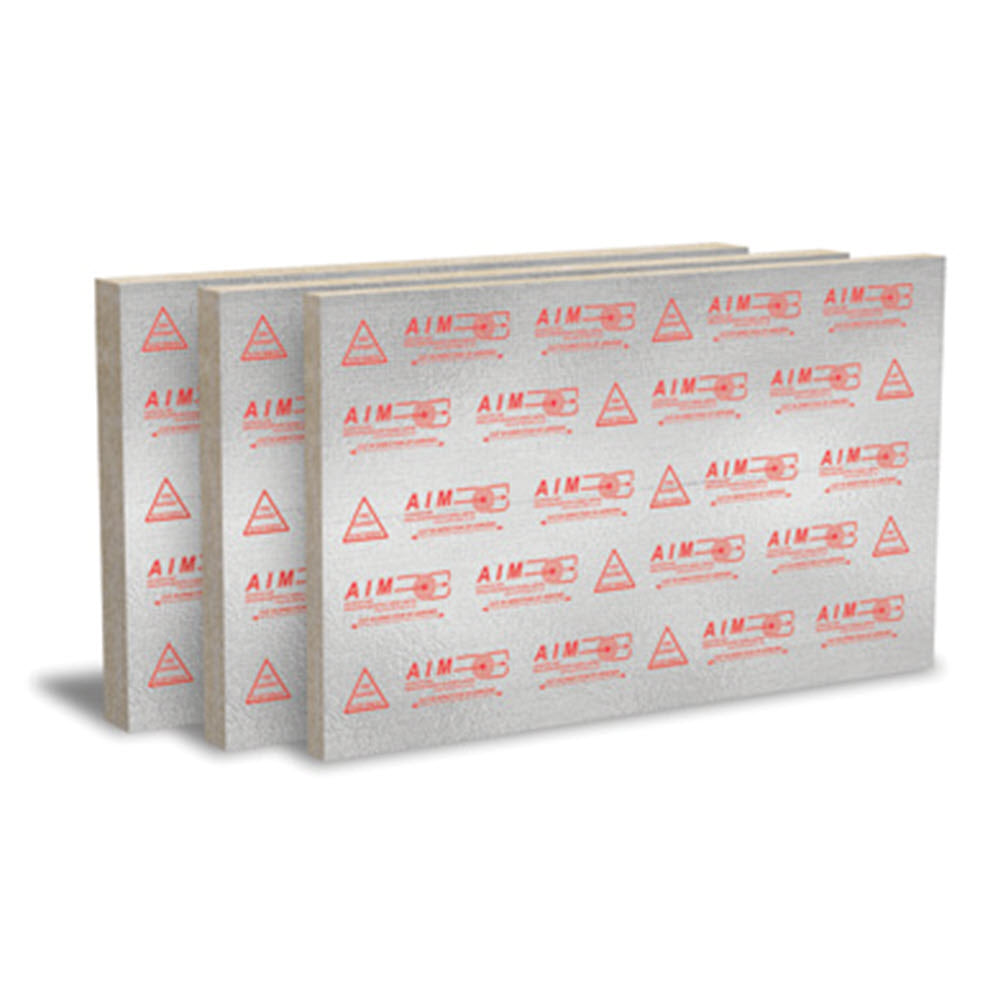

High density foil faced stone wool barrier.

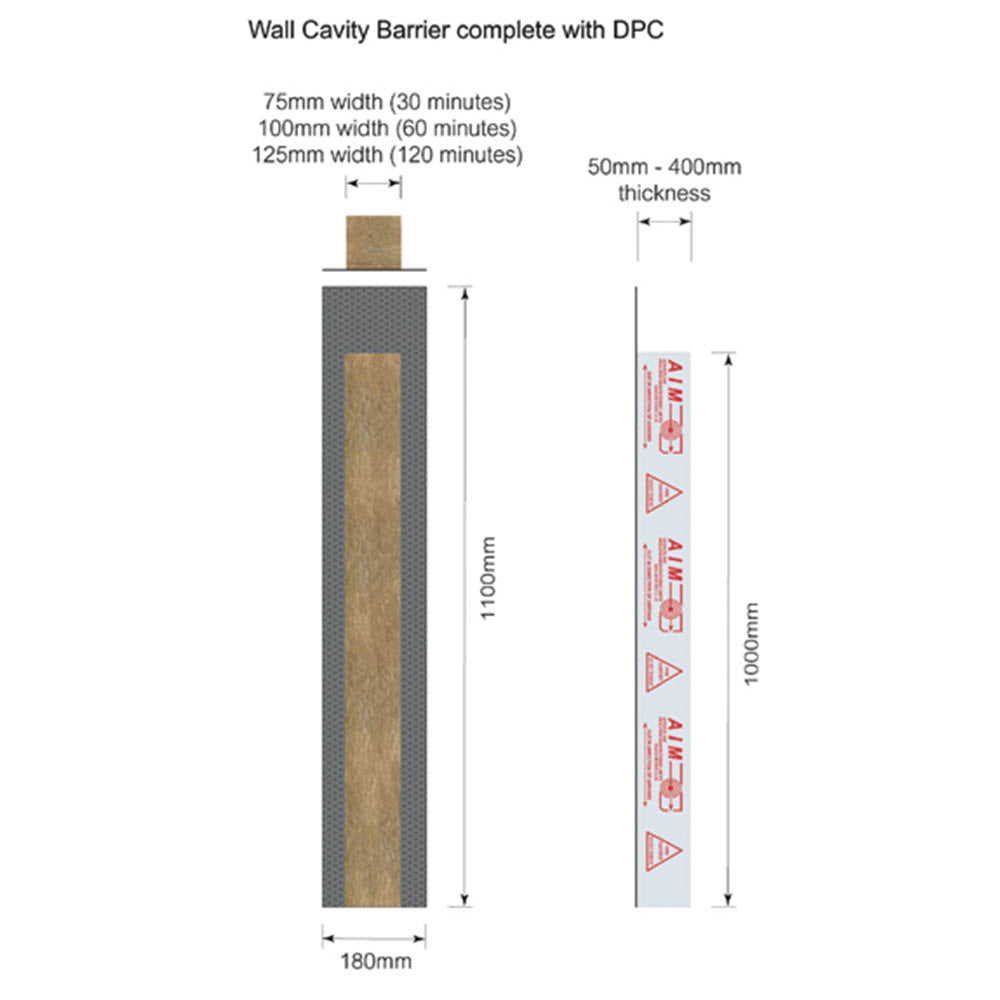

Thicknesses to provide 30, 60 and 120 minute fire ratings.
For use within voids up to 600mm.

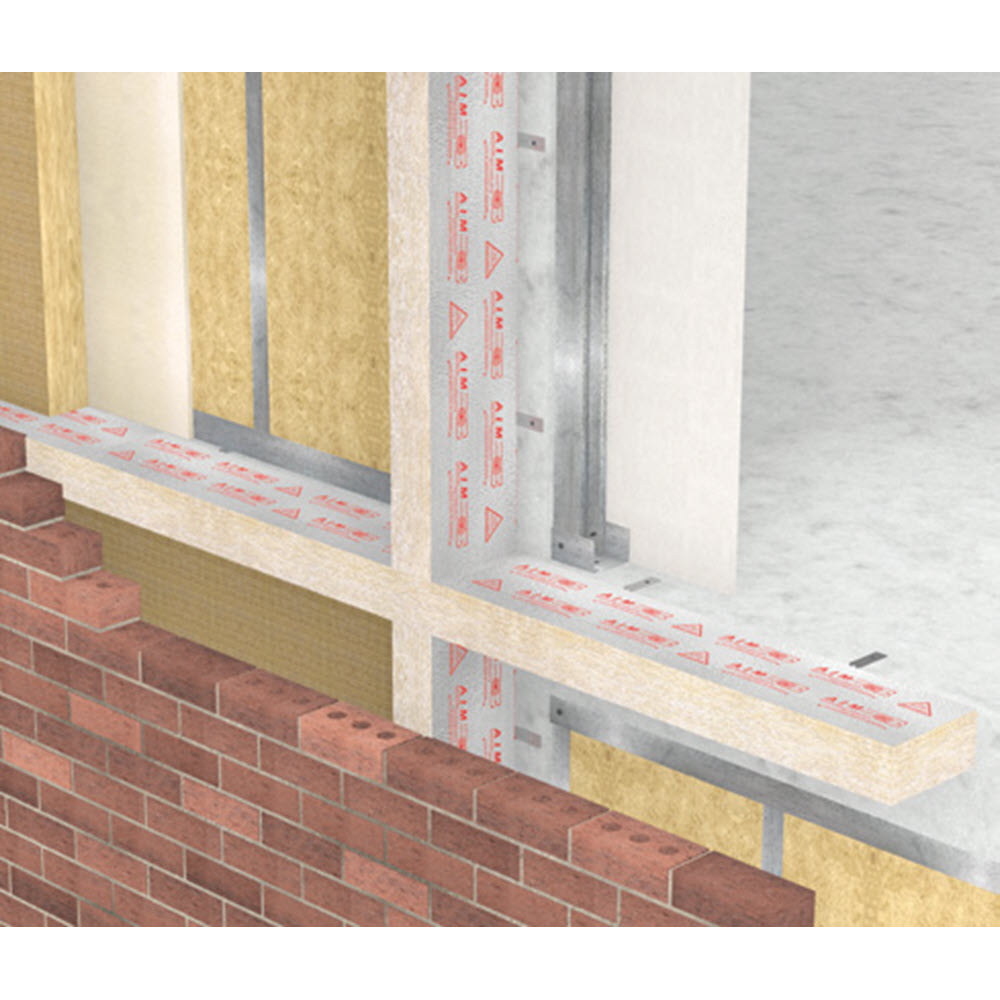

Tested for use with SFS substrate.
Tested for use with Masonry Support brackets.

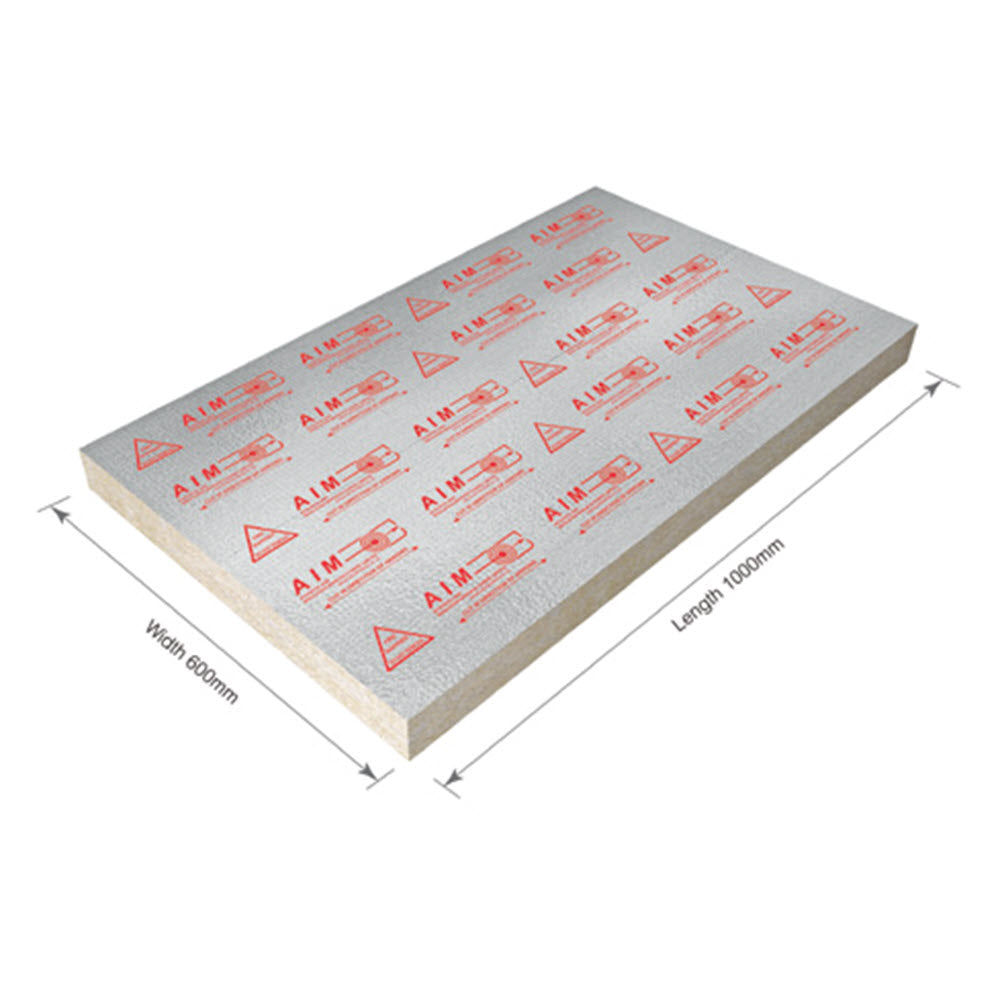

Available cut to size or in slab form for on site cutting.
Reduces airborne transmission of sound by a minimum of 21dB RW .
Jointing tape not required.
Suitable for horizontal and vertical use.
Suitable for use with all thermal insulation types.
Prevents the passage of Heat, Fire and Smoke through external wall cavities.
Reduces airborne sound through the external wall cavity.
The product provides 30, 60 or 120 minutes Integrity & Insulation when tested to EN 1366-4.
Can be used in a wide variety of construction types, with the correct approval.
