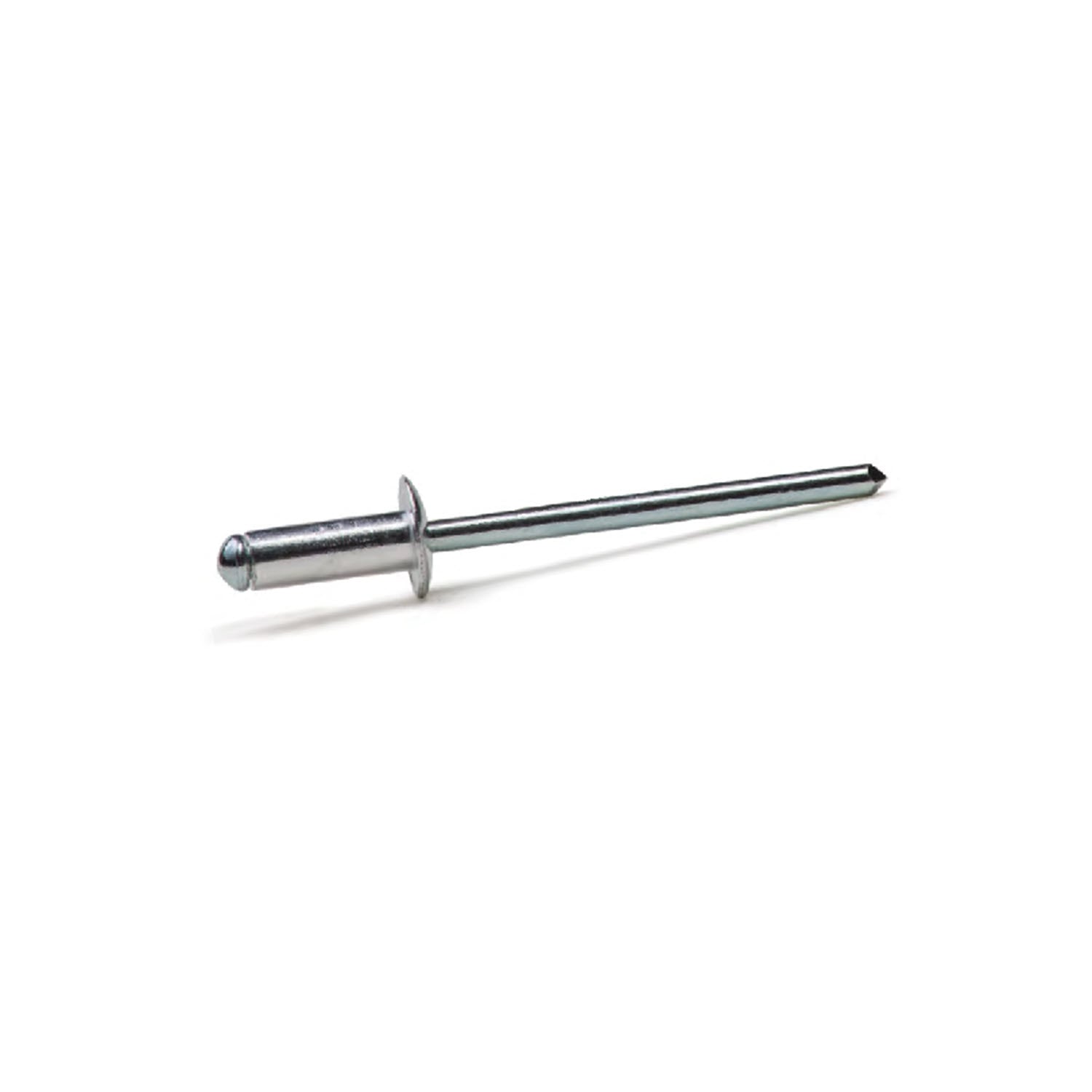

Certifix RS-AL-ST Dome headed standard aluminium/steel rivet 2.4 x 12

Pack Size: 1000
£29.68

Certifix RS-AL-ST Dome headed standard aluminium/steel rivet 2.4 x 12 is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

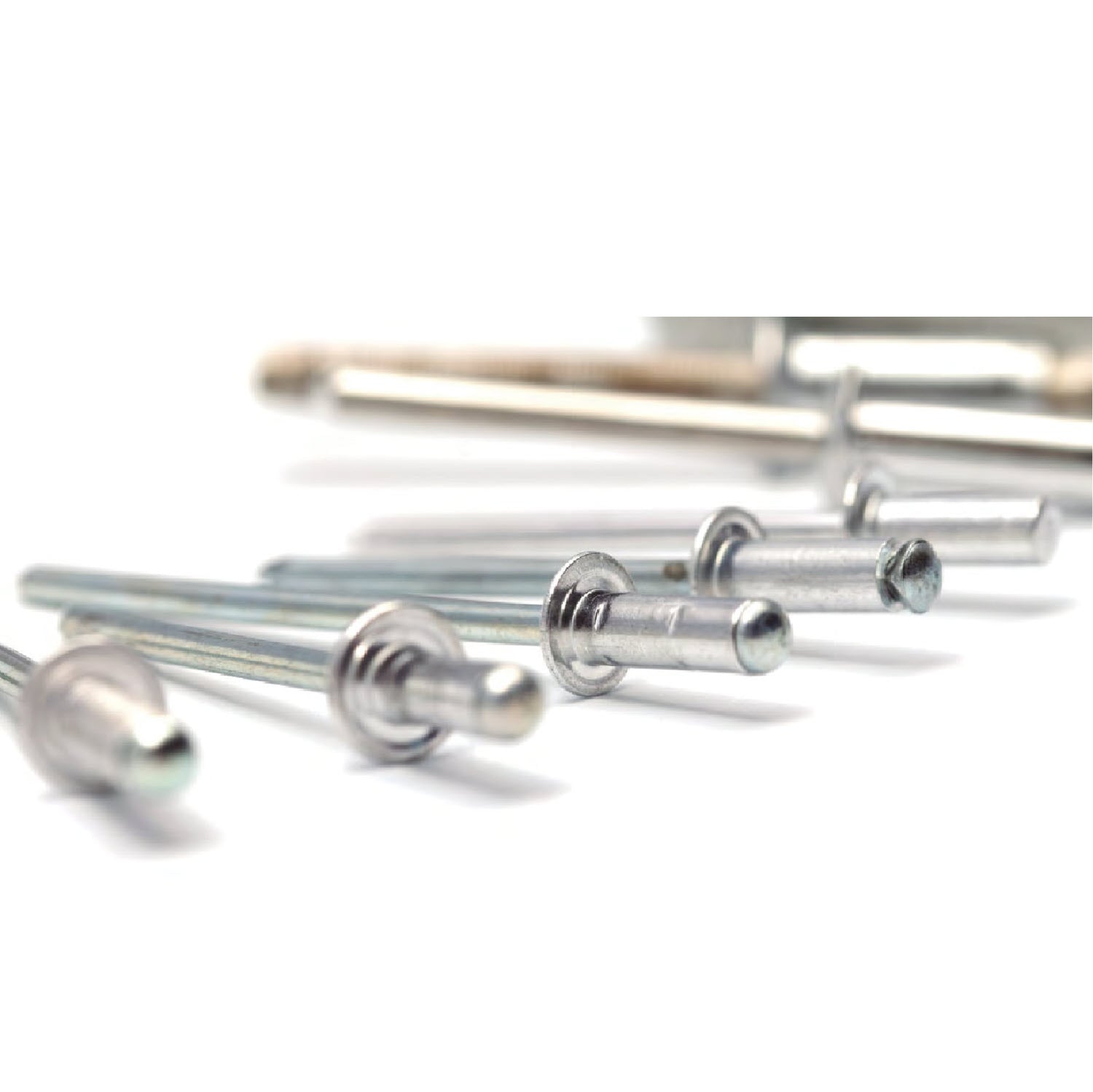

Certifix Standard rivets are versatile blind rivets featuring a breaking mandrel. They offer a swift and effortless solution for joining various materials where exceptionally high torque isn't required. Available in a wide diameter range of 2.4mm to 7.8mm, Certifix Standard rivets accommodate a broad spectrum of grip ranges, from 0.8mm to 185mm. The extensive material selection and diverse finishing options, including lacquering and protective coatings, provide unparalleled customization possibilities.

Technical Datasheet

Tech Datasheet:

Applications

Automotive industry
Bodyworks – commercial vehicles
Electronics
Air Conditioning and Heating
Construction
Metal industry
Metal furniture
Electrical appliances
Ladder manufacturing

Features

Single-side access (blind rivet).
It covers a wide grip range; from 0.8 mm. to 185 mm.
Can be fixed from both ends.
Wide range of diameters: from 2.4 mm. to 7.8 mm.
Can fasten different materials with different types of manufacturing: composites, laminate materials, heat treated, etc.
Does not deform surfaces after the riveting process is finished (painted, glazed surfaces, etc.)
Good resistance to temperature variations.
Does not come loose from dynamic stress (vibrations in general)
Available in alloy magnesium contents of 3.5 and 5.0, which give a great tensile and shear strength, an excellent clamping force and a high resistance to corrosion.
Fast, simple and great quality assembly.
The riveting process is environmentally friendly, free of smoke, sparks, fumes.
It requires simple, fast and lightweight tools.

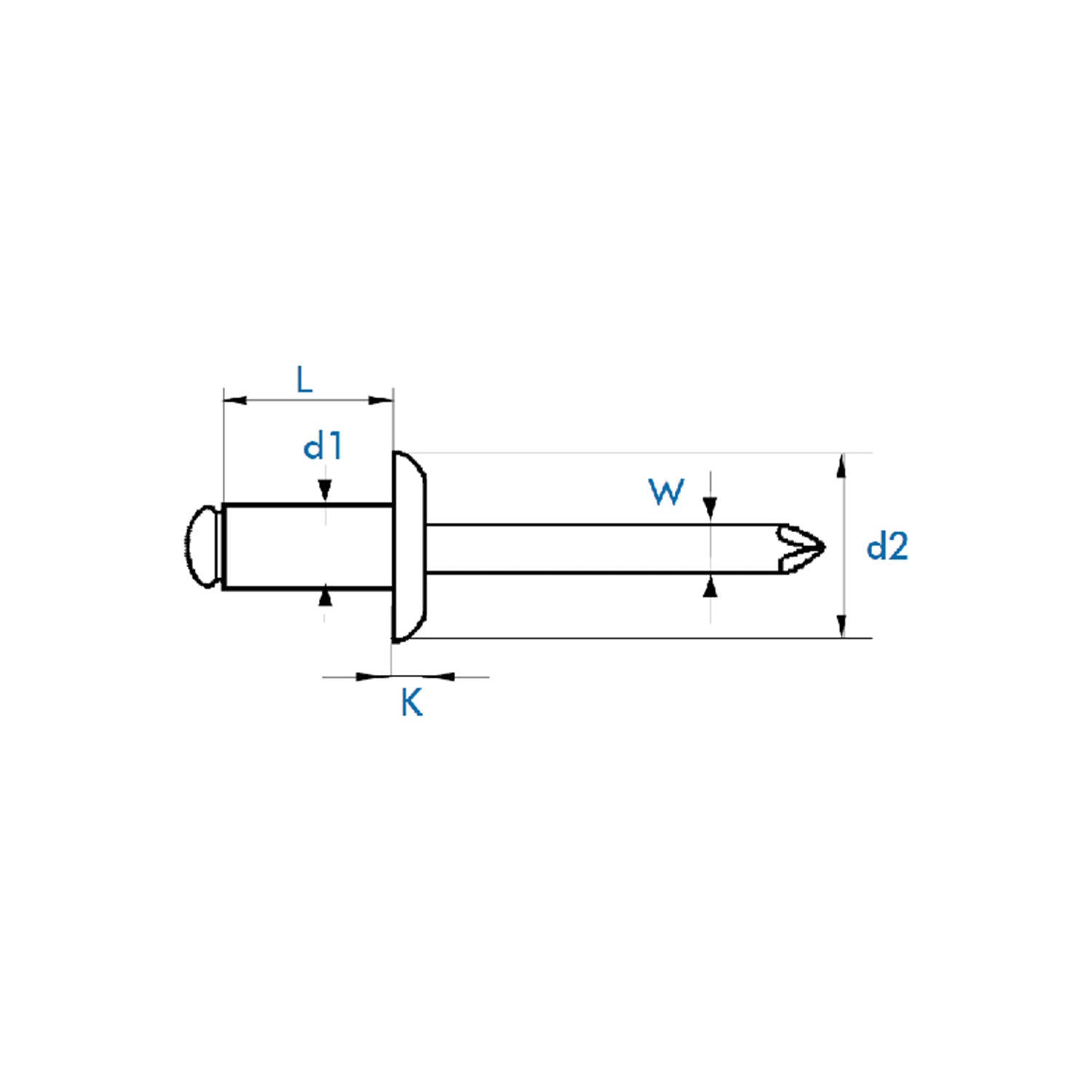

Specifications
  • Body Diameter (mm)
    2.40
  • Body Length (mm)
    12.00
  • Body Material
    Aluminium
  • Brand
    Certifix
  • coated
    No
  • Diameter (mm)
    2.40
  • Drill Hole Diameter (mm)
    2.5
  • Grip Range
    8.0-9.5mm
  • Head Diameter (mm)
    5.00
  • Head Thickness (mm)
    0.60
  • Head Type
    Domed
  • Length (MM)
    12
  • Mandrel Diameter (mm)
    1.45
  • Mandrel Material
    Zinc Plated Steel
  • Material
    Aluminium/Zinc-Plated Steel
  • Pack Size
    1,000
  • Shear (N)
    350 N
  • Tensile (N)
    550 N
  • Tensile N/mm
    550 N
  • Type
    Rivet

Reviews (0)

Delivery & Returns

For full UK delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix RS-AL-ST Dome headed standard aluminium/steel rivet 2.4 x 12

£29.68
Certifix Standard rivets are versatile blind rivets featuring a breaking mandrel. They offer a swift and effortless solution for joining various materials where exceptionally high torque isn't required. Available in a wide diameter range of 2.4mm to 7.8mm, Certifix Standard rivets accommodate a broad spectrum of grip ranges, from 0.8mm to 185mm. The extensive material selection and diverse finishing options, including lacquering and protective coatings, provide unparalleled customization possibilities.

Clamping Range (MM)

N/A

Diameter (MM)

2.40

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Rivet

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1,000

Package Contents

N/A

Material

N/A

Length (MM)

12

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Single-side access (blind rivet).
It covers a wide grip range; from 0.8 mm. to 185 mm.
Can be fixed from both ends.
Wide range of diameters: from 2.4 mm. to 7.8 mm.
Can fasten different materials with different types of manufacturing: composites, laminate materials, heat treated, etc.
Does not deform surfaces after the riveting process is finished (painted, glazed surfaces, etc.)
Good resistance to temperature variations.
Does not come loose from dynamic stress (vibrations in general)
Available in alloy magnesium contents of 3.5 and 5.0, which give a great tensile and shear strength, an excellent clamping force and a high resistance to corrosion.
Fast, simple and great quality assembly.
The riveting process is environmentally friendly, free of smoke, sparks, fumes.
It requires simple, fast and lightweight tools.
