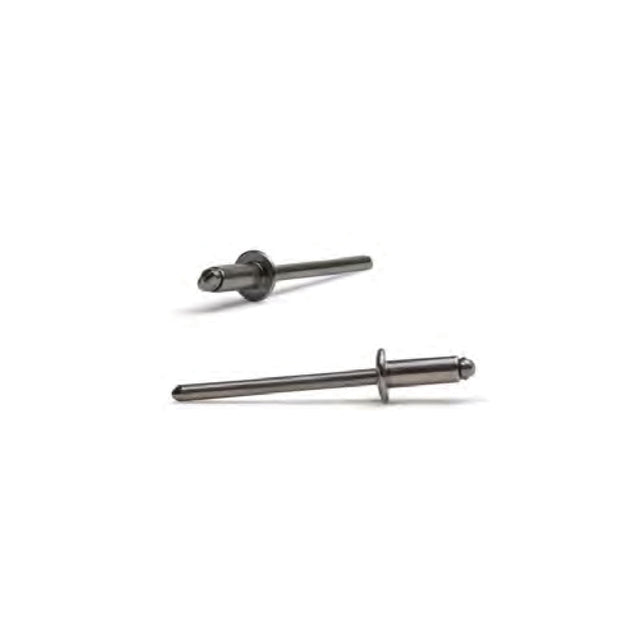

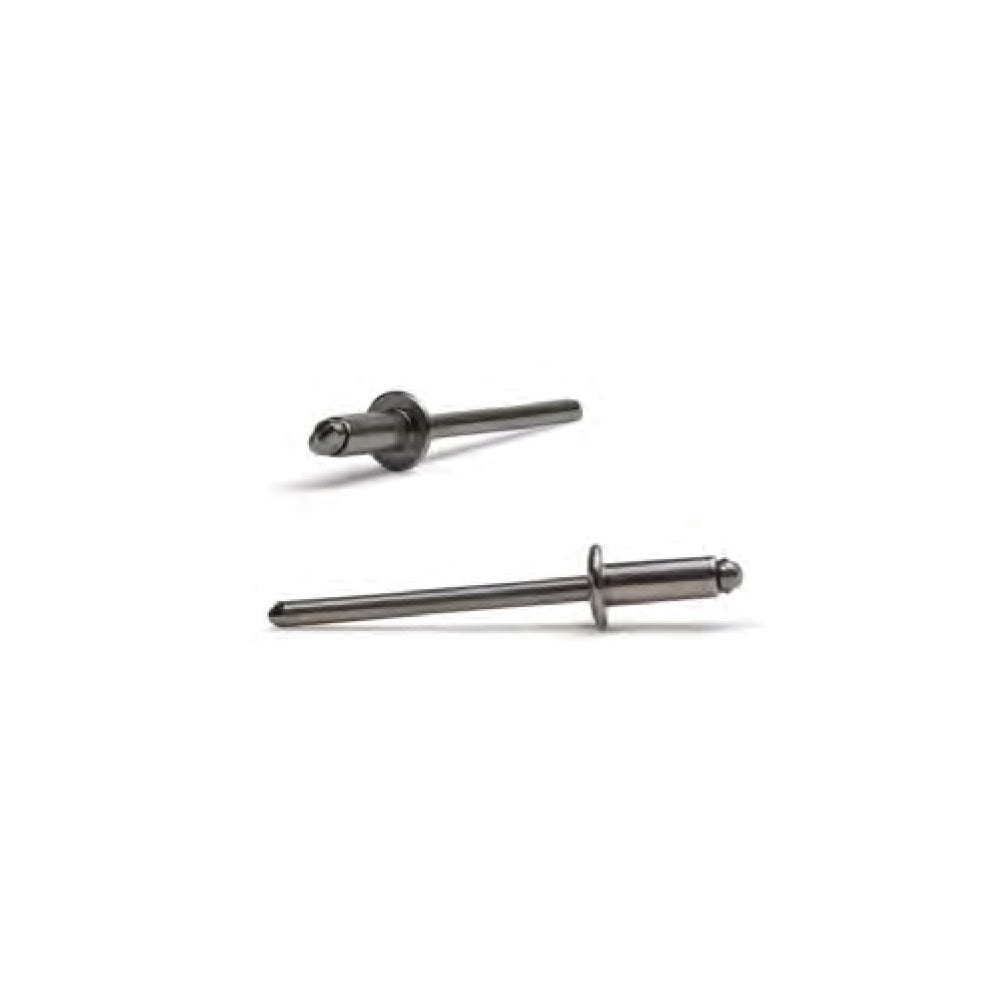

Certifix Rivet DIN 7337 / ISO 15983 A2/A2 4.8 x 12

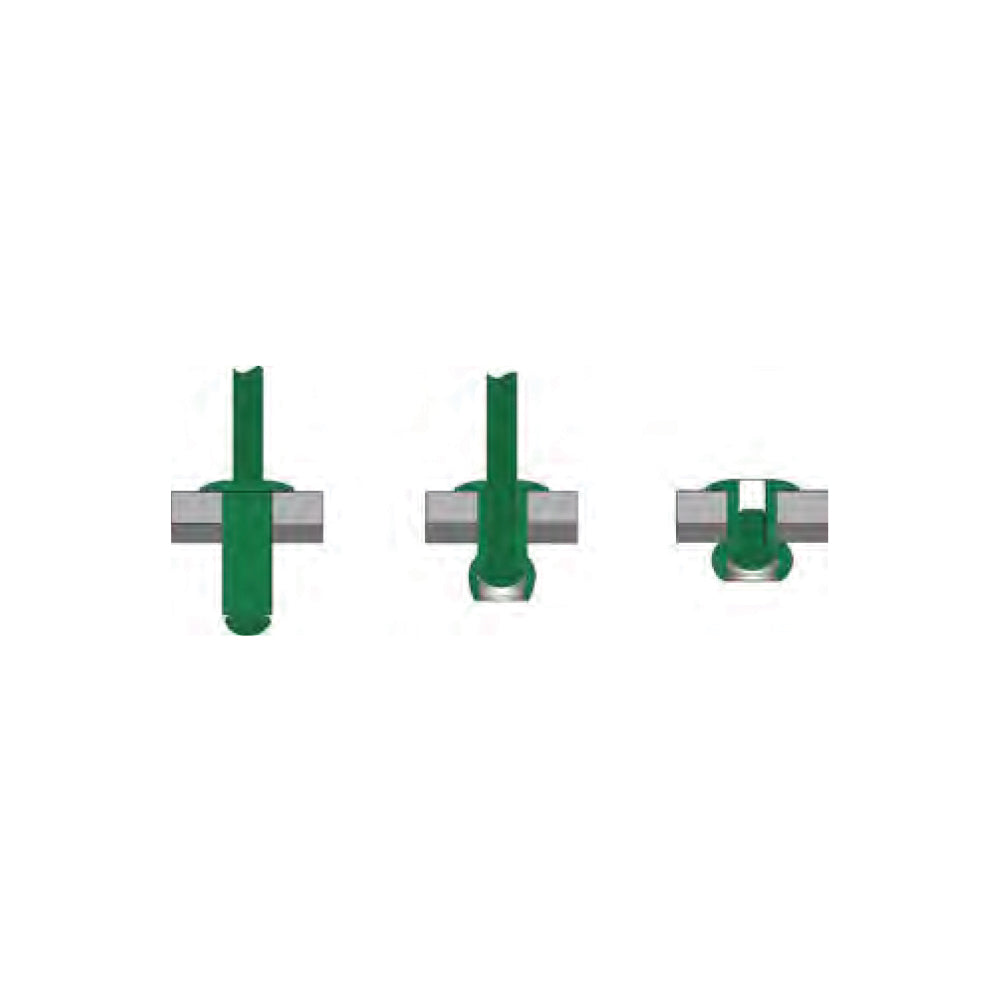

Certifix rivets to standards DIN 7337 / ISO 15983. With standard flat head, these 4.8 x 12 blind rivets are are made of A2 stainless steel for extra corrosion resistance in harsh conditions. With an integral mandrel designed to break on setting from the rivet body, these rivets are particularly intended for applications where the backside is not accessible once set.

Certifix Rivet DIN 7337 / ISO 15983 A2/A2 4.8 x 12 is backordered and will ship as soon as it is back in stock.

Product Enquiry

Technical Datasheet

Download the technical datatsheet here.

Applications

Automotive, bodywork, truck aluminium sidewalls, tarpaulins, industrial vehicle sectors.
Construction of ventilated facades, profiles, lifelines, metal structures, roofs and facilities.
Air conditioning, HVAC, lifting, furniture, gutters, containers, electrical appliances and home and industrial appliances.

Building Materials

Certifications

Features

A2 stainless steel: Improved corrosion resistance.
Self plugging: Easy to install.

Specifications
  • Diameter (MM)
    5
  • Drill Diameter (MM)
    5
  • Type
    Rivet
  • Pack Size
    500
  • Material
    A2 Stainless Steel
  • Length (MM)
    12
  • Tech Datasheet
    DIN7337_ISO15983_dome_head_rivet_TDS.pdf
  • Head Diameter (mm)
    9.00
  • Grip Range
    6-8mm
  • Shear (N)
    4000 N
  • Tensile (N)
    5000 N
  • Tensile N/mm
    5000 N
  • Body Material
    A2 Stainless Steel
  • Mandrel Material
    A2 Stainless Steel

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix Rivet DIN 7337 / ISO 15983 A2/A2 4.8 x 12

£0.00
Certifix rivets to standards DIN 7337 / ISO 15983. With standard flat head, these 4.8 x 12 blind rivets are are made of A2 stainless steel for extra corrosion resistance in harsh conditions. With an integral mandrel designed to break on setting from the rivet body, these rivets are particularly intended for applications where the backside is not accessible once set.

Clamping Range (MM)

N/A

Diameter (MM)

5

Drill Diameter (MM)

5

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Rivet

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

500

Package Contents

N/A

Material

A2 Stainless Steel

Length (MM)

12

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

A2 stainless steel: Improved corrosion resistance.
Self plugging: Easy to install.
