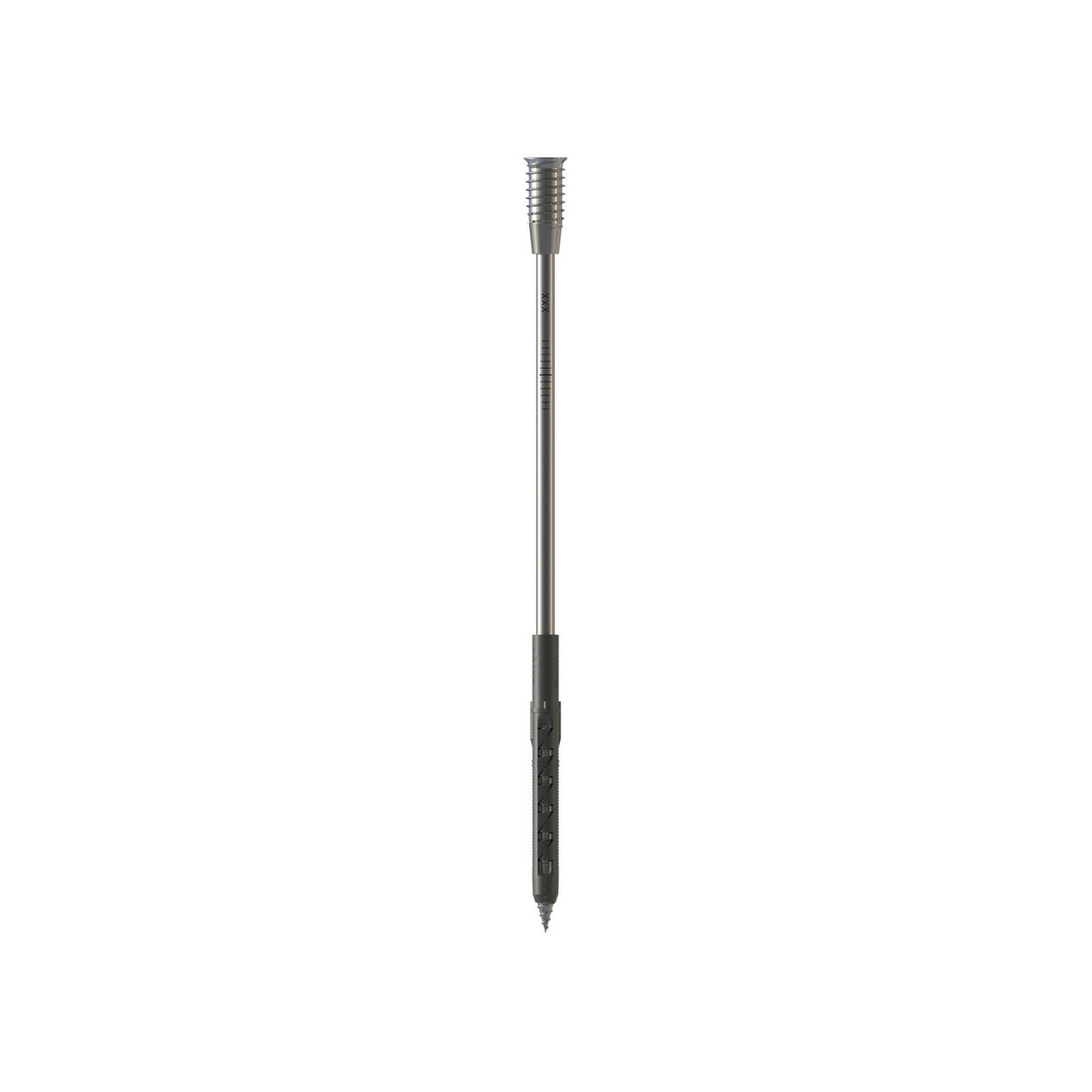

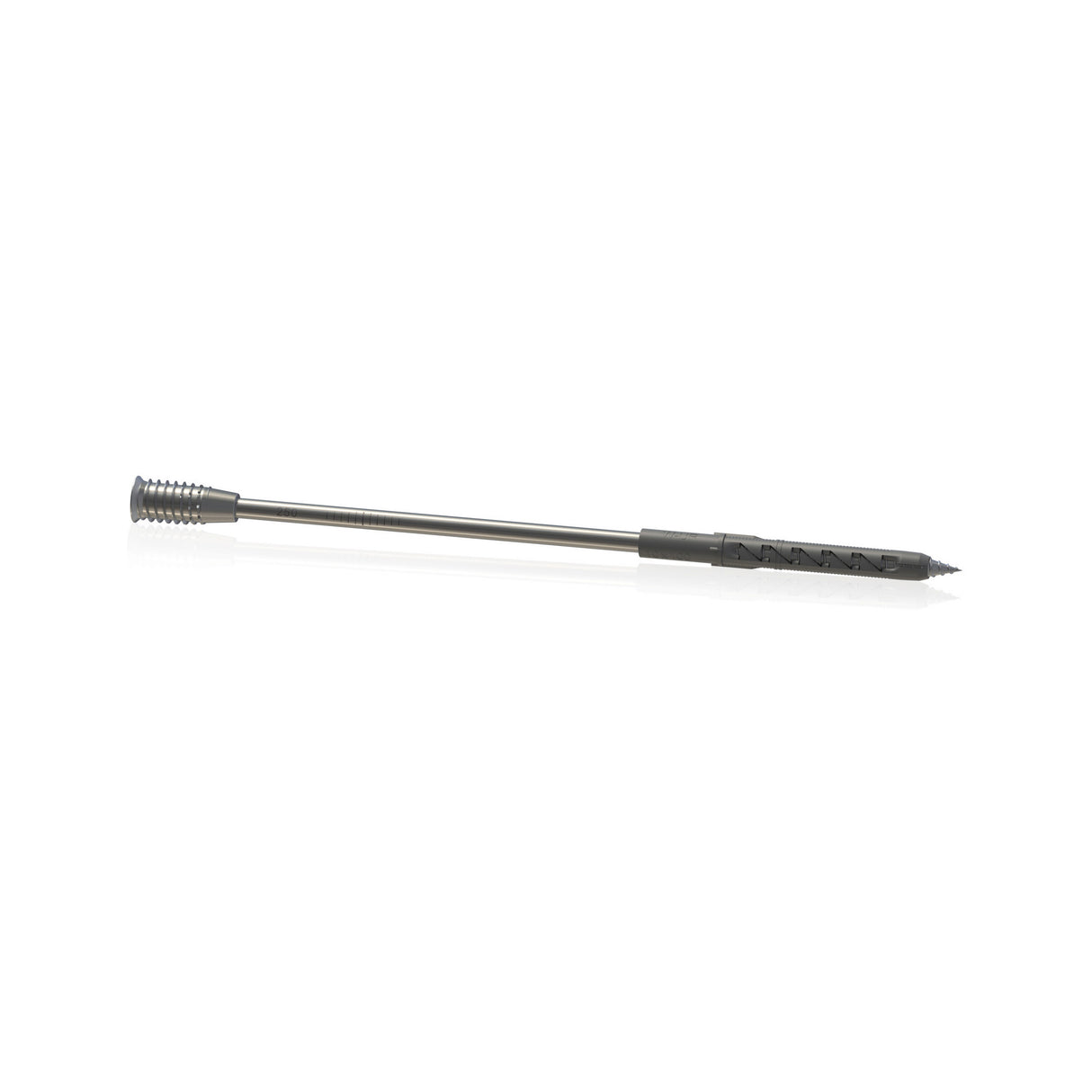

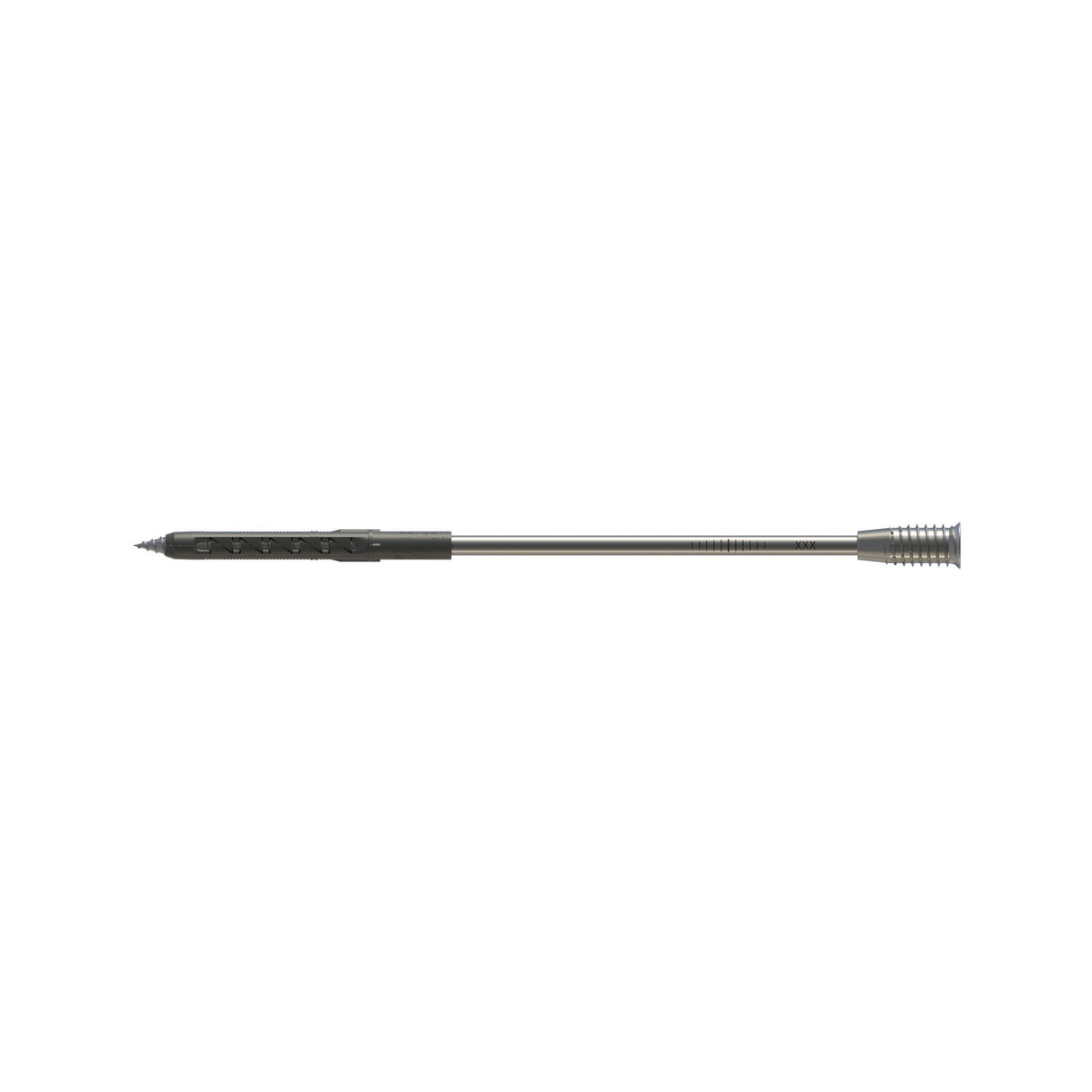

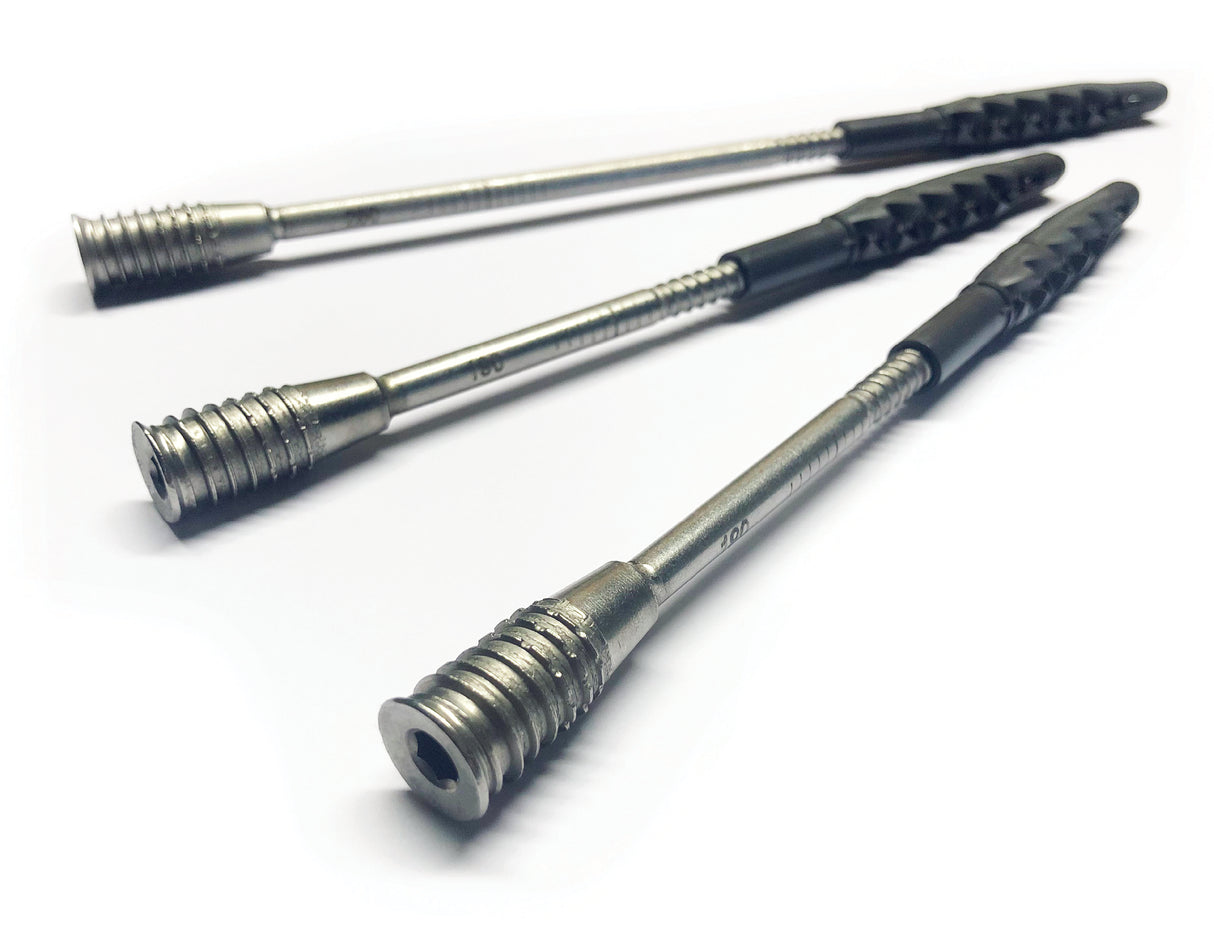

Certifix CFCA 10 x 190 spacer screw

Certifix CFCA Spacer Screws are perfect for the secure fastening of secondary aluminium and stainless steel substructures to the front of masonry. With very few working steps required, installation is quick and simple, thanks to the zinc-coated stainless-steel screws making it easy to cut into aluminium and stainless steel, without additional preparation. The low thermal conductivity of A4 Stainless steel minimises heat loss, and the screws meet current fire protection standards and requirements. They are also fully compatible with every commercially available insulation material, making them ideal for use in renovations and new builds.

Certifix CFCA 10 x 190 spacer screw is backordered and will ship as soon as it is back in stock.

Product Enquiry

Technical Datasheet

Download the technical datatsheet here.

Applications

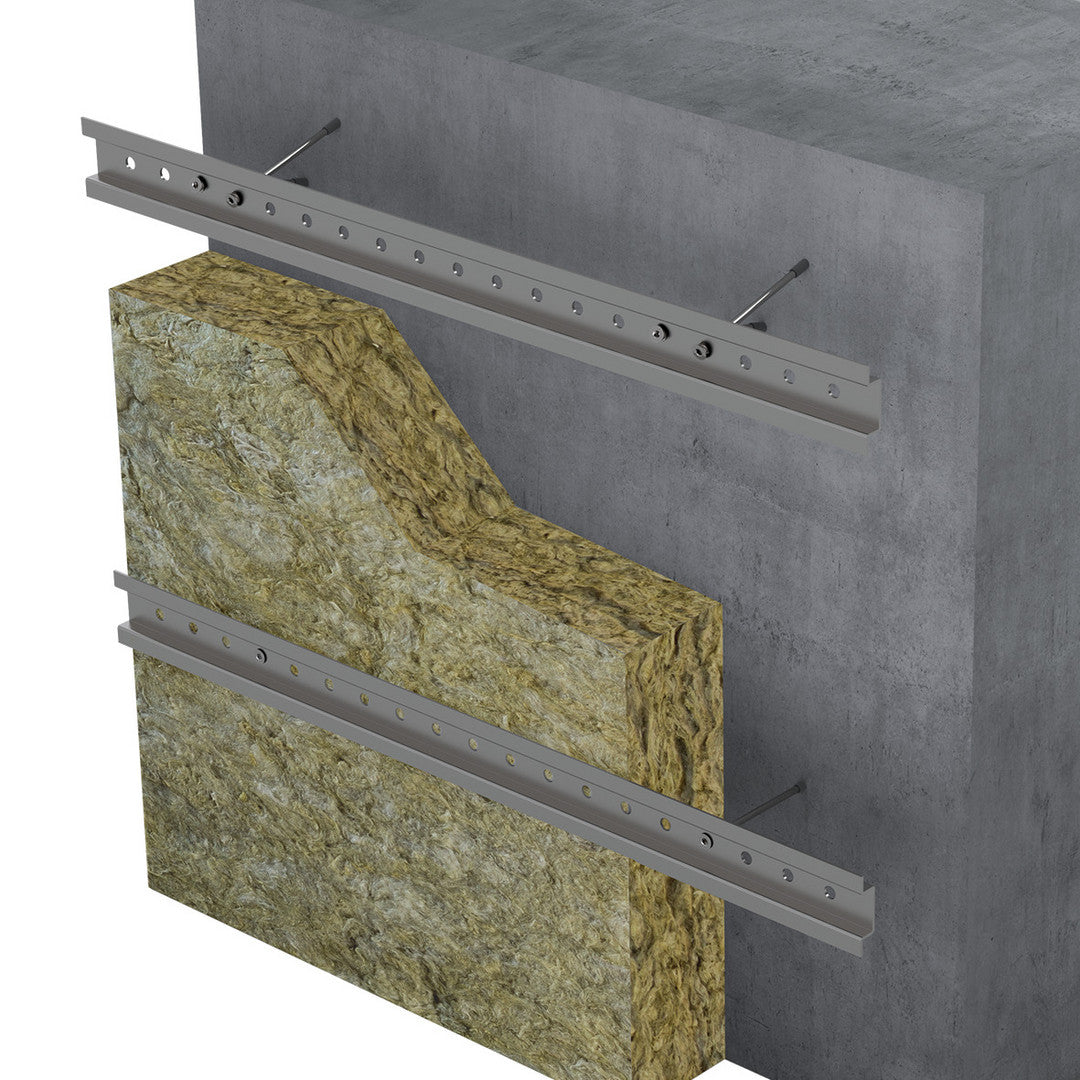

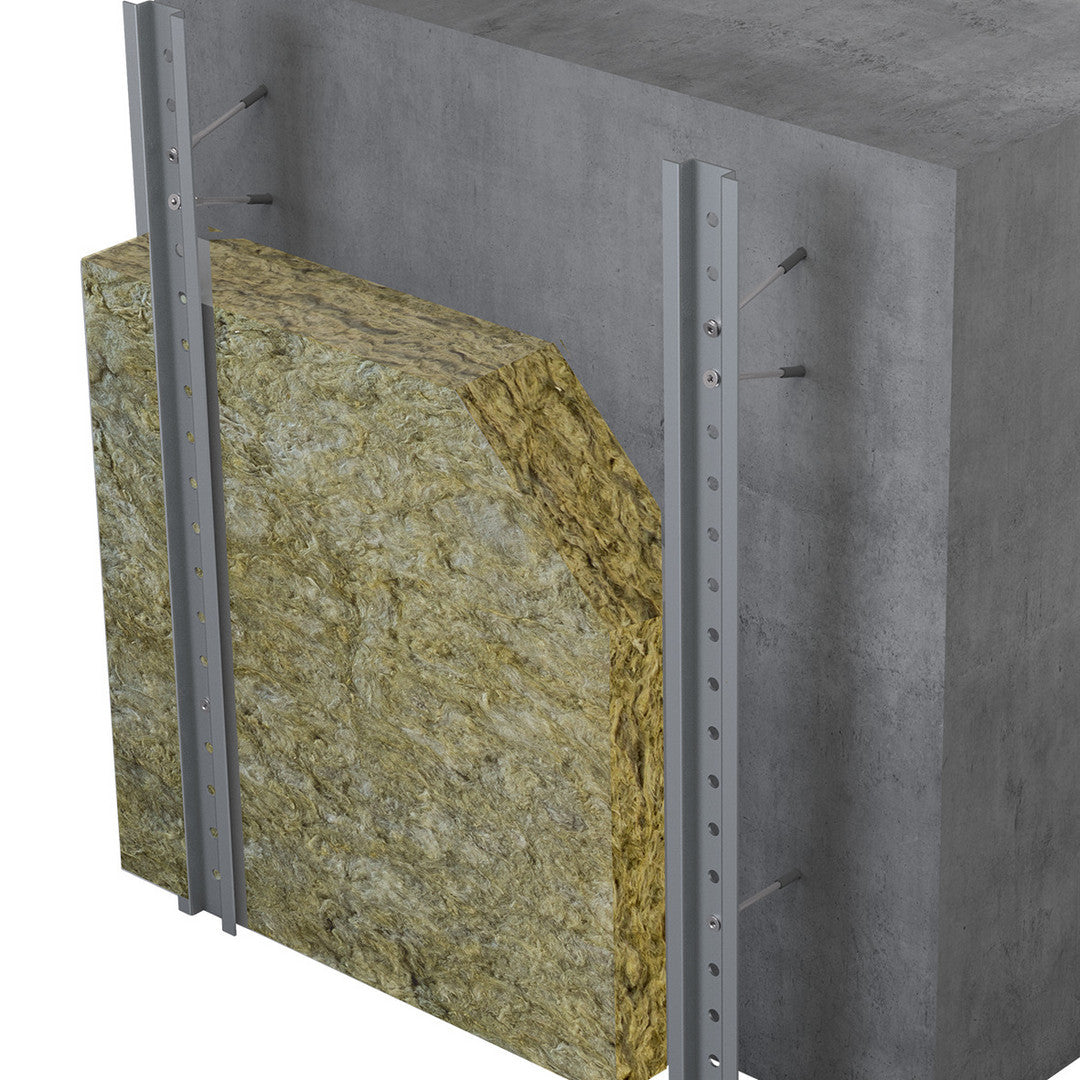

For fastening of secondary aluminium and stainless steel substructures to the front of masonry

Building Materials

Certifications

Features

Minimised thermal bridging: Heat loss is minimal thanks to the low thermal conductivity of the A4 stainless
steel material
Quick to install: Having very few working steps within a short installation time ensures high profitability
Easy mounting: Easy to install without having to inconveniently cut the insulation
Flexible and versatile: Fully compatible with all commercially available insulation materials (strong/weak in compression) and profiles — can be used in both new builds and renovations
Connection system complies with fire protection standards: Meets current fire protection requirements, making it a safe connection system for RVF

Specifications
  • Clamping Range (MM)
    85-110
  • Diameter (MM)
    10
  • Type
    Spacer screw
  • Thread Length (MM)
    100
  • Pack Size
    30
  • Material
    A4 Stainless Steel
  • Length (MM)
    190
  • Tech Datasheet
    Certifix_CFCA_Spacer_Screw_TDS-compressed.pdf
  • Driver Type
    Hexagon Socket 6
  • Head Type
    Hexagonal

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix CFCA 10 x 190 spacer screw

£1.00
Certifix CFCA Spacer Screws are perfect for the secure fastening of secondary aluminium and stainless steel substructures to the front of masonry. With very few working steps required, installation is quick and simple, thanks to the zinc-coated stainless-steel screws making it easy to cut into aluminium and stainless steel, without additional preparation. The low thermal conductivity of A4 Stainless steel minimises heat loss, and the screws meet current fire protection standards and requirements. They are also fully compatible with every commercially available insulation material, making them ideal for use in renovations and new builds.

Clamping Range (MM)

N/A

Diameter (MM)

10

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Spacer screw

Torque Moment (NM)

N/A

Thread Length (MM)

100

Thread

N/A

Size

N/A

Pack Size

30

Package Contents

N/A

Material

A4 Stainless Steel

Length (MM)

190

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Minimised thermal bridging: Heat loss is minimal thanks to the low thermal conductivity of the A4 stainless
steel material
Quick to install: Having very few working steps within a short installation time ensures high profitability
Easy mounting: Easy to install without having to inconveniently cut the insulation
Flexible and versatile: Fully compatible with all commercially available insulation materials (strong/weak in compression) and profiles — can be used in both new builds and renovations
Connection system complies with fire protection standards: Meets current fire protection requirements, making it a safe connection system for RVF
