fisher FH II 12/8 H R Stainless steel Sleeve anchor with internal thread [520361]

Barcode: 4048962168402
Pack Size: 25
£261.32

Usually shipped in 1-2 days

fisher FH II 12/8 H R Stainless steel Sleeve anchor with internal thread [520361] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

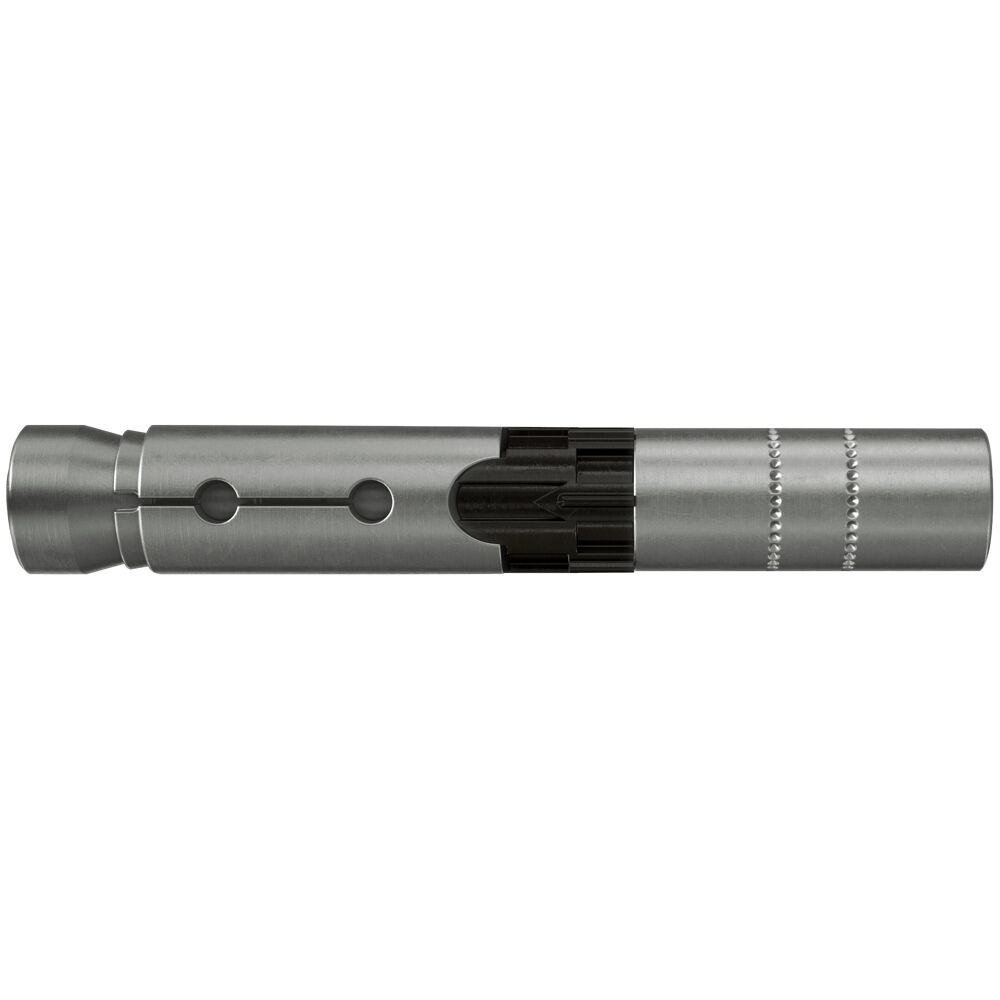

The fischer high-performance anchor FH II-I 12/8 H R is an internal threaded anchor made of stainless steel. It is installed using the pre-positioned method, which means that the anchor is inserted into the hole before the expansion sleeve is expanded. This makes the FH II-I ideal for use in outdoor areas, where the anchor is exposed to the elements. When the anchor is tightened, the cone is pulled into the expansion sleeve and expands against the hole wall. At the same time, the black plastic ring is compressed, which helps to prevent the anchor from rotating. This ensures that the anchor sleeve sits below the edge of the drill hole, as required by the approval. The FH II-I is ideal for fixing stadium seats, railings, and staircases in outdoor areas. The stainless steel construction makes the anchor corrosion-resistant, and the pre-positioned installation method makes it easy to install

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Load Table Document:

Applications

Steel constructions
Guard rails
Consoles
Ladders
Cable trays
Machines
Staircases
Pipeline routes

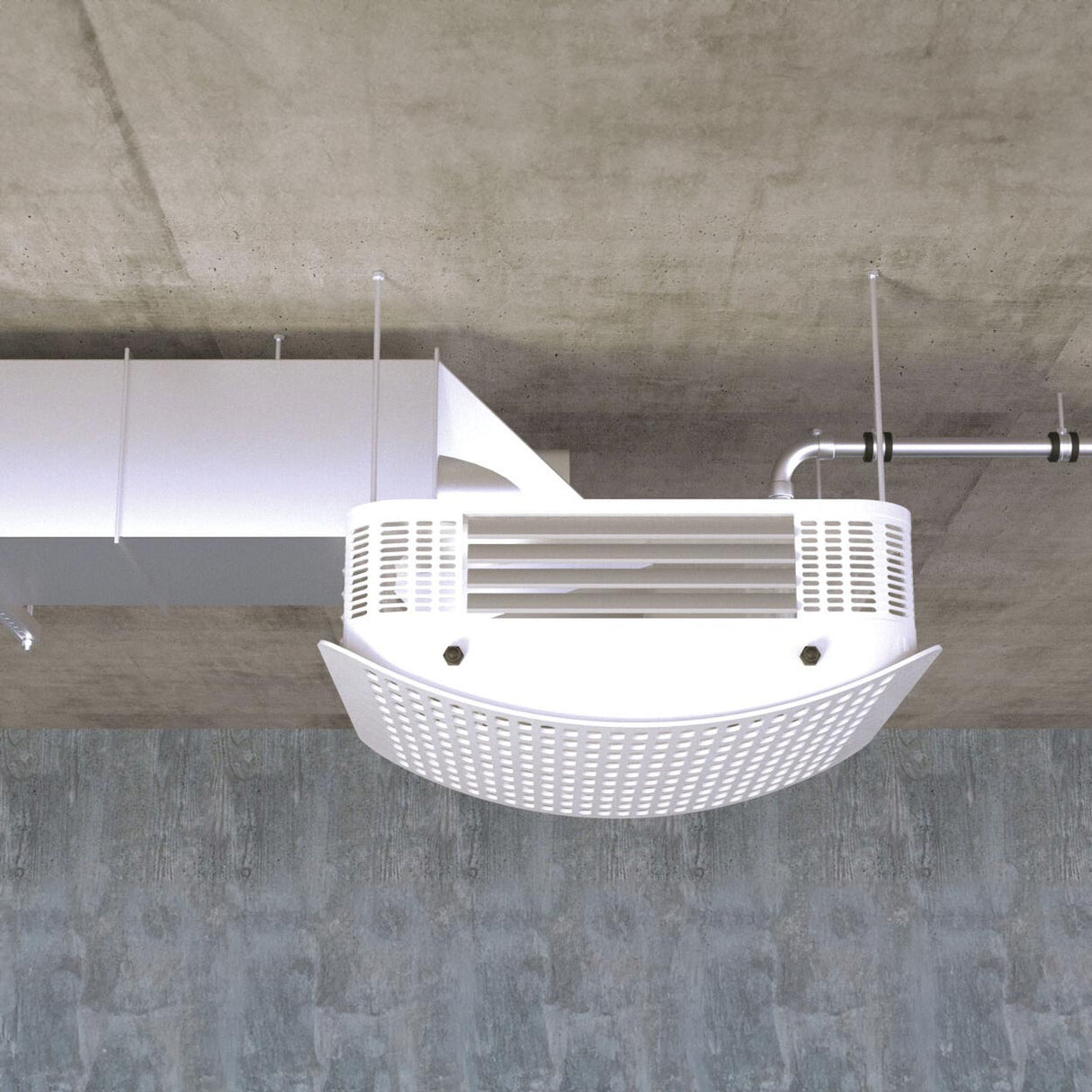

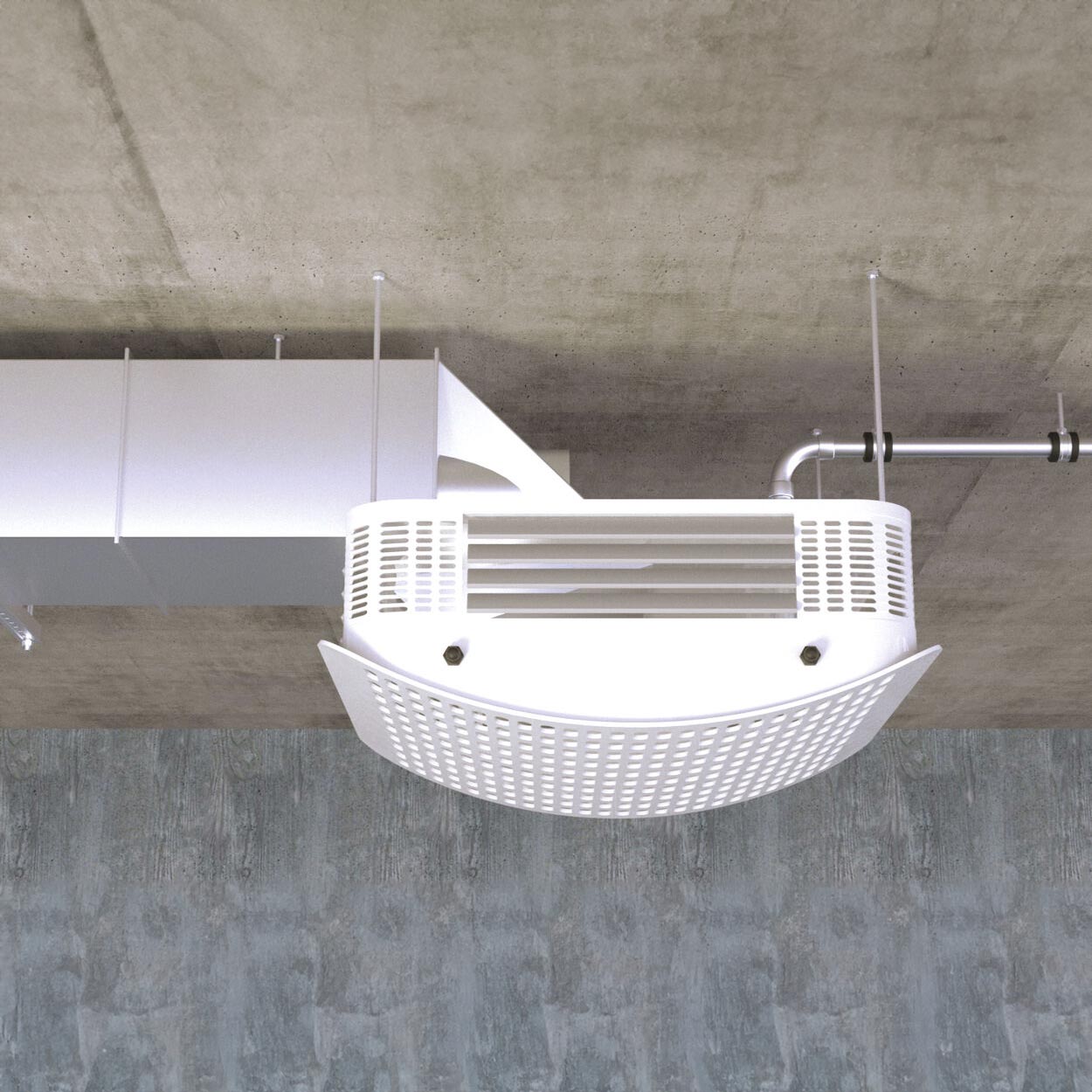

Ventilation systems
Sprinkler systems

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15

Natural stone with dense structure

You can find detailed information on building materials in the registration document.

Certifications

ETA-07/0025
DoP No. 0197

Features

Product Features

The international approvals guarantee maximum safety and the best performance. The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2).

The internal threaded anchor allows the removal of the attachment and the fixing point can be reused.

The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required.

The optimised geometry intelligently reduces the energy required for assembly.

The approval regulates the use of hollow drills.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-07/0025
    DoP No. 0197
  • coated
    No
  • Drill Diameter (MM)
    12
  • Functionality
    The FH II is suitable for push-through installation.
    When applying the torque, the cone is The FH II-I is suitable for pre-positioned installation.

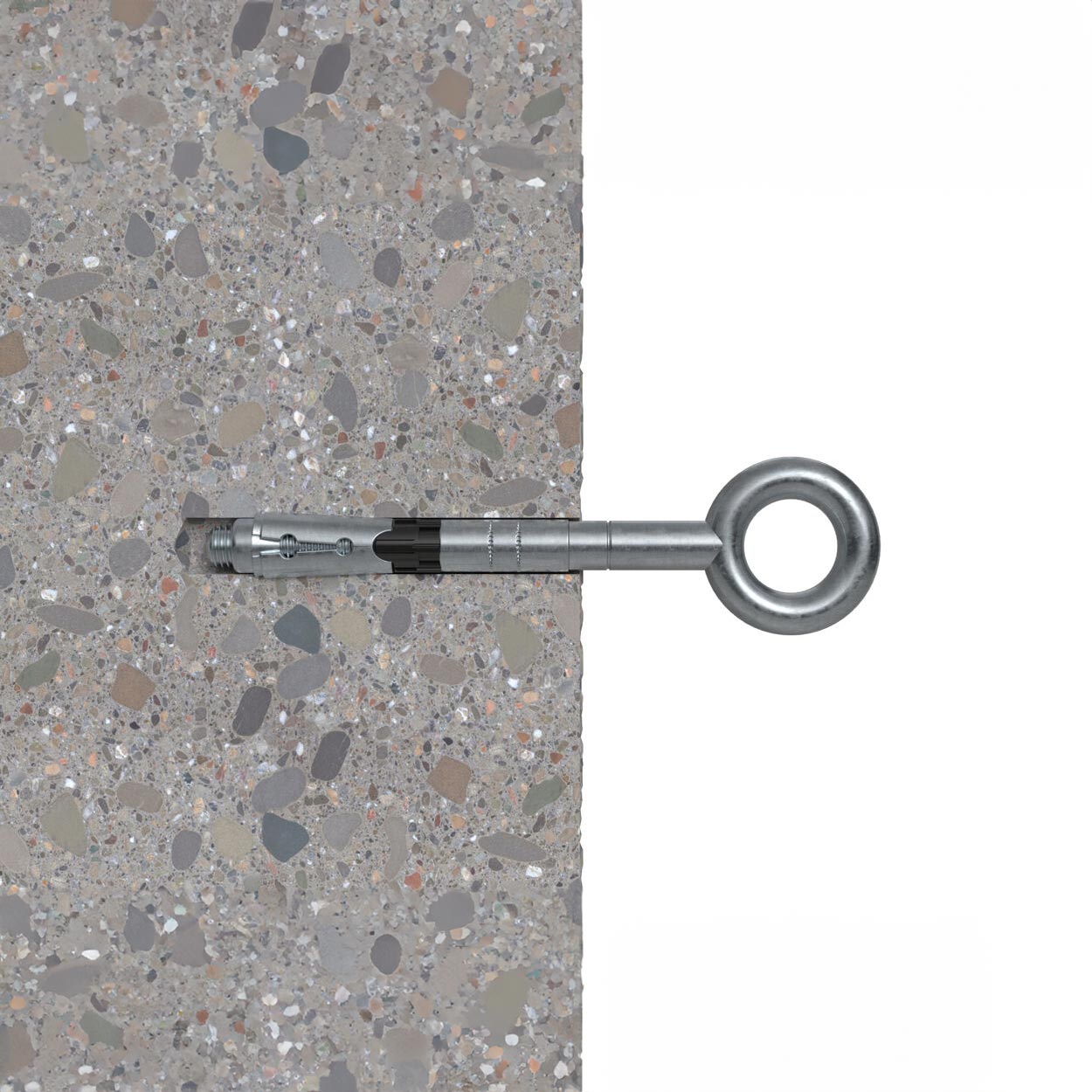

    When a hexagon wrench is used for installation, the internal thread bolt starts to rotate. This pulls the cone into the expansion sleeve and expands it against the drill-hole wall. At the same time, the anchor is tightened through compression of the black plastic ring. A gap U to the concrete surface is created (see image 4).
    The anchor is set according to the approval when the gap U is 3-5 mm. Alternatively, an installation torque of Tinst can also be applied. into the expansion sleeve and expands it against the drill hole wall.
    The black plastic ring prevents rotation when tightening the anchor, and acts as a crumple zone to take the torque slippage so that the fixture is pulled onto the anchor base.
    Available head shapes for flexible design solutions: Countersunk head (type SK) and hexagon head (type S).
  • Head Type
    Hexagonal
  • Material
    Stainless Steel
  • Pack Size
    25
  • Type
    Sleeve anchor

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fisher FH II 12/8 H R Stainless steel Sleeve anchor with internal thread [520361]

£261.32
The fischer high-performance anchor FH II-I 12/8 H R is an internal threaded anchor made of stainless steel. It is installed using the pre-positioned method, which means that the anchor is inserted into the hole before the expansion sleeve is expanded. This makes the FH II-I ideal for use in outdoor areas, where the anchor is exposed to the elements. When the anchor is tightened, the cone is pulled into the expansion sleeve and expands against the hole wall. At the same time, the black plastic ring is compressed, which helps to prevent the anchor from rotating. This ensures that the anchor sleeve sits below the edge of the drill hole, as required by the approval. The FH II-I is ideal for fixing stadium seats, railings, and staircases in outdoor areas. The stainless steel construction makes the anchor corrosion-resistant, and the pre-positioned installation method makes it easy to install

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

12

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Sleeve anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

25

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Product Features

The international approvals guarantee maximum safety and the best performance. The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2).

The internal threaded anchor allows the removal of the attachment and the fixing point can be reused.

The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required.

The optimised geometry intelligently reduces the energy required for assembly.

The approval regulates the use of hollow drills.
