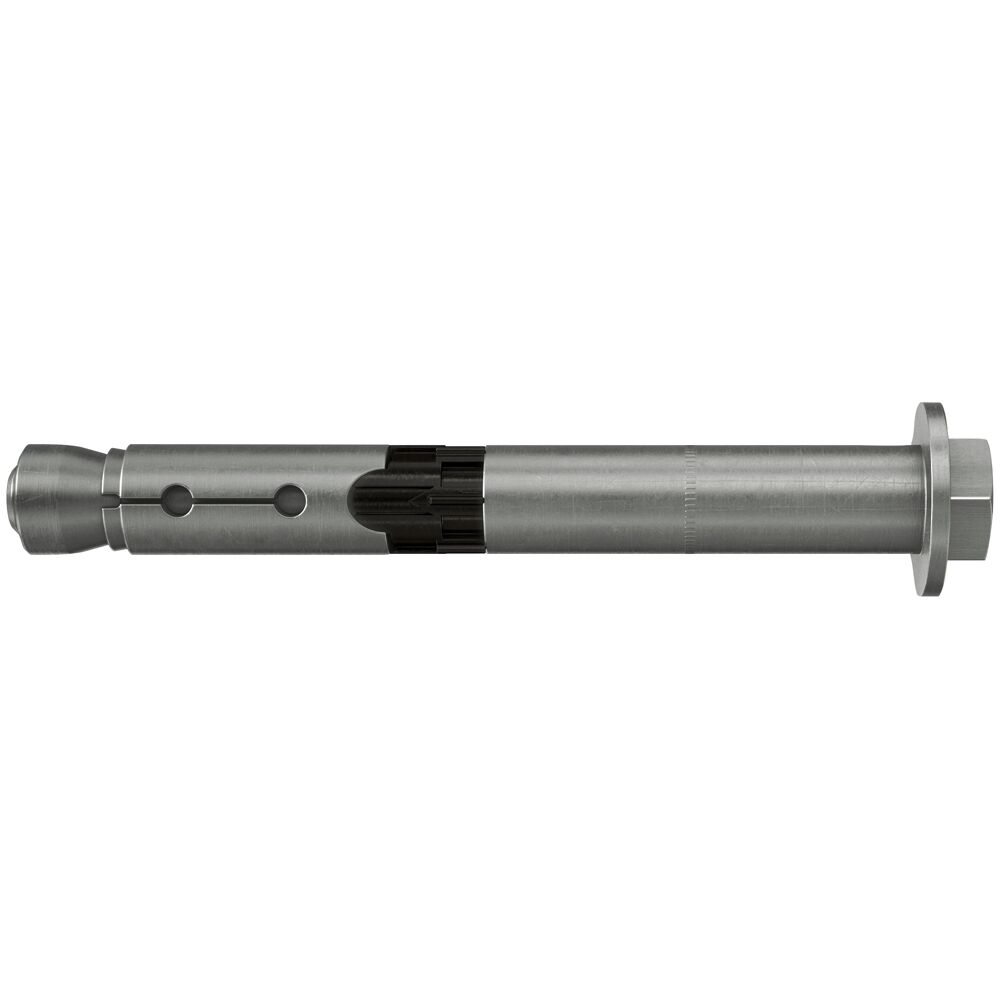

fisher FH II 12/10 S R Stainless steel Sleeve anchor with hexagonal head [510925]

£557.22

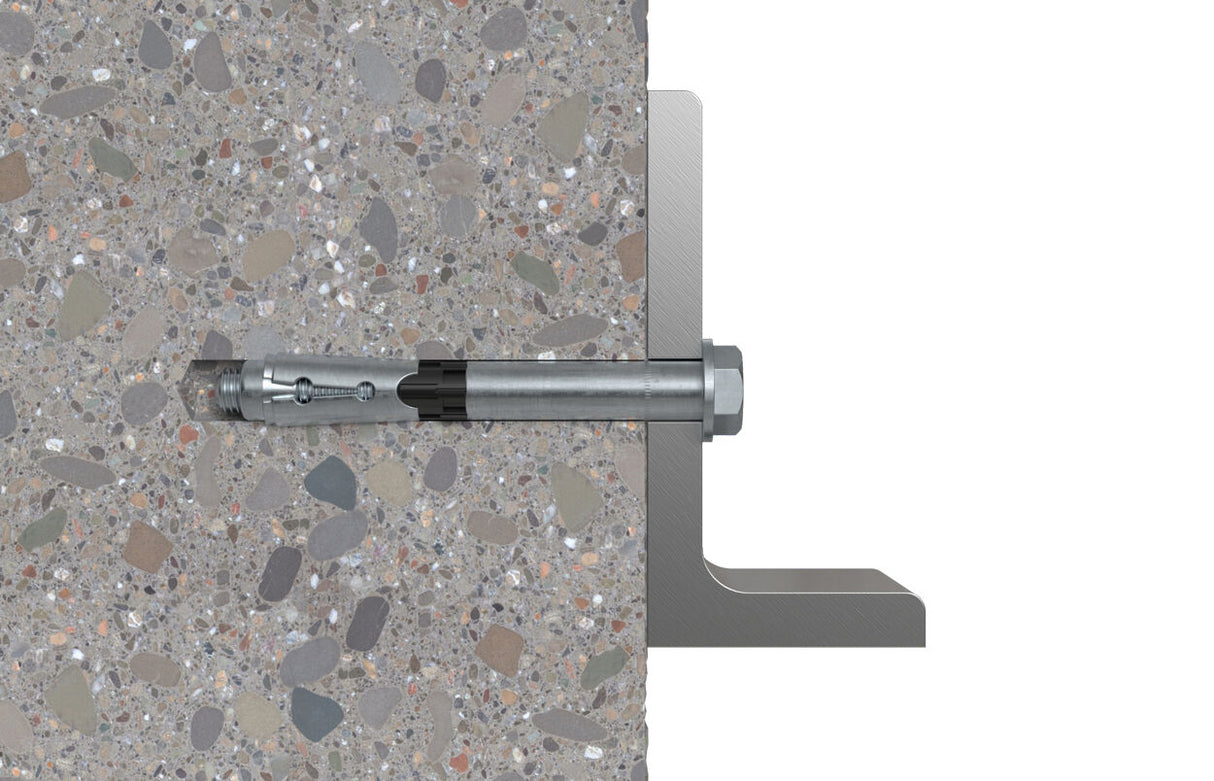

The fischer high-performance anchor FH II 12/10 S R with hexagonal head is a sleeve anchor made of stainless steel. It is installed quickly and easily using the through-type installation method. When the anchor is tightened, the cone is pulled into the expansion sleeve and expands against the hole wall. The black plastic ring prevents the anchor from rotating and absorbs torque slippage, ensuring that the fixture is pulled towards the anchoring base. The FH II S is ideally suited to fix consoles, steel constructions, and cable trays in cracked and non-cracked concrete.

fisher FH II 12/10 S R Stainless steel Sleeve anchor with hexagonal head [510925] is backordered and will ship as soon as it is back in stock.

Applications

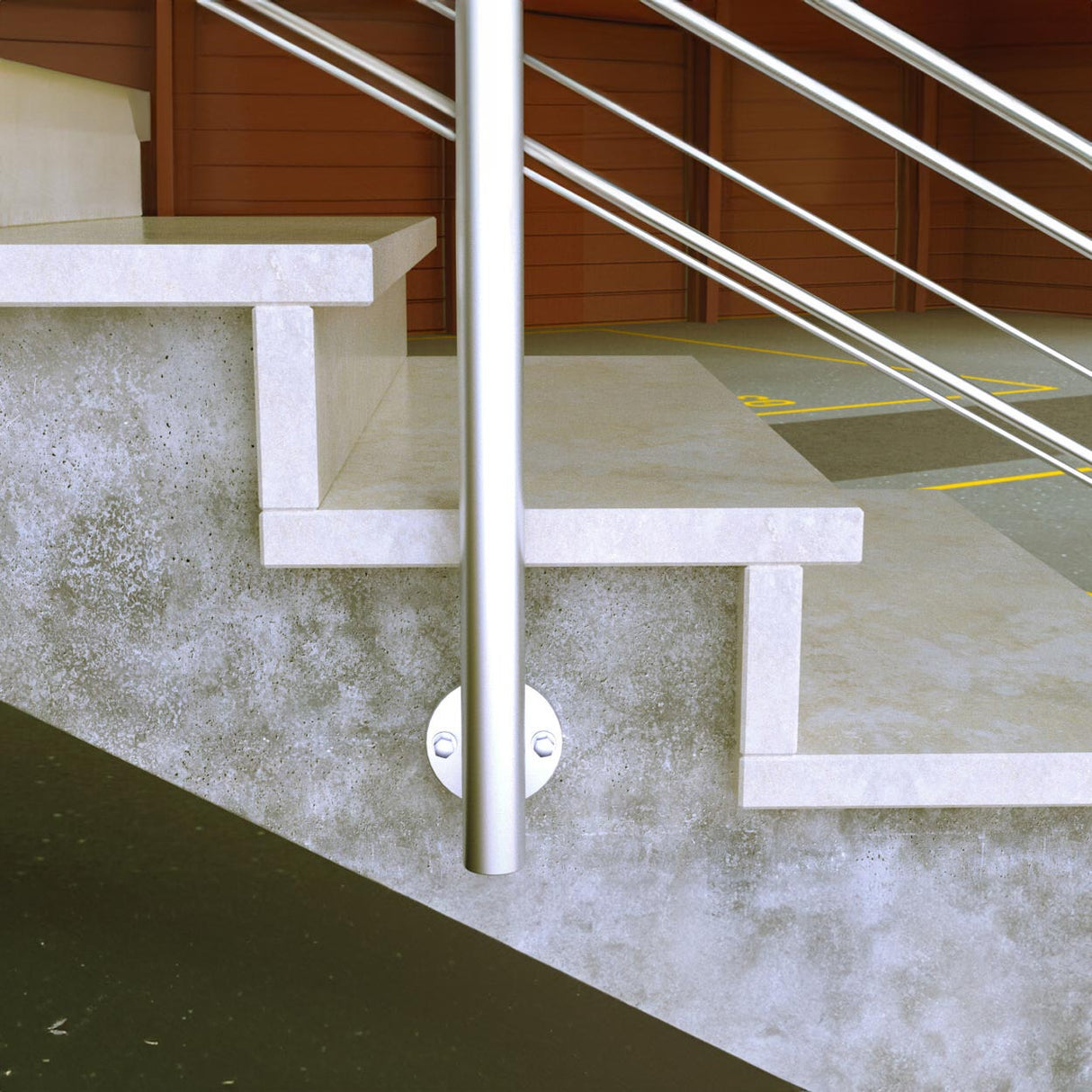

Guard rails
Staircases
Consoles

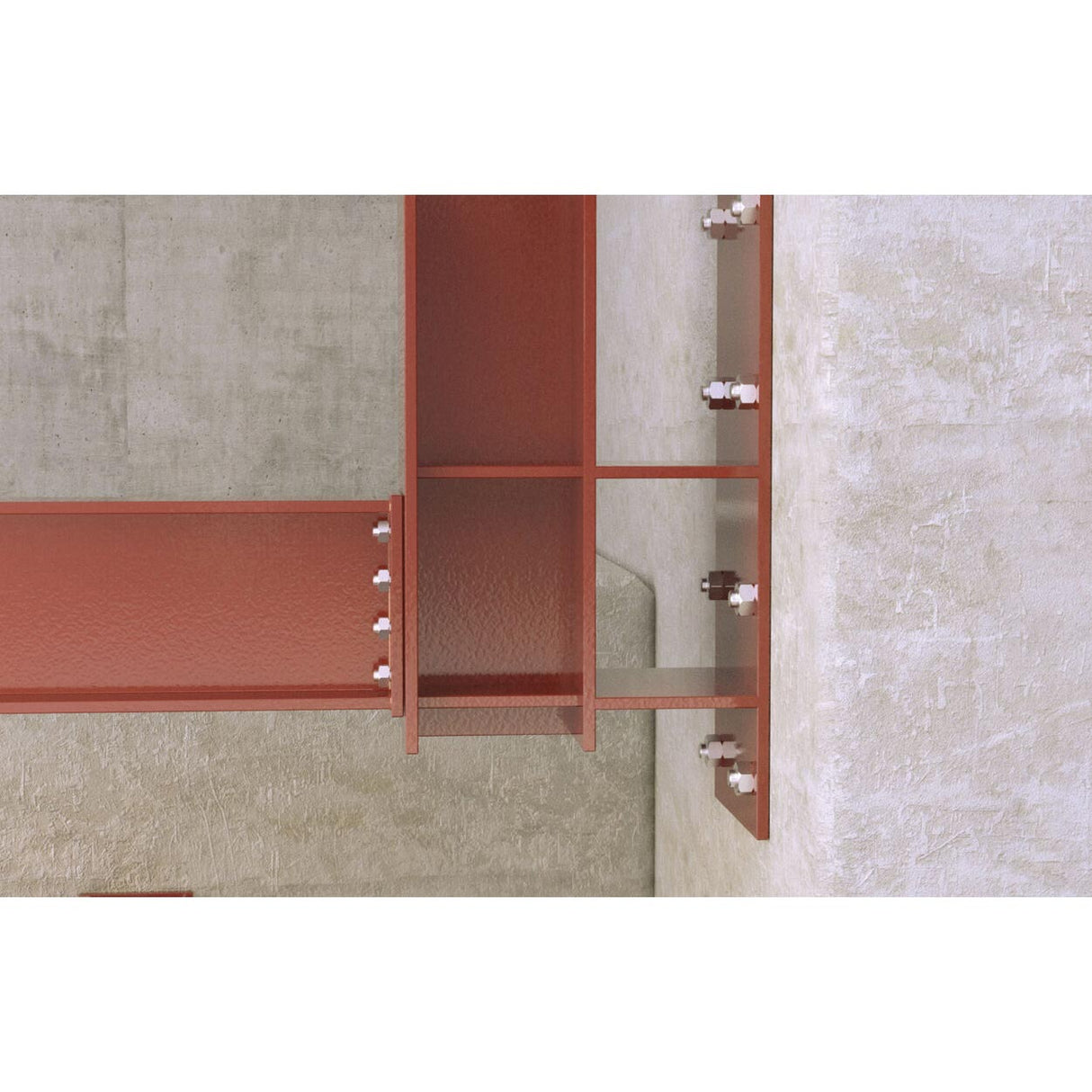

Steel constructions
Ladders
Cable trays
Machines
Gates
Façades
Gratings

Building Materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15

Natural stone with dense structure

You can find detailed information on building materials in the registration document.

Certifications

ETA-07/0025
DoP No. 0197
ESR-2691

Features

Product Features

The international approvals guarantee maximum safety and the best performance. The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2).

The low profile of the screw head ensures for a discreet fixing.

The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required.

The optimised geometry intelligently reduces the energy required for assembly.

The approval regulates the use of hollow drills.

Specifications

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fisher FH II 12/10 S R Stainless steel Sleeve anchor with hexagonal head [510925]

£557.22
The fischer high-performance anchor FH II 12/10 S R with hexagonal head is a sleeve anchor made of stainless steel. It is installed quickly and easily using the through-type installation method. When the anchor is tightened, the cone is pulled into the expansion sleeve and expands against the hole wall. The black plastic ring prevents the anchor from rotating and absorbs torque slippage, ensuring that the fixture is pulled towards the anchoring base. The FH II S is ideally suited to fix consoles, steel constructions, and cable trays in cracked and non-cracked concrete.

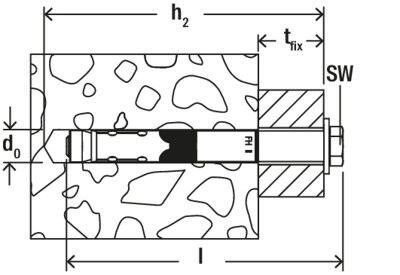

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

12

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Sleeve anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

M8

Size

N/A

Pack Size

50

Package Contents

N/A

Material

Stainless Steel

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

90

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

10

Width Across Nut (MM)

13

Features

Product Features

The international approvals guarantee maximum safety and the best performance. The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2).

The low profile of the screw head ensures for a discreet fixing.

The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required.

The optimised geometry intelligently reduces the energy required for assembly.

The approval regulates the use of hollow drills.
