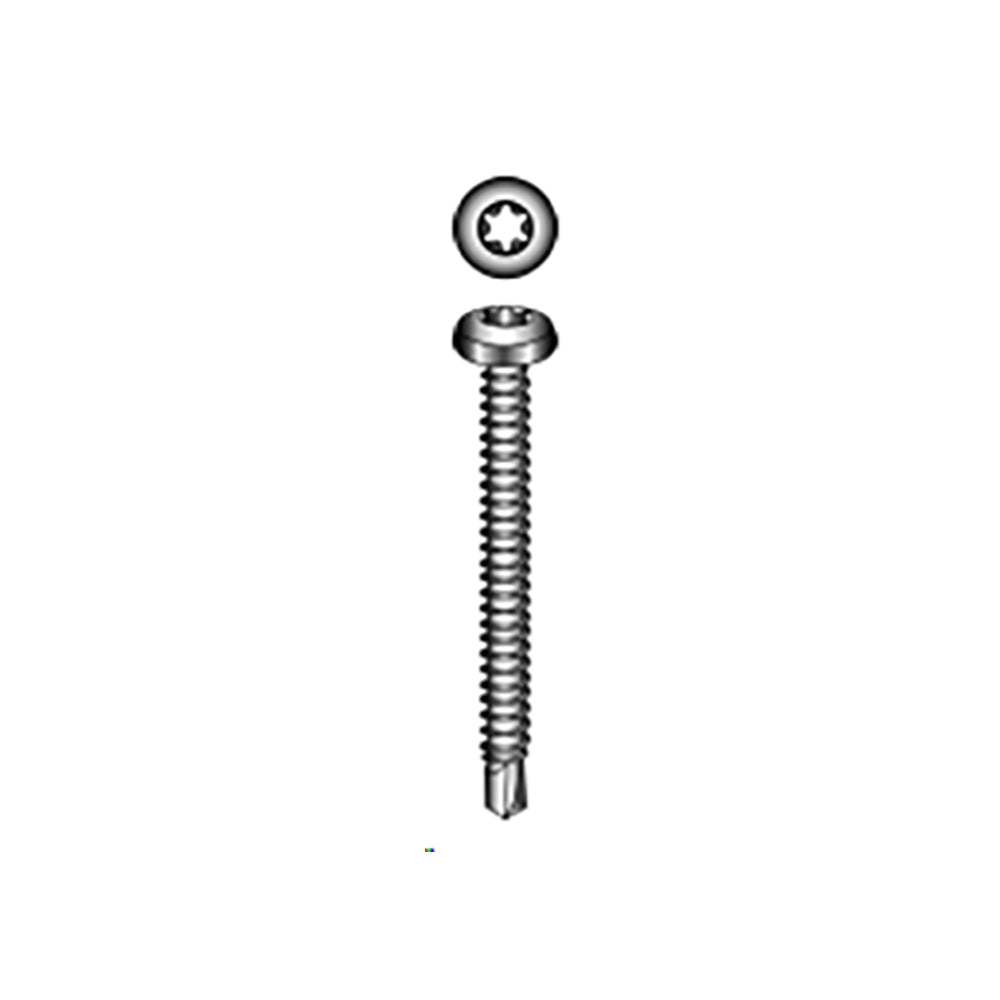

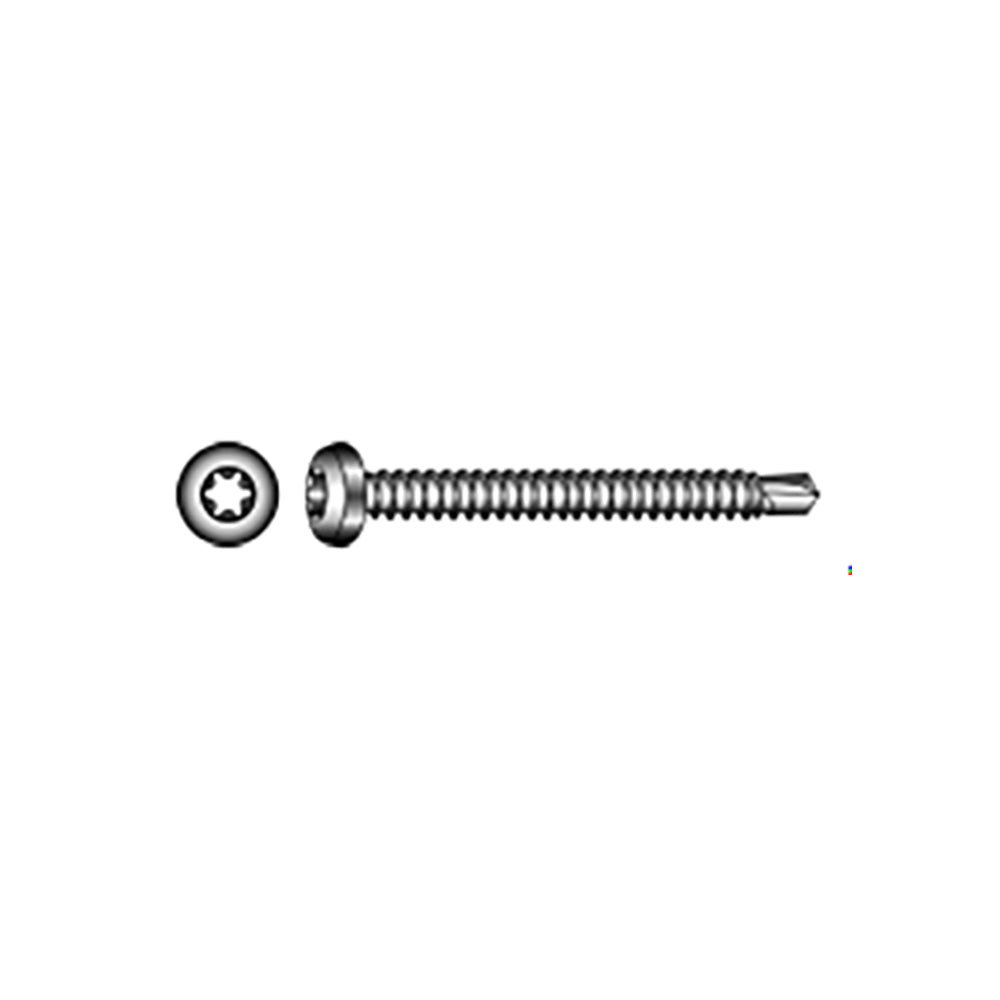

Certifix Pan head TX20 self drilling screw DIN 7504M light section A4 stainless 4.2 x 32

Pack Size: 500
£83.00
Certifix DIN 7504 K M-T Pan Head Self Drilling Screw with TX20 drive is made from durable A4 stainless steel and perfect for fast installation into aluminium.

Certifix Pan head TX20 self drilling screw DIN 7504M light section A4 stainless 4.2 x 32 is backordered and will ship as soon as it is back in stock.

Technical Datasheet

Download the technical datatsheet here.

Applications

Fast installation into aluminium

Features

Pan head​.
Fast installation into aluminium​
For soft metals​

Specifications

  • Diameter (MM)
    4.20
  • Type
    Self drilling screw
  • Pack Size
    500
  • Material
    A4 Stainless Steel
  • Length (MM)
    32
  • Tech Datasheet
  • Driver Type
    TX20
  • Drilling Capacity
    1.75 - 3.0mm
  • Adapted For
    certifix-pan-head-tx20-self-drilling-screw-din-7504m-light-section-a4-stainless-4-2-x-32
  • Head Type
    Pan
  • Head Diameter (mm)
    8.20
  • Head Height (mm)
    3.05

Reviews (0)

Delivery & Returns

For full delivery details please see our delivery page

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix Pan head TX20 self drilling screw DIN 7504M light section A4 stainless 4.2 x 32

£83.00
Certifix DIN 7504 K M-T Pan Head Self Drilling Screw with TX20 drive is made from durable A4 stainless steel and perfect for fast installation into aluminium.

Clamping Range (MM)

N/A

Diameter (MM)

4.20

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Self drilling screw

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

500

Package Contents

N/A

Material

A4 Stainless Steel

Length (MM)

32

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Pan head​.
Fast installation into aluminium​
For soft metals​
