Fischer S 16 H 100 R Plug [059187]

£47.17

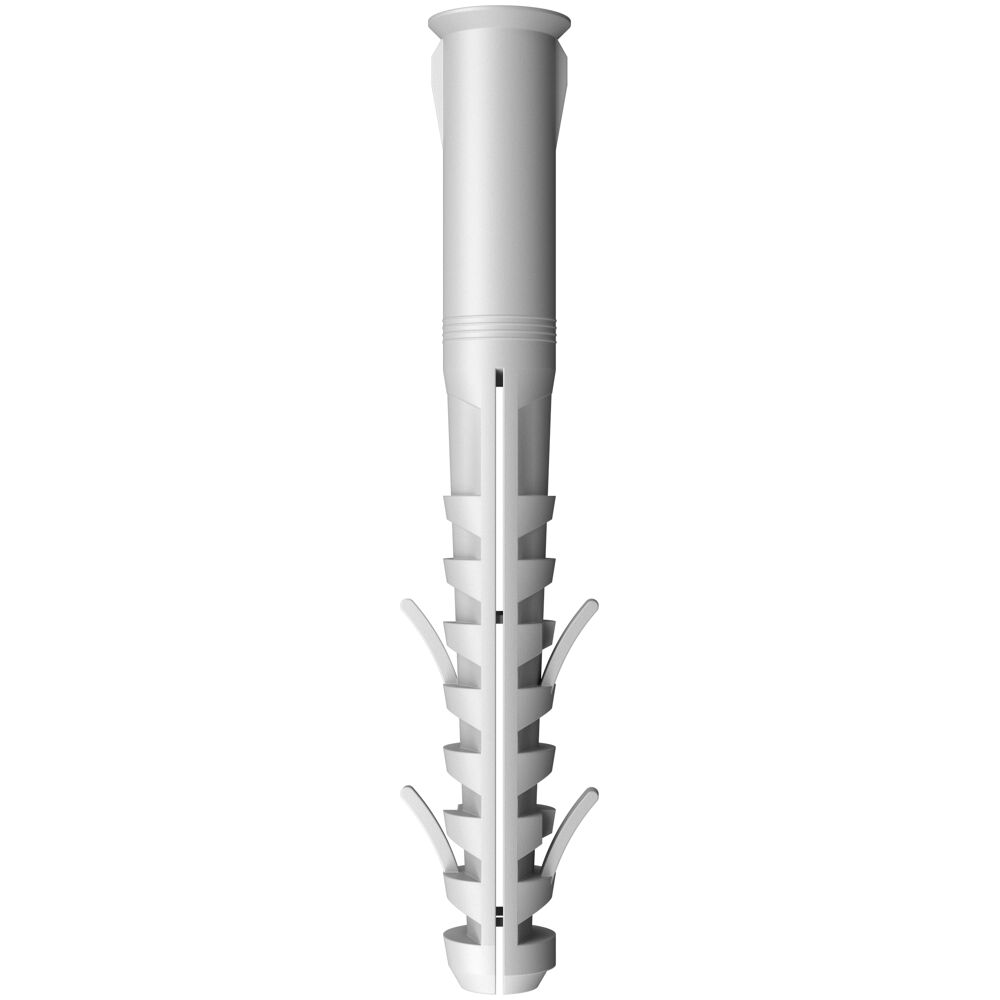

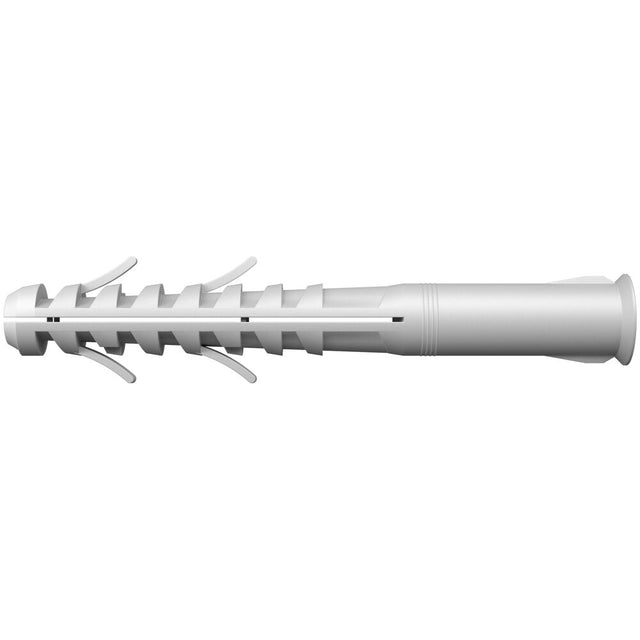

The fischer plug S 16 H 100 R is a high-quality, versatile expansion plug made of nylon that is designed to hold the fischer eye bolt GS 12. The expanding wings of the plug prevent rotation and make assembly easier. When the eye bolt is driven in, the expansion zone of the plug expands and anchors itself securely in the building material. For installations close to the edge, the plug can be turned so that the expansion force acts parallel to the edge. This prevents the plug from pulling out of the building material.

Fischer S 16 H 100 R Plug [059187] is backordered and will ship as soon as it is back in stock.

Applications

When combined with GS 12:

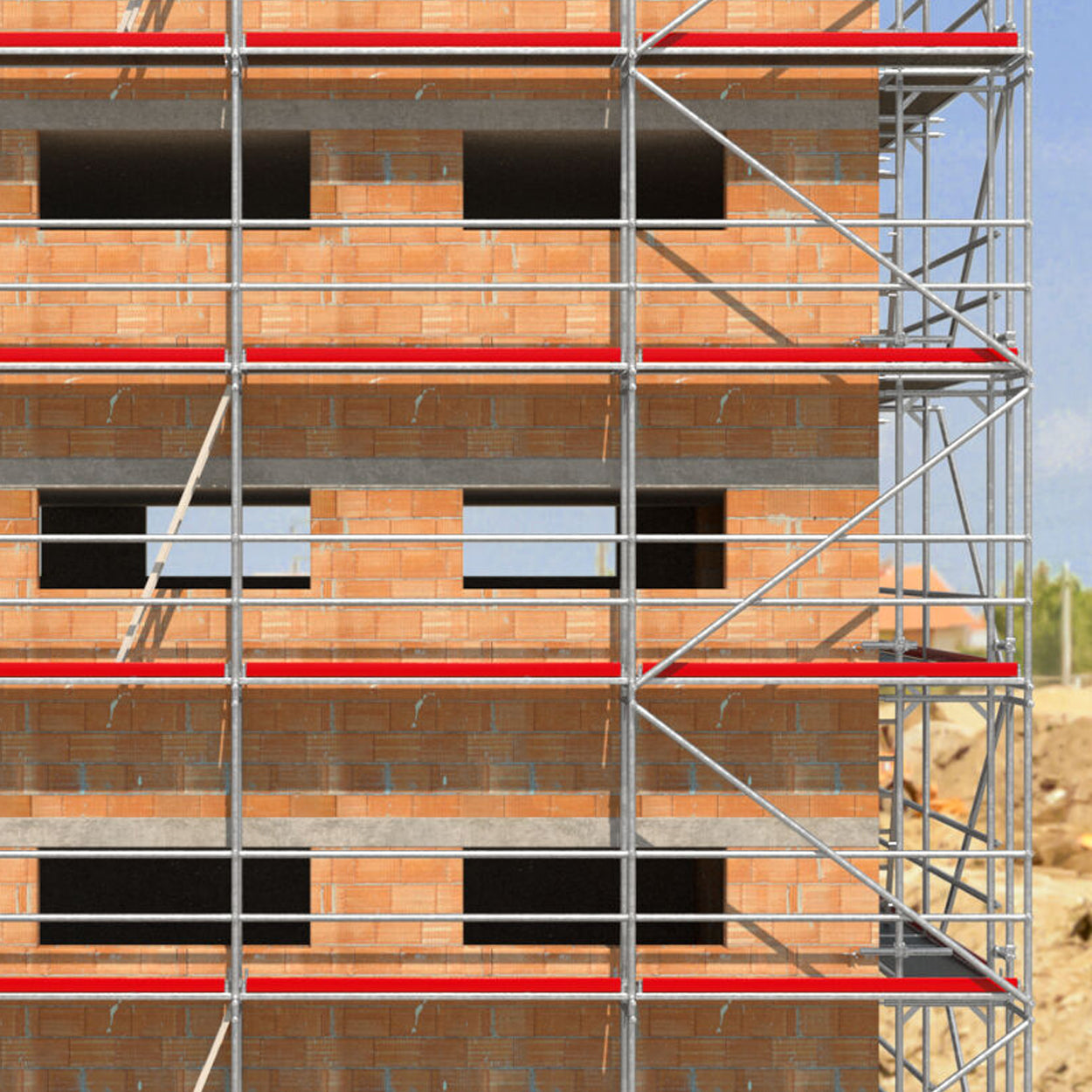

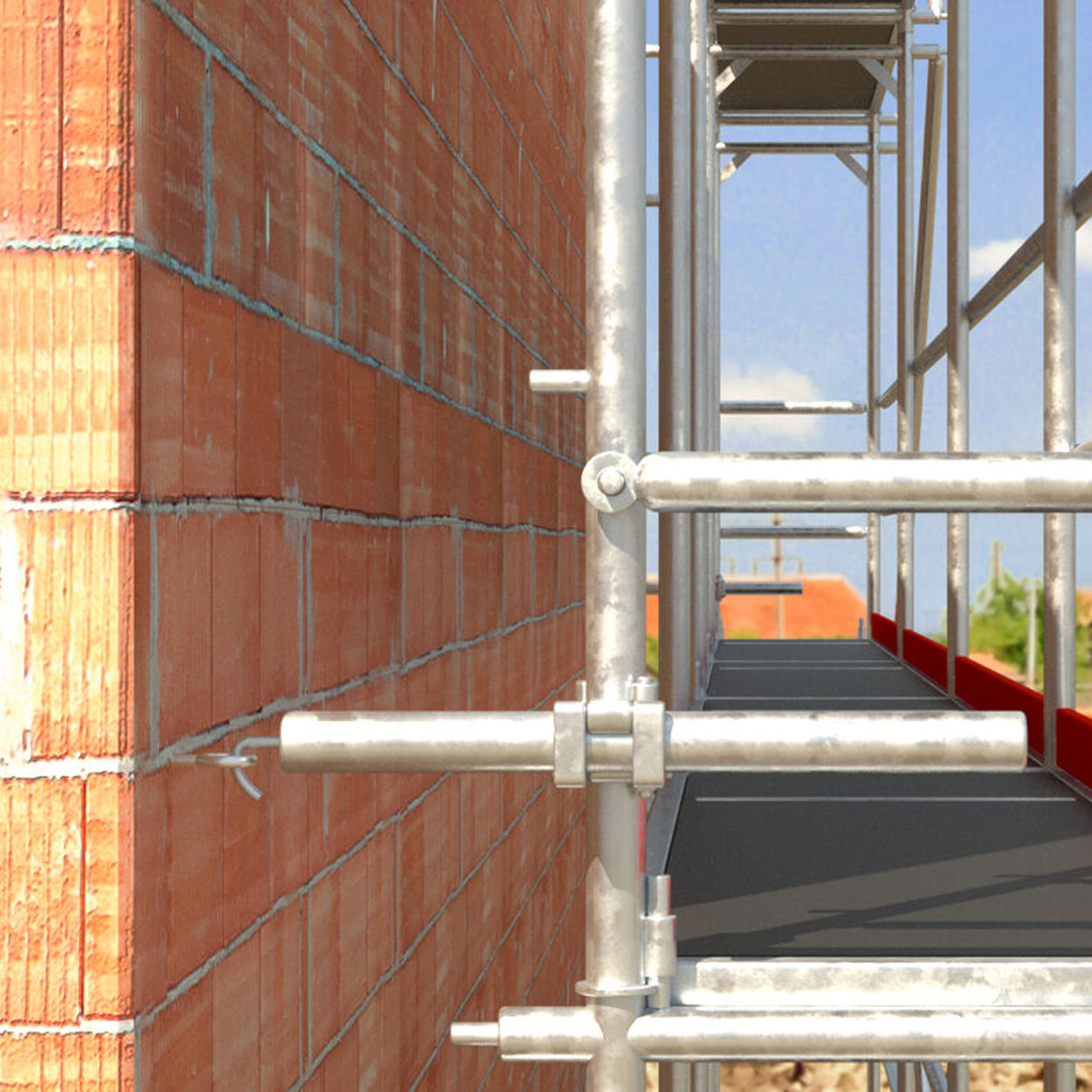

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building Materials

GS 12 + S 16 H R suitable for:
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete
You can find detailed information on building materials in the registration document.

Certifications

Features

Ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity: Providing increased safety.
Anchorage depth of 90 mm: Special advantages for anchorings in perforated brick and aerated concrete.

Specifications
  • Drill Diameter (MM)
    16
  • Min Drill Hole Depth for Through Fixings (MM)
    125
  • Type
    Plug
  • Pack Size
    50
  • Length (MM)
    100
  • Load Table Document
    Fischer_S16_HR_load_table.pdf
  • Min. Drill Hole Depth for Through Fixings (mm)
    125

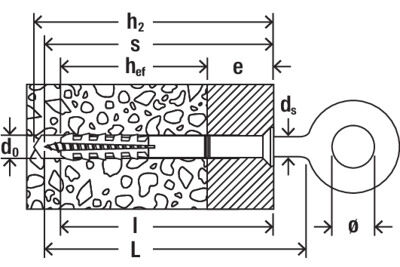

  • Effective Anchorage Depth (mm)
    90.00
  • Max. Thickness of Non-Bearing Layer
    10
  • Minimum Bolt Penetration (mm)
    105.00

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

Fischer S 16 H 100 R Plug [059187]

£47.17

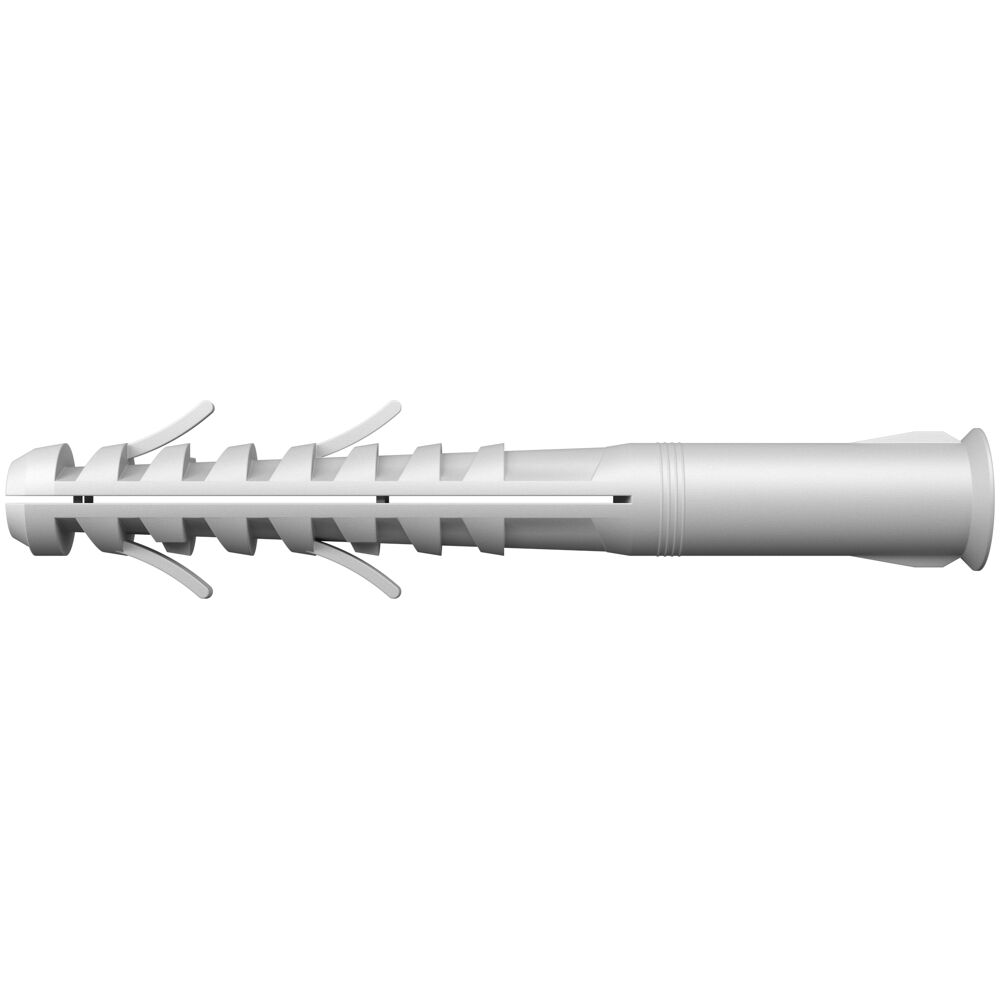

The fischer plug S 16 H 100 R is a high-quality, versatile expansion plug made of nylon that is designed to hold the fischer eye bolt GS 12. The expanding wings of the plug prevent rotation and make assembly easier. When the eye bolt is driven in, the expansion zone of the plug expands and anchors itself securely in the building material. For installations close to the edge, the plug can be turned so that the expansion force acts parallel to the edge. This prevents the plug from pulling out of the building material.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

16

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Plug

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

100

Min Drill Hole Depth for Through Fixings (MM)

125

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity: Providing increased safety.
Anchorage depth of 90 mm: Special advantages for anchorings in perforated brick and aerated concrete.
