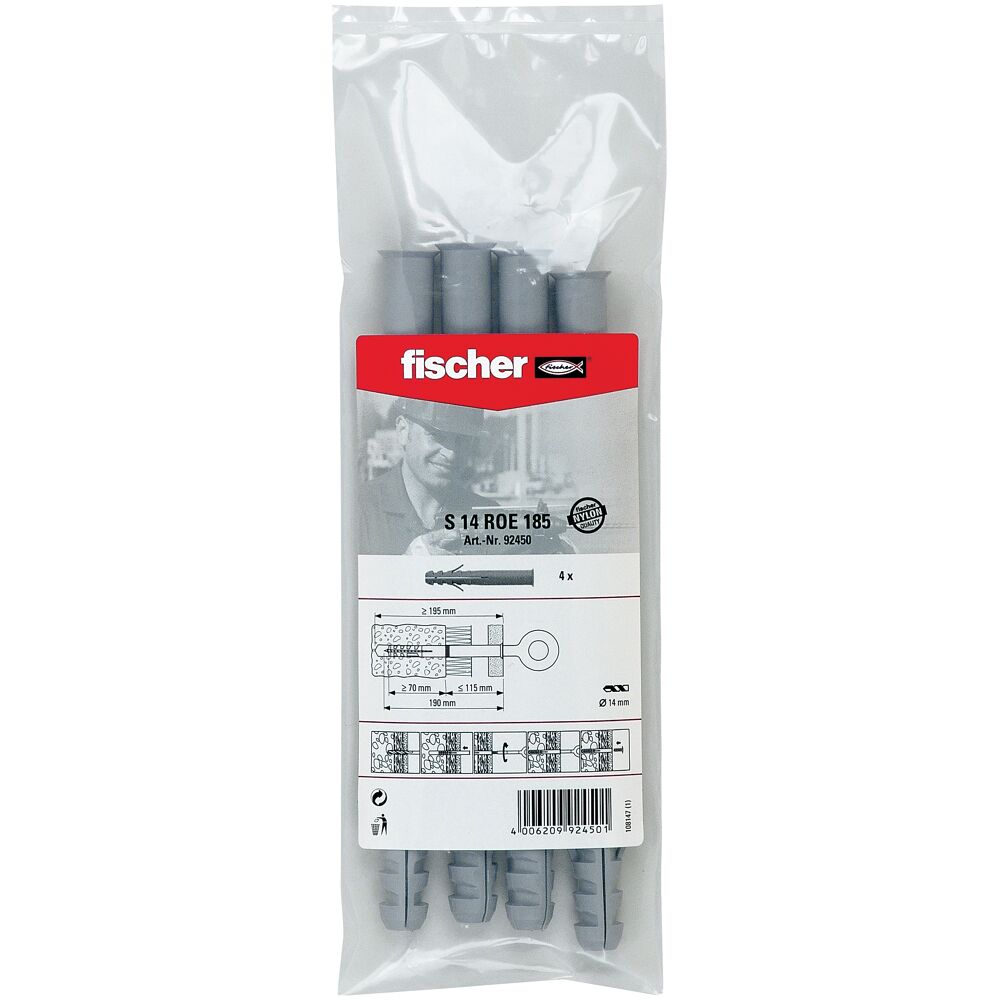

Fischer S 14 ROE 185 Plug [052164]

Barcode: 4006209521649
Pack Size: 25
£39.58

Usually shipped in 1-2 days

Fischer S 14 ROE 185 Plug [052164] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

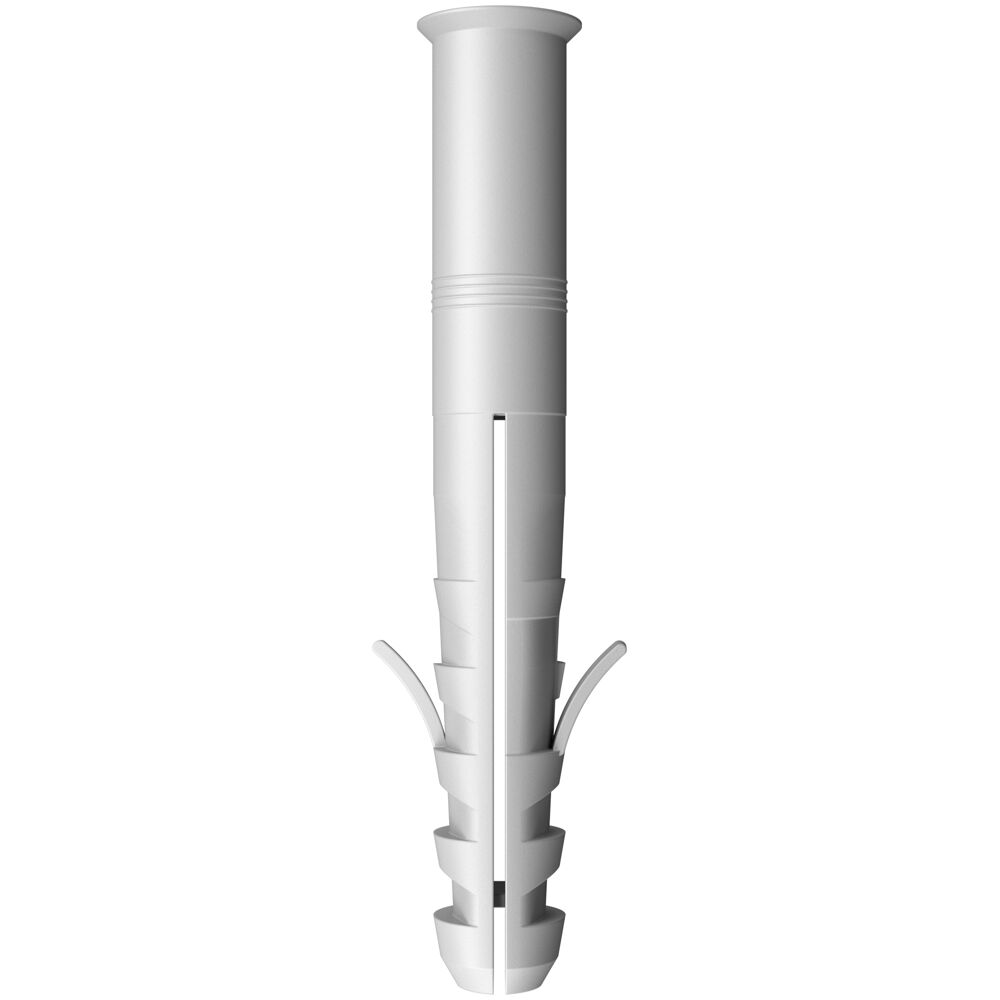

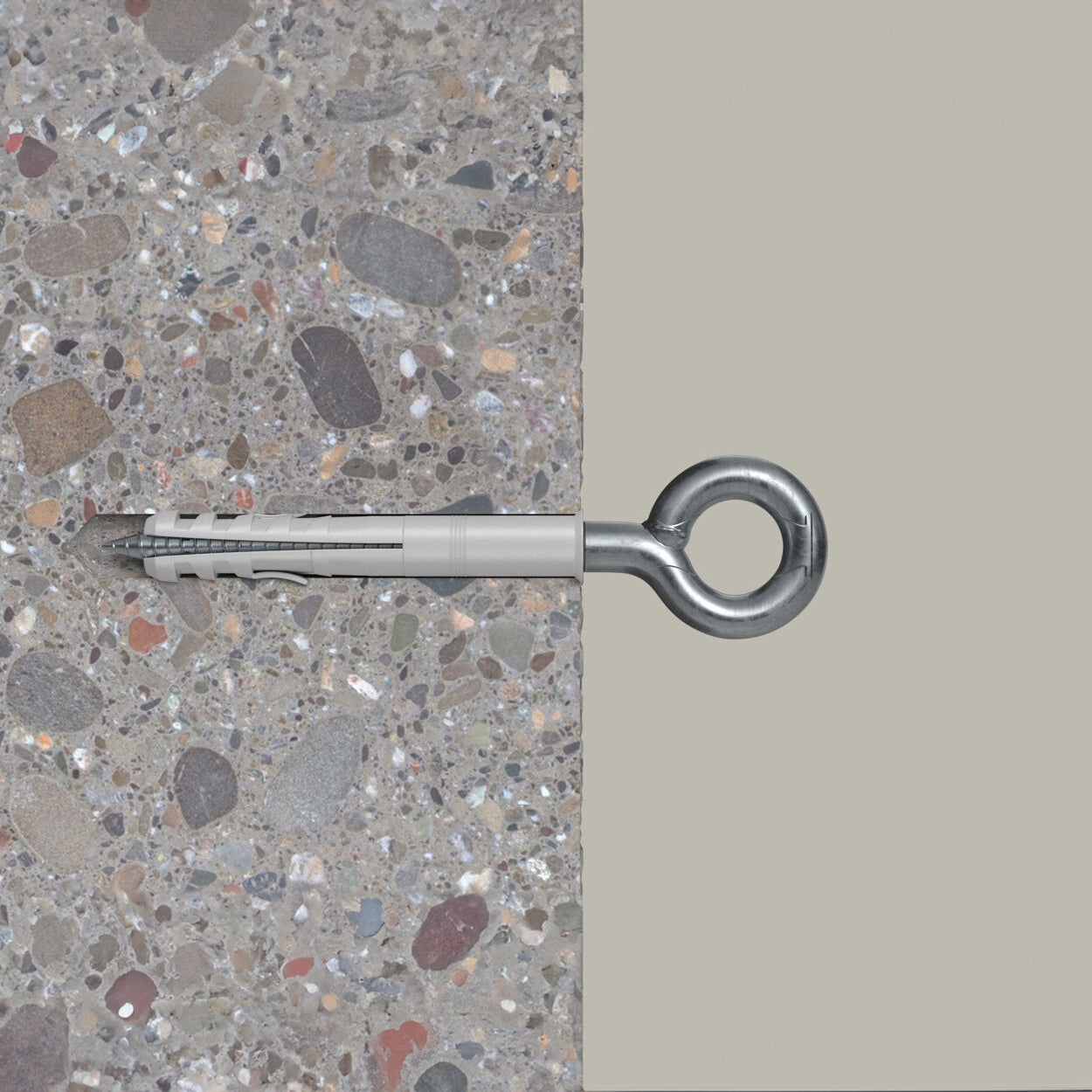

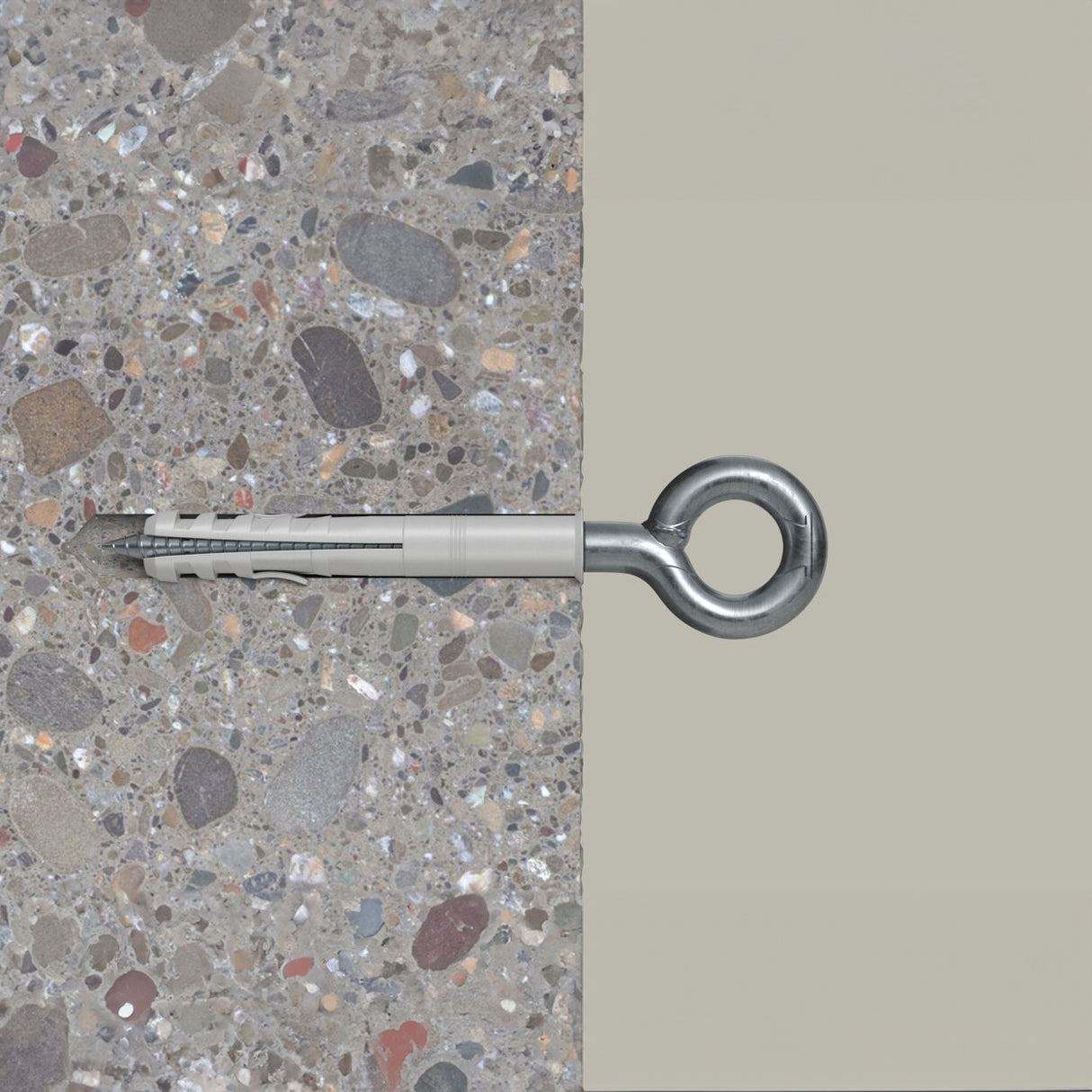

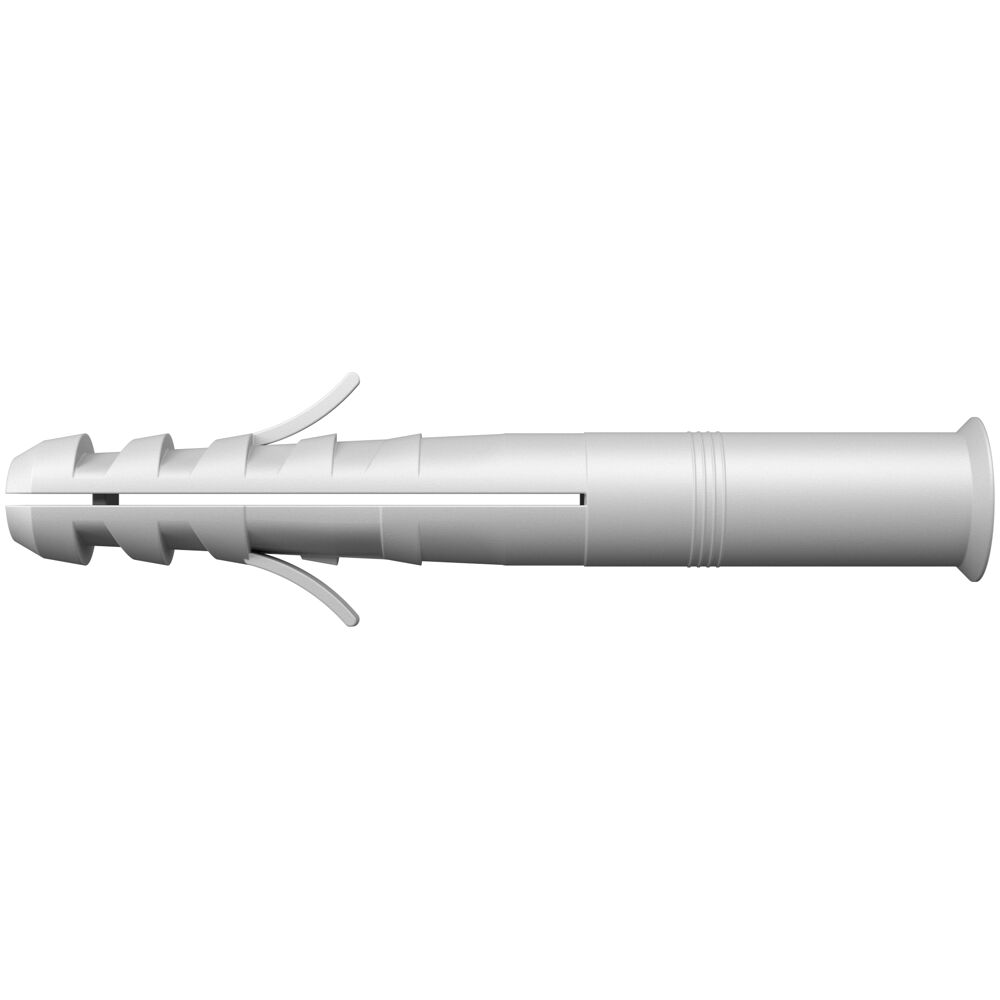

The fischer plug S 14 ROE 185 is a high-quality, versatile expansion plug made of nylon that is designed to hold the fischer eye bolt GS 12. The expanding wings of the plug prevent rotation and make assembly easier. When the eye bolt is driven in, the expansion zone of the plug expands and anchors itself securely in the building material. For installations close to the edge, the plug can be turned so that the expansion force acts parallel to the edge. This prevents the plug from pulling out of the building material.

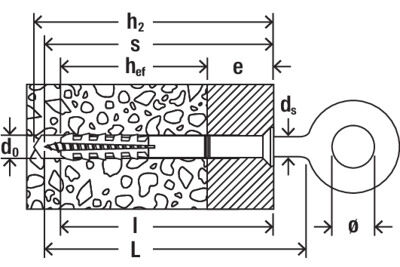

Technical Datasheet

Load Table Document:

Applications

When combined with GS 12:

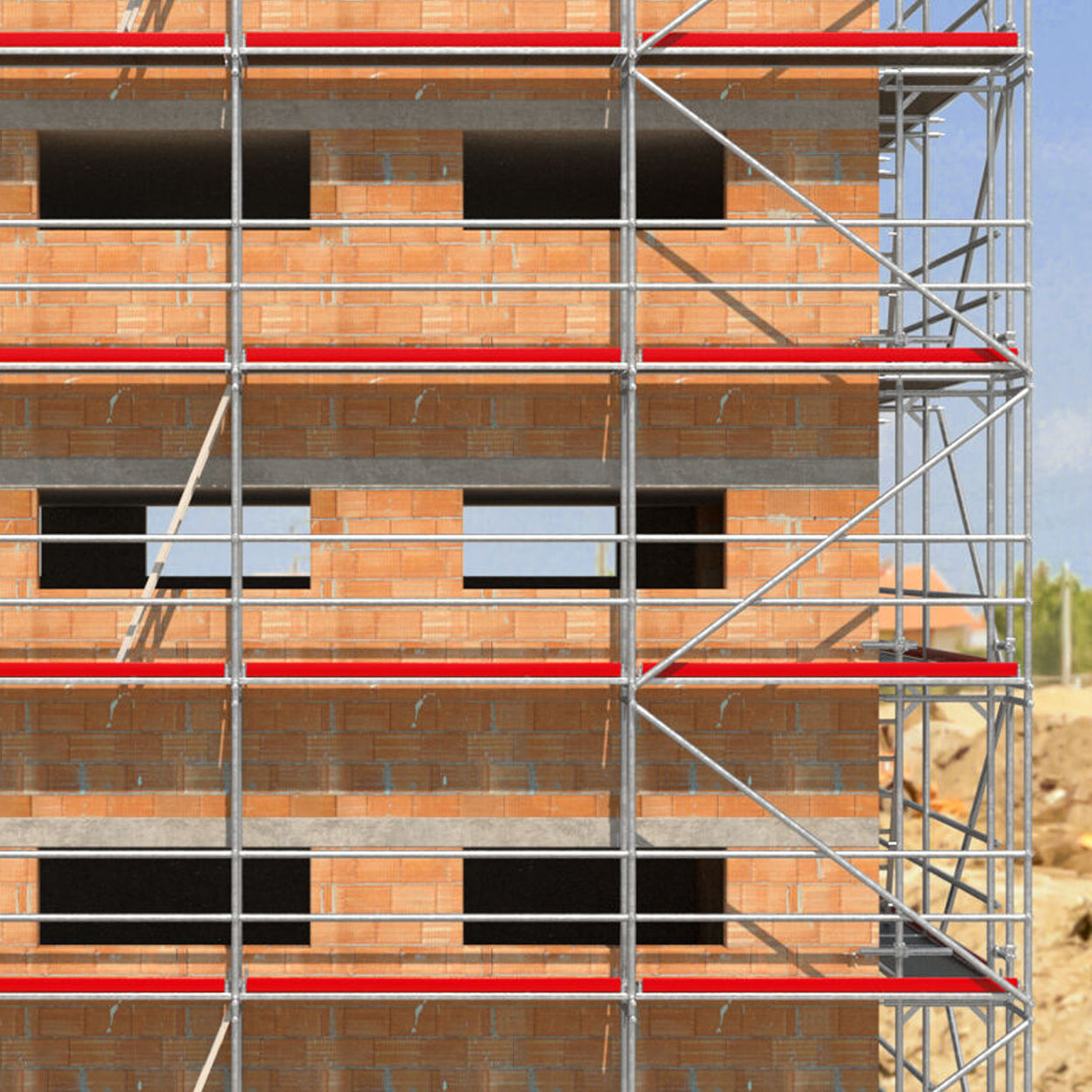

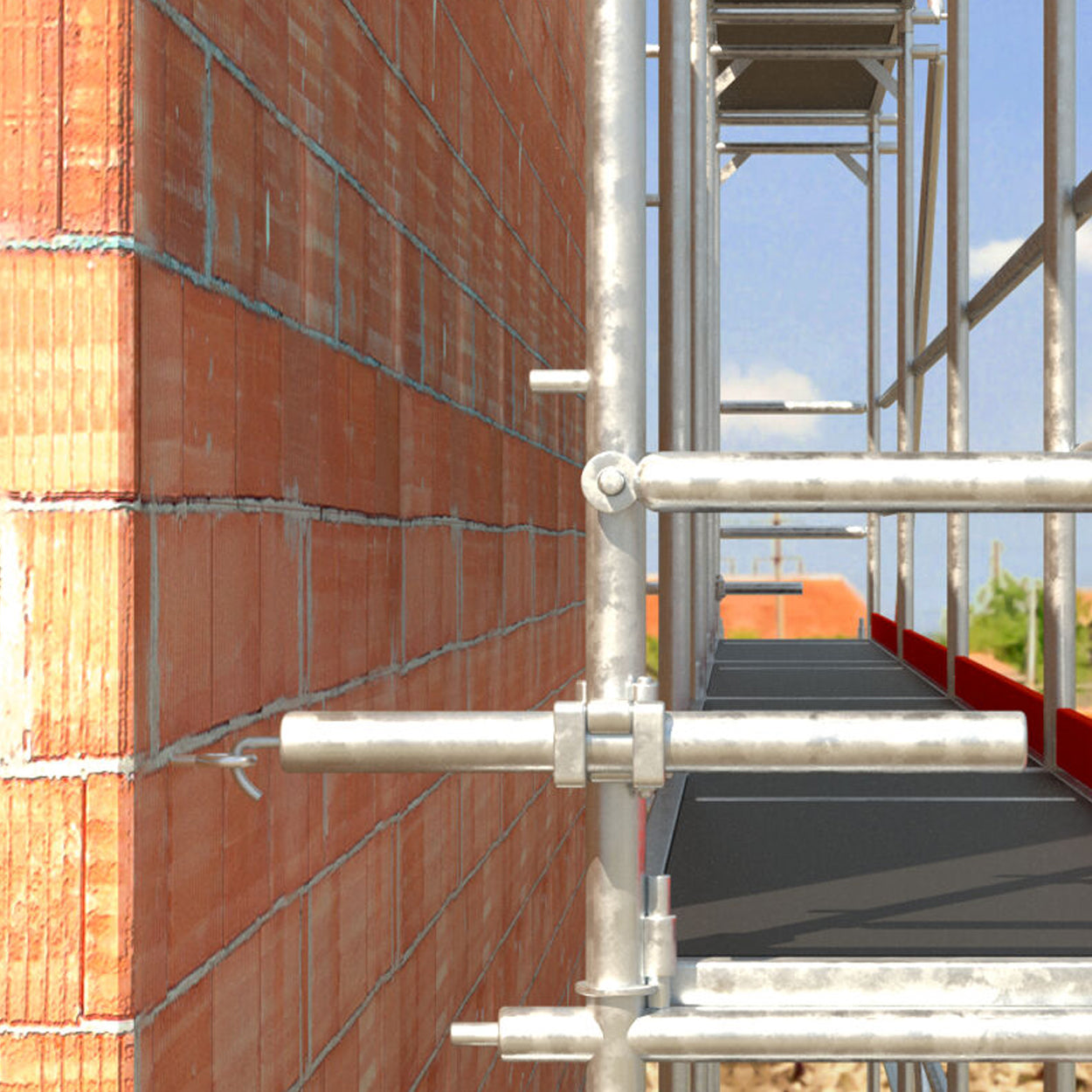

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building Materials

GS 12 + S 14 ROE suitable for:
Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick
You can find detailed information on building materials in the registration document.

Features

Ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity: Providing increased safety.

Specifications
  • Brand
    Fischer
  • coated
    No
  • Drill Diameter (MM)
    14
  • Effective Anchorage Depth (mm)
    70.00
  • Functionality
    In order to achieve the maximum load-bearing capacity, nylon plugs should only be used once.
    Not suitable for swings, hammocks etc.
  • Length (MM)
    185
  • Material
    Nylon
  • Max. Thickness of Non-Bearing Layer
    115
  • Minimum Bolt Penetration (mm)
    190.00
  • Min Drill Hole Depth for Through Fixings (MM)
    195
  • Pack Size
    25
  • Type
    Plug

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

Fischer S 14 ROE 185 Plug [052164]

£39.58
The fischer plug S 14 ROE 185 is a high-quality, versatile expansion plug made of nylon that is designed to hold the fischer eye bolt GS 12. The expanding wings of the plug prevent rotation and make assembly easier. When the eye bolt is driven in, the expansion zone of the plug expands and anchors itself securely in the building material. For installations close to the edge, the plug can be turned so that the expansion force acts parallel to the edge. This prevents the plug from pulling out of the building material.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

14

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Plug

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

25

Package Contents

N/A

Material

N/A

Length (MM)

185

Min Drill Hole Depth for Through Fixings (MM)

195

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity: Providing increased safety.
