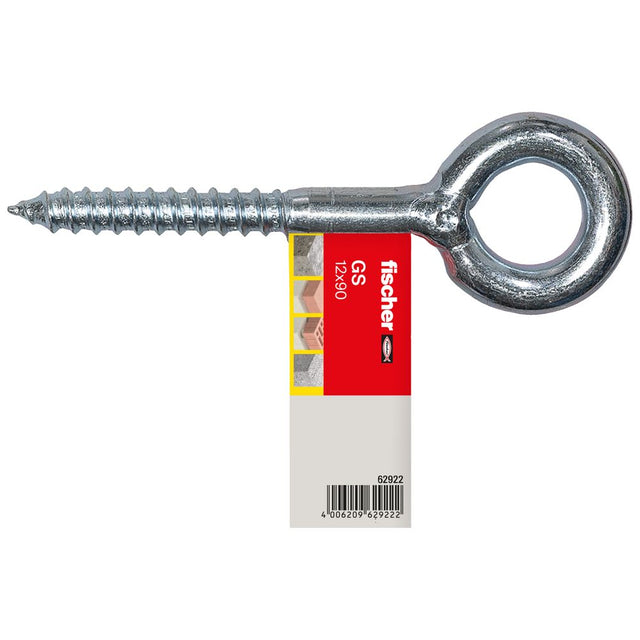

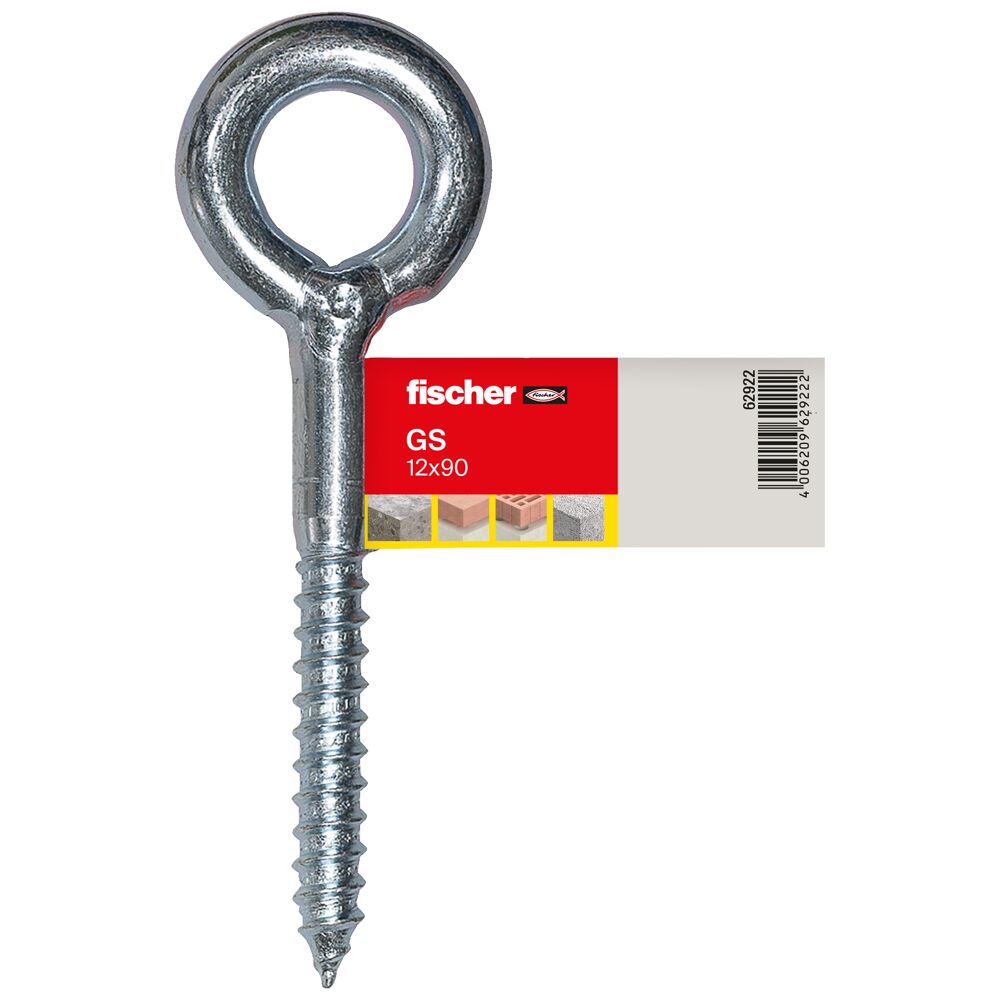

Fischer GS 12 x 90 Scaffold eyebolt [080925]

£52.28
Made of zinc-plated steel, the fischer eye bolt GS 12 x 90 is suitable for fixing into concrete, solid brick, and masonry made of hollow building materials and aerated concrete. The eye bolt is used in conjunction with the fischer expansion plug S 14 ROE or the frame fixing S 16 H, depending on the type of material being fixed. The screw-in markings on the eye bolt provide a visual control during assembly and prevent the eye from being unintentionally broken off. This makes the eye bolt a safe and reliable solution for fixing façade scaffolds, cables, or chains.

Fischer GS 12 x 90 Scaffold eyebolt [080925] is backordered and will ship as soon as it is back in stock.

Applications

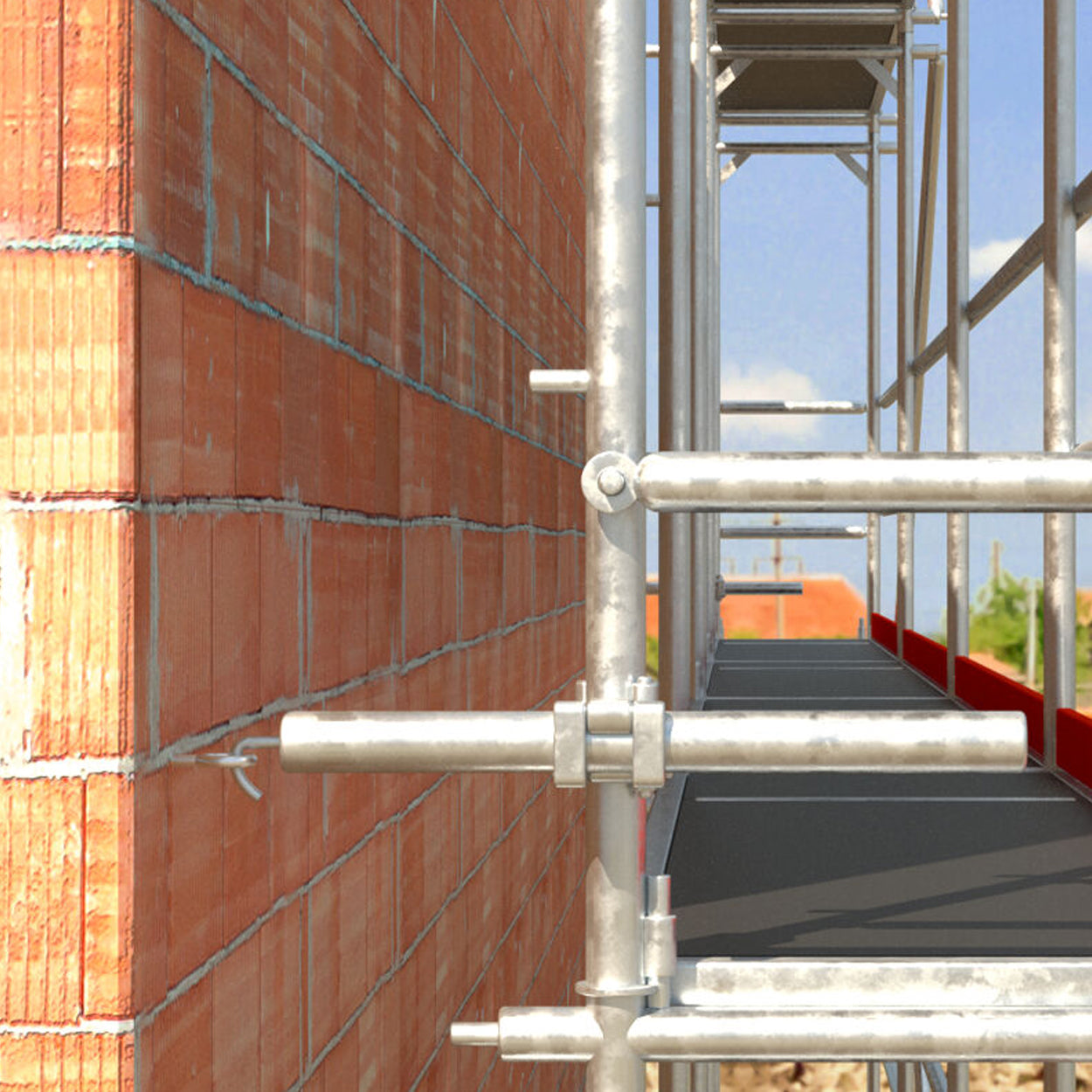

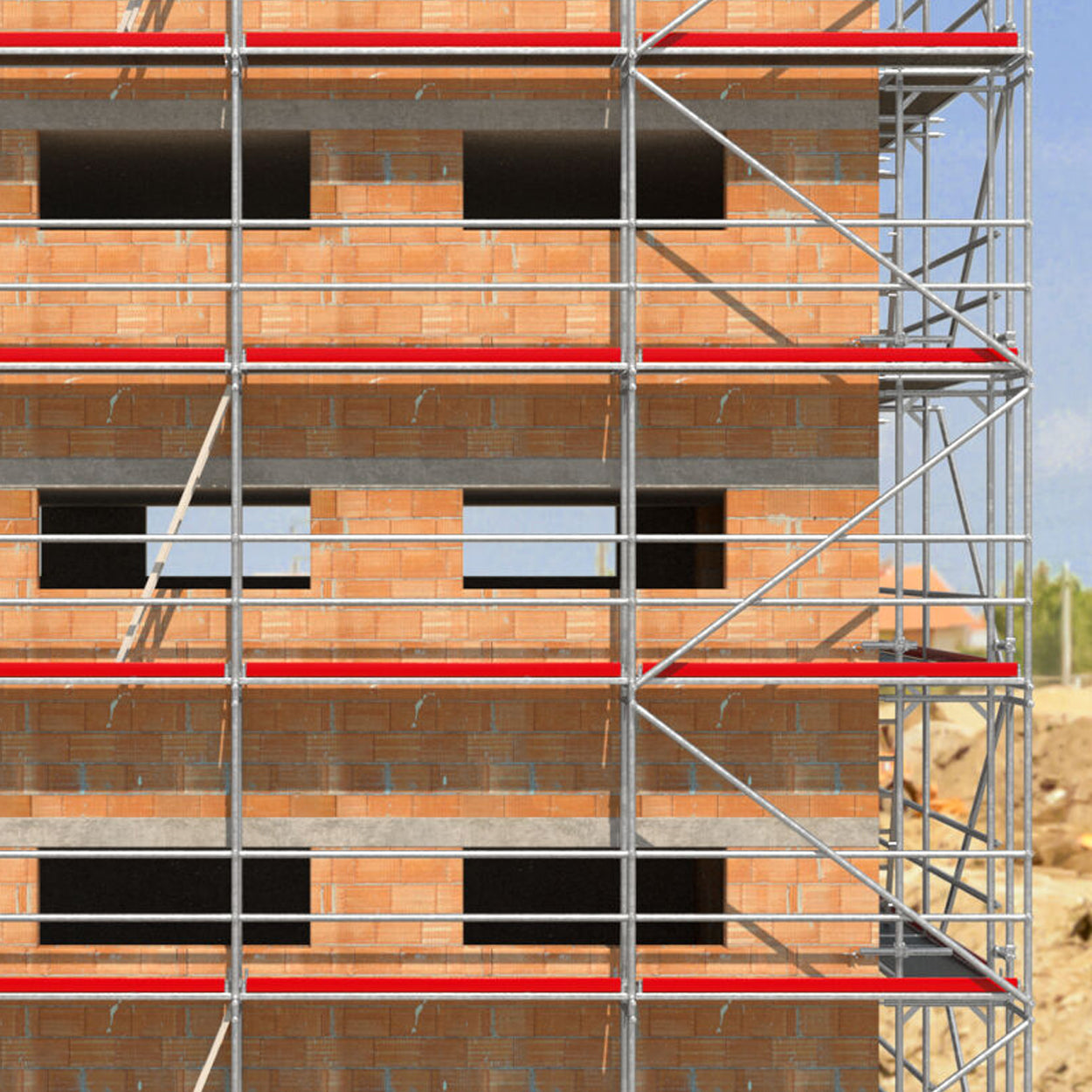

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building Materials

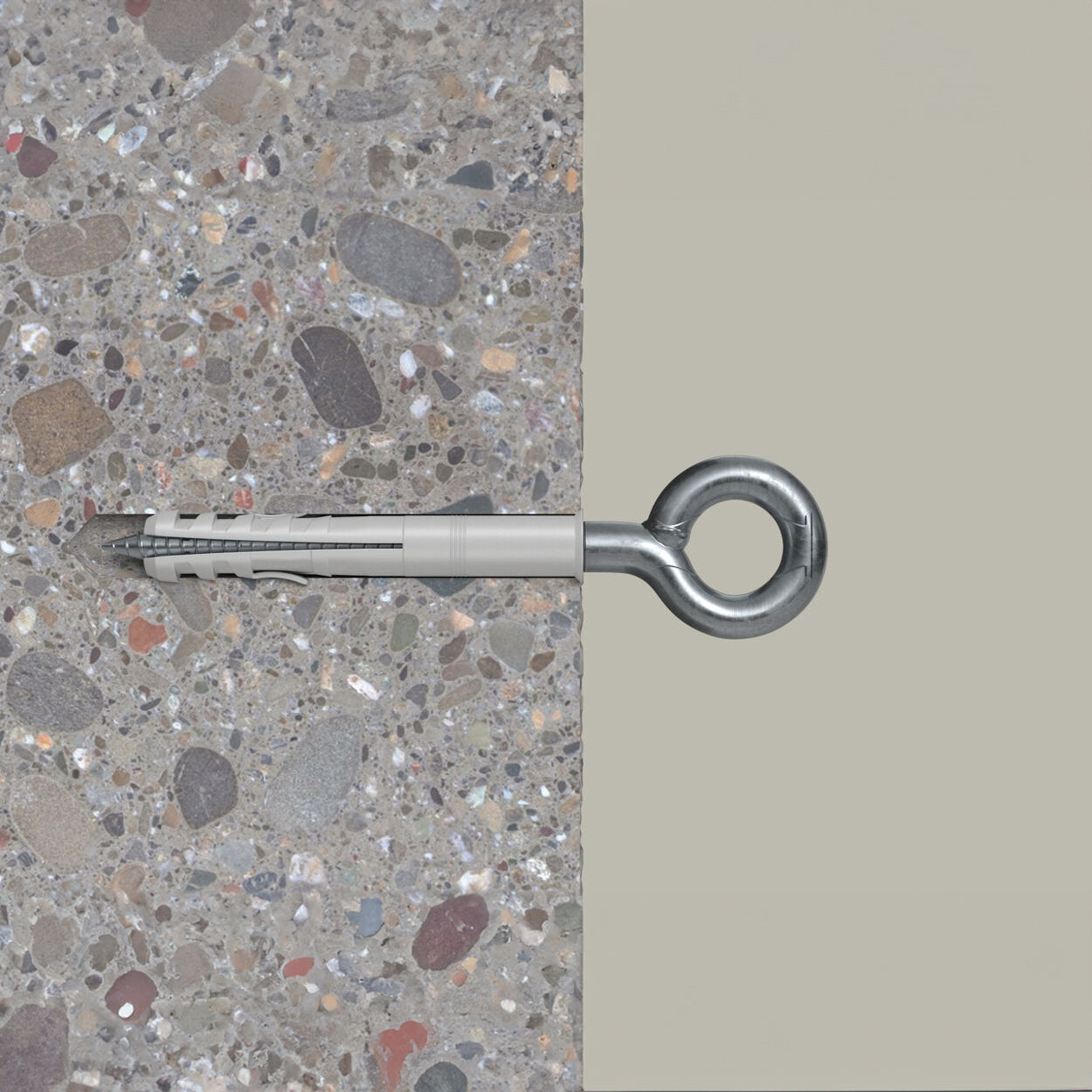

GS 12 + S 14 ROE suitable for:
Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick
Solid brick made from lightweight concrete
GS 12 + S 16 H R suitable for:
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete
You can find detailed information on building materials in the registration document.

Certifications

Features

The ideal interaction of the scaffold eye screw and plug allows for a high load-bearing capacity: Increased safety.
High-quality weld: Stops the eye from opening.
Large diameter of the cover caps (available separately) covers drill holes completely and discreetly, even those with slightly broken edges: Professional finish.

Specifications
  • Type
    Scaffold anchor
  • Pack Size
    25
  • Matching Anchor Type
    S 14 ROE 70
  • Load Table Document
    Fischer_GS-12_load_table.pdf
  • Matching Anchor Type
    S 14 ROE 70
  • Eye Diameter (mm)
    23.00
  • Shaft Length (mm)
    90.00
  • Max. Thickness of Non-Bearing Layer
    15mm
