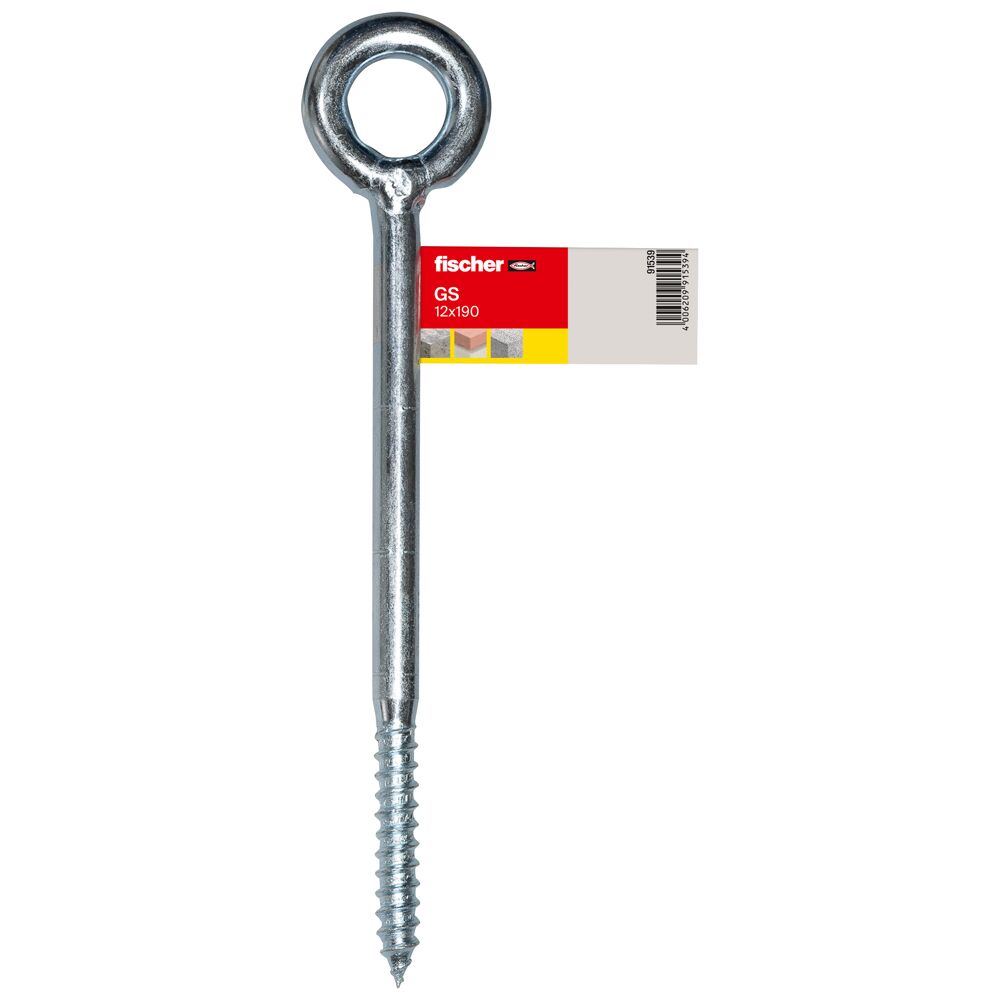

Fischer GS 12 x 190 Scaffold eyebolt [080960]

£59.80

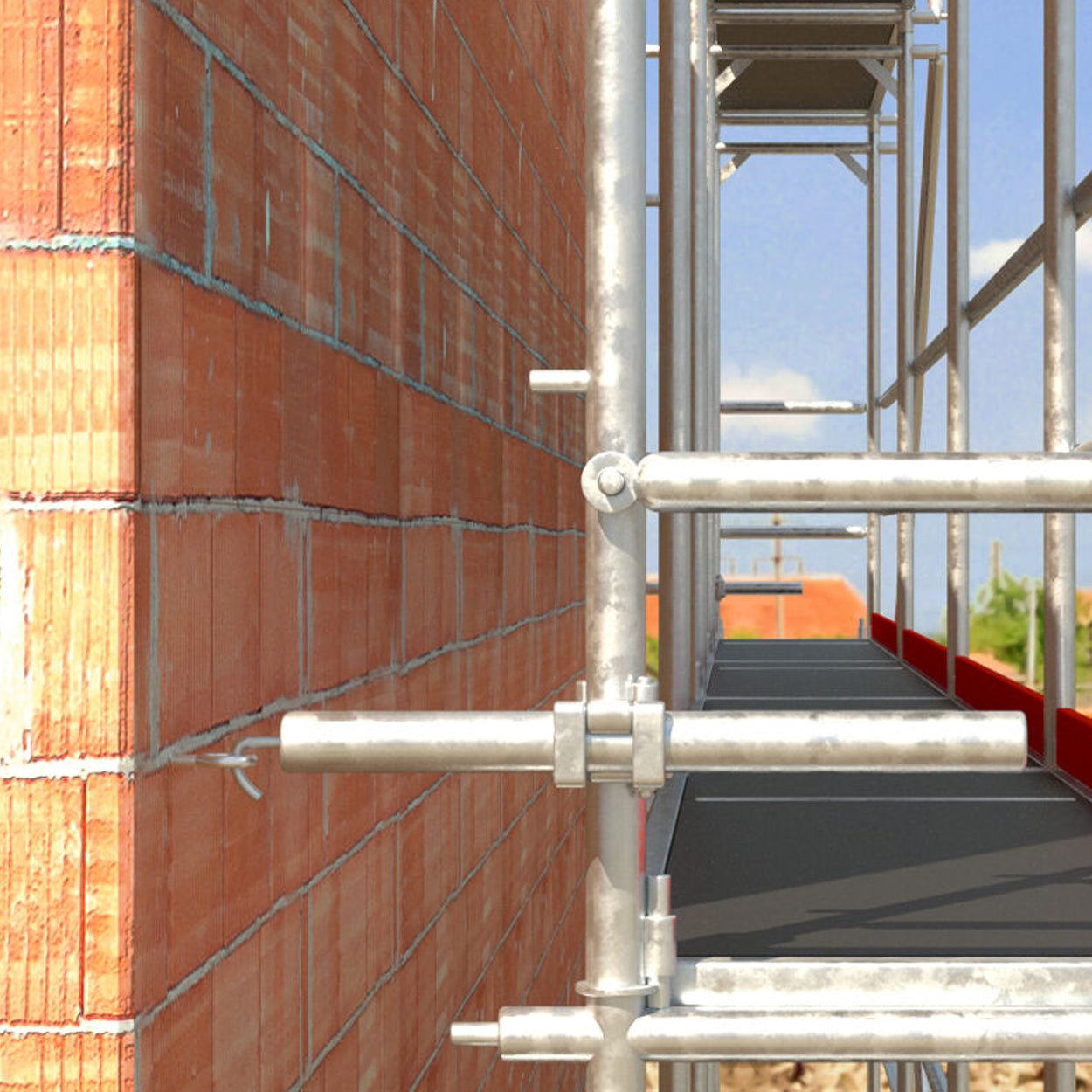

Made of zinc-plated steel, the fischer eye bolt GS 12 x 190 is suitable for fixing into concrete, solid brick, and masonry made of hollow building materials and aerated concrete. The eye bolt is used in conjunction with the fischer expansion plug S 14 ROE or the frame fixing S 16 H, depending on the type of material being fixed. The screw-in markings on the eye bolt provide a visual control during assembly and prevent the eye from being unintentionally broken off. This makes the eye bolt a safe and reliable solution for fixing façade scaffolds, cables, or chains.

Fischer GS 12 x 190 Scaffold eyebolt [080960] is backordered and will ship as soon as it is back in stock.

Applications

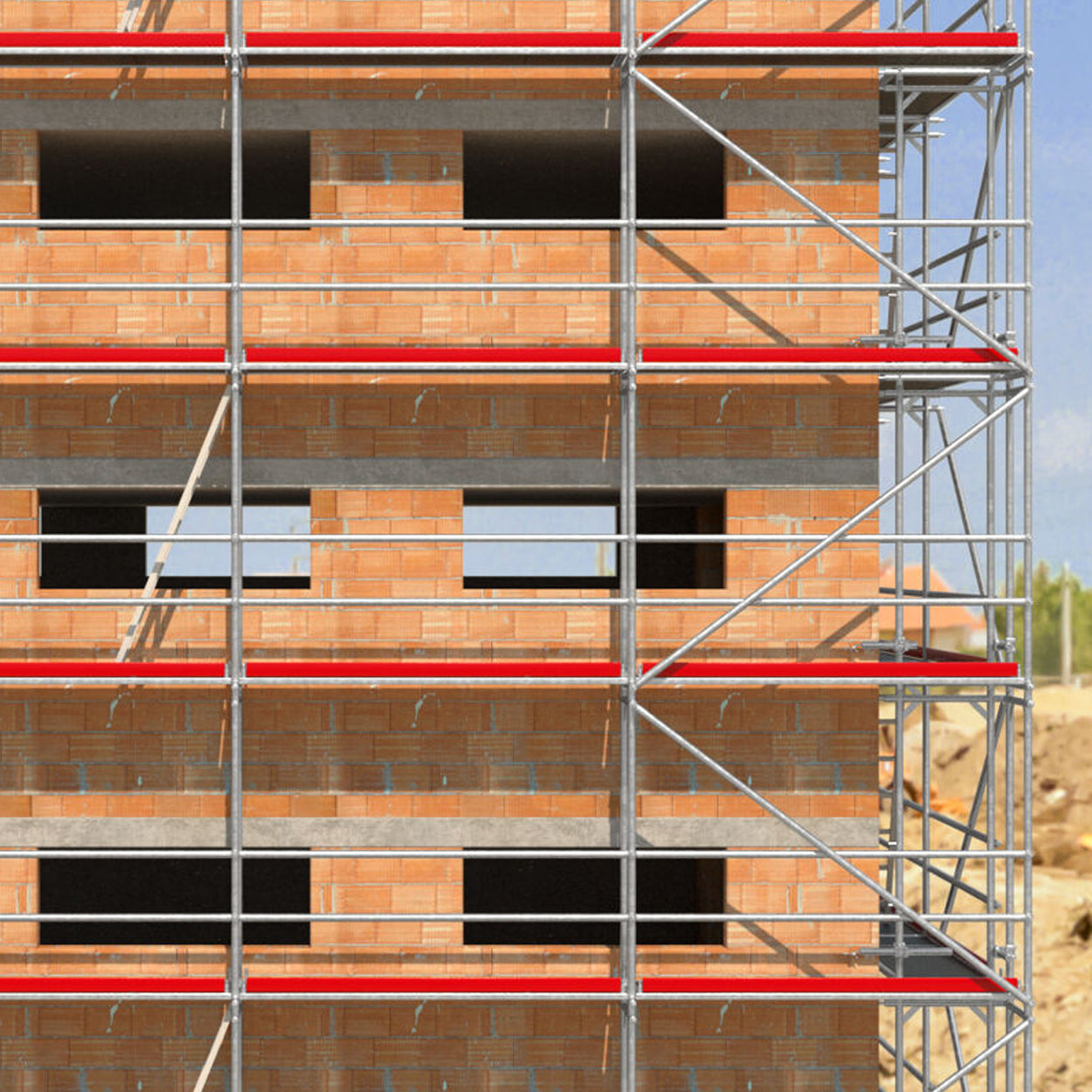

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building Materials

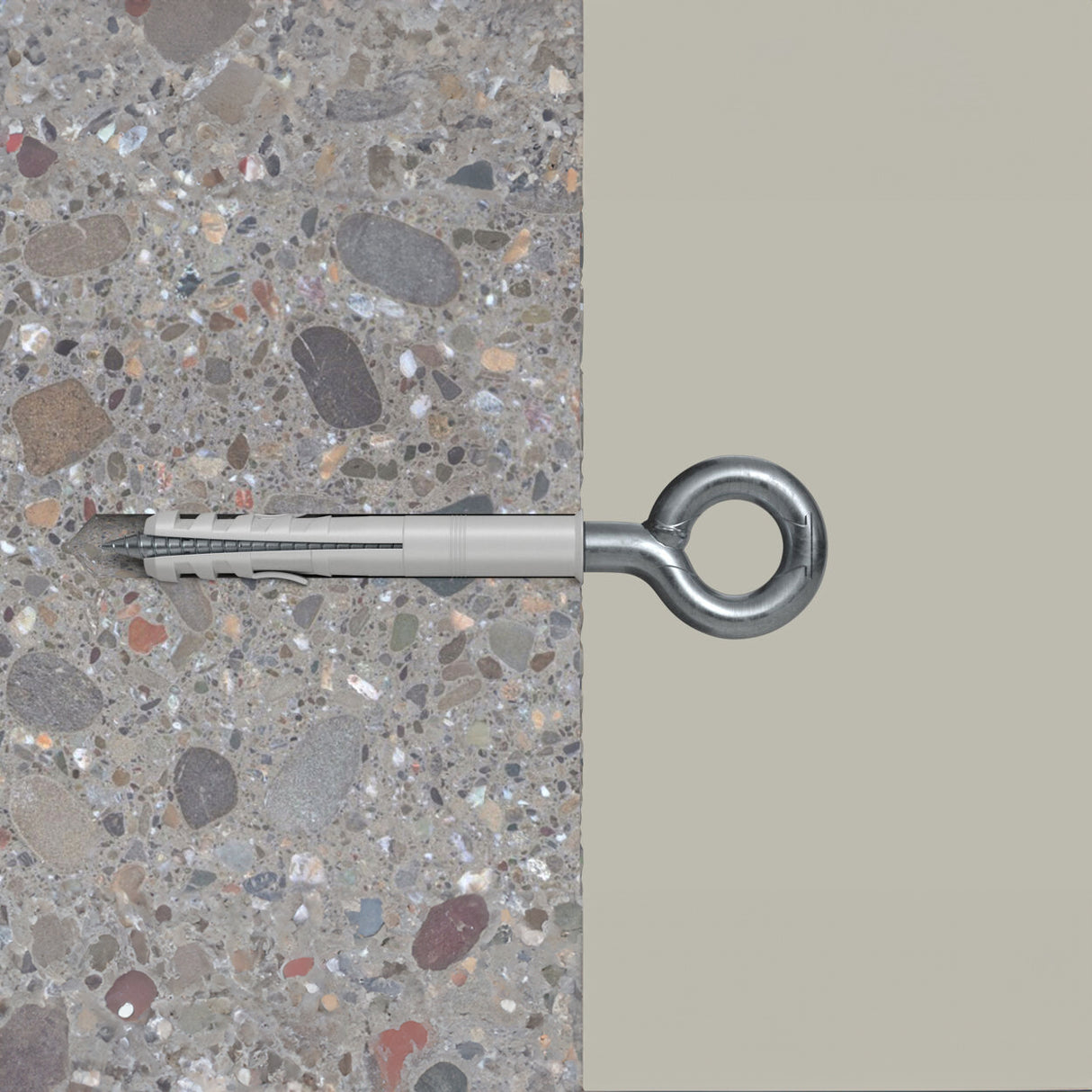

GS 12 + S 14 ROE suitable for:
Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick
Solid brick made from lightweight concrete
GS 12 + S 16 H R suitable for:
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete
You can find detailed information on building materials in the registration document.

Certifications

Features

The ideal interaction of the scaffold eye screw and plug allows for a high load-bearing capacity: Increased safety.
High-quality weld: Stops the eye from opening.
Large diameter of the cover caps (available separately) covers drill holes completely and discreetly, even those with slightly broken edges: Professional finish.

Specifications
  • Type
    Scaffold anchor
  • Pack Size
    25
  • Matching Anchor Type
    S 14 ROE 185 / S 16 H 160 R
  • Load Table Document
    Fischer_GS-12_load_table.pdf
  • Matching Anchor Type
    S 14 ROE 185 / S 16 H 160 R
  • Eye Diameter (mm)
    23.00
  • Shaft Length (mm)
    190.00
  • Max. Thickness of Non-Bearing Layer
    110/70mm

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

Fischer GS 12 x 190 Scaffold eyebolt [080960]

£59.80
Made of zinc-plated steel, the fischer eye bolt GS 12 x 190 is suitable for fixing into concrete, solid brick, and masonry made of hollow building materials and aerated concrete. The eye bolt is used in conjunction with the fischer expansion plug S 14 ROE or the frame fixing S 16 H, depending on the type of material being fixed. The screw-in markings on the eye bolt provide a visual control during assembly and prevent the eye from being unintentionally broken off. This makes the eye bolt a safe and reliable solution for fixing façade scaffolds, cables, or chains.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Scaffold anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

25

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The ideal interaction of the scaffold eye screw and plug allows for a high load-bearing capacity: Increased safety.
High-quality weld: Stops the eye from opening.
Large diameter of the cover caps (available separately) covers drill holes completely and discreetly, even those with slightly broken edges: Professional finish.
