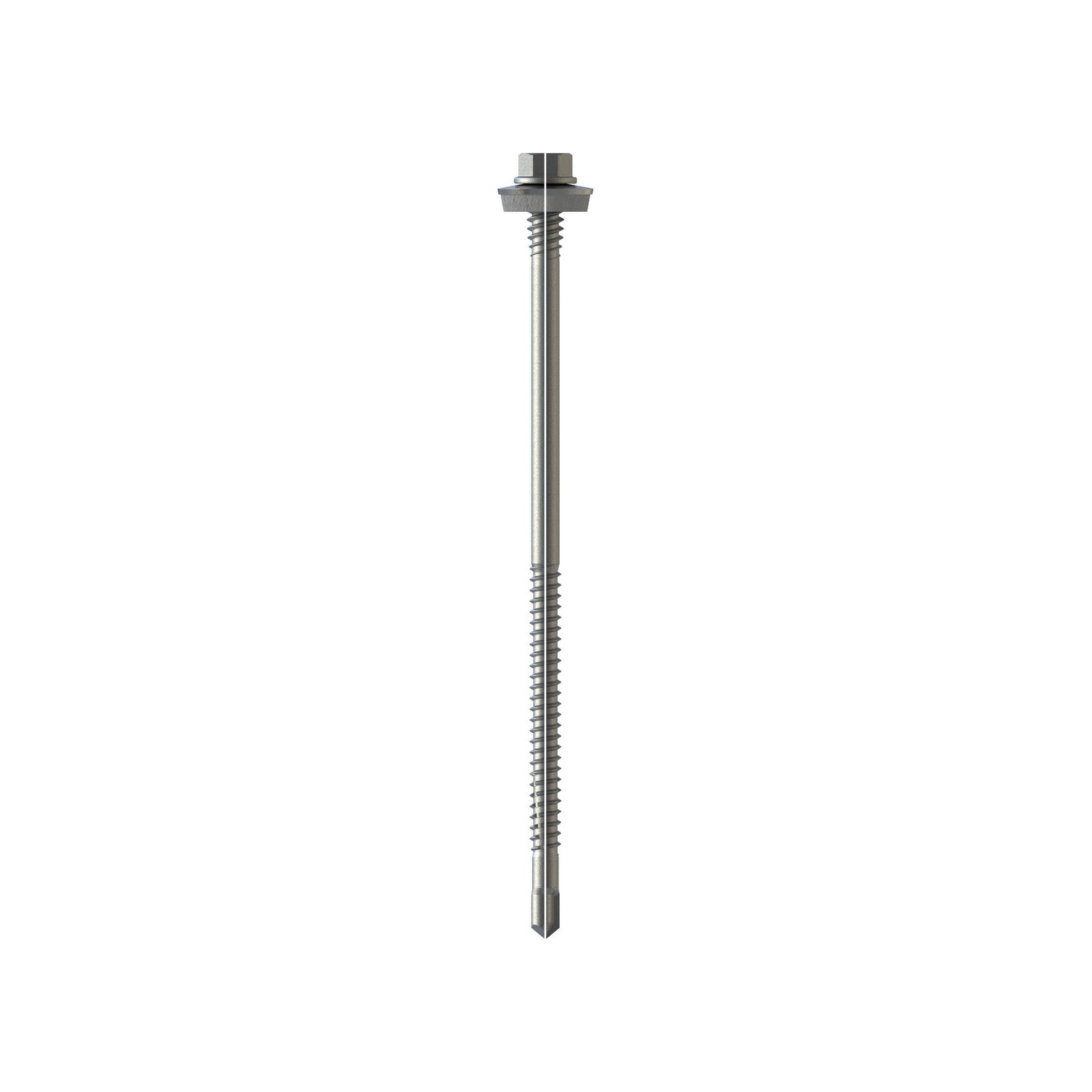

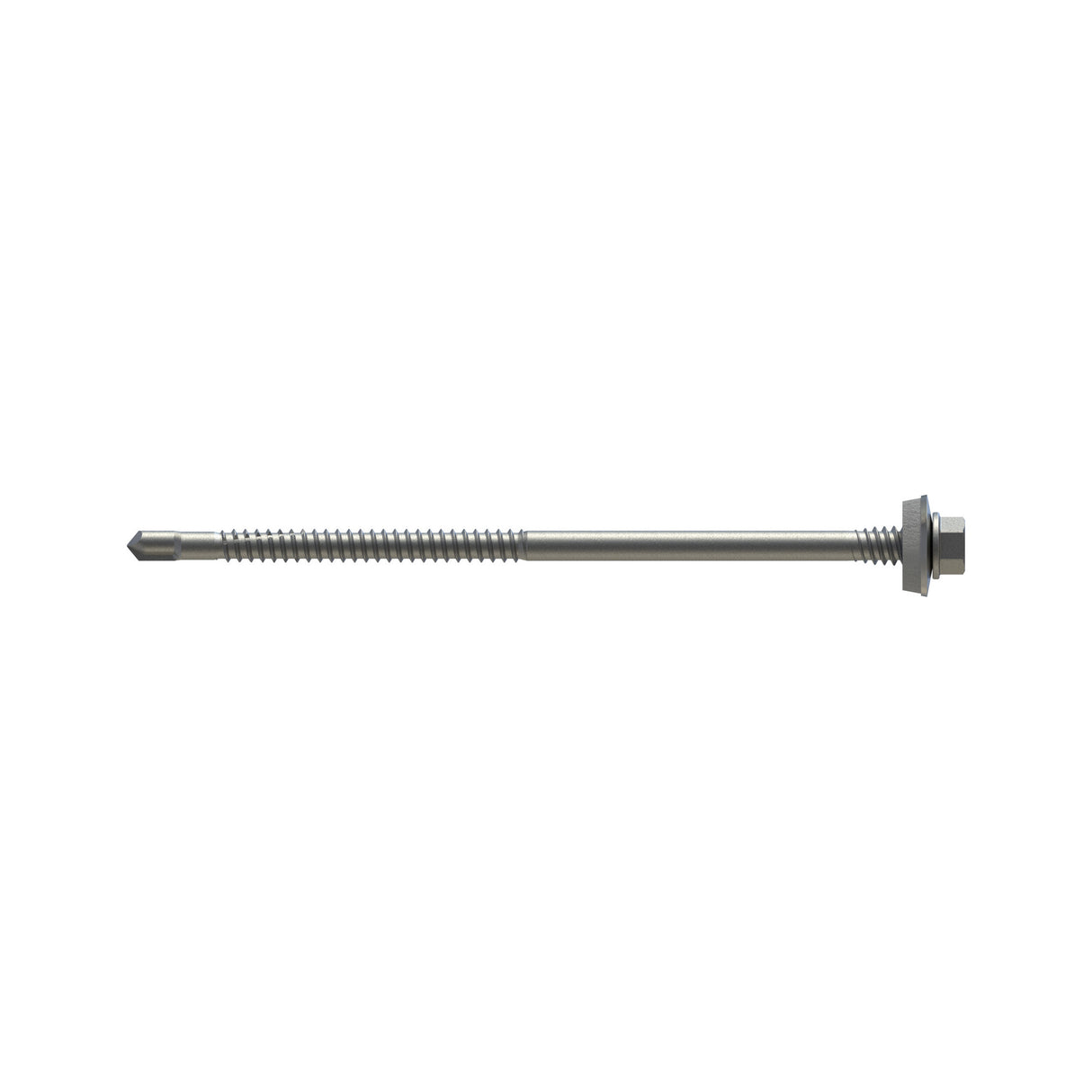

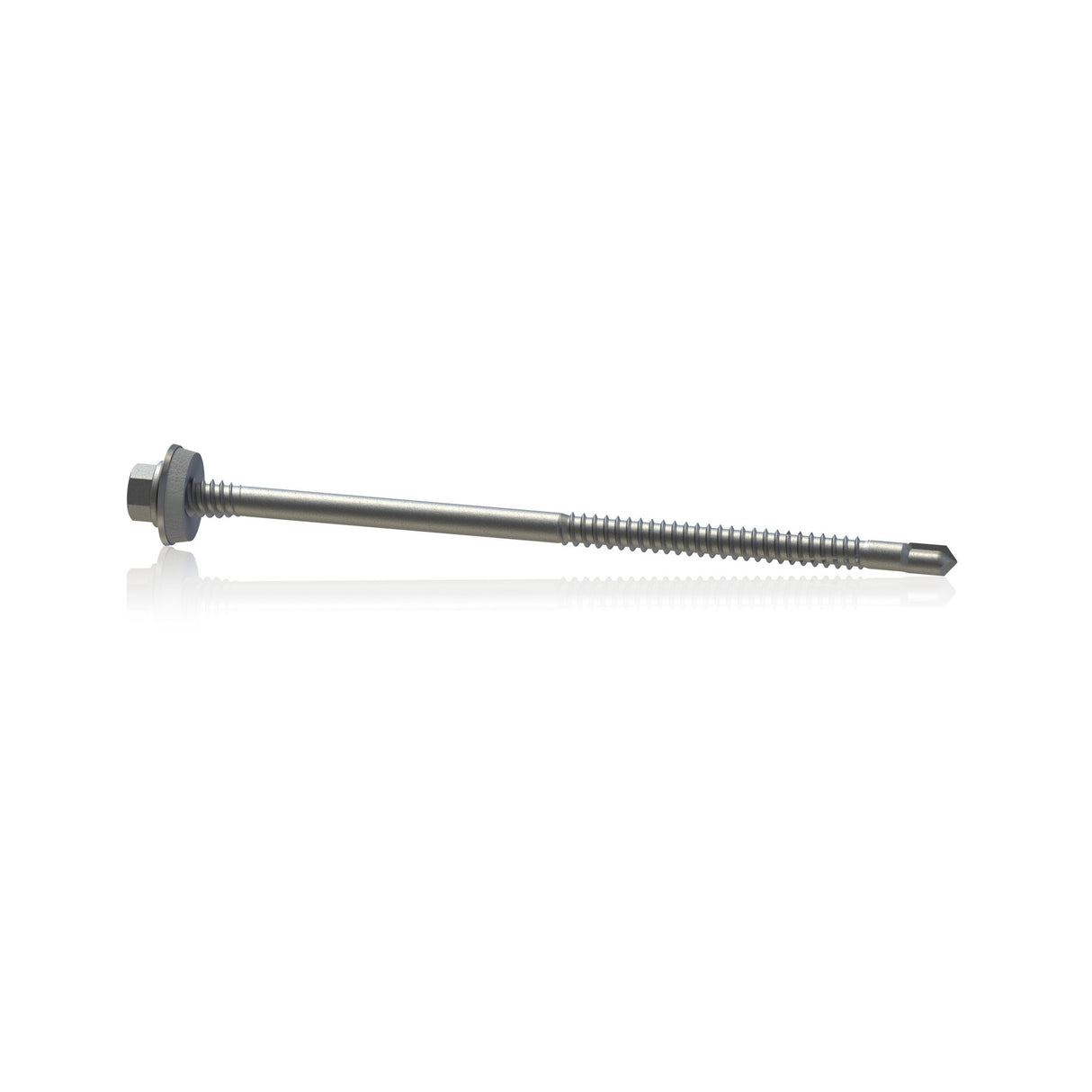

Certifix CFRP-7K-P 5.5 x 185 Hex head, A2 stainless Bi-metal sandwich screw E16

The Certifix CFRP-7K-P sandwich drilling screw is a high-performance fastener designed to tackle the challenges of securing sandwich profiles to steel substructures. Its innovative bi-metal construction and unique features deliver exceptional results in roofing and façade applications.

Certifix CFRP-7K-P 5.5 x 185 Hex head, A2 stainless Bi-metal sandwich screw E16 is backordered and will ship as soon as it is back in stock.

Product Enquiry

Technical Datasheet

Download the technical datatsheet here.

Applications

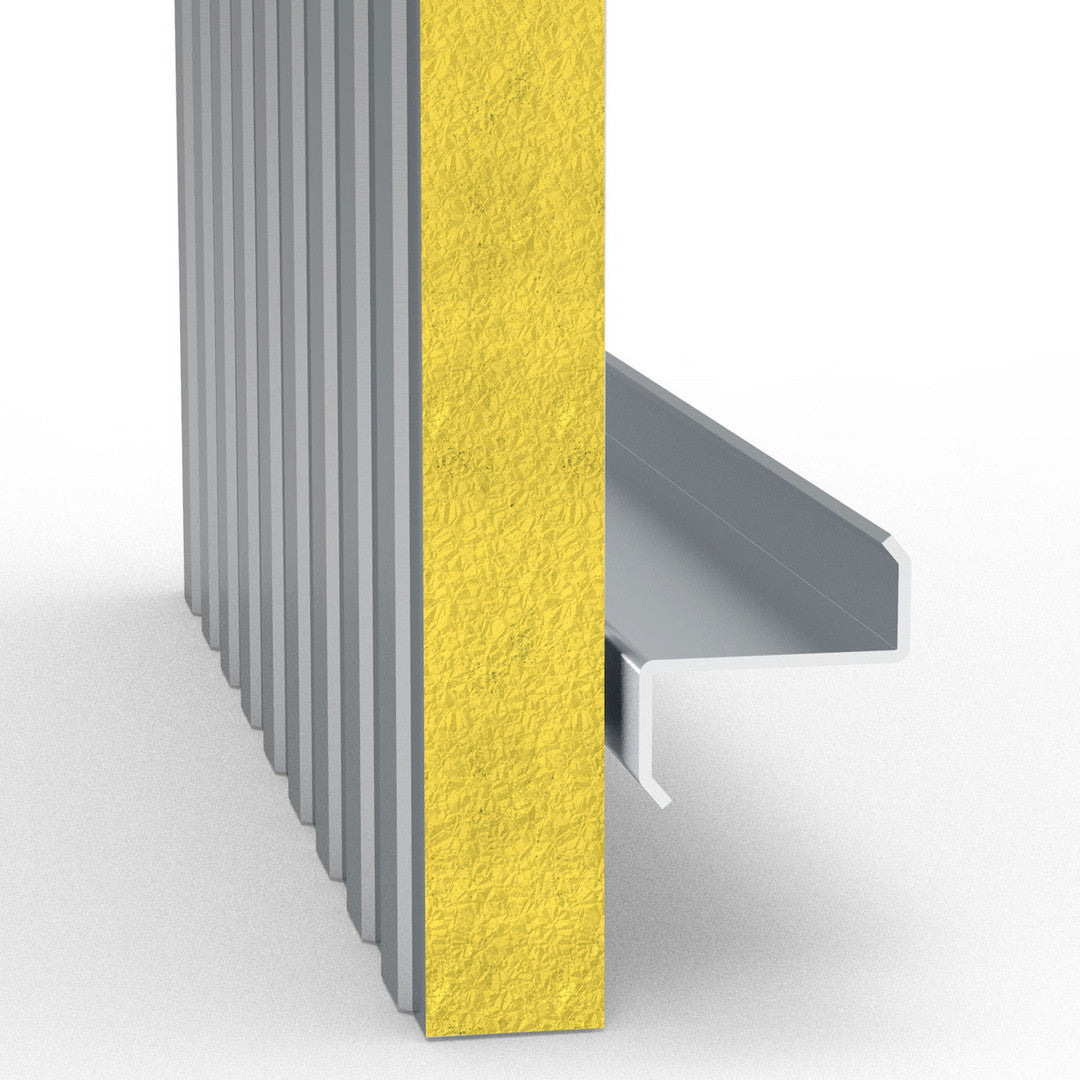

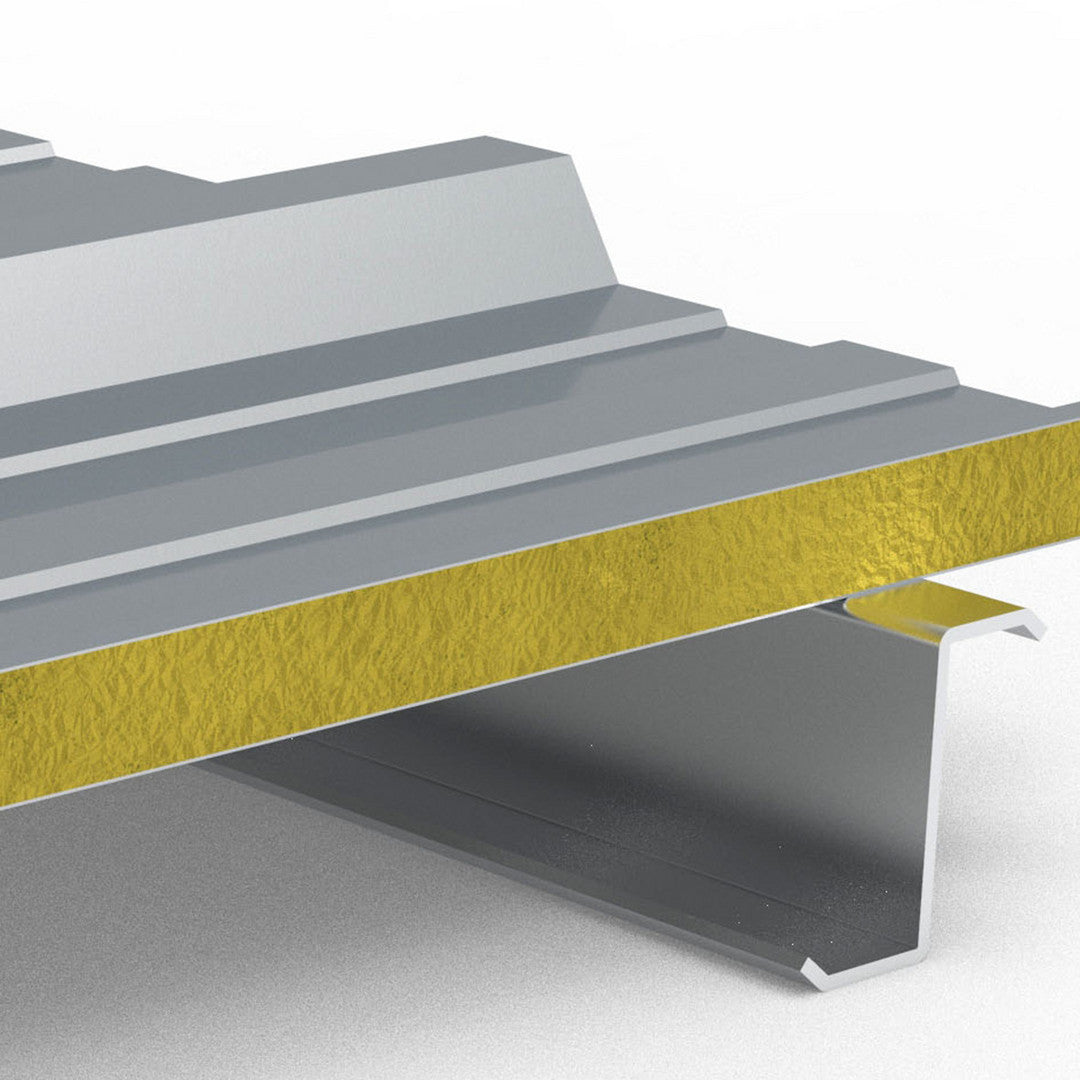

Drilling screw for fixing sandwich profiles to steel coupling purlins or thin-walled steel substructures.
Roofing, façade construction

Building Materials

Certifications

Features

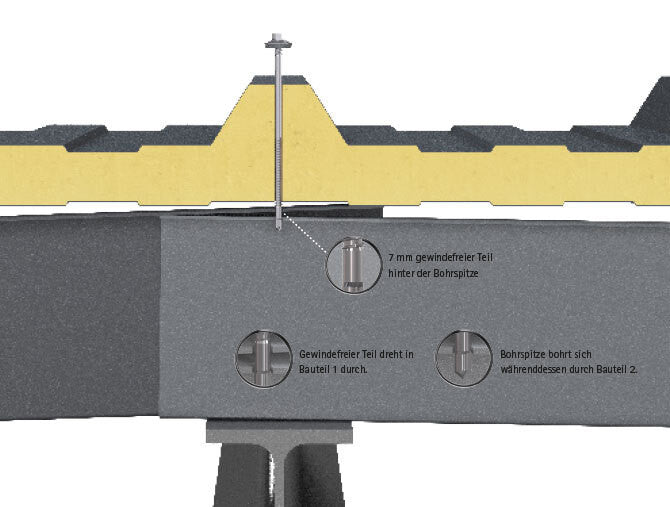

Reliable Performance: The 7mm thread-free section prevents forced feed, ensuring secure and consistent installation, even with structural tolerances.
Durable Construction: The A2 stainless steel and EPDM sealing washer offer superior corrosion resistance and long-lasting weatherproofing.

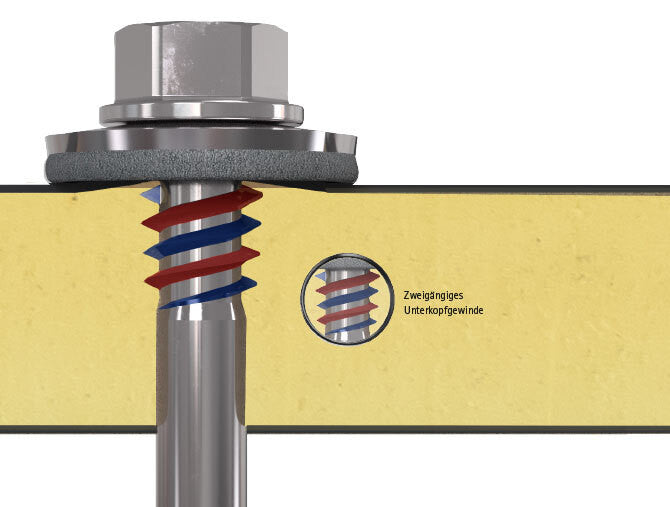

Efficient Installation: The self-tapping screw thread with thread forming grooves enables quick and easy installation, minimizing tool wear.
Versatility: Suitable for fixing to standard coupling purlins and ideal for both roofing and façade construction.

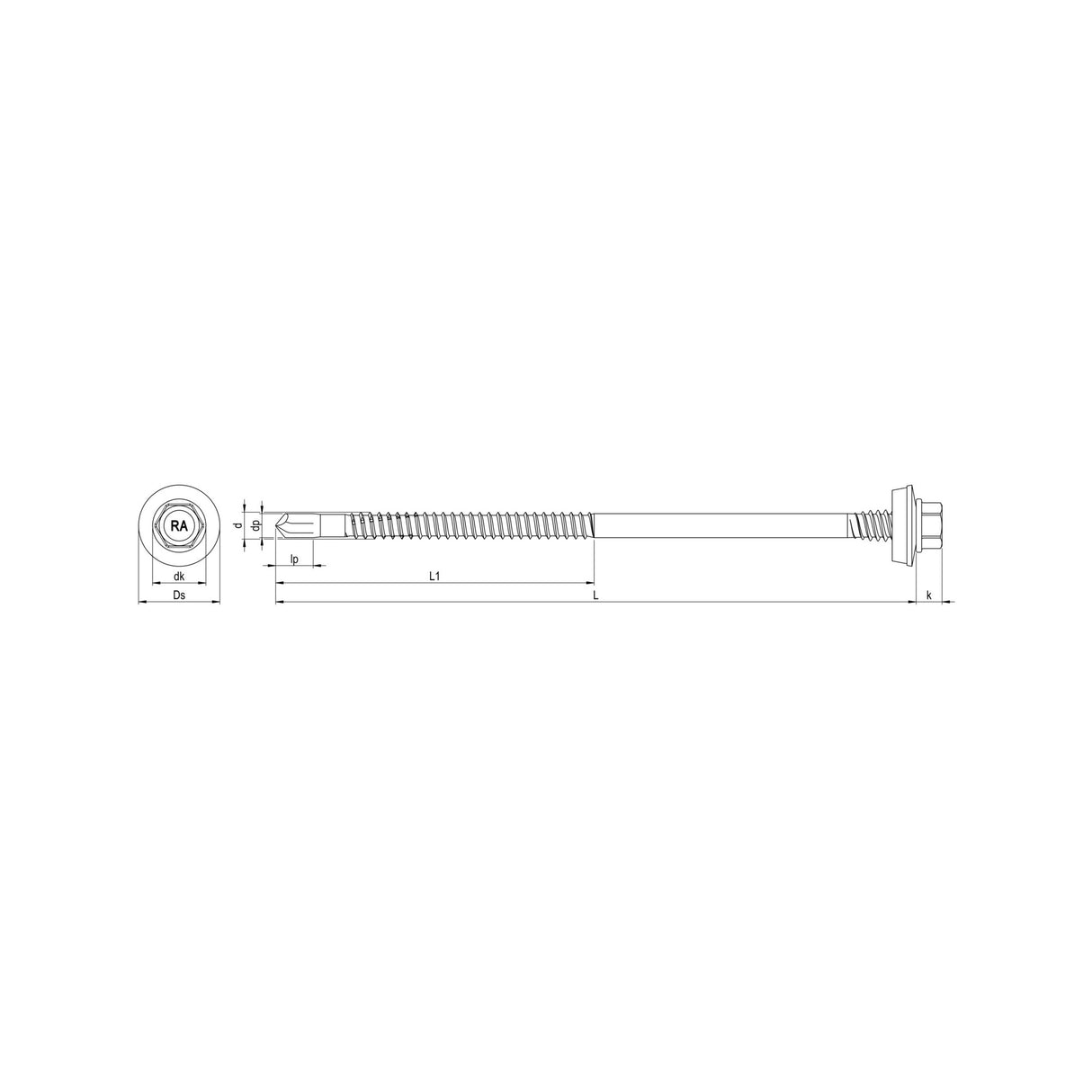

Specifications
  • Diameter (MM)
    6
  • Washer Diameter (MM)
    16
  • Type
    Sandwich screw
  • Thread Length (MM)
    93
  • Pack Size
    100
  • Material
    A2 Stainless Steel Bi-Metal
  • Length (MM)
    185
  • Tech Datasheet
    Certifix_RP-7K-P_sandwich_screw_TDS-compressed.pdf
  • Driver Type
    AF 8
  • Drilling Capacity
    1.5 - 5.25mm
  • Head Type
    Hexagonal
  • Head Height (mm)
    5.10

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix CFRP-7K-P 5.5 x 185 Hex head, A2 stainless Bi-metal sandwich screw E16

£1.00
The Certifix CFRP-7K-P sandwich drilling screw is a high-performance fastener designed to tackle the challenges of securing sandwich profiles to steel substructures. Its innovative bi-metal construction and unique features deliver exceptional results in roofing and façade applications.

Clamping Range (MM)

N/A

Diameter (MM)

6

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

16

Type

Sandwich screw

Torque Moment (NM)

N/A

Thread Length (MM)

93

Thread

N/A

Size

N/A

Pack Size

100

Package Contents

N/A

Material

A2 Stainless Steel Bi-Metal

Length (MM)

185

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Reliable Performance: The 7mm thread-free section prevents forced feed, ensuring secure and consistent installation, even with structural tolerances.
Durable Construction: The A2 stainless steel and EPDM sealing washer offer superior corrosion resistance and long-lasting weatherproofing.
Efficient Installation: The self-tapping screw thread with thread forming grooves enables quick and easy installation, minimizing tool wear.
Versatility: Suitable for fixing to standard coupling purlins and ideal for both roofing and façade construction.
