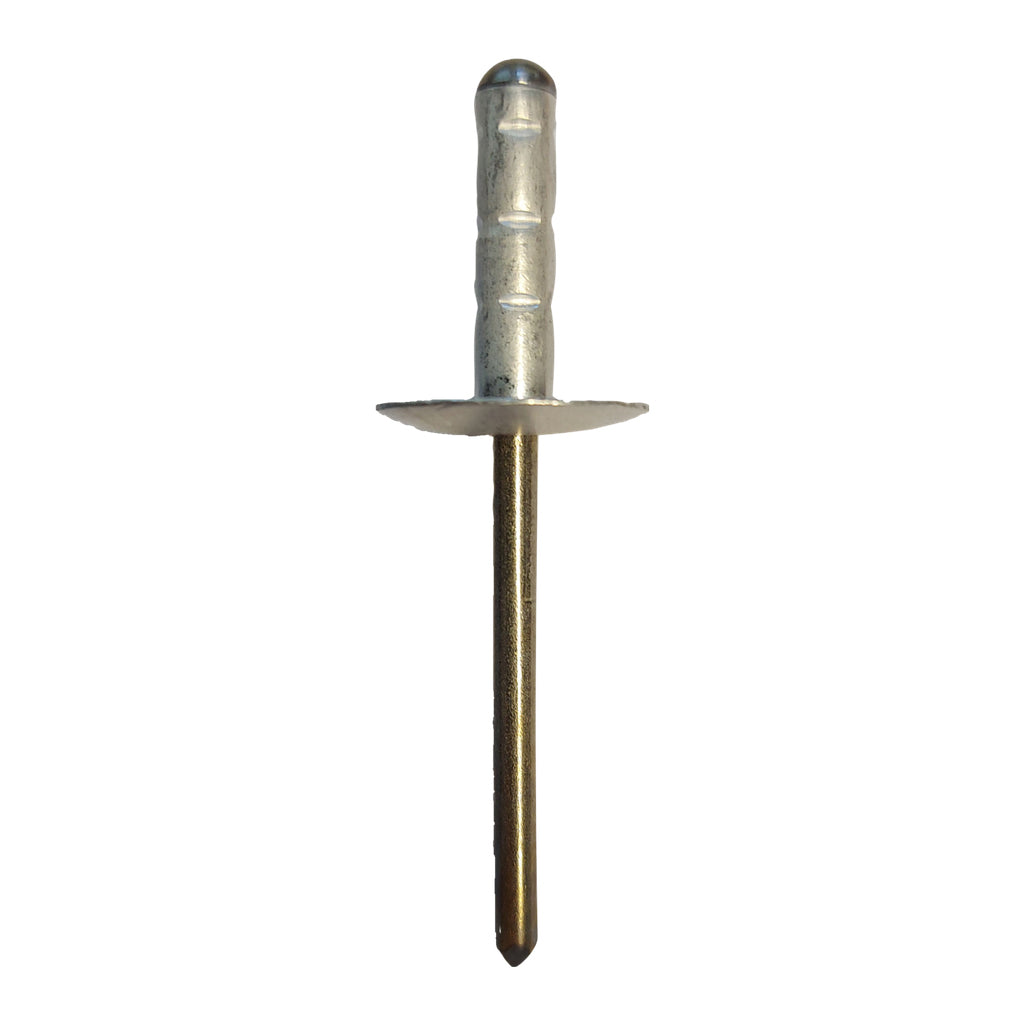

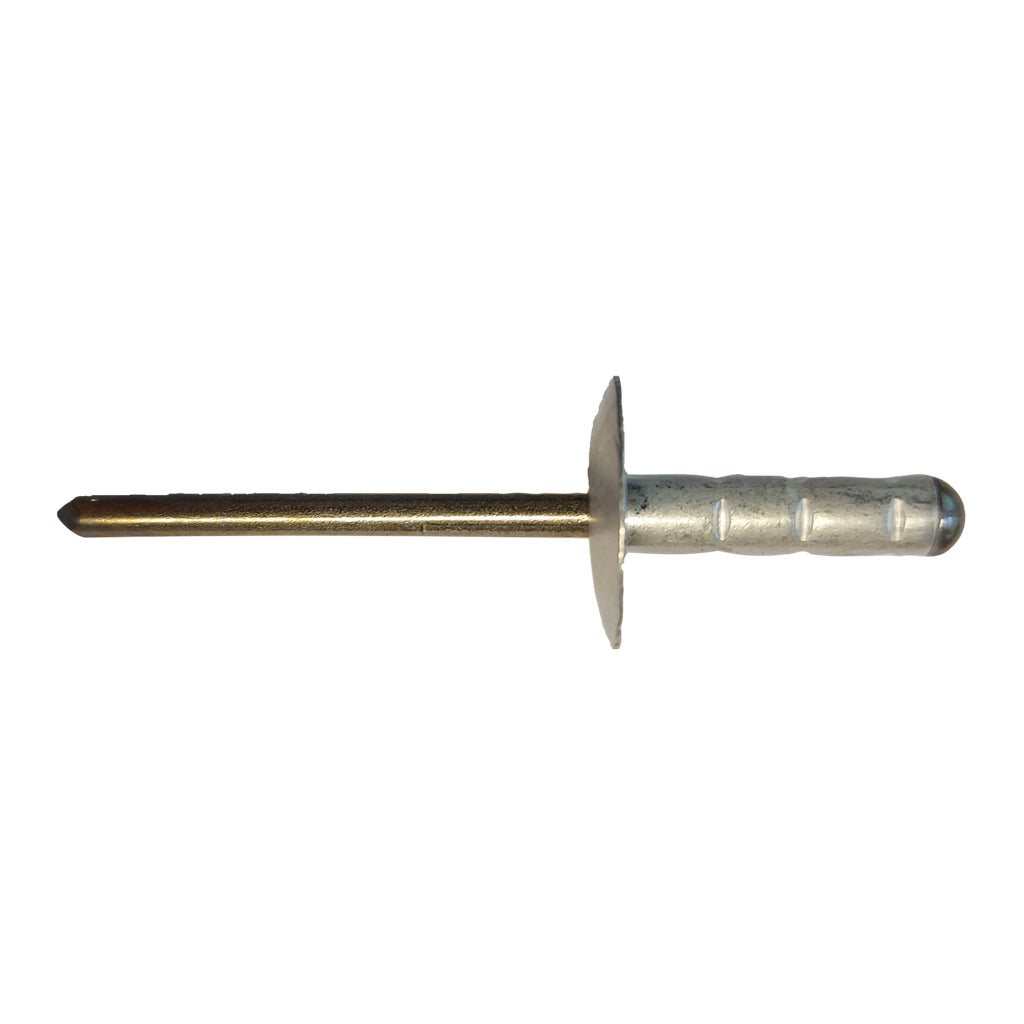

Certifix rivet large dome head multi-grip large flange Alu/A2 4.8 x 17 coated to match (RAL 1013)

Pack Size: 200
£56.83

Certifix rivet large dome head multi-grip large flange Alu/A2 4.8 x 17 coated to match (RAL 1013) is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

Our Certifix 4.8 x 17 large flange rivets are made of Alu/A2 stainless steel, which provides improved corrosion resistance. The large flange provides better coverage of oversized or irregular shaped holes, and also provides a secure hold when fixed into soft materials We specialise in matching Façade panel colours including metallic colours, and we stock the plain rivets ready for coating which suits most Façade panels. We also coat to most RAL colours. Lead time depending on quantities typically 3 - 12 working days for coating and delivery. Surcharges may apply on small order quantities and special powders. Available upon request. Stocked as standard. Contact us for samples.

Technical Datasheet

Tech Datasheet:

Applications

Fastening façade panels to fixing system

Features

A2 stainless steel: extra corrosion resisitance.
Large flange: Improved coverage of oversized or irregular shaped holes. Also provide a secure hold when fixed into soft materials.

Specifications
  • Body Material
    Aluminum AL MG 2,7
  • Brand
    Certifix
  • Colour
    RAL 1013
  • Diameter (mm)
    4.80
  • Flange (mm)
    16.00
  • Grip Range
    5-13mm
  • Head Diameter (mm)
    16.00
  • Length (MM)
    17
  • Mandrel Material
    A2 Stainless AISI 306
  • Material
    Coated/Aluminium/A2 Stainless Steel
  • Pack Size
    200
  • Shear (N)
    1500 N
  • Tensile (N)
    2400 N
  • Tensile N/mm
    2400 N
  • Type
    Rivet
