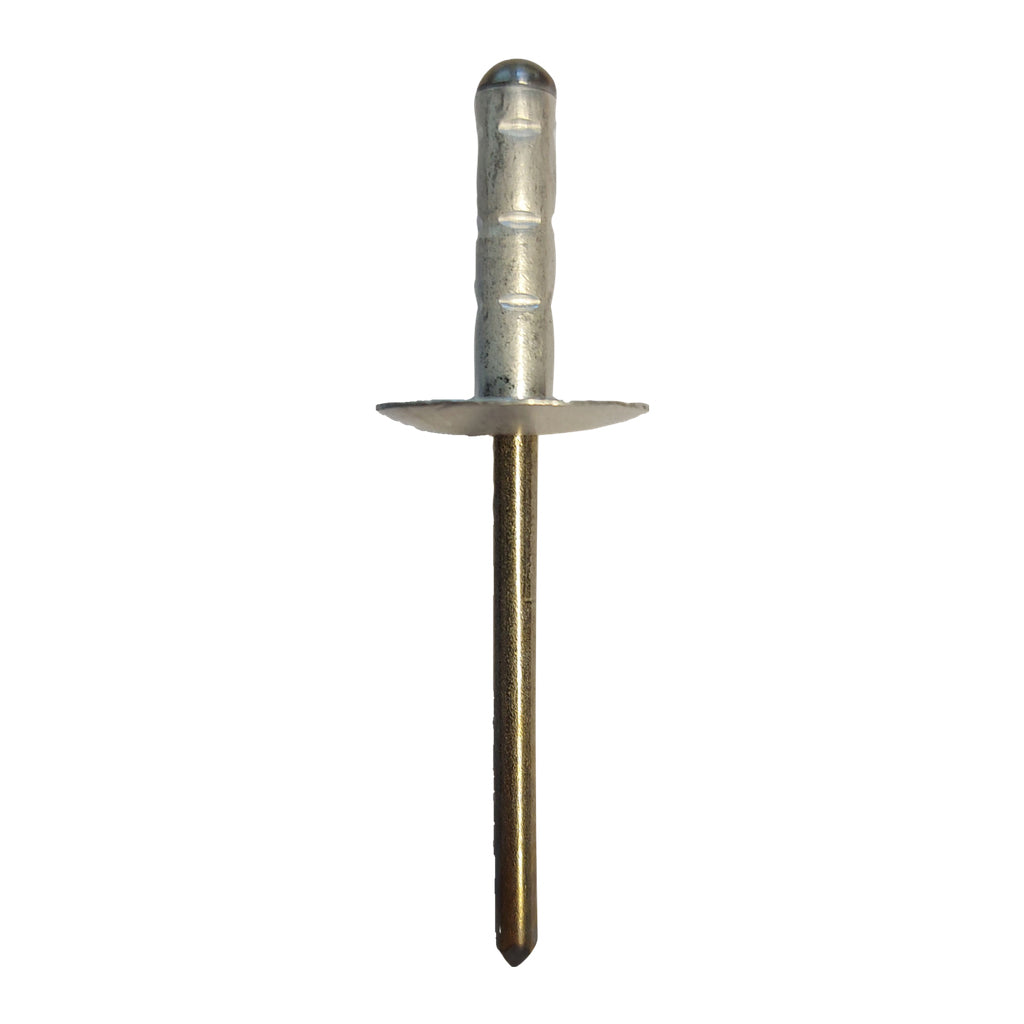

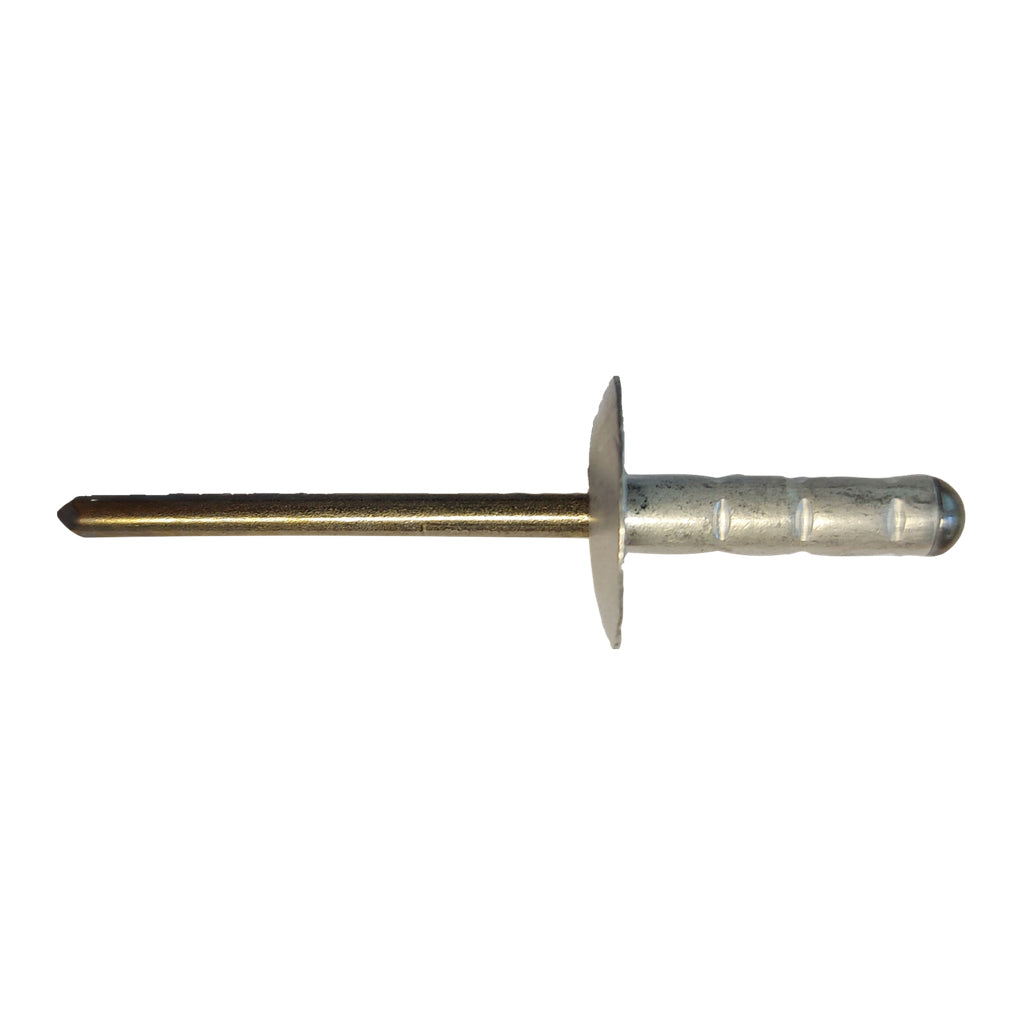

Certifix rivet large dome head multi-grip large flange A4/A4 4.8 x 20 coated to match (RAL 5012)

£167.52
Our Certifix 4.8 x 20 large flange rivets are made of A4 stainless steel, which provides improved corrosion resistance. The large flange provides better coverage of oversized or irregular shaped holes, and also provides a secure hold when fixed into soft materials We specialise in matching Façade panel colours including metallic colours, and we stock the plain rivets ready for coating which suits most Façade panels. We also coat to most RAL colours. Lead time depending on quantities typically 3 - 12 working days for coating and delivery. Surcharges may apply on small order quantities and special powders. Available upon request. Stocked as standard. Contact us for samples.

Certifix rivet large dome head multi-grip large flange A4/A4 4.8 x 20 coated to match (RAL 5012) is backordered and will ship as soon as it is back in stock.

Technical Datasheet

Download the technical datatsheet here.

Applications

Fastening façade panels to fixing system
Fastening in coastal / marine applications

Building Materials

Certifications

Features

One size: Allows the fastening of multiple grip due to the rivet design.
Full stainless variant: Allows for a longer building design life.
Full batch traceability from start to finish: Reliable.
Large flange: Ideal for face fixing Façade panels.
High tensile strength: Durable.
Rivets are specially treated: Consistent high quality coating.

Specifications
  • Diameter (MM)
    5
  • Type
    Rivet
  • Pack Size
    209
  • Material
    Coated/A4 Stainless Steel
  • Length (MM)
    20
  • Tech Datasheet
    Certifix_RMGLF_Multi-Grip_Rivet_TDS-compressed.pdf
  • Colour
    RAL 5012
  • Head Diameter (mm)
    16.00
  • Flange (mm)
    16.00
  • Grip Range
    5-13mm
  • Shear (N)
    4000 N
  • Tensile (N)
    5000 N
  • Tensile N/mm
    5000 N

Reviews (0)

Delivery & Returns

Lorem Ipsum Dolor Sit Amet

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Certifix

Certifix rivet large dome head multi-grip large flange A4/A4 4.8 x 20 coated to match (RAL 5012)

£167.52
Our Certifix 4.8 x 20 large flange rivets are made of A4 stainless steel, which provides improved corrosion resistance. The large flange provides better coverage of oversized or irregular shaped holes, and also provides a secure hold when fixed into soft materials We specialise in matching Façade panel colours including metallic colours, and we stock the plain rivets ready for coating which suits most Façade panels. We also coat to most RAL colours. Lead time depending on quantities typically 3 - 12 working days for coating and delivery. Surcharges may apply on small order quantities and special powders. Available upon request. Stocked as standard. Contact us for samples.

Clamping Range (MM)

N/A

Diameter (MM)

5

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Rivet

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

209

Package Contents

N/A

Material

Coated/A4 Stainless Steel

Length (MM)

20

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

One size: Allows the fastening of multiple grip due to the rivet design.
Full stainless variant: Allows for a longer building design life.
Full batch traceability from start to finish: Reliable.
Large flange: Ideal for face fixing Façade panels.
High tensile strength: Durable.
Rivets are specially treated: Consistent high quality coating.
