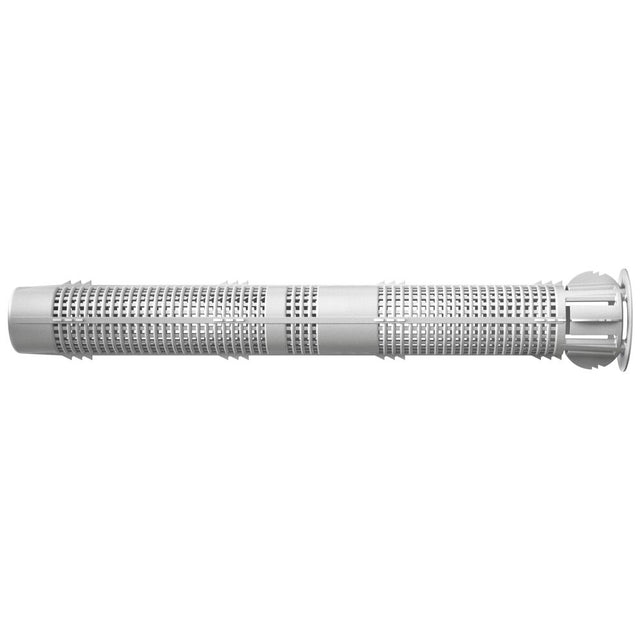

fischer FIS H 20 x 130 K plastic Injection anchor sleeve [46703]

Barcode: 4006209467039
Pack Size: 20
£56.13

Usually shipped in 1-2 days

fischer FIS H 20 x 130 K plastic Injection anchor sleeve [46703] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The plastic fischer injection anchor sleeve FIS H 20 x 130 K is a system component for the use of fischer injection mortars in perforated brick masonry. It is designed to be used in through-type installations, where the anchor sleeve is placed in the drill hole and filled with injection mortar from the anchor sleeve base. When the rod anchor or internal threaded anchor is set, the mortar is pressed through the lattice structure and then connects with the perforated brick by an interlock. This means that the load is directed into the building material, providing a secure and durable fixing. The injection anchor sleeve FIS H K can also be used to bridge non-bearing layers. This makes it a versatile solution for a wide range of fixing applications in perforated brick masonry.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Load Table Document:

Applications

Anchorings in perforated brick masonry with injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green

Building Materials

Approved for:
Vertically perforated brick
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid brick
Also suitable for:
Hollow pumice slabs
Slabs made of hollow brick and other perforated brick
Solid pumice and other solid building materials
You can find detailed information on building materials in the registration document.

Certifications

ETA-10/0383
ETA-14/0471
ETA-15/0263
ETA-20/0729
DoP No. 0189
DoP No. 0195
DoP No. 0232
DoP No. 0273

Features

The grating structure of the FIS H K anchor sleeve is adapted for the injection mortars FIS V Plus,FIS V,FIS VL, FIS Green and FIS P Plus: Ensures sparing mortar use with the best interlock.
The centring blades perfectly align the anchor in the anchor sleeve: Allows for use with various threaded rod diameters.
Barbed hooks secure the anchor sleeve in the drill hole: For a trouble-free overhead installation.
The geometry of the anchor sleeves allows for the bridging of non-bearing layers: For a simple and convenient installation.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-10/0383
    ETA-14/0471
    ETA-15/0263
    ETA-20/0729
    DoP No. 0189
    DoP No. 0195
    DoP No. 0232
    DoP No. 0273
  • Drill Diameter (MM)
    20
  • Effective Anchorage Depth (mm)
    110.00
  • ETA (Dynamic)
    No
  • Functionality
    The system can be used with any of the following injection mortars:FIS V Plus, FIS VW Plus High Speed, FIS VS Plus Low Speed, FIS V, FIS VL, FIS Green or FIS P Plus. FIS P can be used but does not have approvals.
    The system is suitable for pre-positioned installation when combined with injection anchor sleeves and threaded rods FIS A or internal threaded anchors FIS E.
    The anchor sleeve is placed in the drill hole, and filled with injection mortar from the anchor sleeve base.
    Turning in the anchor causes the mortar to be pushed through the anchor sleeve's grating structure, so that it fits the base material perfectly. The load is borne by the interlock.
  • Length (MM)
    130
  • Matching Anchor Type
    FIS A M12-M16
  • Material
    Plastic
  • Minimum Drill Hole Depth (mm)
    140.00
  • Pack Size
    20
  • Type
    Resin sleeve
