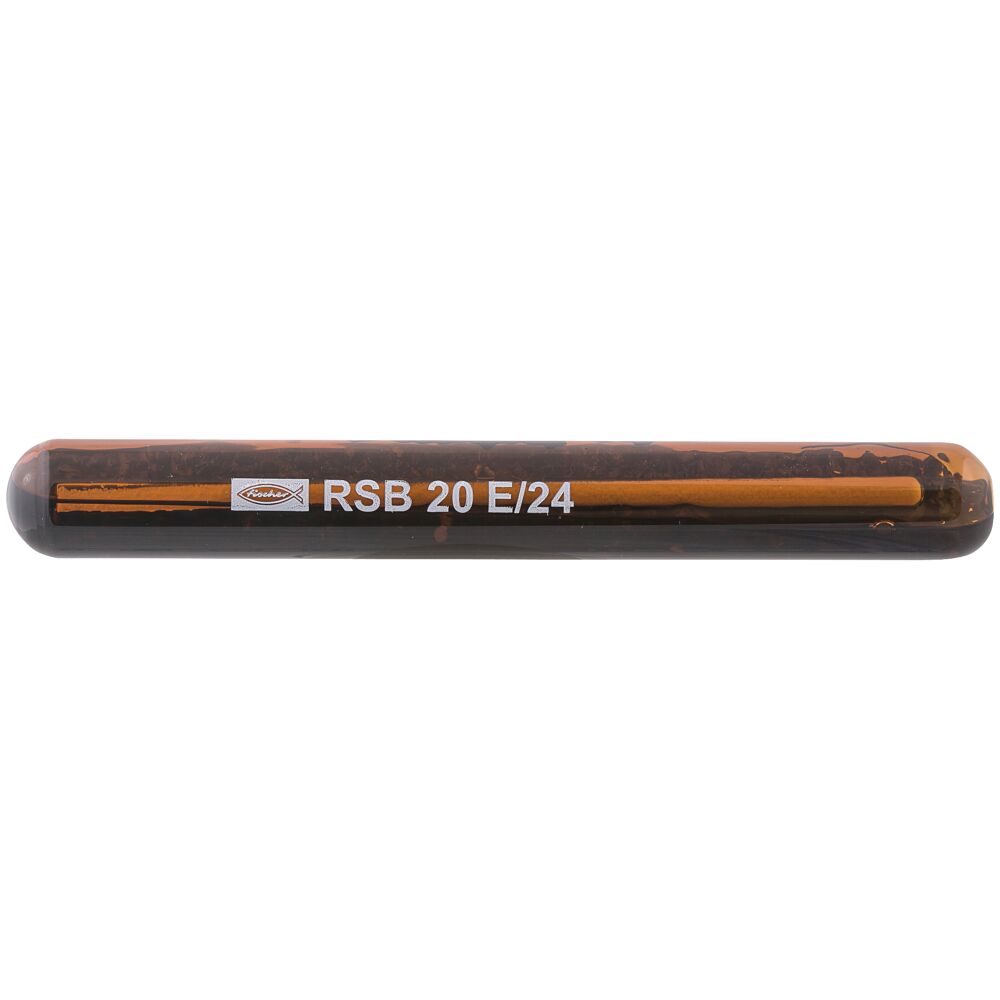

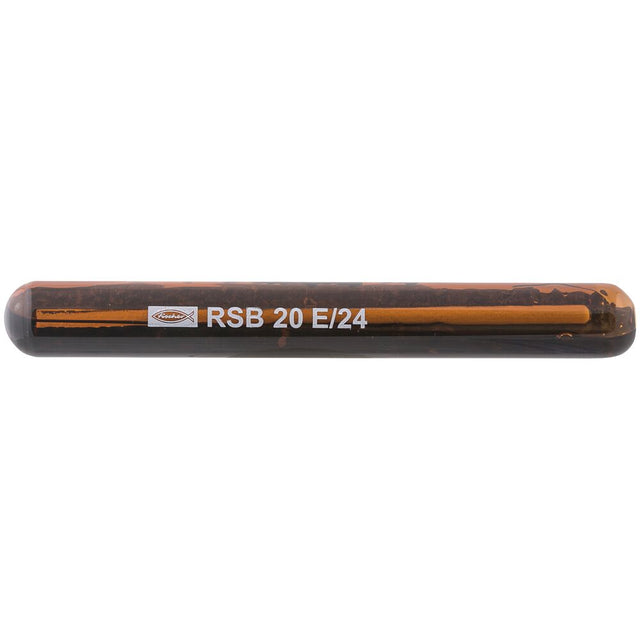

fischer Superbond resin capsule RSB 20 E/24 [518828]

Pack Size: 6
£23.98
The fischer Superbond resin capsule RSB 20 E/24 is a hybrid mortar based on styrene-free vinyl ester for fixing in cracked and non-cracked concrete. The RSB is used with the fischer rod anchor RG M, which is available in zinc-plated steel, stainless steel, and highly corrosion-resistant steel. The RG M is set with the composite anchor setting tool through rotating and hitting motions using a hammer drill. During the setting process, the capsule is destroyed, which mixes and activates the mortar compound. The fischer Superbond resin capsule RSB is suitable for fixing guard rails, staircases, suspension of pipes/cables and scaffold anchoring

fischer Superbond resin capsule RSB 20 E/24 [518828] is backordered and will ship as soon as it is back in stock.

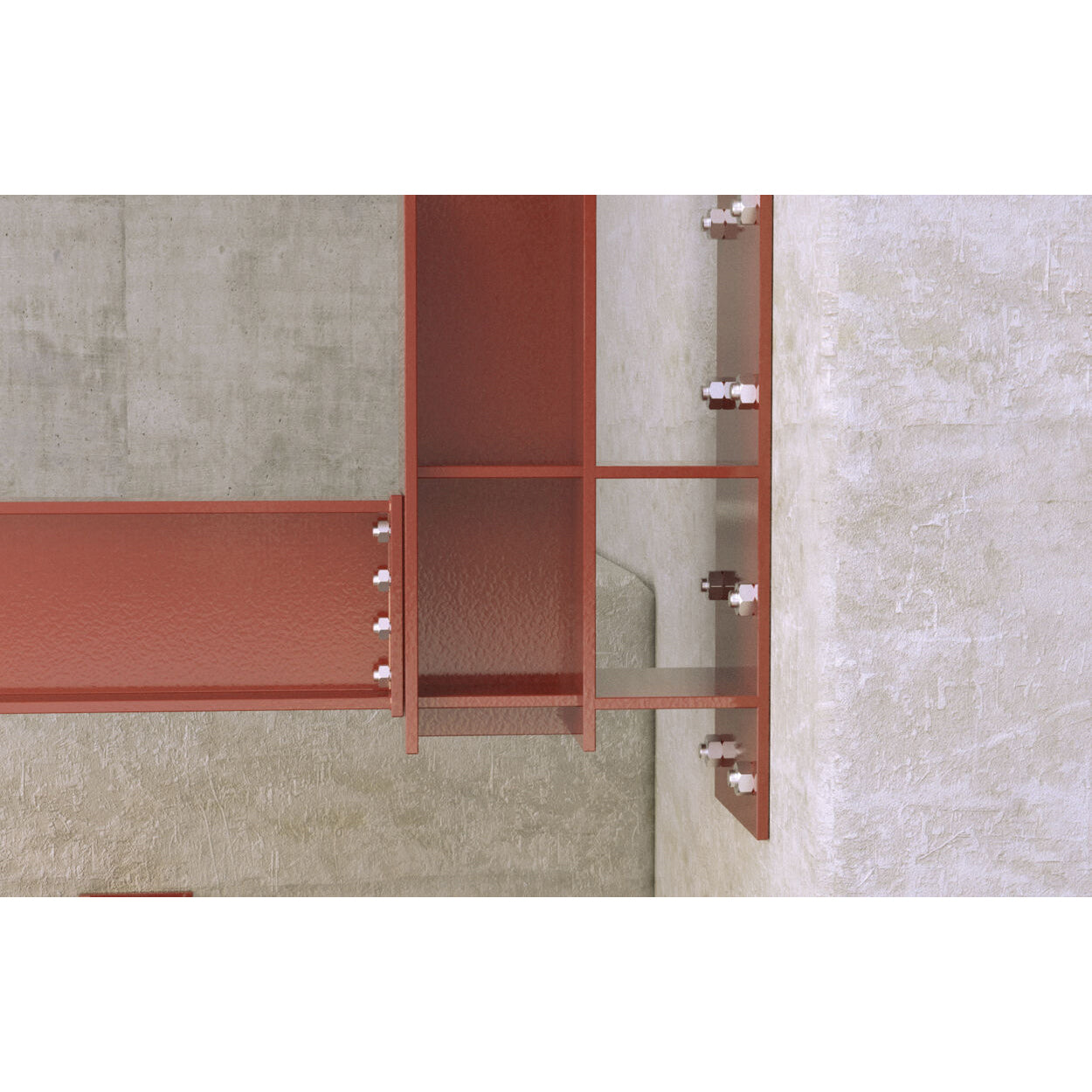

Applications

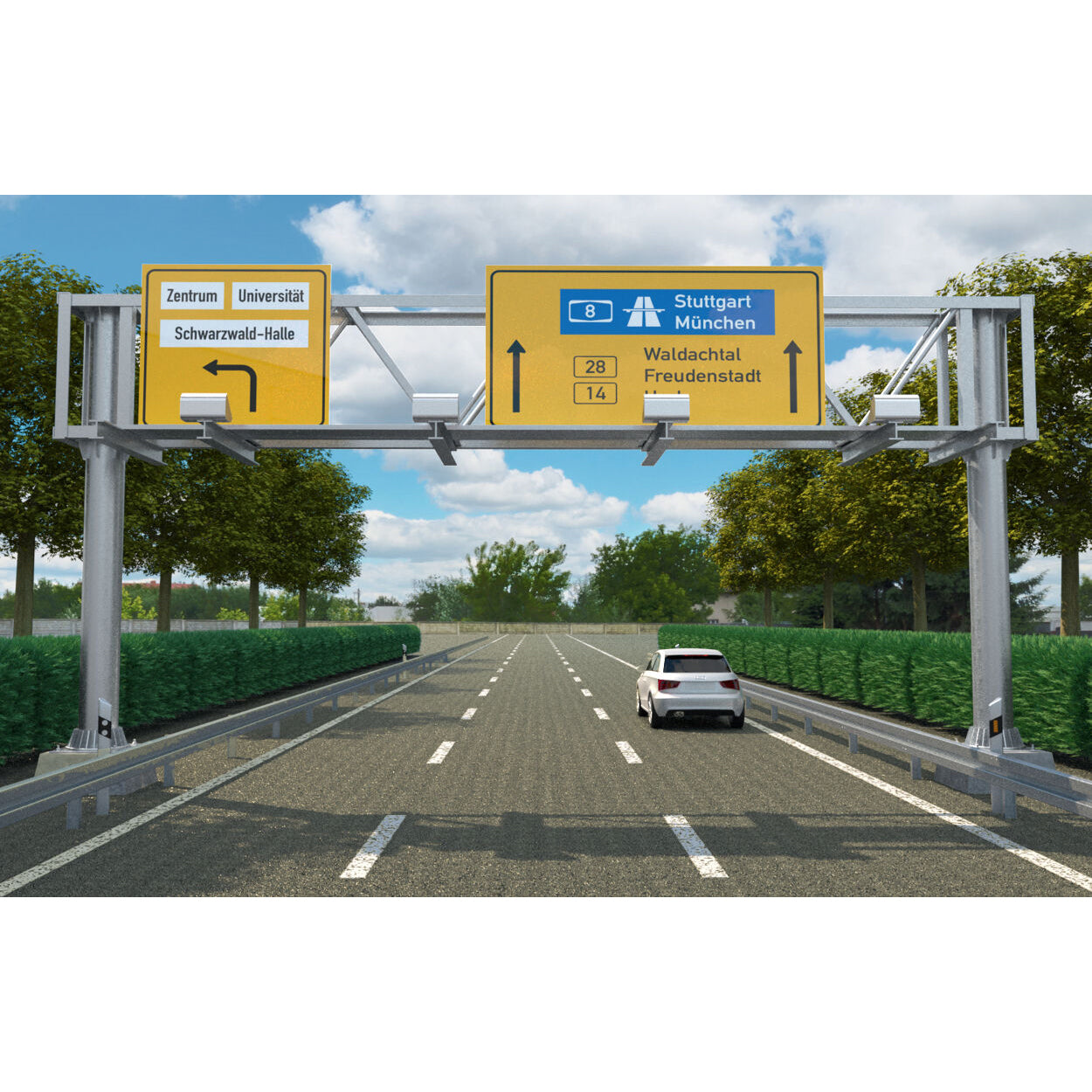

Guard rails
Staircases
Suspensions of pipes, cable trays and suspended ceilings
Temporary fixings, e.g. for machines
Scaffold anchoring

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-12/0258
ETA-19/0501
DoP No. 0217
ESR-3572
GS 3.2/11-243-3

Features

Pre-portioned resin capsule RSB: Cost-effective for individual applications and overhead installations.
Approval-compliant processing down to -30°C, also approved for water-filled and diamond-drilled holes as well as for seismic applications in performance category C1 (only in conjunction with RG M): The ideal solution for difficult conditions and installations with no waiting time due to fast hardening.
For each diameter, up to three anchorage depths can be realised with the threaded rod RG M through a combination of the resin capsules RSB mini.
Internal threaded anchor RG M I: Enables the surface-flush removal of the fixture and the reuse of the fixing point.
The angular threaded rod RG M can be set for light dynamic loads with the resin capsule system RSB in sizes M12, M16, M20 and M24 in stainless steel R with the fischer filling set.

Specifications
  • Drill Hole Depth (MM)
    210
  • Type
    Resin capsule
  • Pack Size
    6
  • Declaration of Performance Document
    Fischer_RSB_DOP.pdf
  • European Technical Approval (ETA) Document
    Fischer_RSB_ETA2.pdf
  • Fire Test Document
    Fischer_RSB_fire_test.pdf
  • Installations Instructions Document
    Fischer_RSB_install_inst.pdf
  • Matching Anchor Type
    RG M20/RG M24
  • Load Table Document
    Fischer_RSB_load_table2.pdf
  • Safety Data Document
    https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/3e/a6/f9/65/65f9a63e778009c09055d50f/Fischer_RSB_SDS1.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/3e/a6/f9/65/65f9a63ecbbf7e65bf1f3b0b/Fischer_RSB_SDS2.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/3f/a6/f9/65/65f9a63f8114cd0fd1e40ccb/Fischer_RSB_SDS4.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/3f/a6/f9/65/65f9a63fcbbf7e65bf1f3b0c/Fischer_RSB_SDS3.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/3f/a6/f9/65/65f9a63fcbbf7e65bf1f3b0d/Fischer_RSB_SDS5.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/40/a6/f9/65/65f9a64071660de0ea835d66/Fischer_RSB_SDS7.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/40/a6/f9/65/65f9a6407ce09dc067f19795/Fischer_RSB_SDS6.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/40/a6/f9/65/65f9a640cbbf7e65bf1f3b0f/Fischer_RSB_SDS8.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/41/a6/f9/65/65f9a64171660de0ea835d67/Fischer_RSB_SDS9.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/41/a6/f9/65/65f9a64171660de0ea835d68/Fischer_RSB_SDS10.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/92/a1/b6/64/64b6a1926974570001d44ef8/texts/41/a6/f9/65/65f9a6417ce09dc067f19796/Fischer_RSB_SDS11.pdf
  • Matching Anchor Type
    RG M20/RG M24
  • Anchorage Depth (mm)
    210mm

Reviews (0)

Delivery & Returns

For full delivery details please see our delivery page

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer Superbond resin capsule RSB 20 E/24 [518828]

£23.98
The fischer Superbond resin capsule RSB 20 E/24 is a hybrid mortar based on styrene-free vinyl ester for fixing in cracked and non-cracked concrete. The RSB is used with the fischer rod anchor RG M, which is available in zinc-plated steel, stainless steel, and highly corrosion-resistant steel. The RG M is set with the composite anchor setting tool through rotating and hitting motions using a hammer drill. During the setting process, the capsule is destroyed, which mixes and activates the mortar compound. The fischer Superbond resin capsule RSB is suitable for fixing guard rails, staircases, suspension of pipes/cables and scaffold anchoring

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

210

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Resin capsule

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

6

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Pre-portioned resin capsule RSB: Cost-effective for individual applications and overhead installations.
Approval-compliant processing down to -30°C, also approved for water-filled and diamond-drilled holes as well as for seismic applications in performance category C1 (only in conjunction with RG M): The ideal solution for difficult conditions and installations with no waiting time due to fast hardening.
For each diameter, up to three anchorage depths can be realised with the threaded rod RG M through a combination of the resin capsules RSB mini.
Internal threaded anchor RG M I: Enables the surface-flush removal of the fixture and the reuse of the fixing point.
The angular threaded rod RG M can be set for light dynamic loads with the resin capsule system RSB in sizes M12, M16, M20 and M24 in stainless steel R with the fischer filling set.
