fischer SDS Max IV 30/800/920 hammer drill bit [57779]

Barcode: 4006209577790
Pack Size: 1
£243.68

Usually shipped in 1-2 days

fischer SDS Max IV 30/800/920 hammer drill bit [57779] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

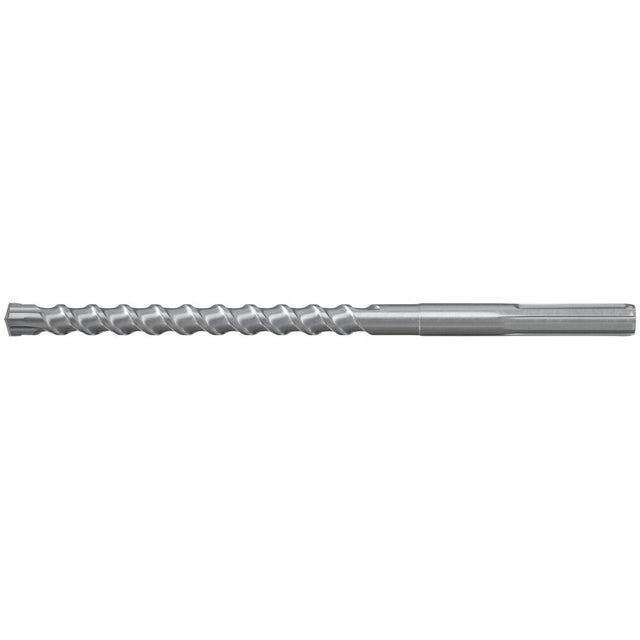

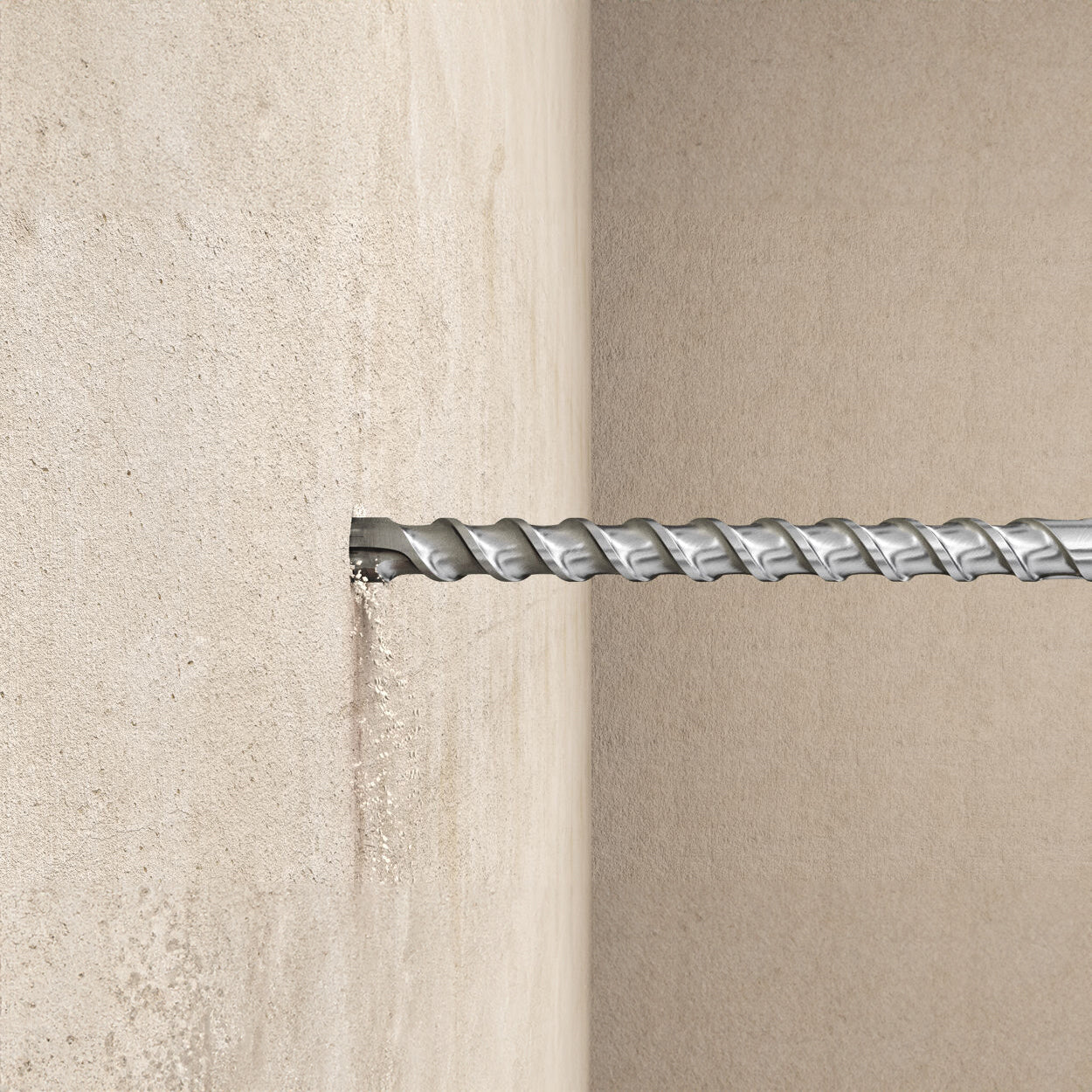

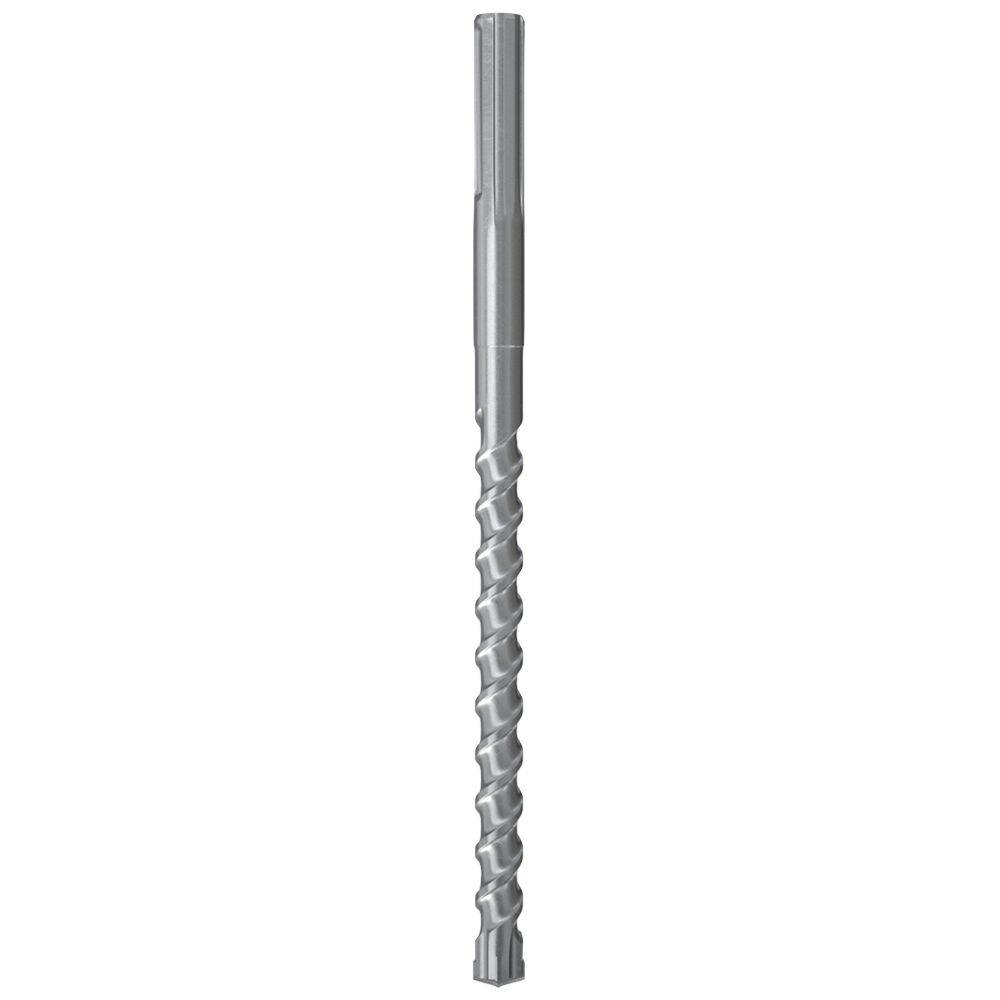

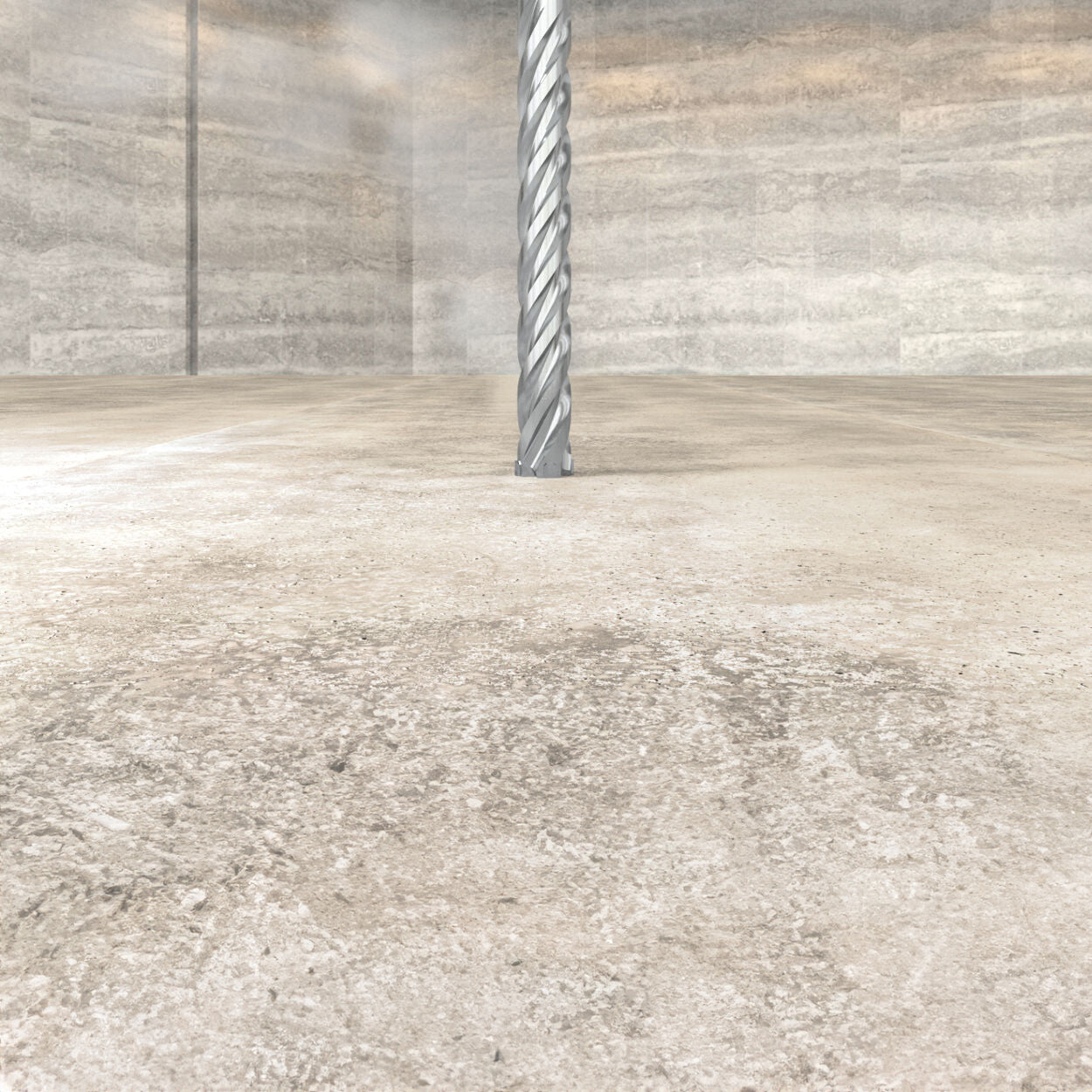

The fischer hammer drill bit SDS Max IV 30/800/920 is a high-quality drill bit that is ideal for drilling large volume and deep holes in concrete, masonry, and natural stone. It features a SDS-Max chuck that ensures optimum transfer of force and rapid drilling progress. The drill bit is also characterized by its innovative product features, including the Quattric and Pointer cutting elements. The Quattric cutting element has 4 carbide cutting edges that provide a smooth, clean cut, while the Pointer cutting element helps to prevent the drill bit from wandering. The PGM®-conform cutting element guarantees the creation of approval-compliant drill holes, and the quadruple flute reliably transports the drilling dust from the drill hole, thus reducing wear.

Applications

To create approval-compliant drill holes in:
Reinforced concrete (SDS Max IV)
Concrete
Solid brick
Sand-lime brick
Also suitable for:
Natural stone

Features

SDS Max shank: Optimum power transmission and fast drilling progress.
Robust drill bit head with four cutting edges: Prevents jamming in reinforcement.
Wear resistant quadruple spiral: For optimum dust removal and long service life.
Core-reinforced flute: Maximum power transmission and low-vibration drilling.
PGM certification is guaranteed a precise hole creation: For a secure application of the fixing.

Specifications
  • Brand
    Fischer
  • Diameter (mm)
    30.00
  • Length (MM)
    920
  • Pack Size
    1
  • Type
    Drill bit
  • Working Length (mm)
    800.00
