fischer SDS Max IV 30/1210/1350 hammer drill bit [40187]

Barcode: 4006209401873
Pack Size: 1
£709.32

Usually shipped in 1-2 days

fischer SDS Max IV 30/1210/1350 hammer drill bit [40187] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

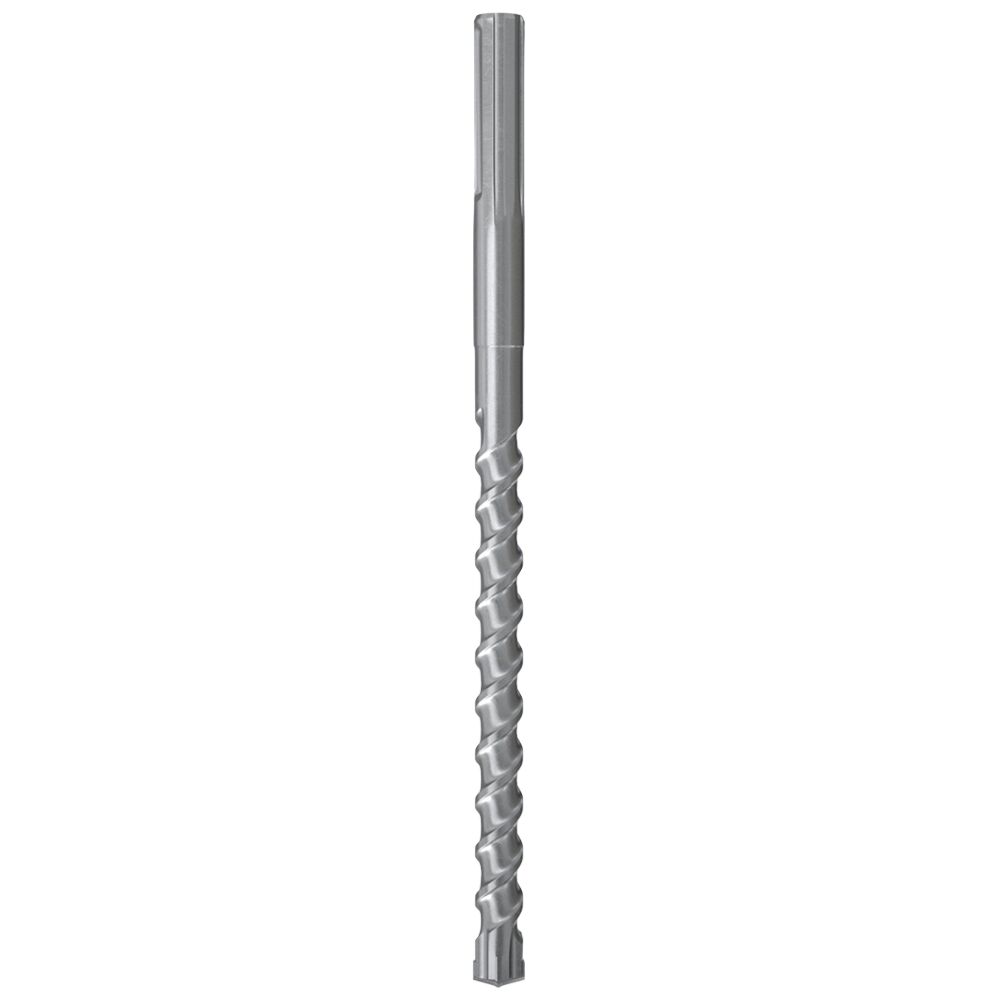

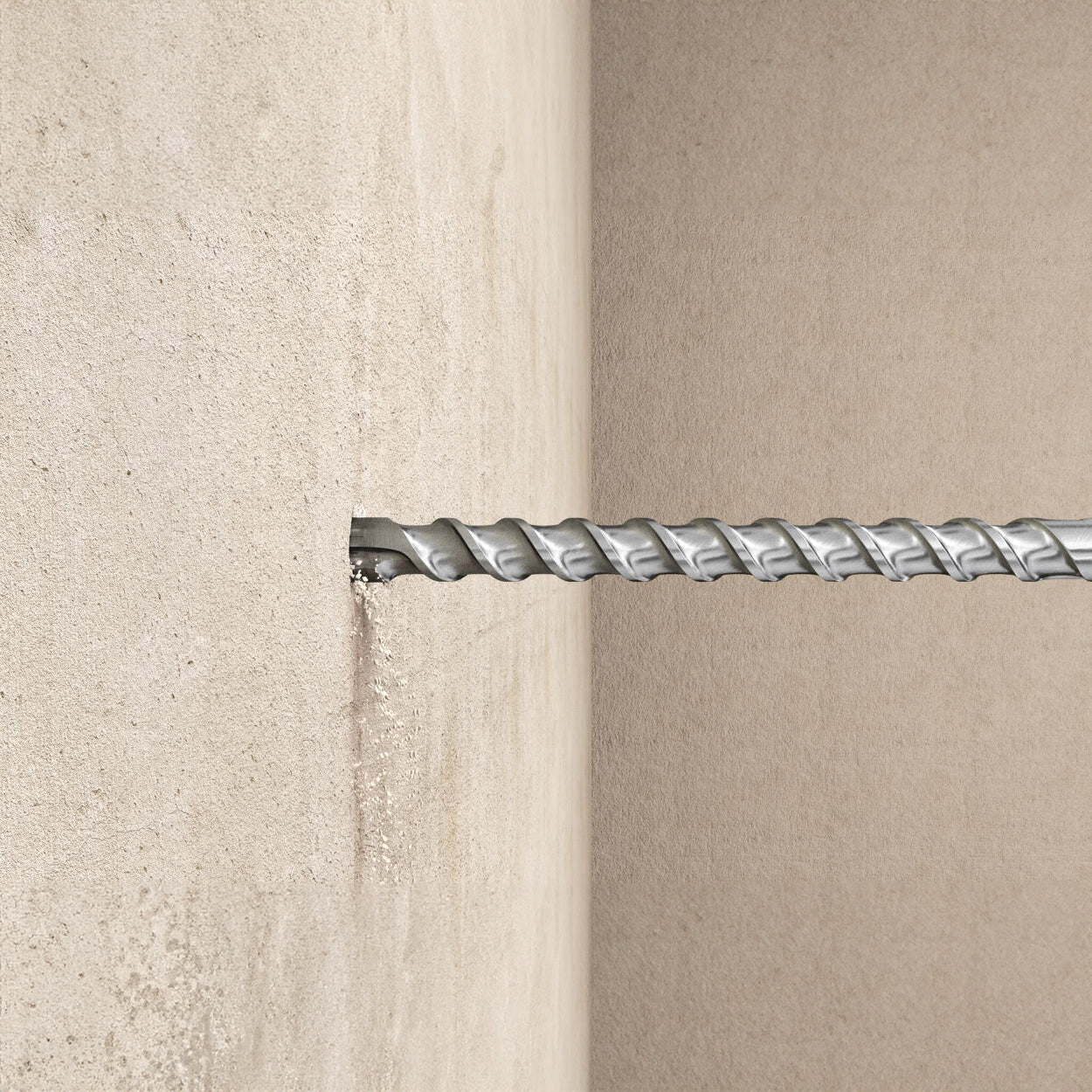

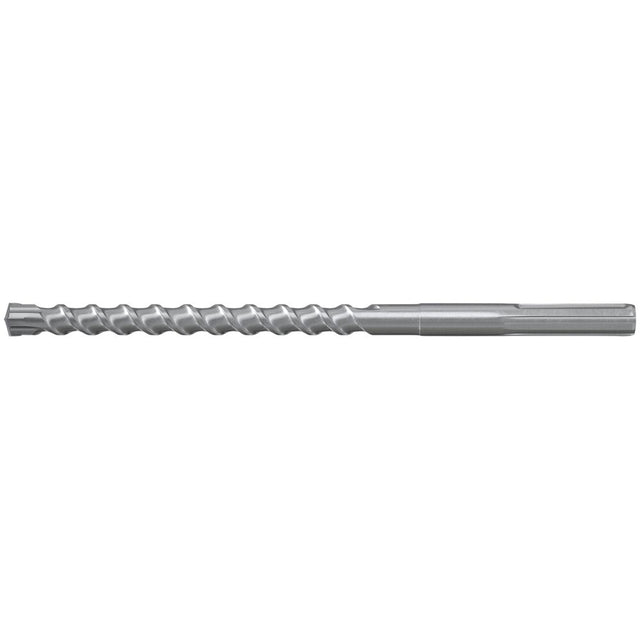

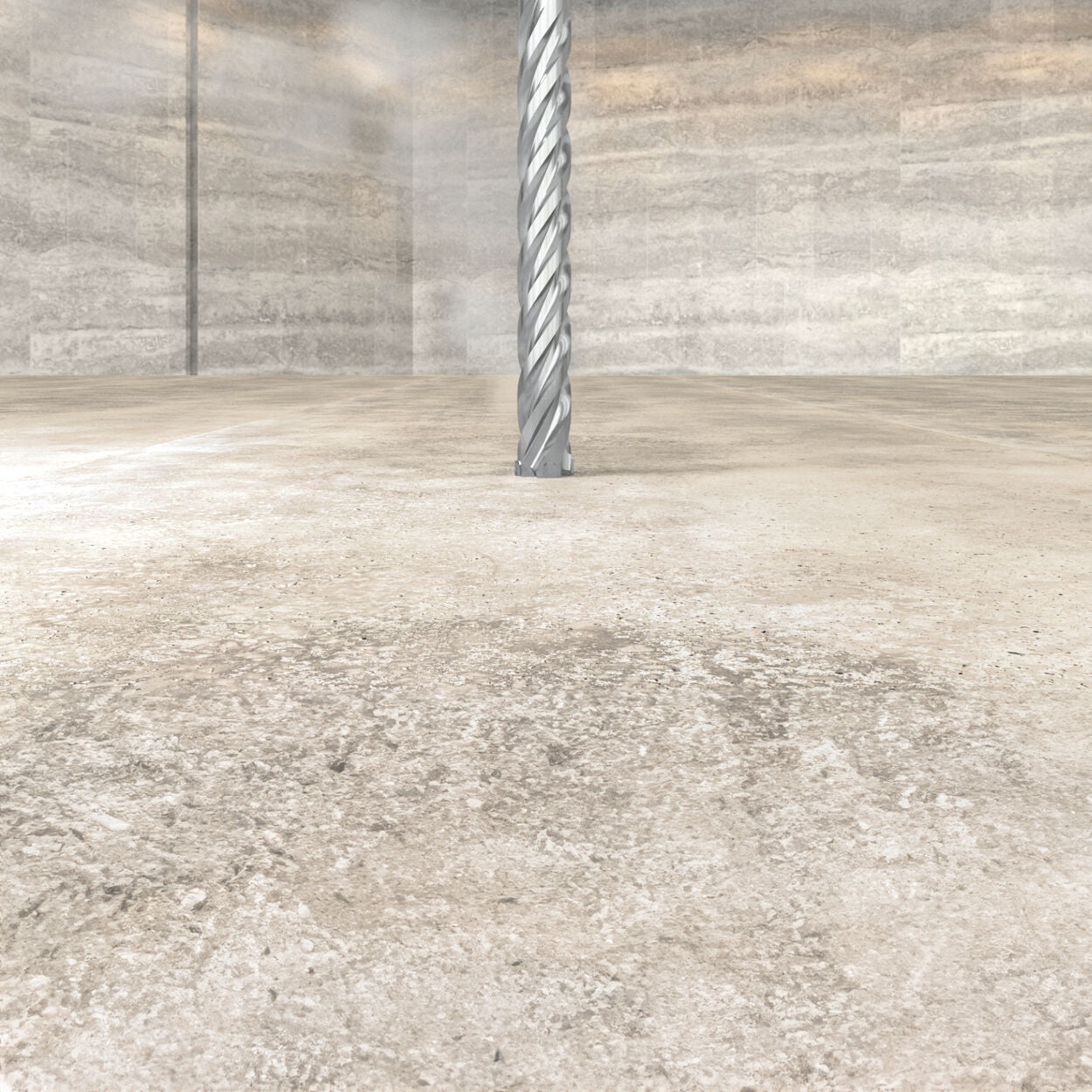

The fischer hammer drill bit SDS Max IV 30/1210/1350 is a high-quality drill bit that is ideal for drilling large volume and deep holes in concrete, masonry, and natural stone. It features a SDS-Max chuck that ensures optimum transfer of force and rapid drilling progress. The drill bit is also characterized by its innovative product features, including the Quattric and Pointer cutting elements. The Quattric cutting element has 4 carbide cutting edges that provide a smooth, clean cut, while the Pointer cutting element helps to prevent the drill bit from wandering. The PGM®-conform cutting element guarantees the creation of approval-compliant drill holes, and the quadruple flute reliably transports the drilling dust from the drill hole, thus reducing wear.

Applications

To create approval-compliant drill holes in:
Reinforced concrete (SDS Max IV)
Concrete
Solid brick
Sand-lime brick
Also suitable for:
Natural stone

Features

SDS Max shank: Optimum power transmission and fast drilling progress.
Robust drill bit head with four cutting edges: Prevents jamming in reinforcement.
Wear resistant quadruple spiral: For optimum dust removal and long service life.
Core-reinforced flute: Maximum power transmission and low-vibration drilling.
PGM certification is guaranteed a precise hole creation: For a secure application of the fixing.

Specifications
  • Brand
    Fischer
  • Diameter (mm)
    30.00
  • GTIN/EAN/ASIN
    4006209401873
  • Length (MM)
    1,350
  • Pack Size
    1
  • Type
    Drill bit
  • Working Length (mm)
    1210.00

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer SDS Max IV 30/1210/1350 hammer drill bit [40187]

£709.32
The fischer hammer drill bit SDS Max IV 30/1210/1350 is a high-quality drill bit that is ideal for drilling large volume and deep holes in concrete, masonry, and natural stone. It features a SDS-Max chuck that ensures optimum transfer of force and rapid drilling progress. The drill bit is also characterized by its innovative product features, including the Quattric and Pointer cutting elements. The Quattric cutting element has 4 carbide cutting edges that provide a smooth, clean cut, while the Pointer cutting element helps to prevent the drill bit from wandering. The PGM®-conform cutting element guarantees the creation of approval-compliant drill holes, and the quadruple flute reliably transports the drilling dust from the drill hole, thus reducing wear.

Clamping Range (MM)

N/A

Diameter (MM)

30.00

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Drill bit

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

N/A

Material

N/A

Length (MM)

1,350

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

SDS Max shank: Optimum power transmission and fast drilling progress.
Robust drill bit head with four cutting edges: Prevents jamming in reinforcement.
Wear resistant quadruple spiral: For optimum dust removal and long service life.
Core-reinforced flute: Maximum power transmission and low-vibration drilling.
PGM certification is guaranteed a precise hole creation: For a secure application of the fixing.
