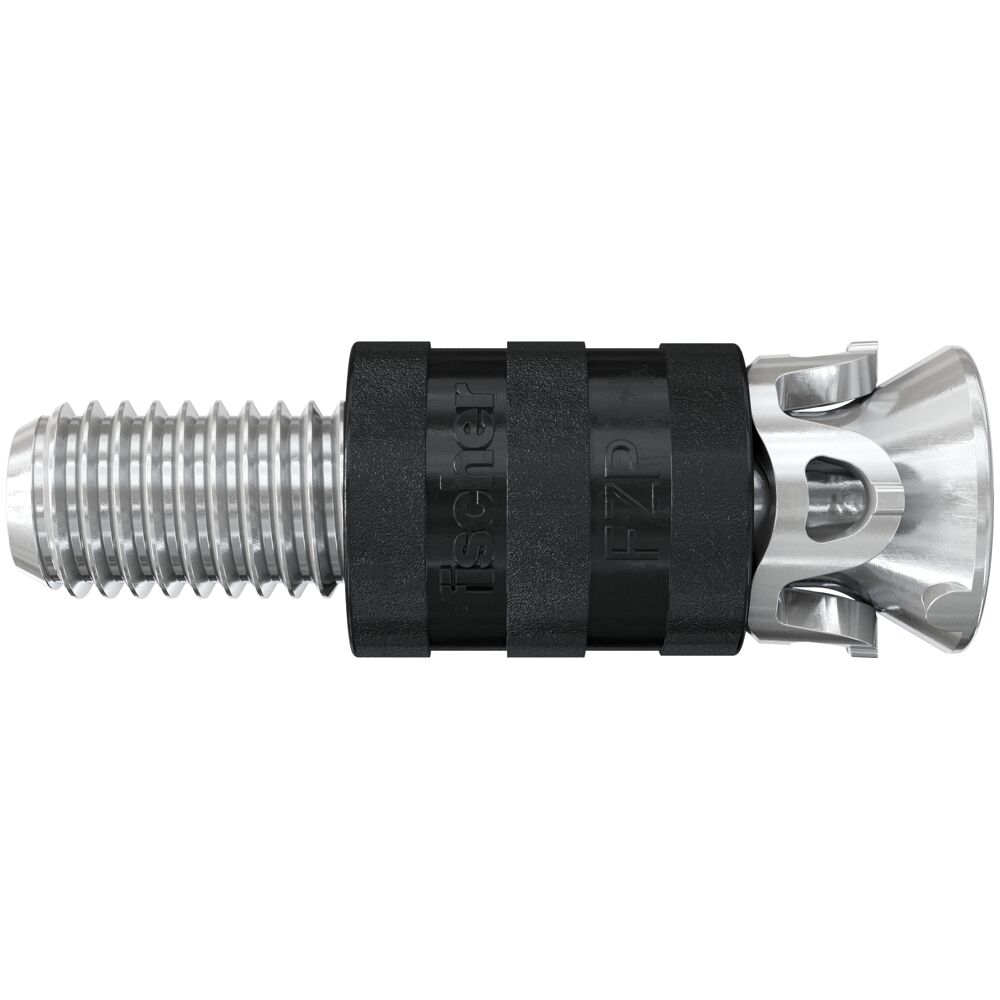

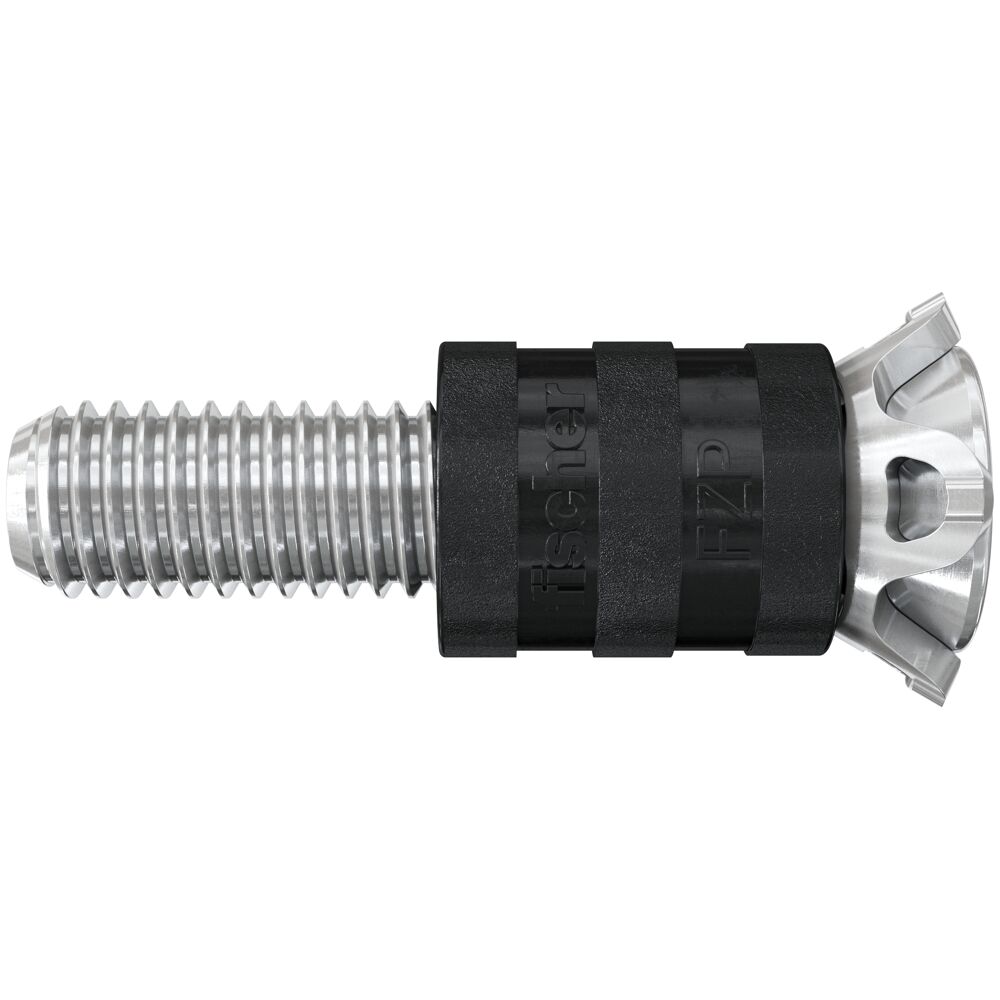

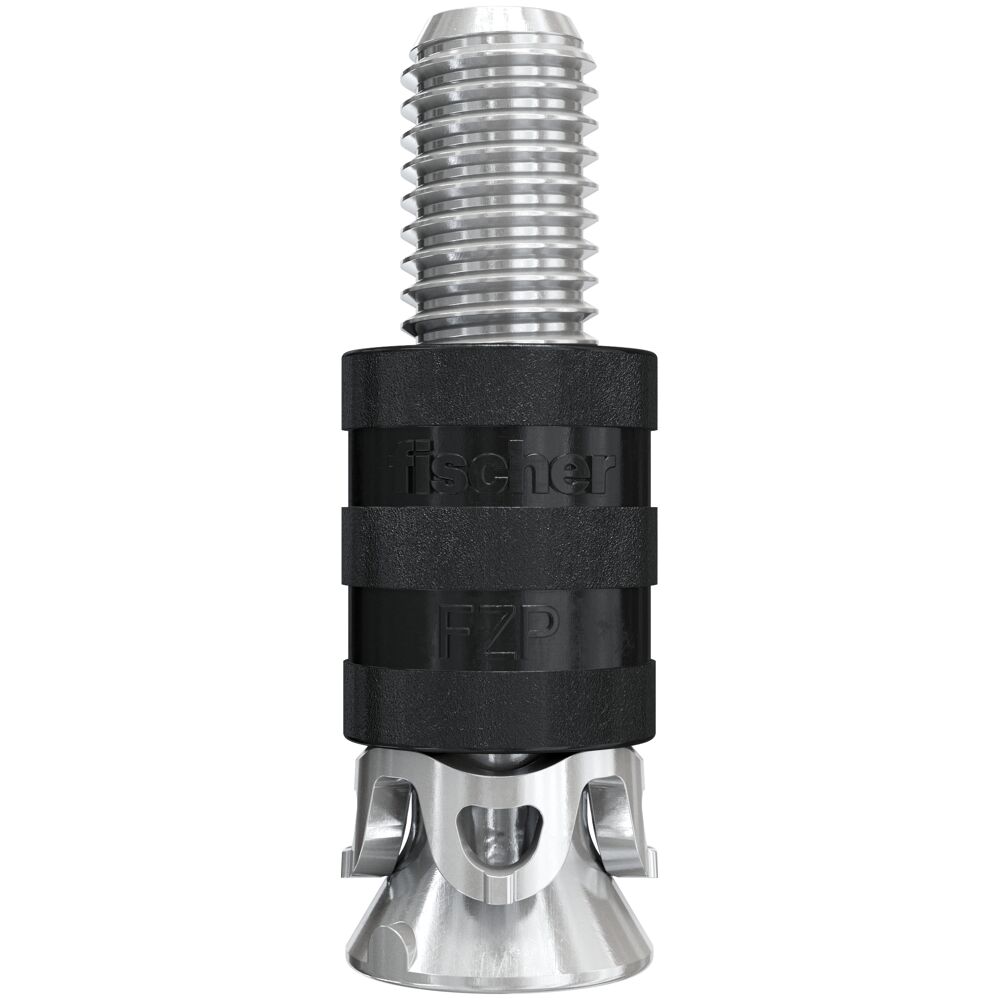

fischer Panel FZP II 11 x 15 M6/18 Carbon Anchor [511969]

£737.16

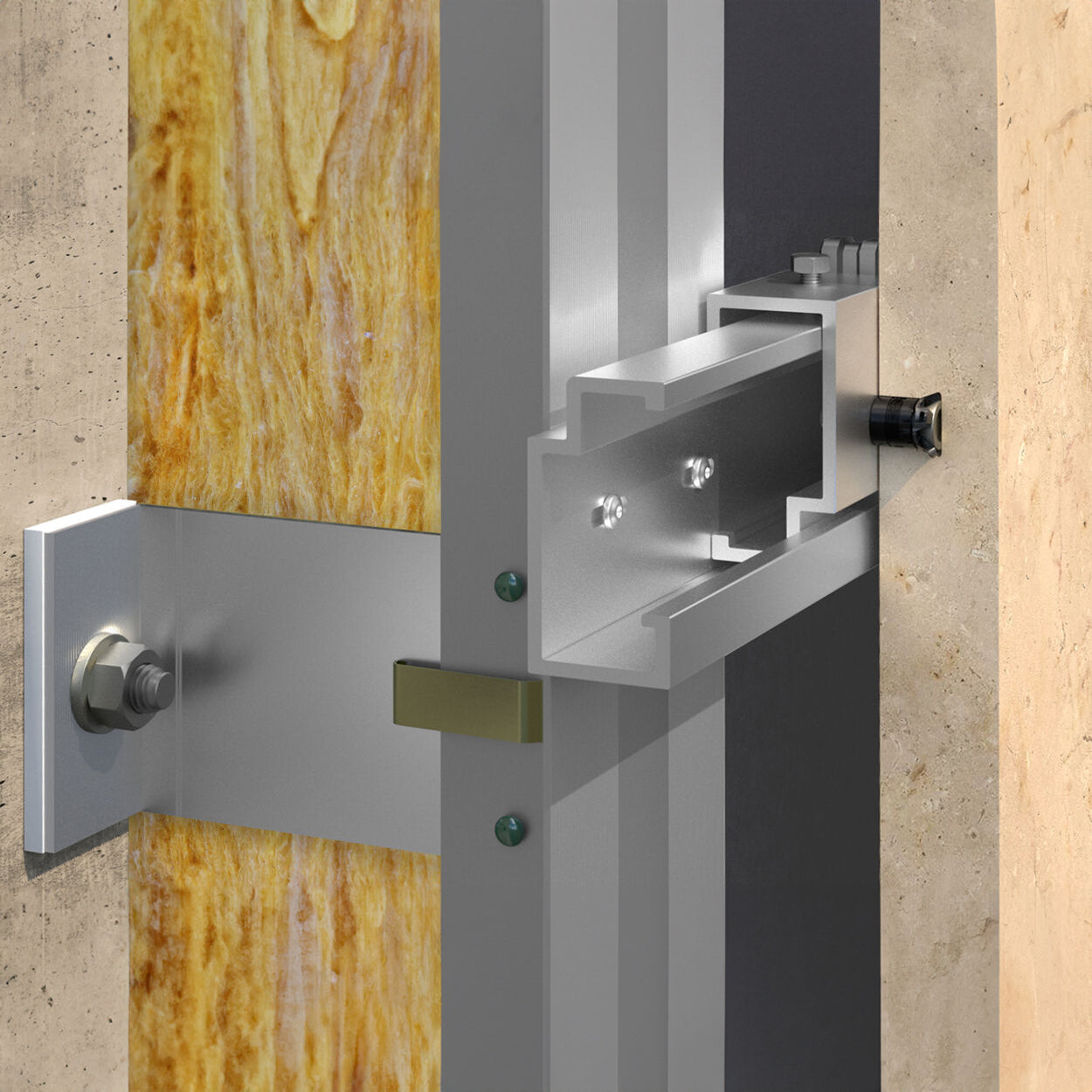

Fisher FZP II 11 x 15 M6/18 - The concealed fixing solution for heavy, natural stone façade panels uses carbon fibre-reinforced undercut anchors with flush installation. The anchors are fixed with a consistent drill hole depth aligned to the back of the panel, and are typically used with calibrated façade panels or for reveal angle installation.

fischer Panel FZP II 11 x 15 M6/18 Carbon Anchor [511969] is backordered and will ship as soon as it is back in stock.

Applications

Exterior façades

Interior façades

Façade reveals

Natural stone heating systems

Building Materials

Natural stone (>20mm)

Artificial concrete panels

Certifications

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307
DoP No. 0322

Features

Adapted shape of the undercut anchor: Ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.

Fixing of the undercut anchor is not visible on the exposed side: Creating a visually attractive and consistent façade surface.

Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel: This greatly reduces panel deflection.

The anchor allows for higher pull-out loads, compared to commonly available systems: High performance.

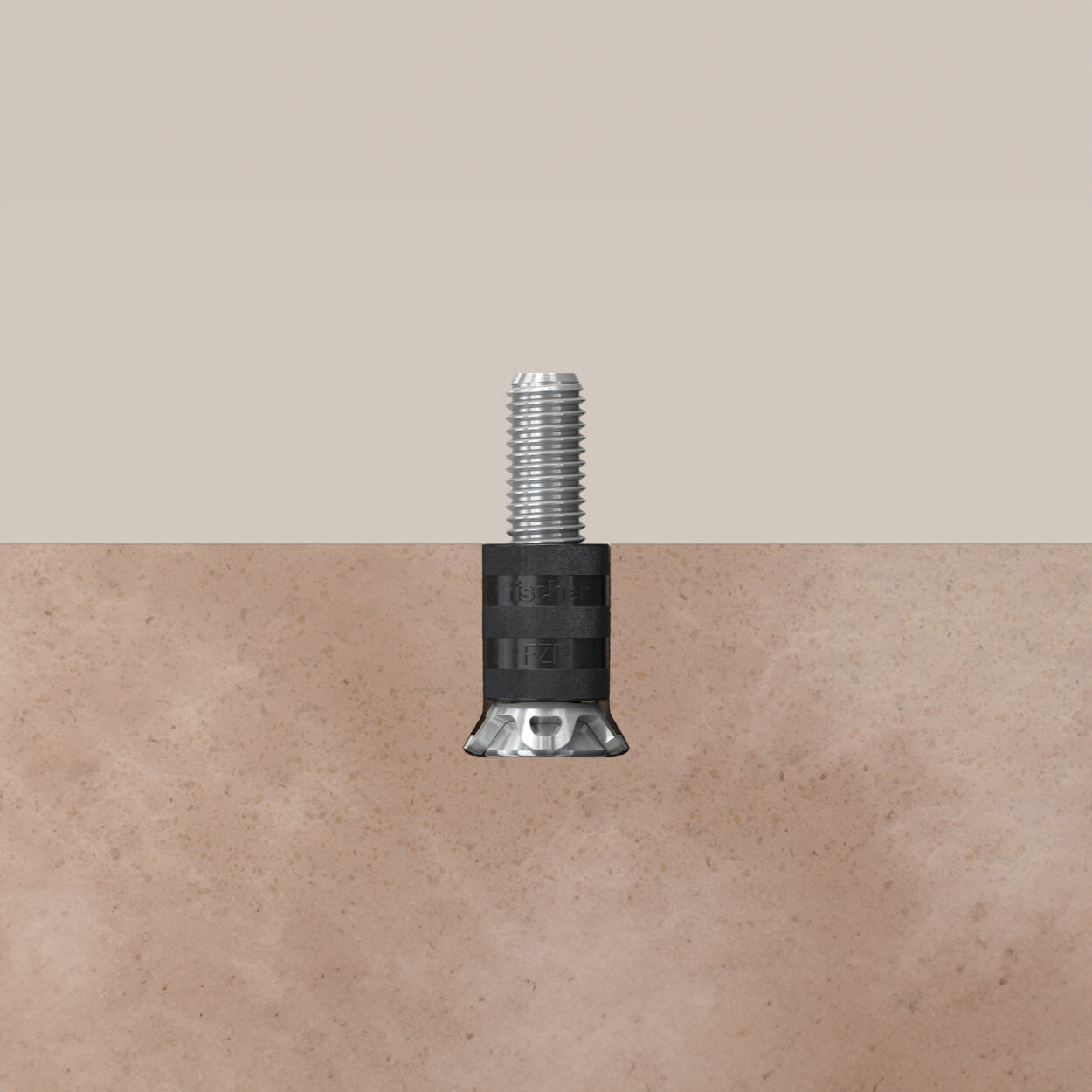

Flush-mounting technology of the undercut anchor: Allows an easy, economical handling of reveals.

Specifications
  • Diameter (MM)
    11
  • Type
    Flush anchor
  • Size
    M6
  • Pack Size
    250
  • Material
    A4 Stainless Steel
  • Length (MM)
    33
  • Declaration of Performance Document
    Fischer_FZPII_Carbon_DOP3.pdf
  • European Technical Approval (ETA) Document
    Fischer_FZPII_Carbon_ETA2.pdf
  • Size
    M6

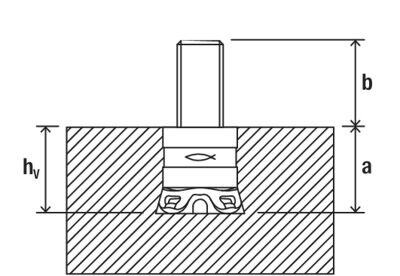

  • Anchorage Depth (mm)
    15mm
  • Sleeve Material
    Carbon fibre reinforced plastic
  • Min. Panel Thickness (mm)
    30.00
  • Projection Length (mm)
    18.00
  • Cylindrical Diameter (mm)
    11.00
  • Undercut Diameter (mm)
    13.50
