fischer FZP II 15 x 15 M8 I Panel Anchor [539479]

Barcode: 4048962269833
Pack Size: 250
£1,508.15

Usually shipped in 1-2 days

fischer FZP II 15 x 15 M8 I Panel Anchor [539479] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

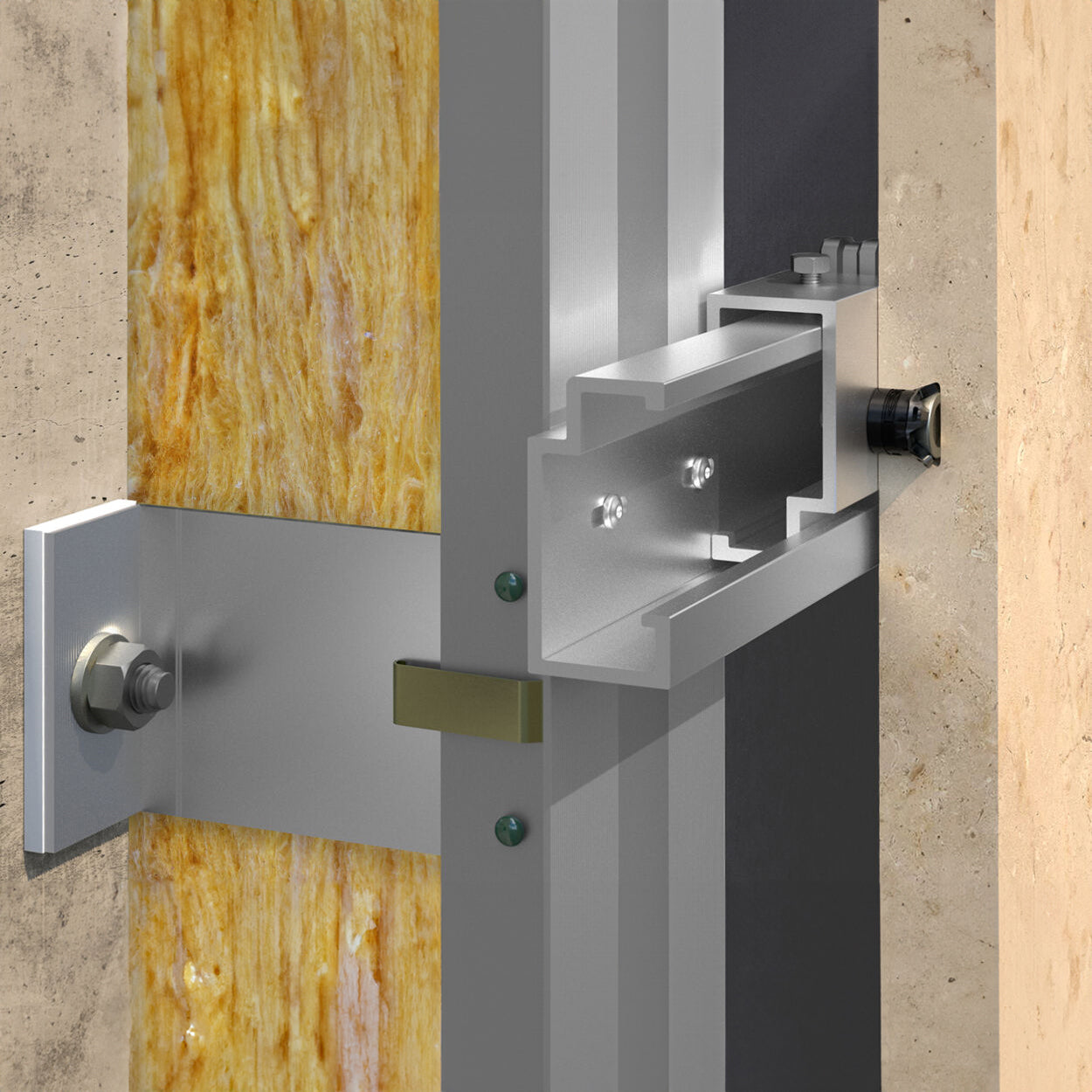

The concealed FZP II 15 x 15 M8 I flush or stand-off installation solution with internal thread is a versatile and efficient option for natural stone façade panels. It can be used for both flush mounting of calibrated panels or reveal panels, and to adjust panel thickness tolerances by using the stand-off installation technology. The integrated internal thread eliminates the need for a protruding external thread, allowing the panels to be prefabricated and transported in a space-saving manner. This improves the economic efficiency and flexibility of the system.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

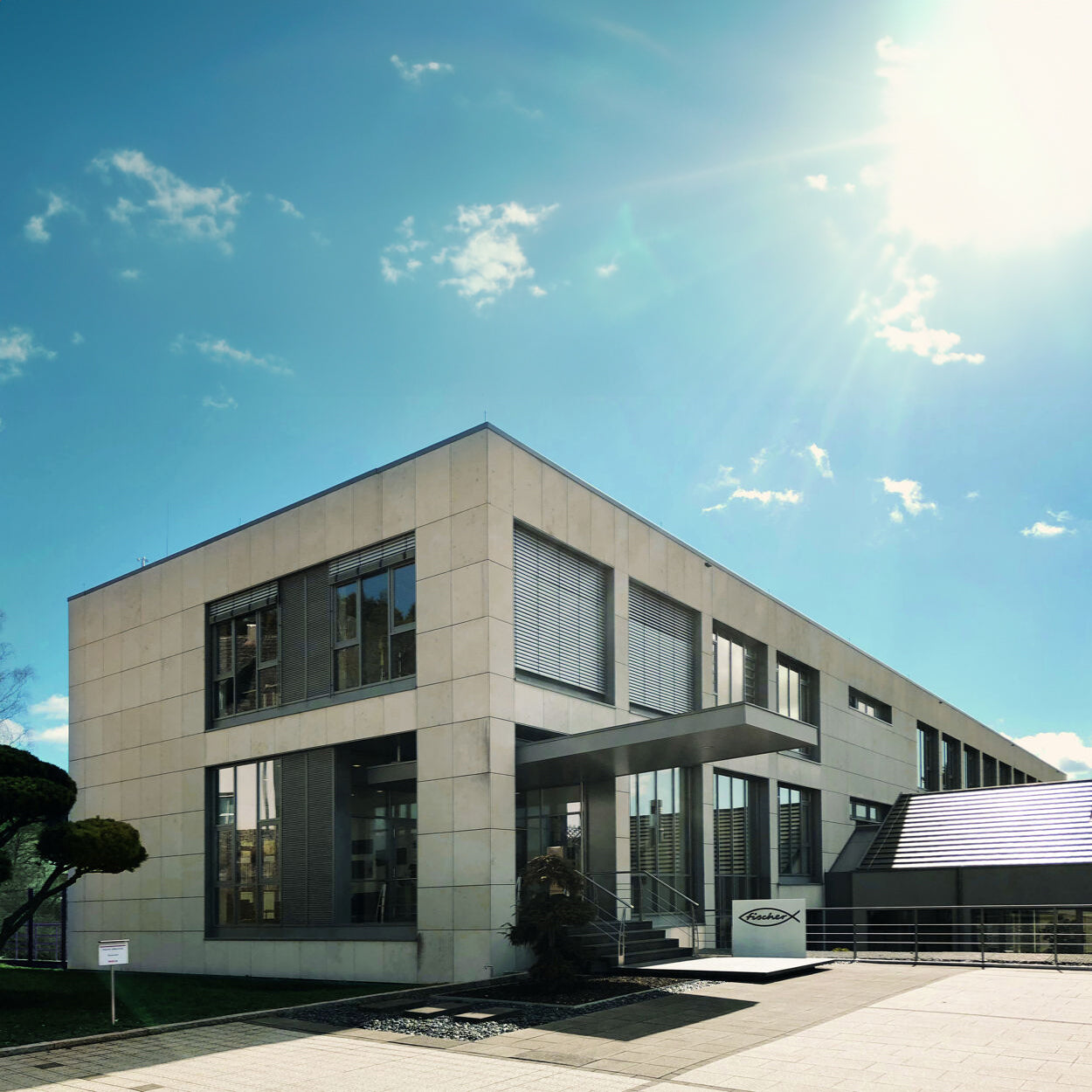

Exterior façades
Interior façades
Façade reveals

Building Materials

Natural stone (>20mm)
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307
DoP No. 0322

Features

Short geometry anchor: Can be used in thin panels starting from 8 mm thickness.
Fixing is not externally visible: Visually appealing façade surface.
Matching shape of the undercut anchor: Creates an inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: Significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.
This anchor provides much better holding forces than commonly available systems: Allows for the use of large format panels.

Specifications
  • Anchorage Depth (mm)
    15mm
  • Brand
    Fischer
  • Certifications
    ETA-11/0145
    ETA-22/0400
    DoP No. 0261
    DoP No. 0307
    DoP No. 0322
  • coated
    No
  • Cylindrical Diameter (mm)
    15.00
  • Functionality

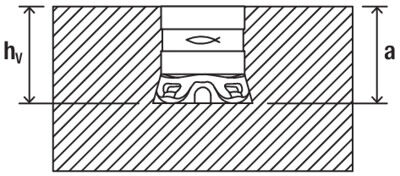

    The hole is either drilled to a constant reference dimension for the remaining wall thickness (RWT) or with an absolute anchoring depth.
    The anchor can be installed flush or stand-off.
    The compensation of panel thickness tolerances results in a completely flat façade surface.

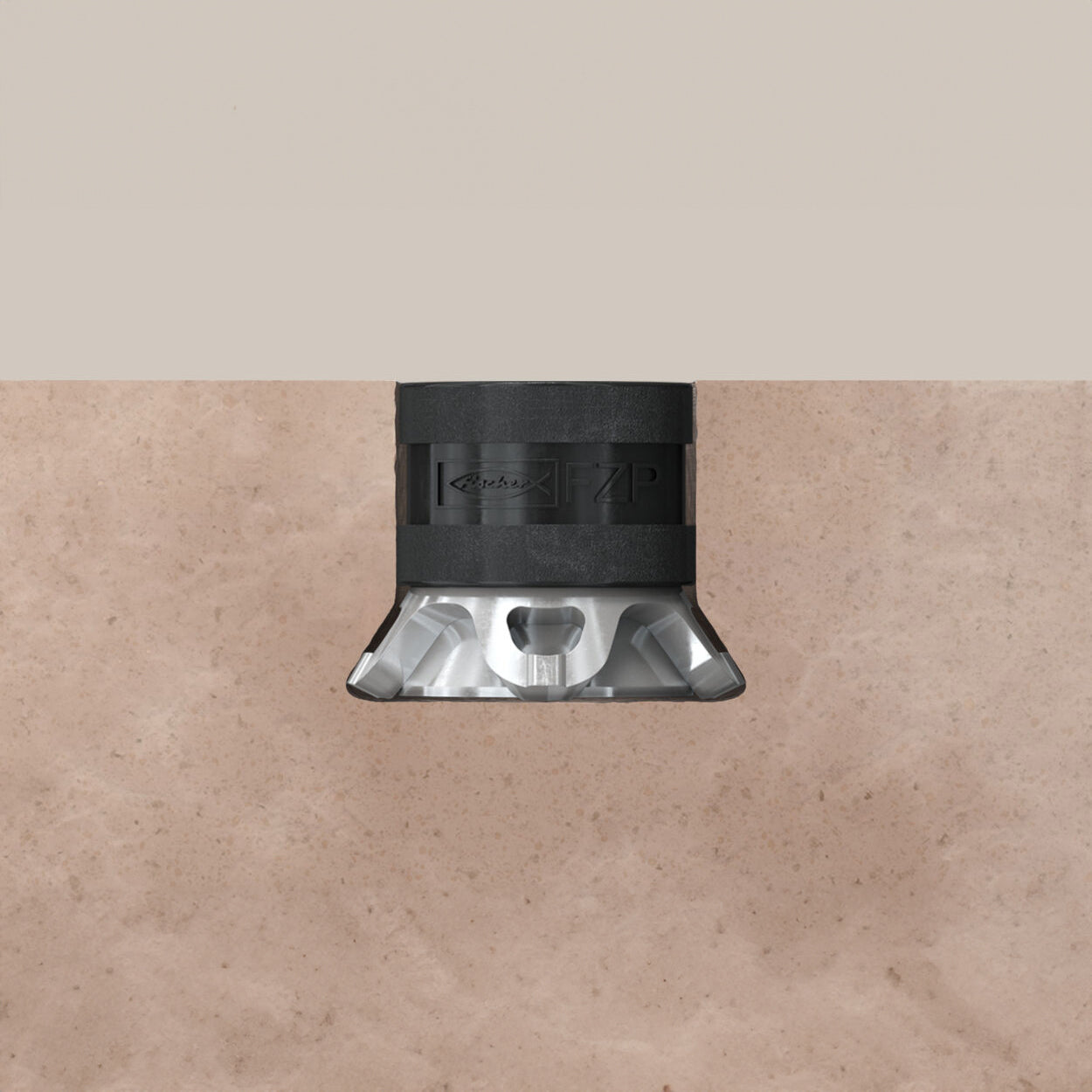

    Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
    Expanding the undercut anchor by "pressing down" the washer using the setting tools
    Stress-free and geometrical inter-locking fixing
  • Length (MM)
    15
  • Material
    A4 Stainless Steel
  • Min. Panel Thickness (mm)
    25.00
  • Pack Size
    250
  • Size
    M8
  • Sleeve Material
    Carbon fibre reinforced plastic
  • Type
    Thin panel anchor
  • Undercut Diameter (mm)
    17.50
