fischer FZP II 13 x 15 M8/23 A4 Panel Anchor [512138]

Barcode: 4048962112498
Pack Size: 250
£964.12

Usually shipped in 1-2 days

fischer FZP II 13 x 15 M8/23 A4 Panel Anchor [512138] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

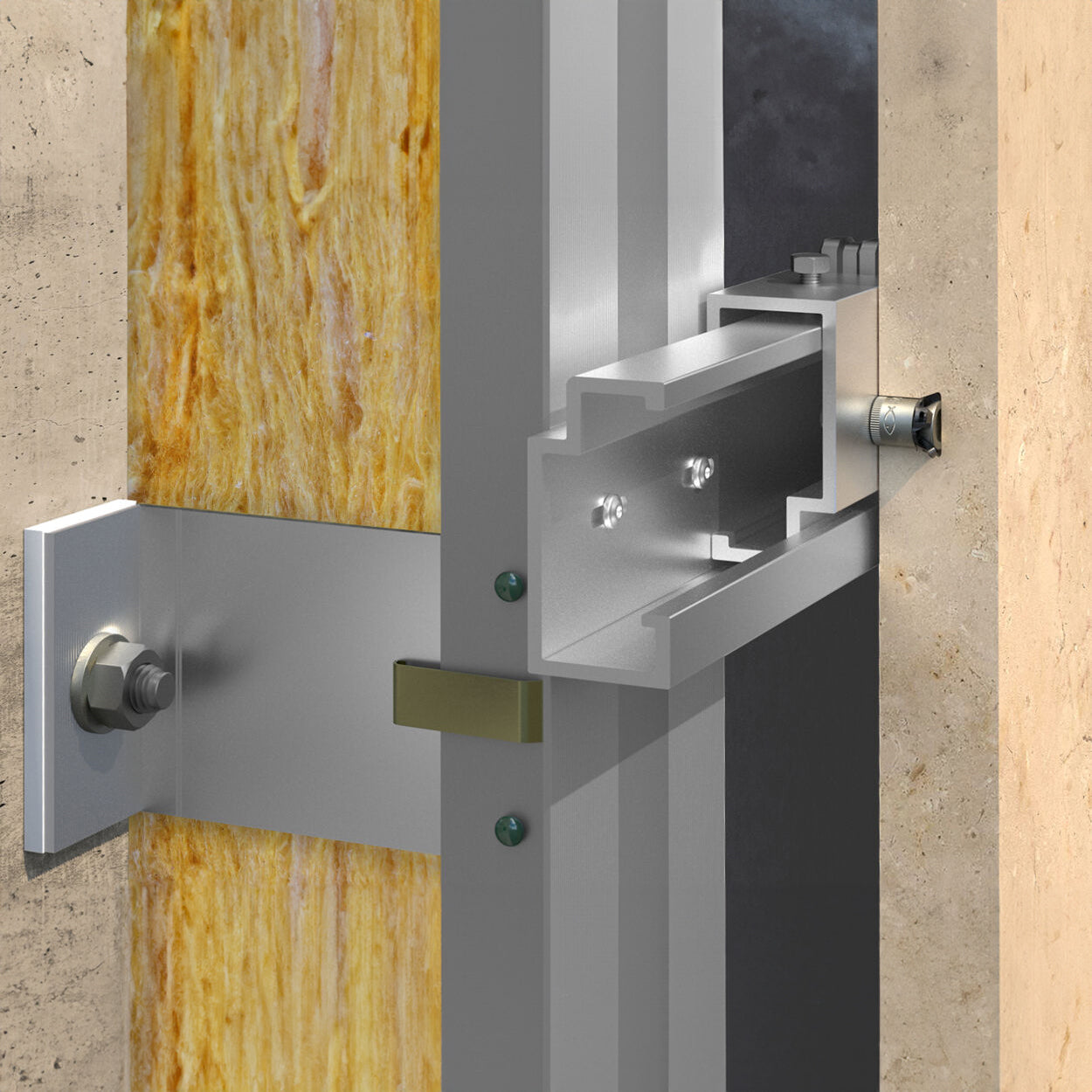

A concealed fixing solution for heavy natural stone façade panels uses FZP II 13 x 15 M8/23 A4 stainless steel undercut anchors with flush installation. The anchors are fixed with a consistent drill hole depth aligned to the back of the panel, and are typically used with calibrated façade panels or for reveal angle installation.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

Exterior façades
Interior façades
Façade reveals
Natural stone heating systems

Building Materials

Natural stone (>20mm)
Artificial concrete panels
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307
DoP No. 0322

Features

Flush-mounting technology of the undercut anchor: Allows an easy, economical handling of reveals.
Matching shape of the undercut anchor: Creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Fixing is not externally visible: Creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance

Specifications

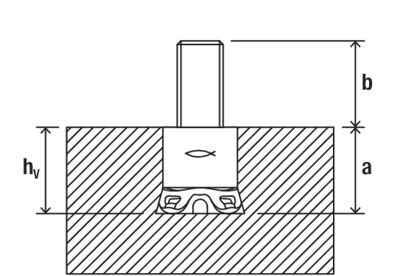

  • Anchorage Depth (mm)
    15mm
  • Brand
    Fischer
  • Certifications
    ETA-11/0145
    ETA-22/0400
    DoP No. 0261
    DoP No. 0307
    DoP No. 0322
  • Cylindrical Diameter (mm)
    13.00
  • Diameter (mm)
    13.00
  • Functionality

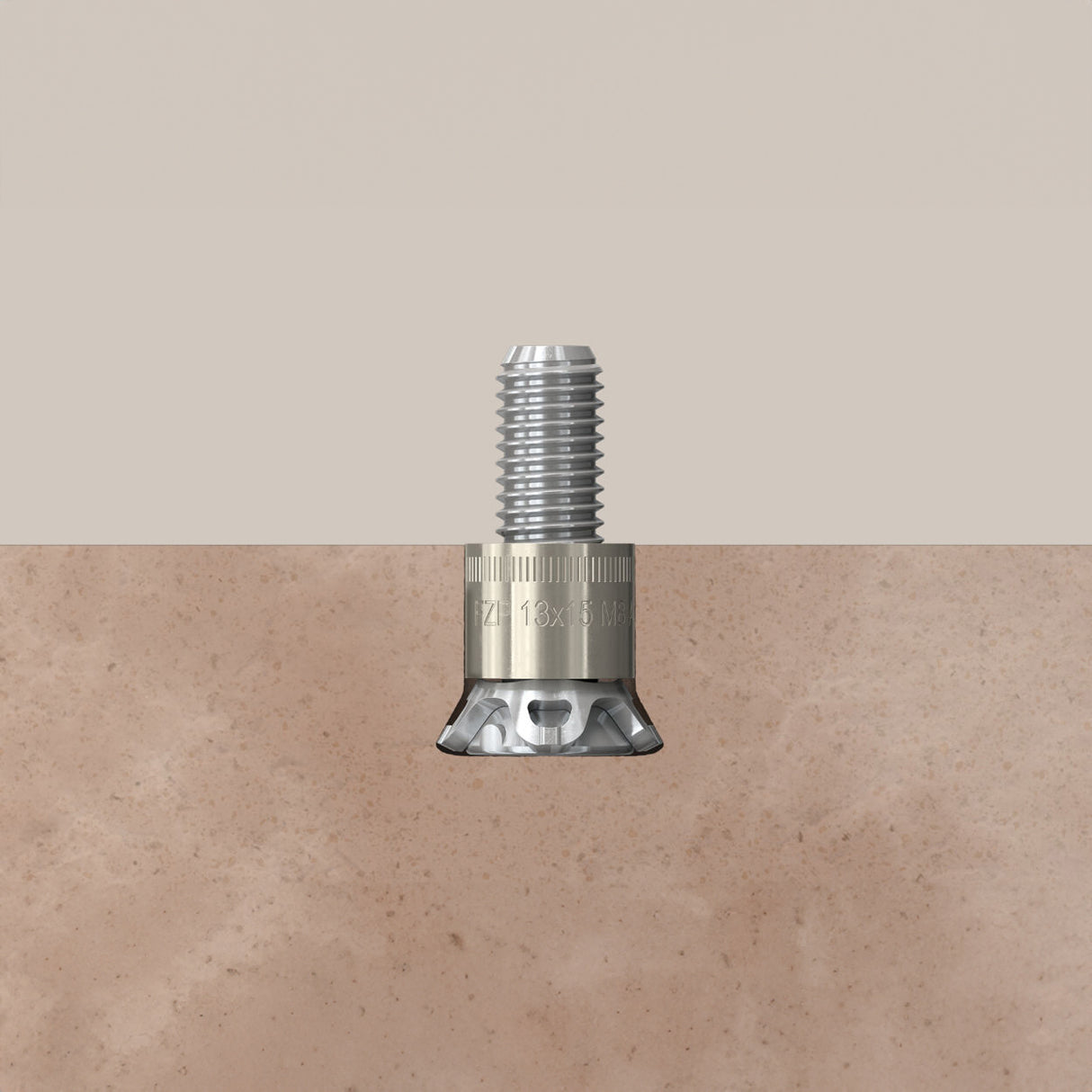

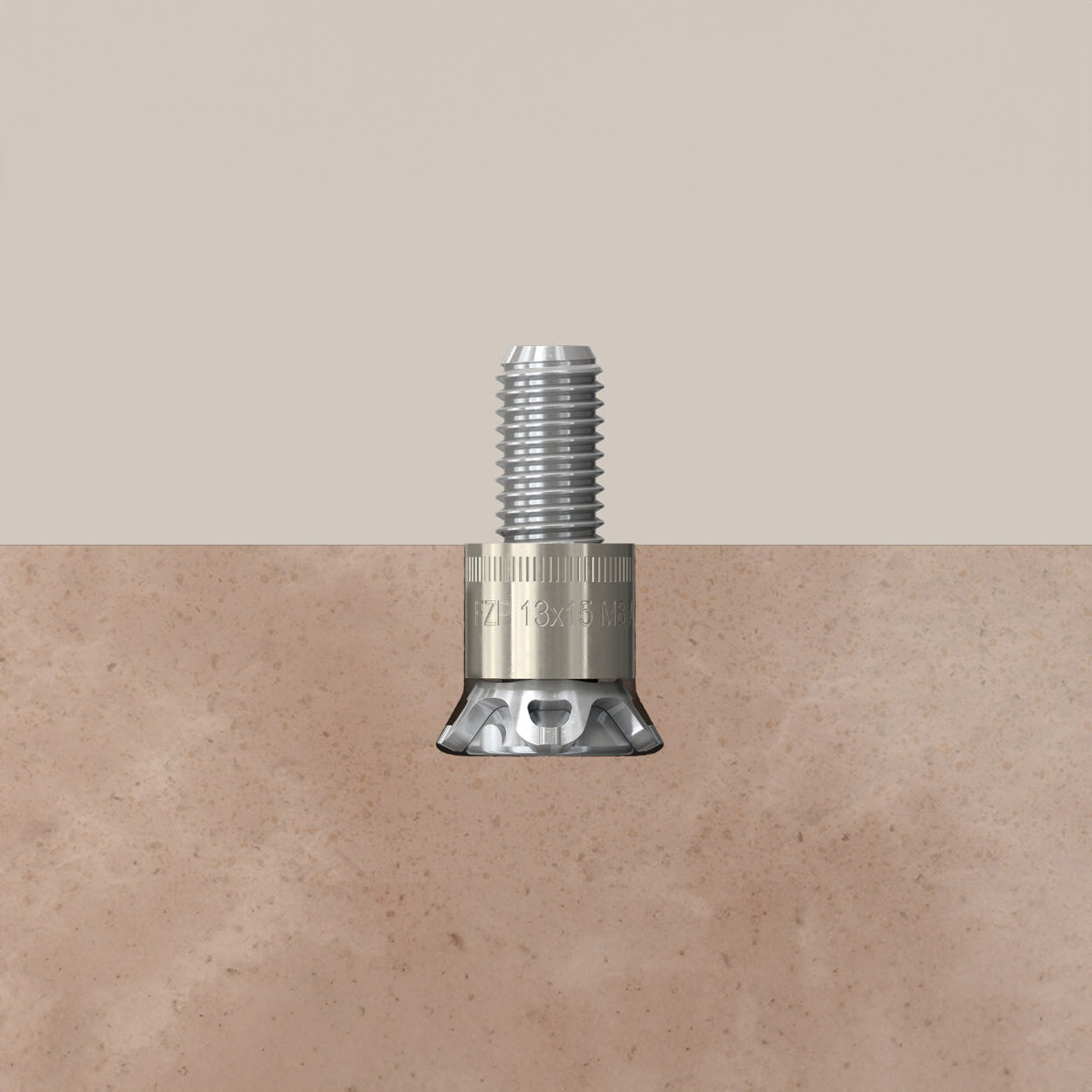

    The drill hole is drilled with an absolute anchoring depth.
    Flush installation of the anchor.
    Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
    Expanding the undercut anchor by "pressing down" the washer using the setting tools
    Stress-free and geometrical inter-locking fixing
  • Length (MM)
    38
  • Material
    A4 Stainless Steel
  • Min. Panel Thickness (mm)
    30.00
  • Pack Size
    250
  • Projection Length (mm)
    23.00
  • Size
    M8
  • Sleeve Material
    A4 Stainless Steel
  • Type
    Flush anchor
  • Undercut Diameter (mm)
    15.50
