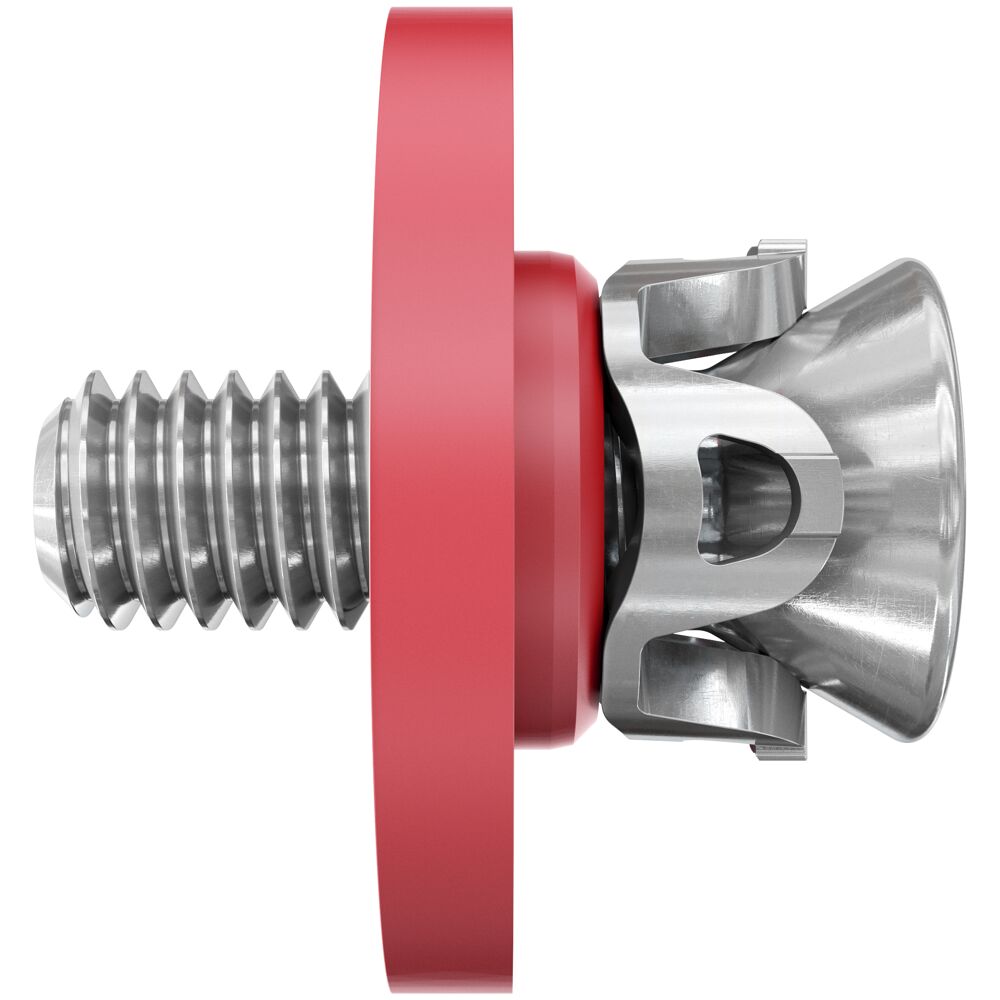

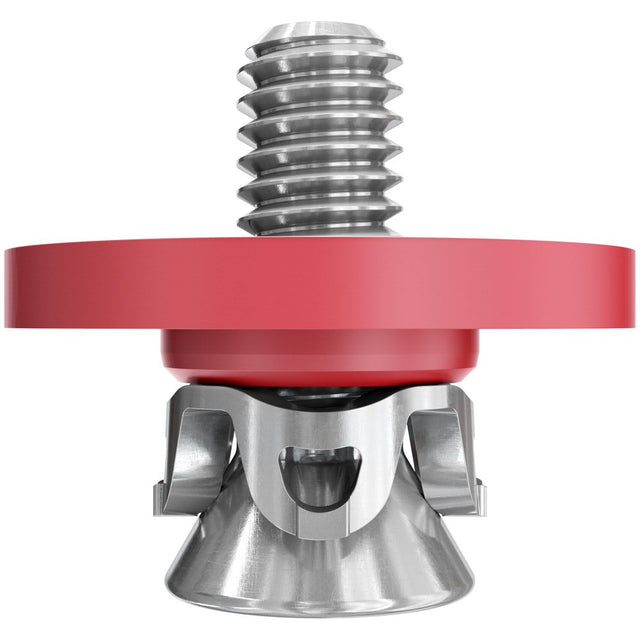

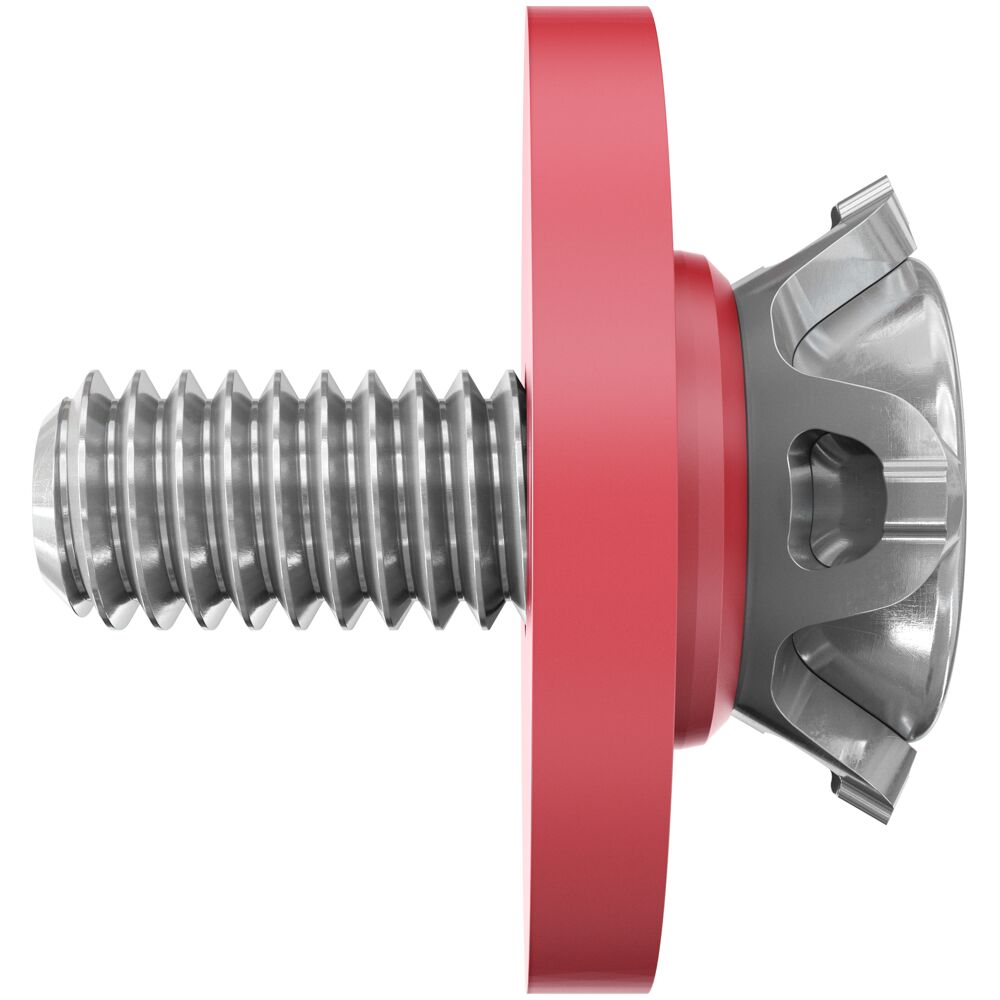

fischer FZP II 11 x 6 M6/T/14 PA Zykon Panel Anchor [520365]

Barcode: 4048962168471
Pack Size: 250
£516.02

Usually shipped in 1-2 days

fischer FZP II 11 x 6 M6/T/14 PA Zykon Panel Anchor [520365] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

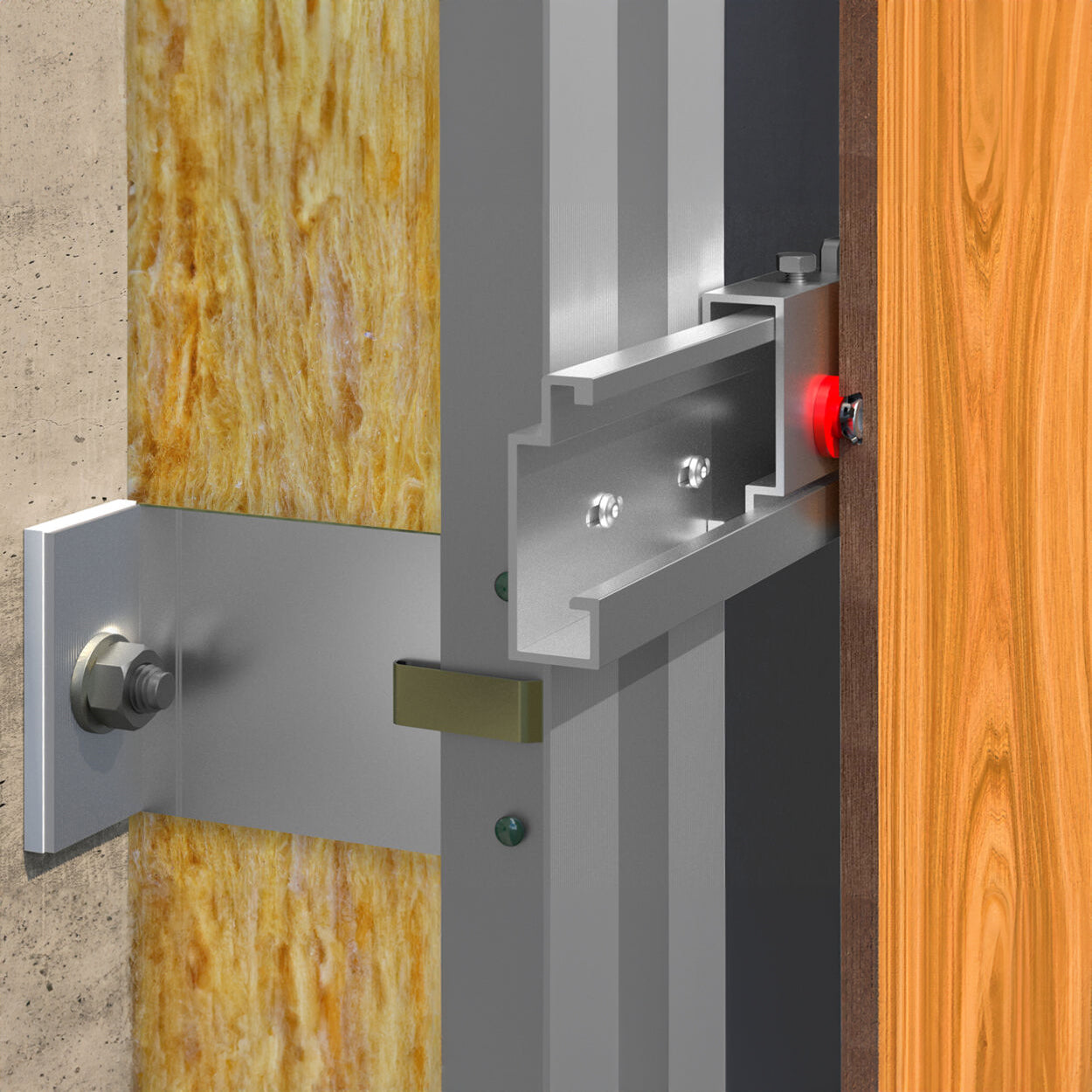

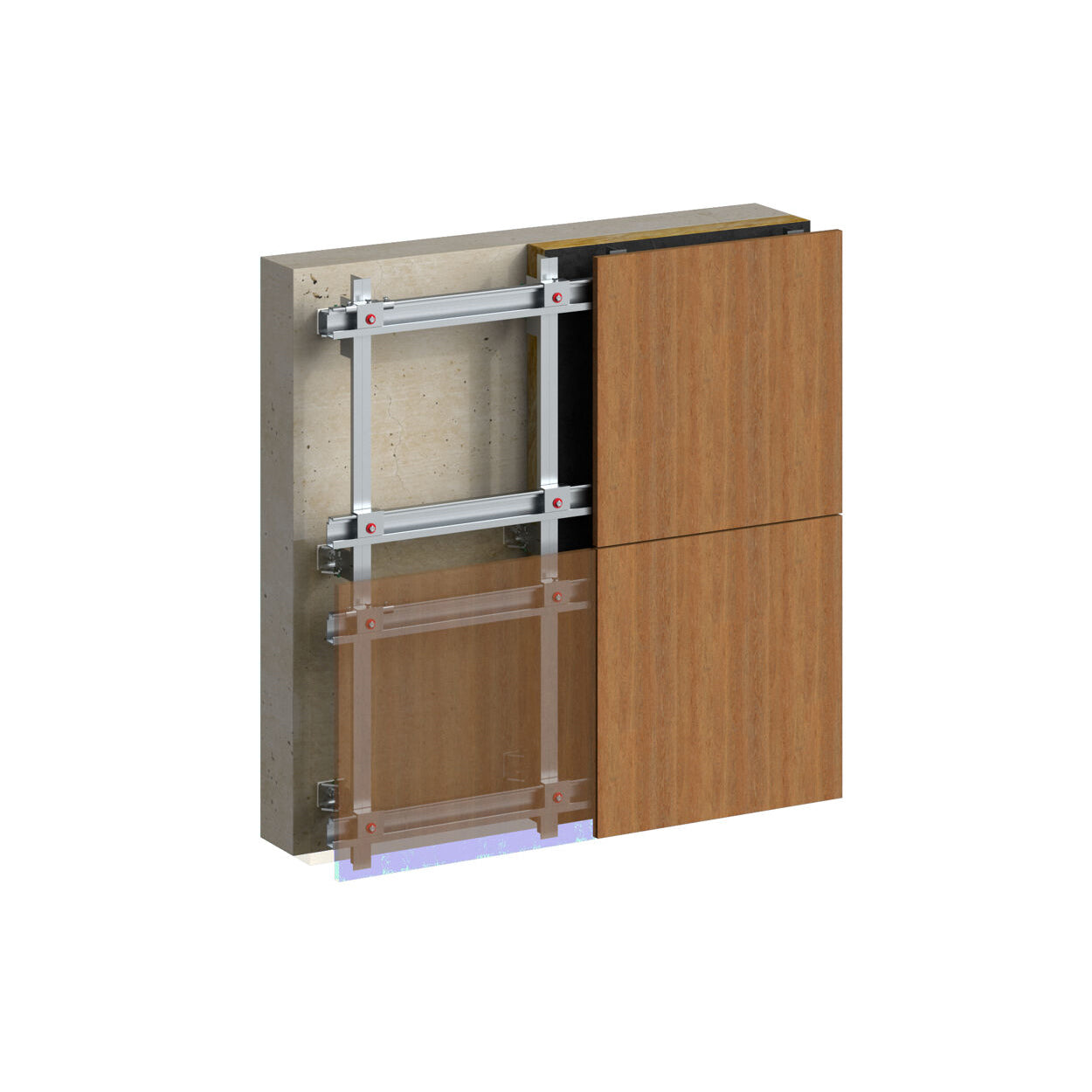

The fischer FZP II 11 x 6 M6/T/14 PA - a concealed fixing system for thin façade panels, such as HPL, fiber cement, and solid surface panels, can be used in conjunction with clasp systems on façades or with other attachments.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

For high aesthetical requrements:

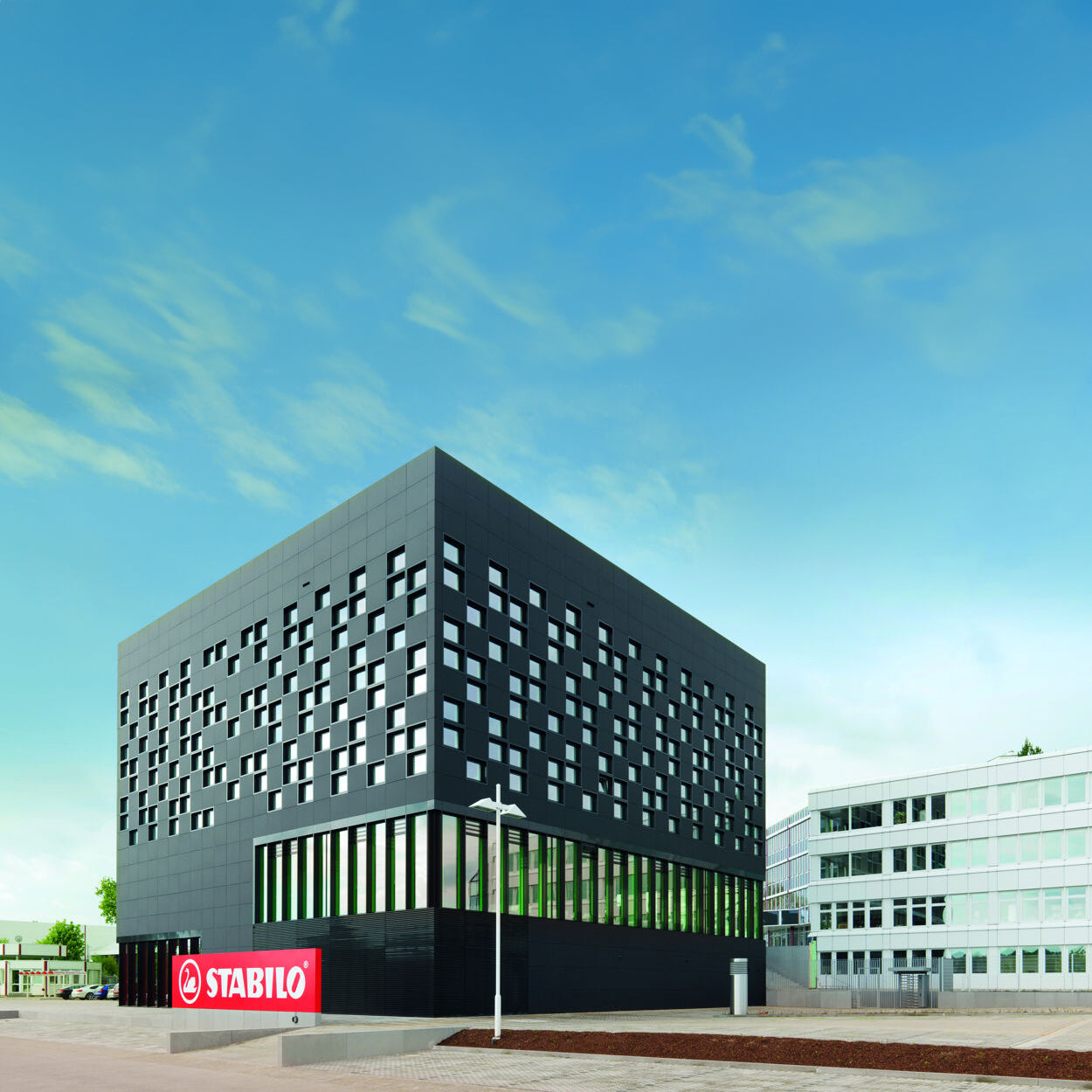

The concealed fixing of thin façade panels on exterior and interior façade as well as reveal panels.

Building Materials

Fibre cement
HPL panels
Thin panel materials (? 8 mm)
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0465
DoP No. 0262
DoP No. 0756-CPD-0441

Features

Short geometry anchor: Can be used in thin panels starting from 8 mm thickness.
Fixing is not externally visible: Visually appealing façade surface.
Matching shape of the undercut anchor: Creates an inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: Significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.
This anchor provides much better holding forces than commonly available systems: Allows for the use of large format panels.

Specifications

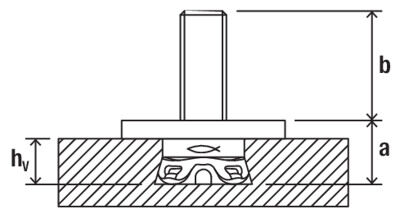

  • Anchorage Depth (mm)
    6mm
  • Brand
    Fischer
  • Certifications
    ETA-11/0465
    DoP No. 0262
    DoP No. 0756-CPD-0441
  • Colour
    Red
  • Cylindrical Diameter (mm)
    11.00
  • Functionality
    dry drilling in ceramic
    the drill hole is drilled with an absolute anchoring depth

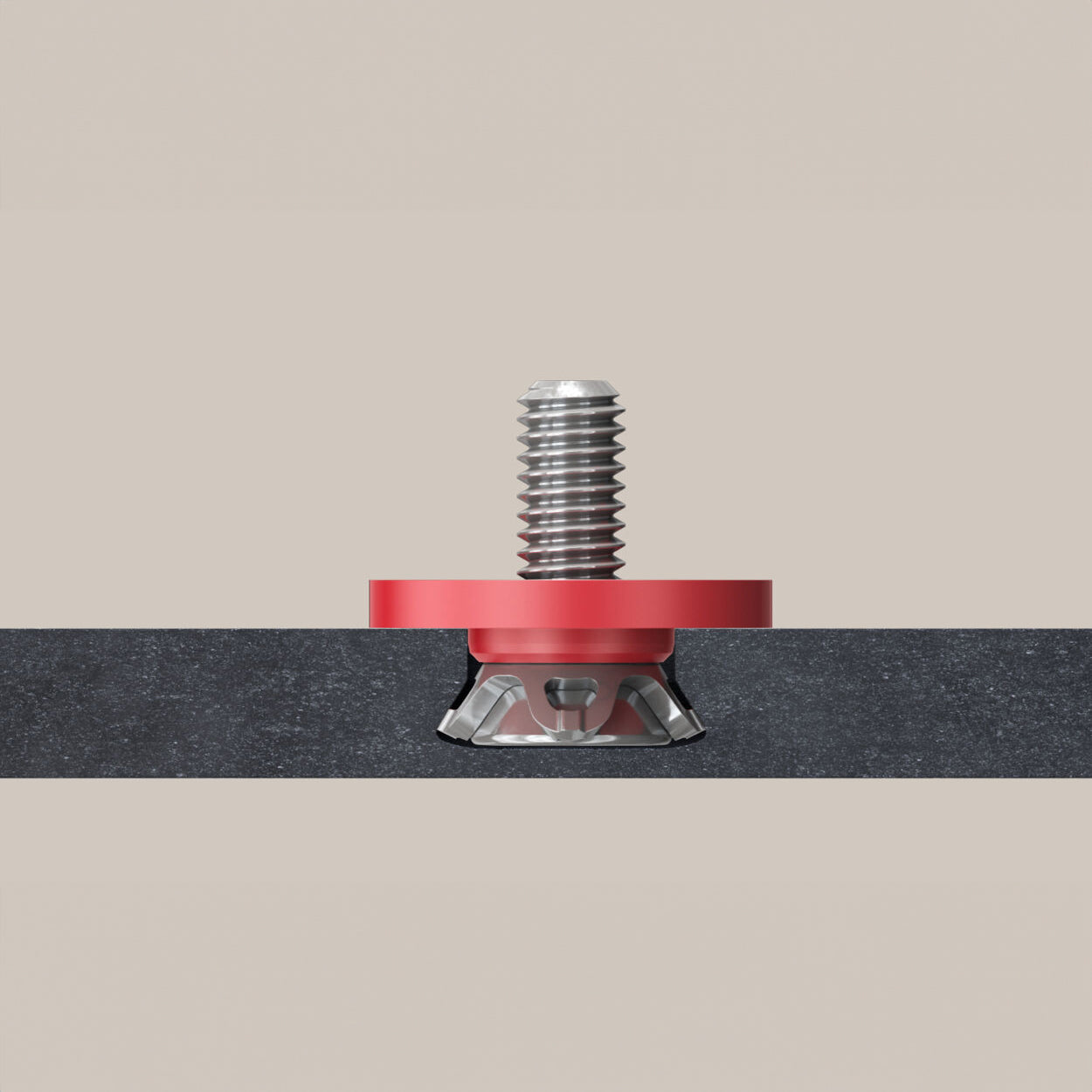

    flush installation of the anchor, the spacer washer will be in full contact with the surface of the material
    drilling: first cylindrical, then conical - to create the undercut.
    inserting the undercut anchor in the cylindrical-conical undercut hole
    expanding the undercut anchor by "pressing down" the washer using the setting tools
    stress-free and geometrical inter-locking fixing
  • Length (MM)
    9
  • Material
    A4 Stainless Steel
  • Min. Panel Thickness (mm)
    10.00
  • Pack Size
    250
  • Projection Length (mm)
    10.00
  • Size
    M6
  • Sleeve Material
    Polyamid PA 6
  • Type
    Thin panel anchor
  • Undercut Diameter (mm)
    13.50
