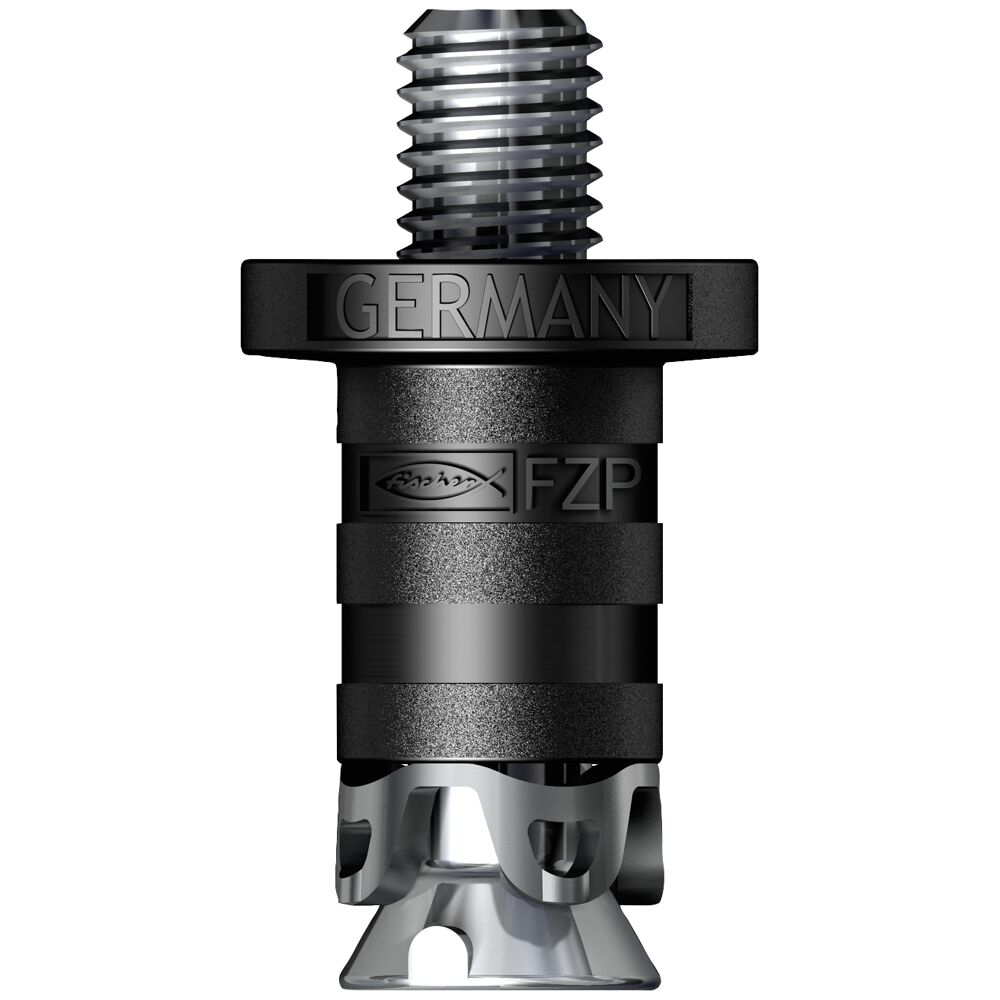

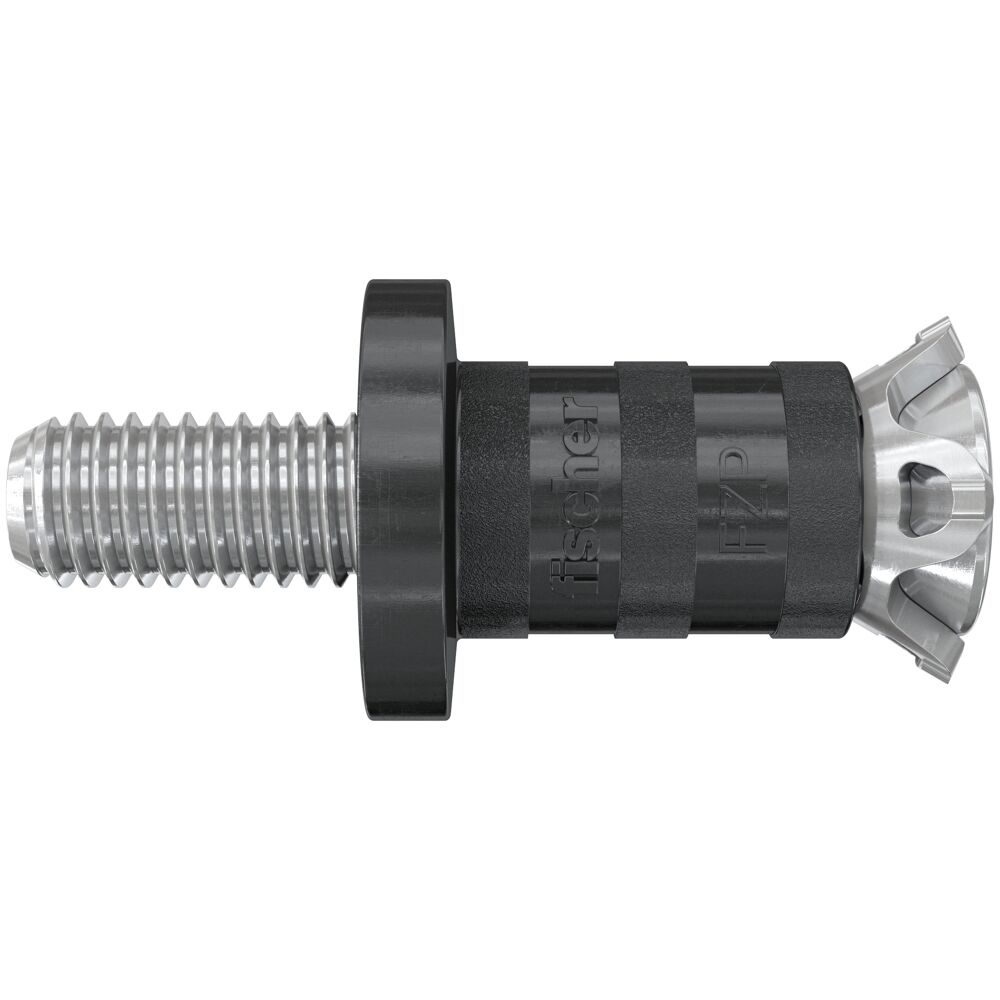

fischer FZP II 11 x 21 M6/SO/9 Carbon Panel Anchor [511977]

Barcode: 4048962111644
Pack Size: 250
£756.23

Usually shipped in 1-2 days

fischer FZP II 11 x 21 M6/SO/9 Carbon Panel Anchor [511977] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

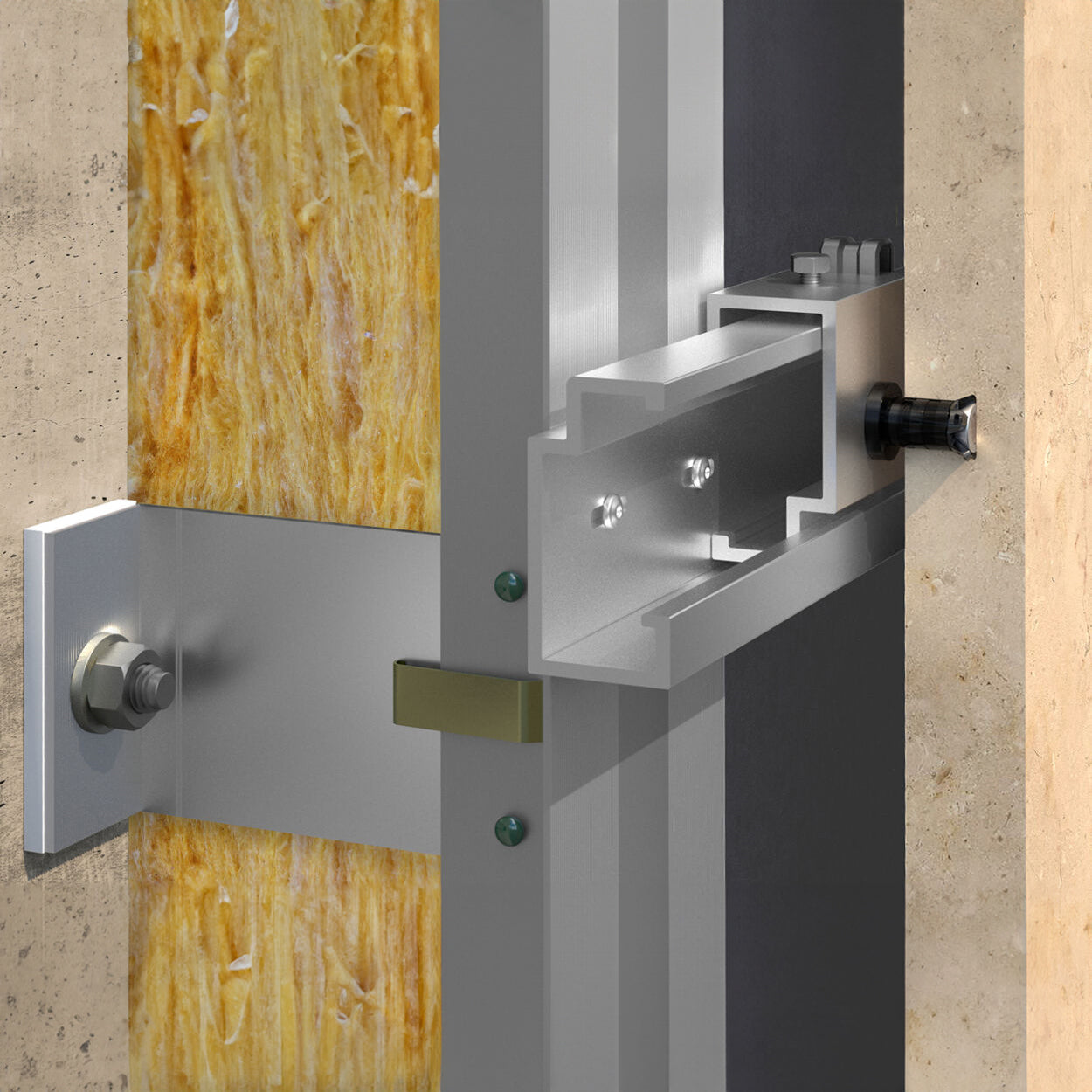

The undercut anchor with a carbon fibre-reinforced plastic sleeve is a concealed stand-off installation solution for heavy façade panels out of natural stone or artificial concrete. The anchor defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remaining wall thickness) as a reference dimension for drilling. This allows for compensation of panel thicknesses, creating a completely flat façade surface.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

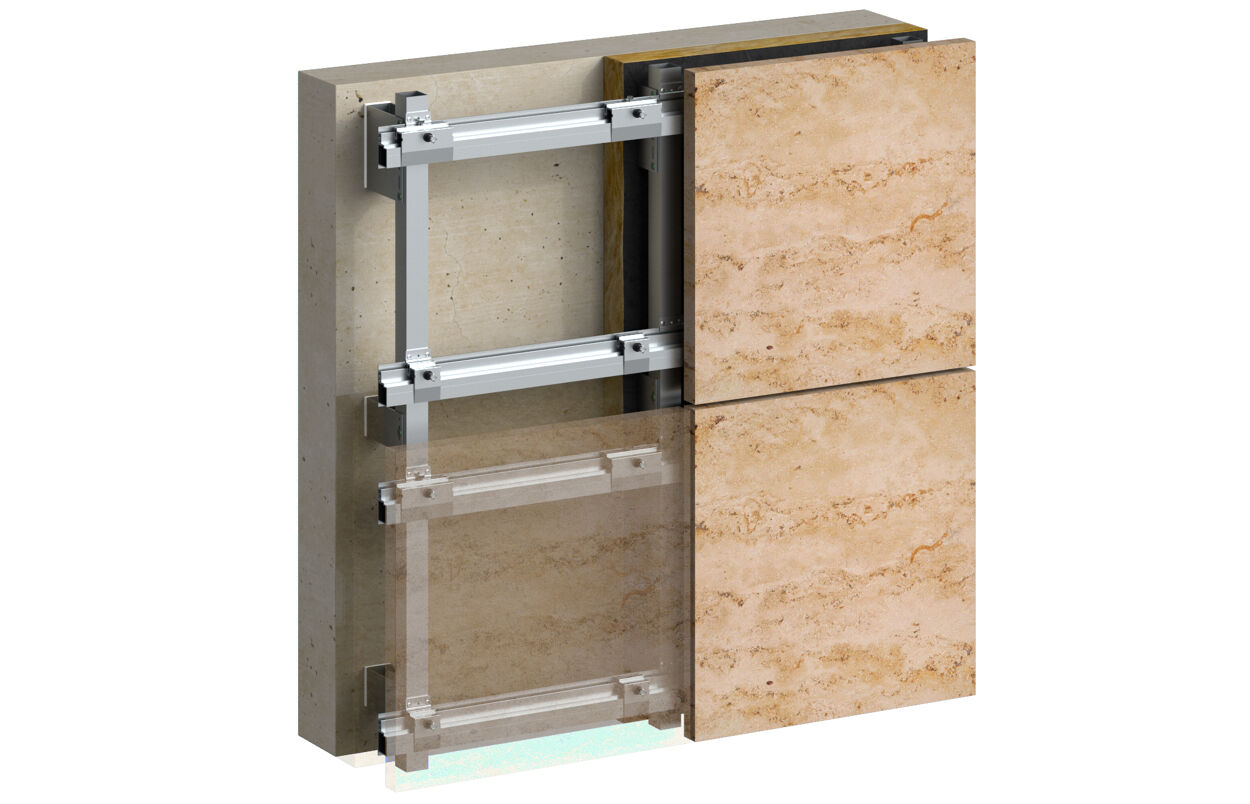

Exterior façades with high aesthetic requirements
Interior façades with high aesthetic requirements

Building Materials

Natural stone (>20mm)
Artificial concrete panels
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307
DoP No. 0322

Features

Using a constant remaining wall thickness as a reference value when drilling holes: Allows users to compensate panel thickness tolerances.
Matching shape of the undercut anchor: Creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Fixing is not externally visible: Creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.

Specifications

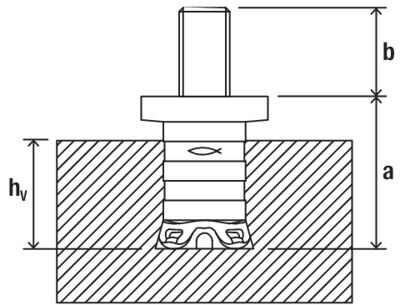

  • Anchorage Depth (mm)
    12-16mm
  • Brand
    Fischer
  • Certifications
    ETA-11/0145
    ETA-22/0400
    DoP No. 0261
    DoP No. 0307
    DoP No. 0322
  • Cylindrical Diameter (mm)
    11.00
  • Diameter (mm)
    11.00
  • Functionality
    The hole is drilled to a constant reference dimension for the remaining wall thickness (RWT).

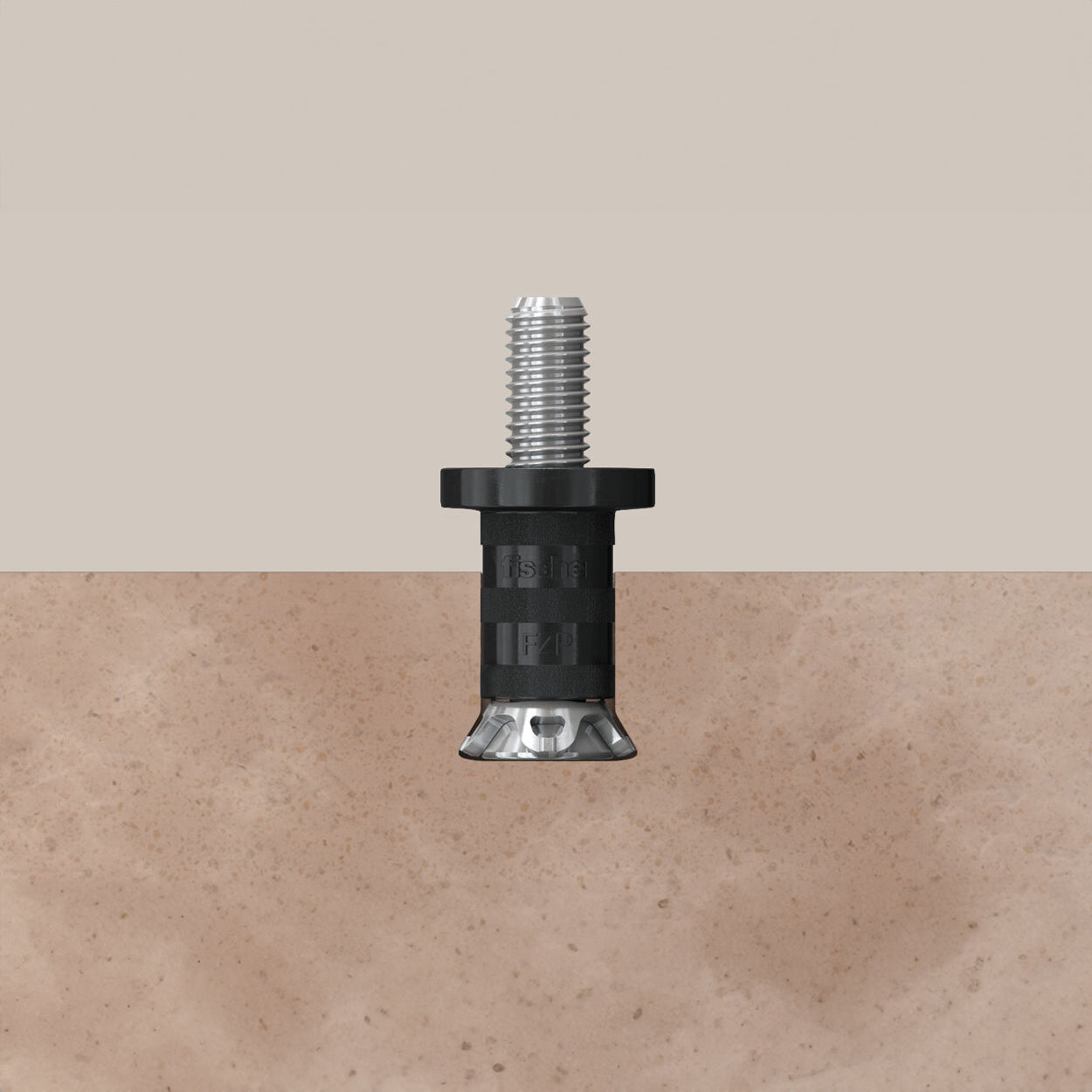

    The anchor is set through stand-off installation.
    The compensation of panel thickness tolerances results in a completely flat façade surface.
    Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole

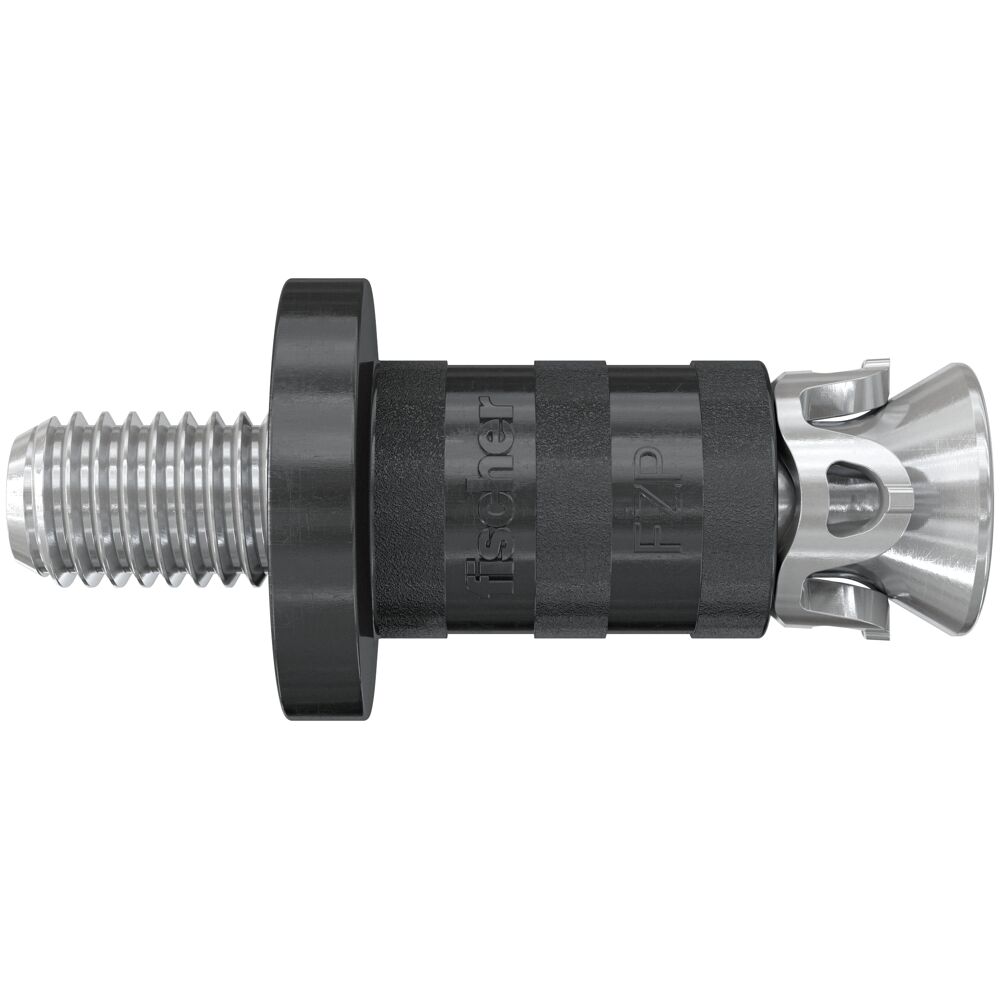

    Expanding the undercut anchor by "pressing down" the washer using the setting tools
    Stress-free and geometrical inter-locking fixing
  • Length (MM)
    21
  • Material
    A4 Stainless Steel
  • Min. Panel Thickness (mm)
    20.00
  • Pack Size
    250
  • Projection Length (mm)
    9.00
  • Size
    M6
  • Sleeve Material
    Carbon fibre reinforced plastic
  • Type
    Flush anchor
  • Undercut Diameter (mm)
    13.50

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer FZP II 11 x 21 M6/SO/9 Carbon Panel Anchor [511977]

£756.23
The undercut anchor with a carbon fibre-reinforced plastic sleeve is a concealed stand-off installation solution for heavy façade panels out of natural stone or artificial concrete. The anchor defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remaining wall thickness) as a reference dimension for drilling. This allows for compensation of panel thicknesses, creating a completely flat façade surface.

Clamping Range (MM)

N/A

Diameter (MM)

11.00

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Flush anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

M6

Pack Size

250

Package Contents

N/A

Material

N/A

Length (MM)

21

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

Using a constant remaining wall thickness as a reference value when drilling holes: Allows users to compensate panel thickness tolerances.
Matching shape of the undercut anchor: Creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Fixing is not externally visible: Creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance.
