fischer FZP II 11 x 12 M6/18 A4 Panel Anchor [512133]

£675.87

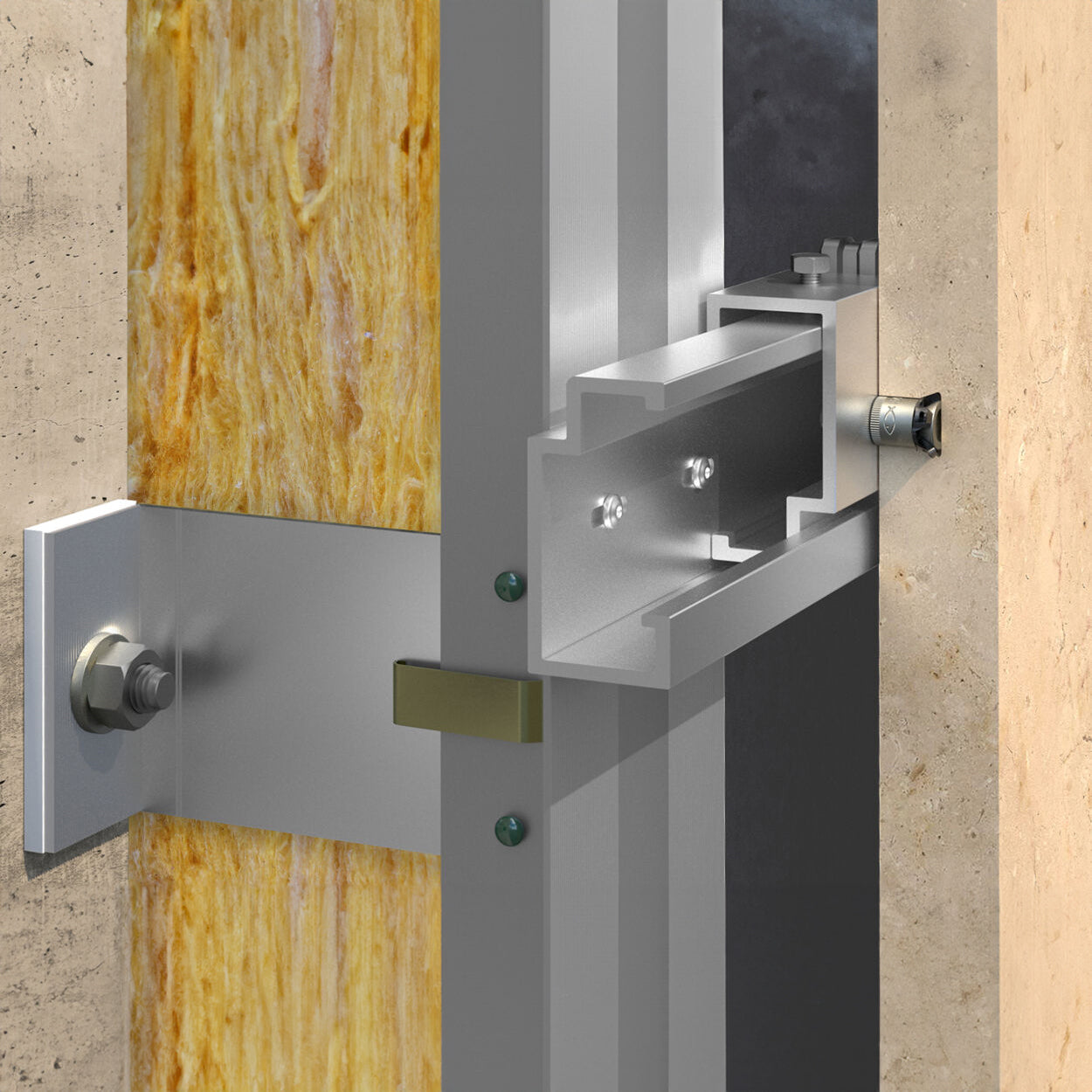

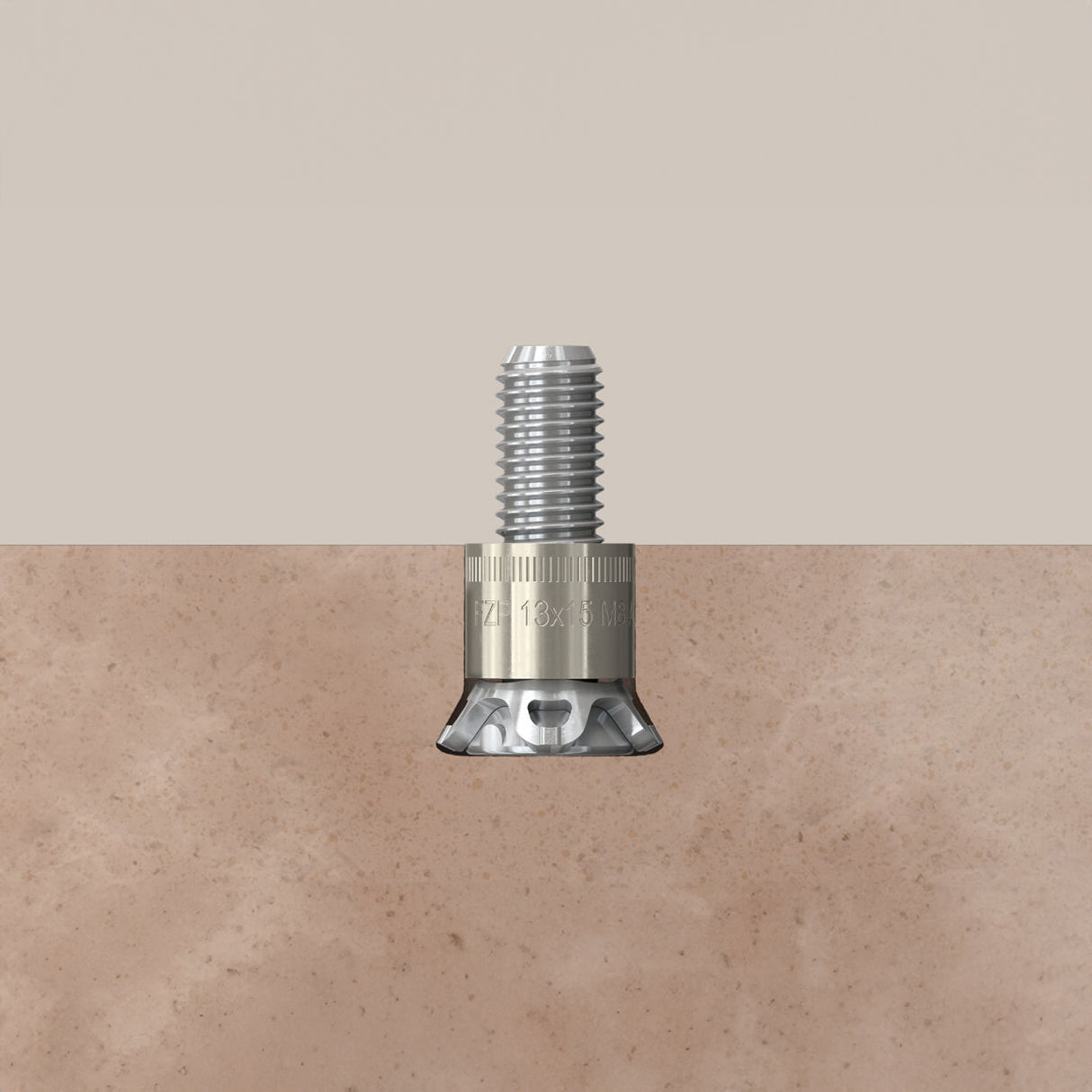

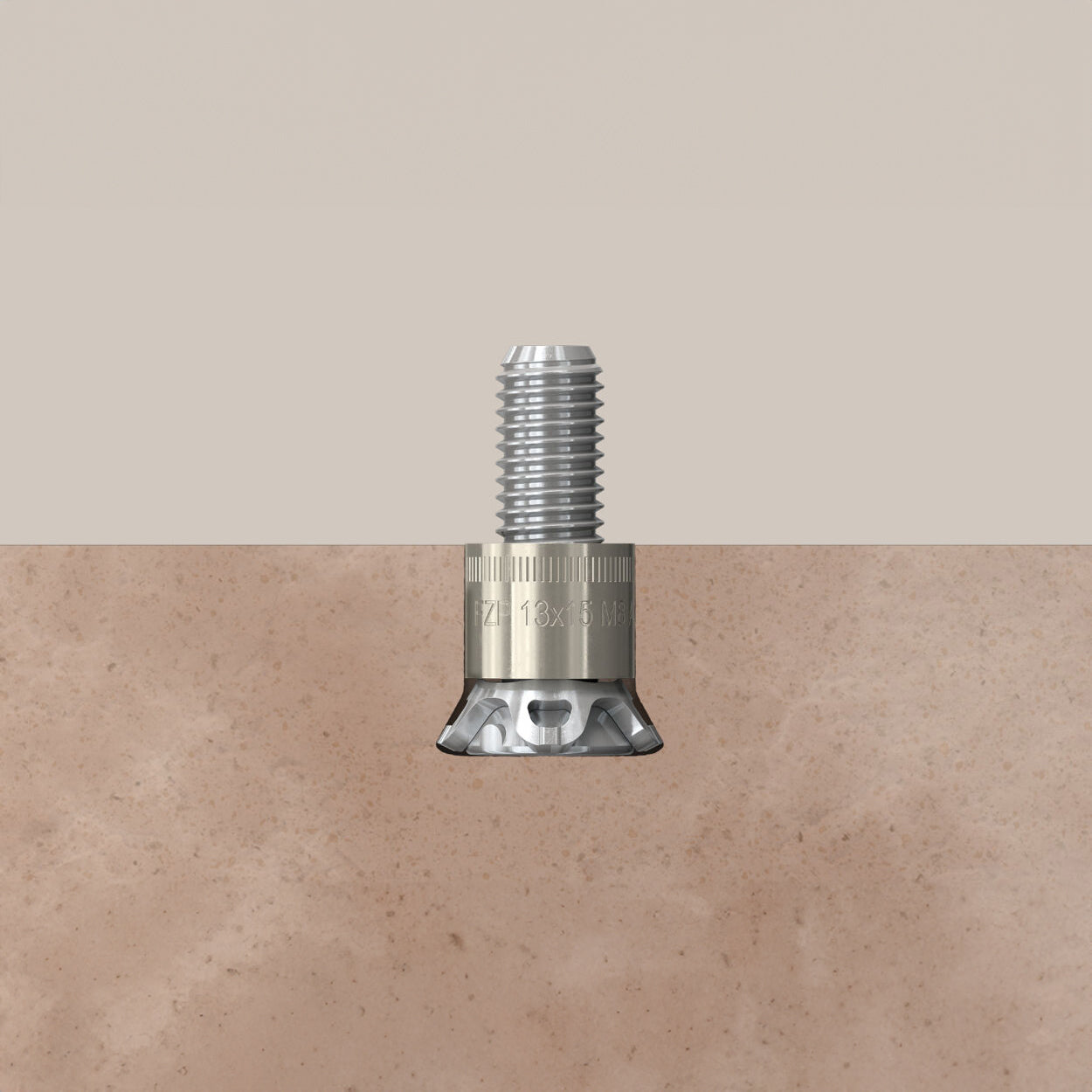

A concealed fixing solution for heavy natural stone façade panels uses FZP II 11 x 12 M6/18 A4 stainless steel undercut anchors with flush installation. The anchors are fixed with a consistent drill hole depth aligned to the back of the panel, and are typically used with calibrated façade panels or for reveal angle installation.

fischer FZP II 11 x 12 M6/18 A4 Panel Anchor [512133] is backordered and will ship as soon as it is back in stock.

Applications

Exterior façades
Interior façades
Façade reveals
Natural stone heating systems

Building Materials

Natural stone (>20mm)
Artificial concrete panels
You can find detailed information on building materials in the registration document.

Certifications

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307
DoP No. 0322

Features

Flush-mounting technology of the undercut anchor: Allows an easy, economical handling of reveals.
Matching shape of the undercut anchor: Creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Fixing is not externally visible: Creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel: This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems: High performance

Specifications
  • Diameter (MM)
    11
  • Type
    Flush anchor
  • Size
    M6
  • Pack Size
    250
  • Material
    A4 Stainless Steel
  • Length (MM)
    30
  • Declaration of Performance Document
    Fischer_FZPII_A4_DOP3.pdf
  • European Technical Approval (ETA) Document
    Fischer_FZPII_A4_ETA2.pdf
  • Size
    M6

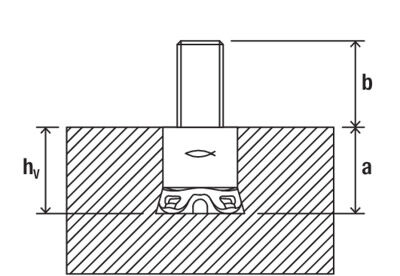

  • Anchorage Depth (mm)
    12mm
  • Sleeve Material
    A4 Stainless Steel
  • Min. Panel Thickness (mm)
    20.00
  • Projection Length (mm)
    18.00
  • Cylindrical Diameter (mm)
    11.00
  • Undercut Diameter (mm)
    13.50
