Fischer FNA II 6 x 85/50 Zinc push through hammerset nail anchor with nail head [44117]

Barcode: 4006209441176
Pack Size: 50
£31.86

Usually shipped in 1-2 days

Fischer FNA II 6 x 85/50 Zinc push through hammerset nail anchor with nail head [44117] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

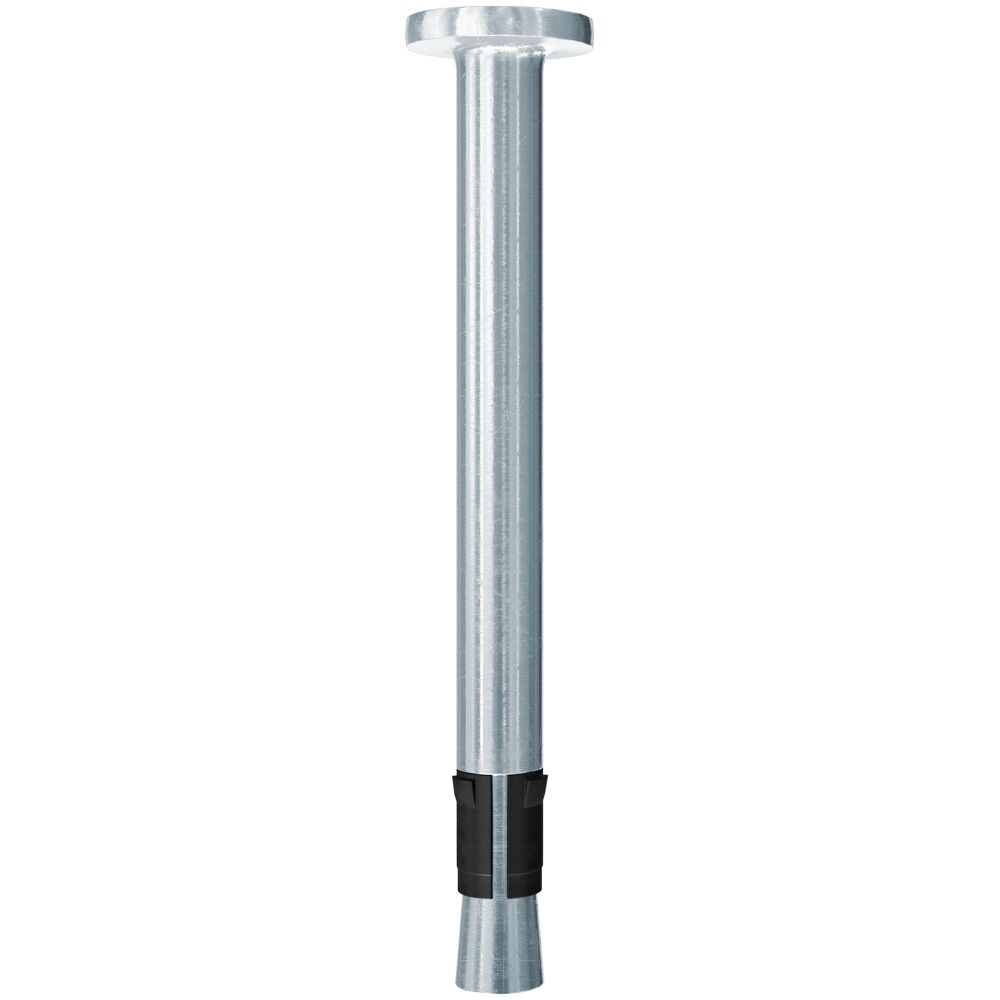

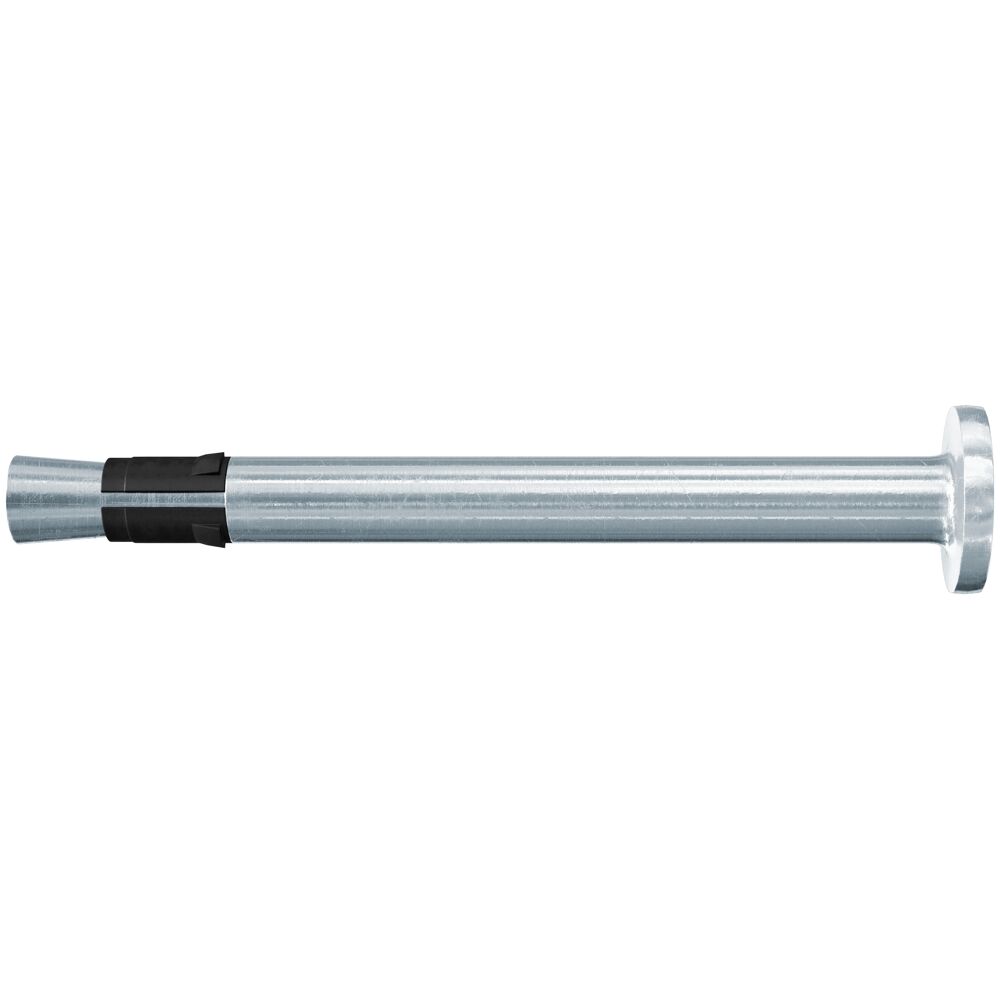

The fischer nail anchor FNA II 6 x 85/50 with nail head is a versatile and easy-to-use fixing solution made of zinc-plated steel. It can be installed quickly and easily using the push-through method, making it ideal for fixing fire protection boards, wire, and nonious hangers in internal areas. The FNA II 6 is installed by simply tapping it into the pre-drilled hole with a hammer. Once the anchor is in place, it expands automatically under load, creating a secure hold in the material. The cone is pulled into the expansion clip, which expands against the hole wall. This ensures that the anchor is securely fastened to the material and can withstand even heavy loads

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Fire Test Document:

Load Table Document:

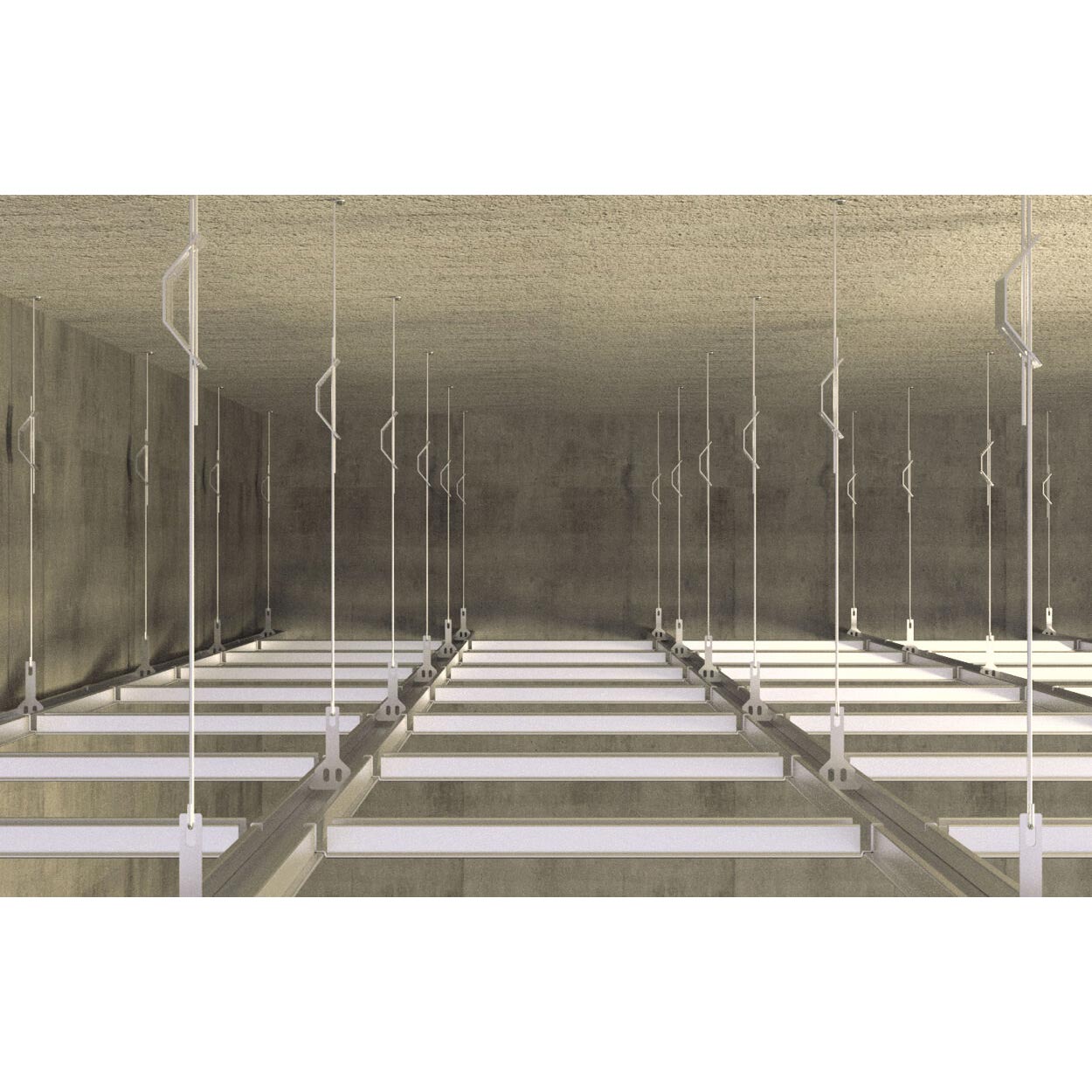

Applications

Fire protection plates
Fire protection boards
Ventilation systems
Wire and nonious hangers
Mounting rails
Metal clamps
Substructures made of wood and metal

Building Materials

Approved for:
Concrete C12/15 to C50/60, cracked, for multiple fixings of non-structural applications
Also suitable for:
Solid sand-lime brick
Natural stone with dense structure
Prestressed hollow-core concrete slabs
You can find detailed information on building materials in the registration document.

Certifications

ETA-06/0175
DoP No. 0235
GS 6.1/21-076-1

Features

Special active principle allows for a simple hammerset installation: Short processing time.
Extremely short anchor depth prevents reinforcement hits: Creates the conditions for a trouble-free installation.
Optimised expansion clip ensures hold when placing in the drill hole: Prevents anchor from falling out during overhead installations.
Massive shaft cross-section: Guarantees a high load-bearing capacity, thus offering an extremely high level of safety.
A range of head shapes: Allows for the fixing of wide-ranging fixtures, and for the ideal adaptation to suit the intended use.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-06/0175
    DoP No. 0235
    GS 6.1/21-076-1
  • Drill Diameter (MM)
    6
  • Functionality
    The FNA II with nail head is suitable for push-through installation. The FNA II M6 is suitable for pre-positioned and pushthrough installation. The FNA II OE and H
    are suitable for pre-positioned installation.
    The installed nail anchor FNA II expands automatically under load. The cone is pulled into the expansion clip and expands it against the drill hole wall.
    Available setting tools:
    FNA S-SBO to slip onto the drill,
    FNA S-SDS for series installation with a drilling hammer,
    FNA S-H for the manual installation of mounting rails.

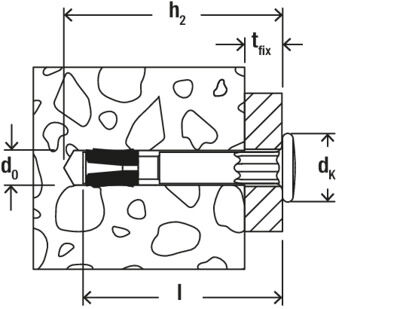

  • Head Diameter (mm)
    13.00
  • Length (MM)
    85
  • Material
    Zinc-Plated
  • Max Fixture Thickness (MM)
    50
  • Min Drill Hole Depth for Through Fixings (MM)
    90
  • Pack Size
    50
  • Type
    Nail anchor

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

Fischer FNA II 6 x 85/50 Zinc push through hammerset nail anchor with nail head [44117]

£31.86
The fischer nail anchor FNA II 6 x 85/50 with nail head is a versatile and easy-to-use fixing solution made of zinc-plated steel. It can be installed quickly and easily using the push-through method, making it ideal for fixing fire protection boards, wire, and nonious hangers in internal areas. The FNA II 6 is installed by simply tapping it into the pre-drilled hole with a hammer. Once the anchor is in place, it expands automatically under load, creating a secure hold in the material. The cone is pulled into the expansion clip, which expands against the hole wall. This ensures that the anchor is securely fastened to the material and can withstand even heavy loads

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

6

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Nail anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

50

Package Contents

N/A

Material

N/A

Length (MM)

85

Min Drill Hole Depth for Through Fixings (MM)

90

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

50

Width Across Nut (MM)

N/A

Features

Special active principle allows for a simple hammerset installation: Short processing time.
Extremely short anchor depth prevents reinforcement hits: Creates the conditions for a trouble-free installation.
Optimised expansion clip ensures hold when placing in the drill hole: Prevents anchor from falling out during overhead installations.
Massive shaft cross-section: Guarantees a high load-bearing capacity, thus offering an extremely high level of safety.
A range of head shapes: Allows for the fixing of wide-ranging fixtures, and for the ideal adaptation to suit the intended use.
