fischer Internal threaded sockets FIS E 11 x 85 M6 [43631]

SKU: 26349
Barcode: 4006209436318
Pack Size: 10
£17.50

Usually shipped in 1-2 days

fischer Internal threaded sockets FIS E 11 x 85 M6 [43631] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

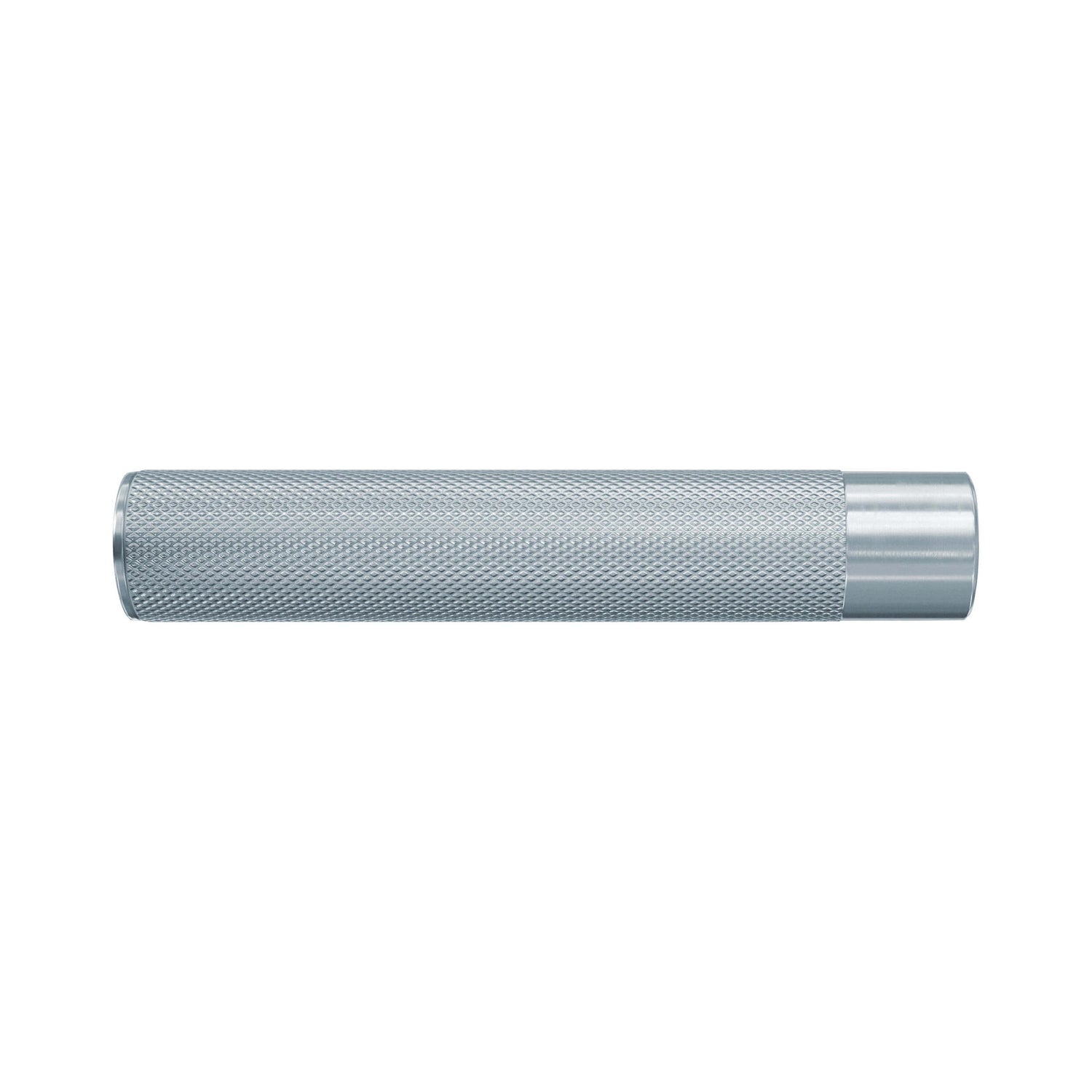

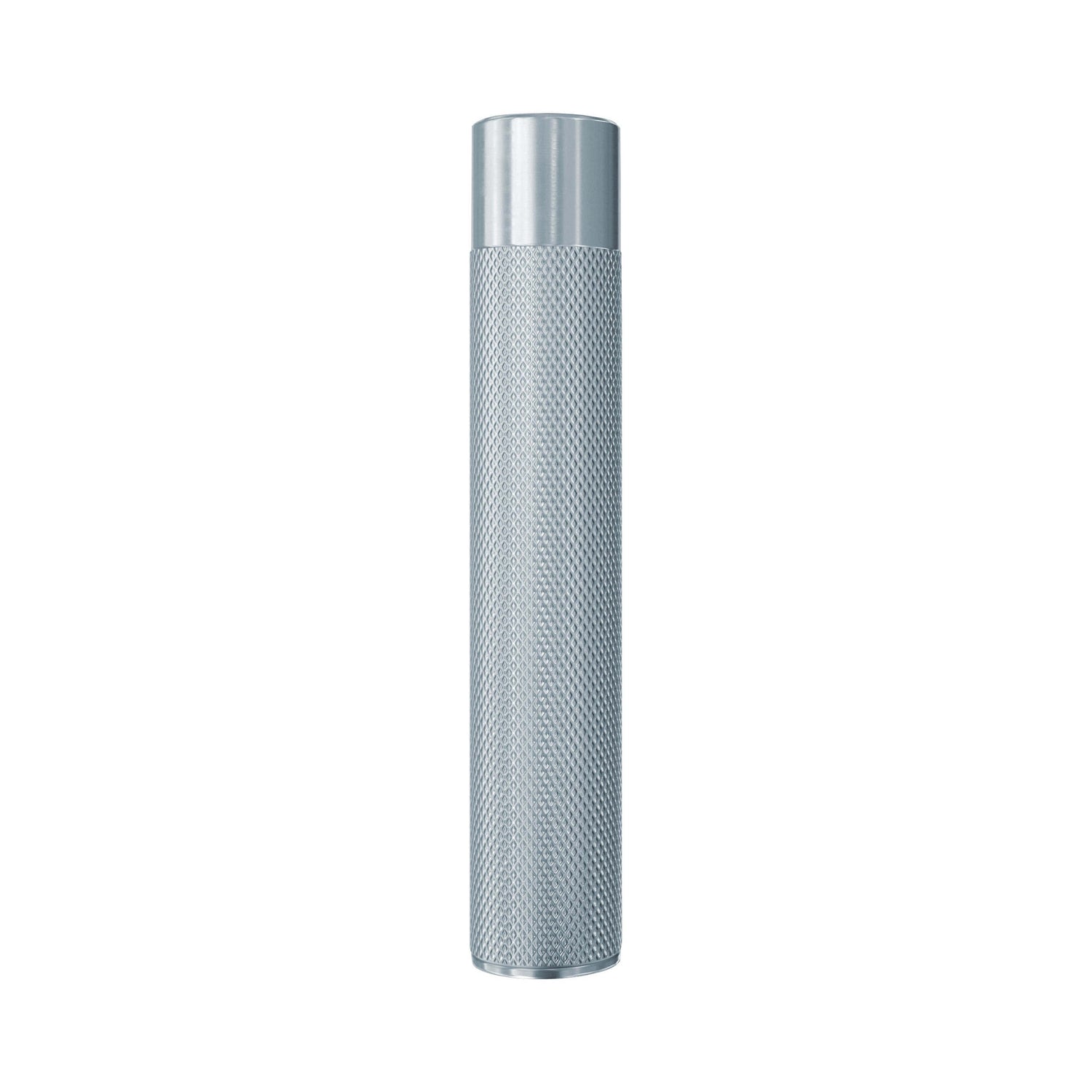

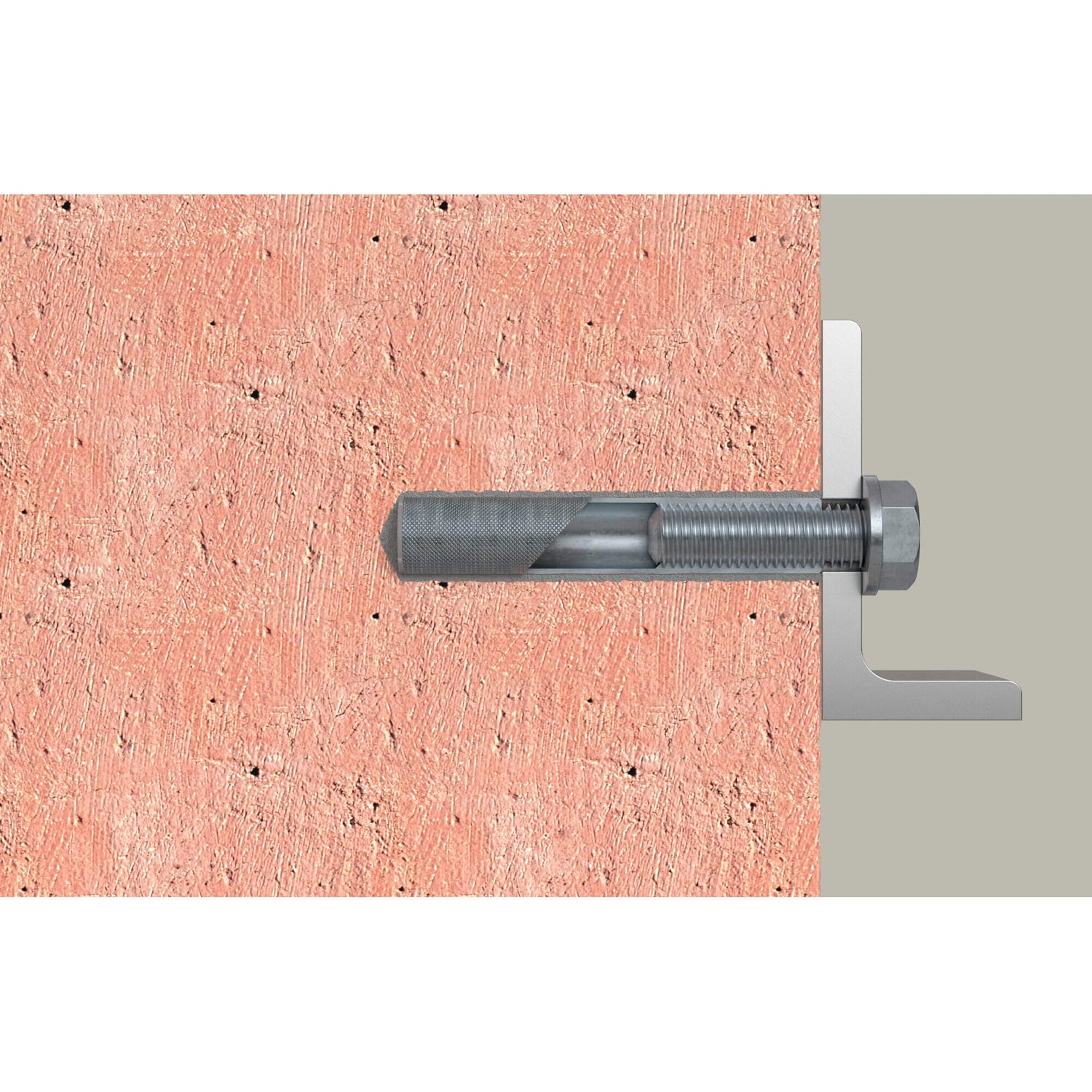

The fischer internal threaded anchor FIS E is a system component for use with the fischer injection mortars FIS V Plus, FIS VL, FIS P Plus or FIS P for fixations in masonry made from solid brick, perforated brick, and aerated concrete. When the threaded anchor is installed, the mortar is pressed through the grating structure and creates a form fit with the structure of the brick. The metric internal thread enables the use of conventional metric screws or threaded rods. The internal threaded anchor is suitable for surface-flush removal, and the fixing point can be reused. This means that the FIS E is particularly suited to detachable and temporary fixings both inside and outside. The approvals of the various injection mortars must be observed.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Applications

The internal threaded anchor FIS E allows for surface flush removal and reuse of the fixing point, and therefore offers the best possible flexibility

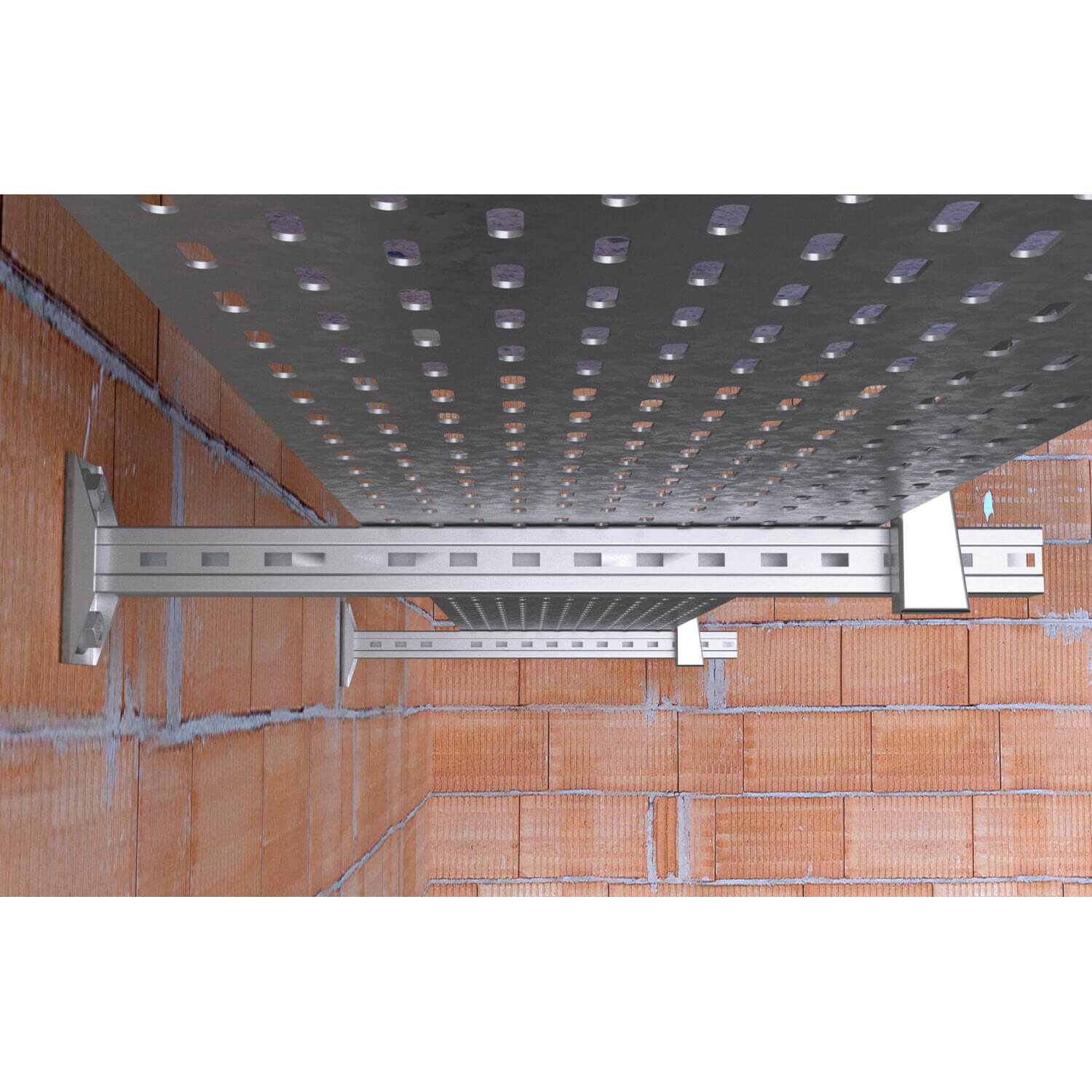

Anchorings with various injection mortars such as FIS V Plus, FIS VL, FIS P Plus, FIS V Zero in concrete

Building Materials

Solid sand-lime brick
Perforated sand-lime brick
Solid brick
Solid blocks made from lightweight concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Building brick
Aerated concrete blocks
You can find detailed information on building materials in the registration document.

Certifications

ETA-15/0263 ETA-10/0383 ETA-20/0729 DoP No. 0195 DoP No. 0189 DoP No. 0381

Features

The internal threaded anchor FIS E is suitable for use with injection mortar in masonry or aerated concrete.
The internal threaded anchor FIS E allows for surface-flush removal and the reuse of the fixing point, and therefore offers the best possible flexibility.
The metric internal thread allows for the use of standard metric screws or threaded rods, which enables ideal adaptation in line with the intended use.
Please refer to the approvals for the mortar used.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-15/0263 ETA-10/0383 ETA-20/0729 DoP No. 0195 DoP No. 0189 DoP No. 0381
  • Drill Diameter (mm)
    14
  • Functionality
    FIS E is suitable for pre-positioned installation.
    The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
    The anchor is set manually, by lightly rotating it until it reaches the drill hole base.
  • Material
    Zinc-Plated
  • Pack Size
    10
  • Thread
    M6
  • Type
    Internal thread anchor

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 or email sales@certifix.co.uk to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer Internal threaded sockets FIS E 11 x 85 M6 [43631]

£17.50
The fischer internal threaded anchor FIS E is a system component for use with the fischer injection mortars FIS V Plus, FIS VL, FIS P Plus or FIS P for fixations in masonry made from solid brick, perforated brick, and aerated concrete. When the threaded anchor is installed, the mortar is pressed through the grating structure and creates a form fit with the structure of the brick. The metric internal thread enables the use of conventional metric screws or threaded rods. The internal threaded anchor is suitable for surface-flush removal, and the fixing point can be reused. This means that the FIS E is particularly suited to detachable and temporary fixings both inside and outside. The approvals of the various injection mortars must be observed.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

14

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Internal thread anchor

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

M6

Size

N/A

Pack Size

10

Package Contents

N/A

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The internal threaded anchor FIS E is suitable for use with injection mortar in masonry or aerated concrete.
The internal threaded anchor FIS E allows for surface-flush removal and the reuse of the fixing point, and therefore offers the best possible flexibility.
The metric internal thread allows for the use of standard metric screws or threaded rods, which enables ideal adaptation in line with the intended use.
Please refer to the approvals for the mortar used.
