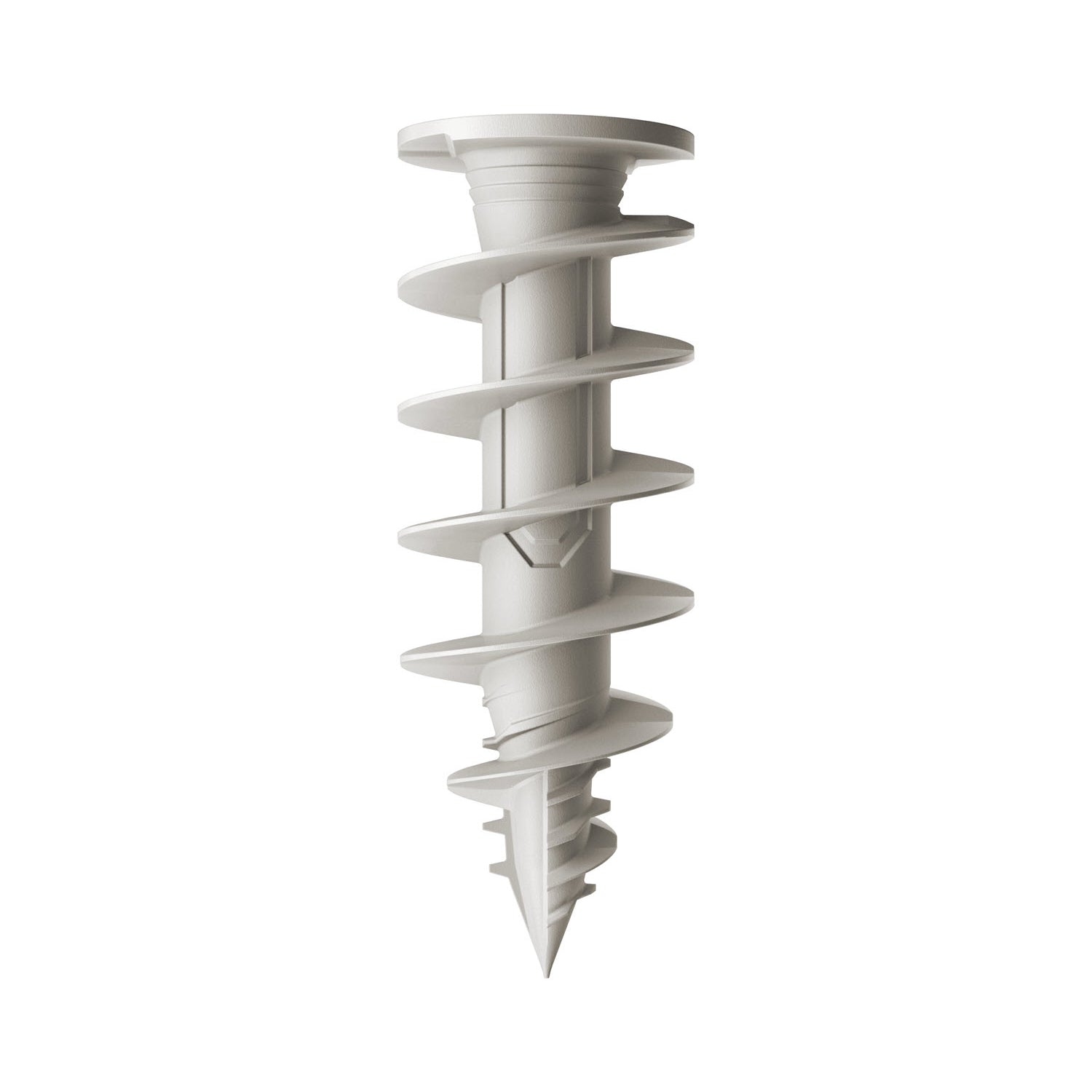

fischer Insulation fixing FID II [570347]

Barcode: 4048962504859
Pack Size: 50
£11.55

Usually shipped in 1-2 days

fischer Insulation fixing FID II [570347] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer FID II insulation plug is suitable for fixing lightweight attachments to external thermal insulation composite systems. Thanks to the combined centering, milling and cutting function of the plug tip, the FID II can be screwed in with pinpoint accuracy. The small head diameter in combination with the anchor's underhead milling pockets ensure a perfectly concealed and surface-flush setting result. The FID II is particularly suitable for fixing lightweight attachments such as outdoor lamps, house numbers or doorbells to the ETICS.

Technical Datasheet

Load Table Document:

Applications

Outdoor lighting
Motion detector
House number
Doorbell

Building Materials

Mineral wool
Expanded polystyrene (EPS)
Extruded polystyrene (XPS)
Wood fibre
Polyurethane rigid foam (PU)

Features

The use of standard screws with a diameter of 3.5 - 4.5 mm allows flexible use.
Maximum stability due to glass fibre reinforced plastic.
Due to the minimal head diameter, the plug edge is not visible even with narrow attachments.
Due to the special tip geometry, the plug screws through plaster thicknesses of up to 10 mm without pre-drilling, which enables a fast processing.
The FID II is easily set with a standard TX40 bit.
The fischer insulation plug enables an universal use in all common insulation materials.

Specifications
  • Brand
    Fischer
  • Driver Type
    TX40

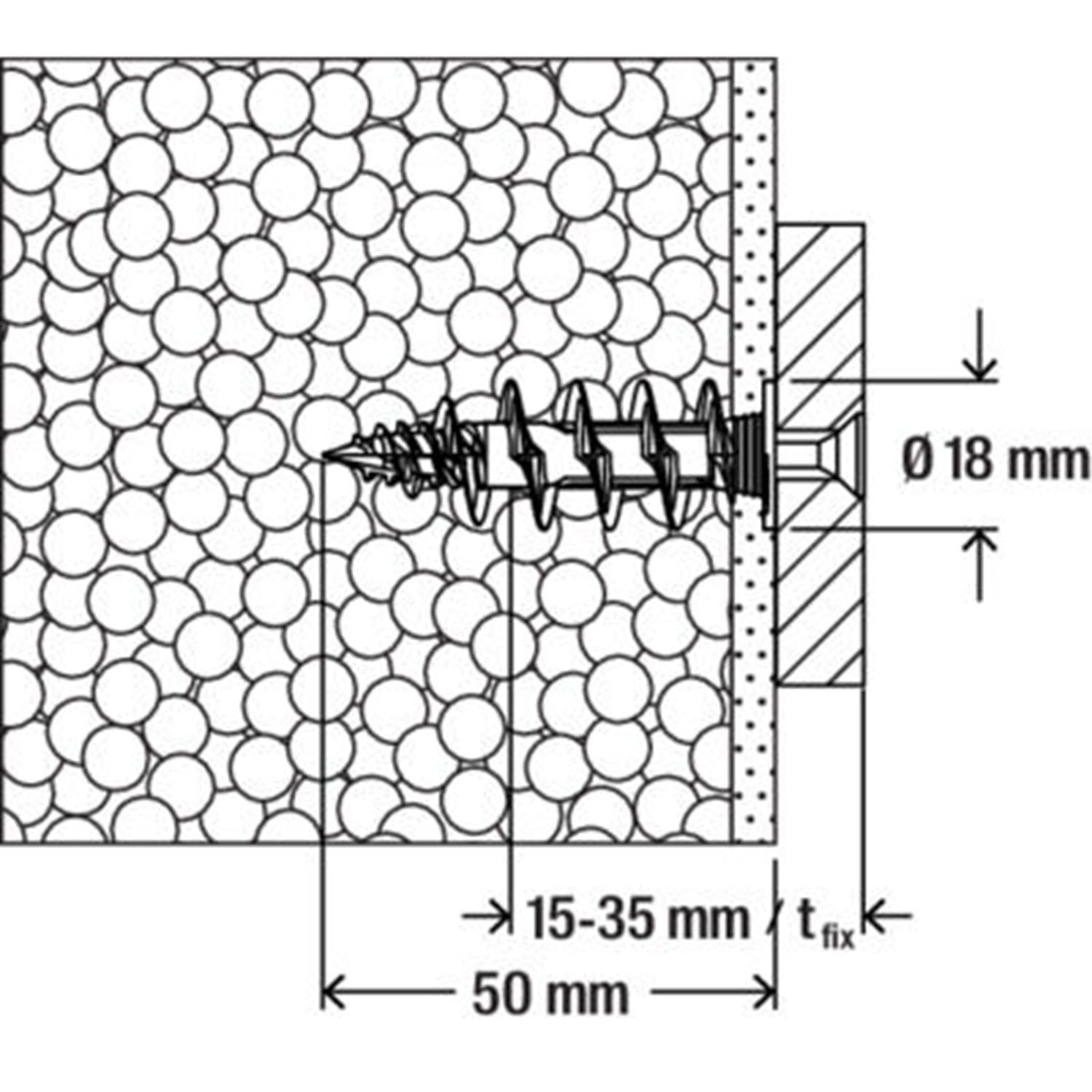

  • Functionality
    The FID can be set in the insulating board with a cordless screwdriver or by hand.
    For thick layers of plaster a pre-drilling (6 mm) is recommended.
    The special spiral thread taps itself in the insulating board.
    Fixtures are fixed with a 4 to 4.5 mm screw for the FID 50.
    Water ingress in the insulation can be prevented by sealing the plug collar with a suitable sealant after successful pre-positioned installation.
  • GTIN/EAN/ASIN
    4048962504859
  • Head Diameter (mm)
    18.00
  • Length (MM)
    50
  • Material
    Plastic
  • Max. Bolt Penetration (lE.max) (mm)
    35.00
  • Minimum Bolt Penetration (mm)
    15.00
  • Pack Size
    50
  • Type
    Insulation screw
