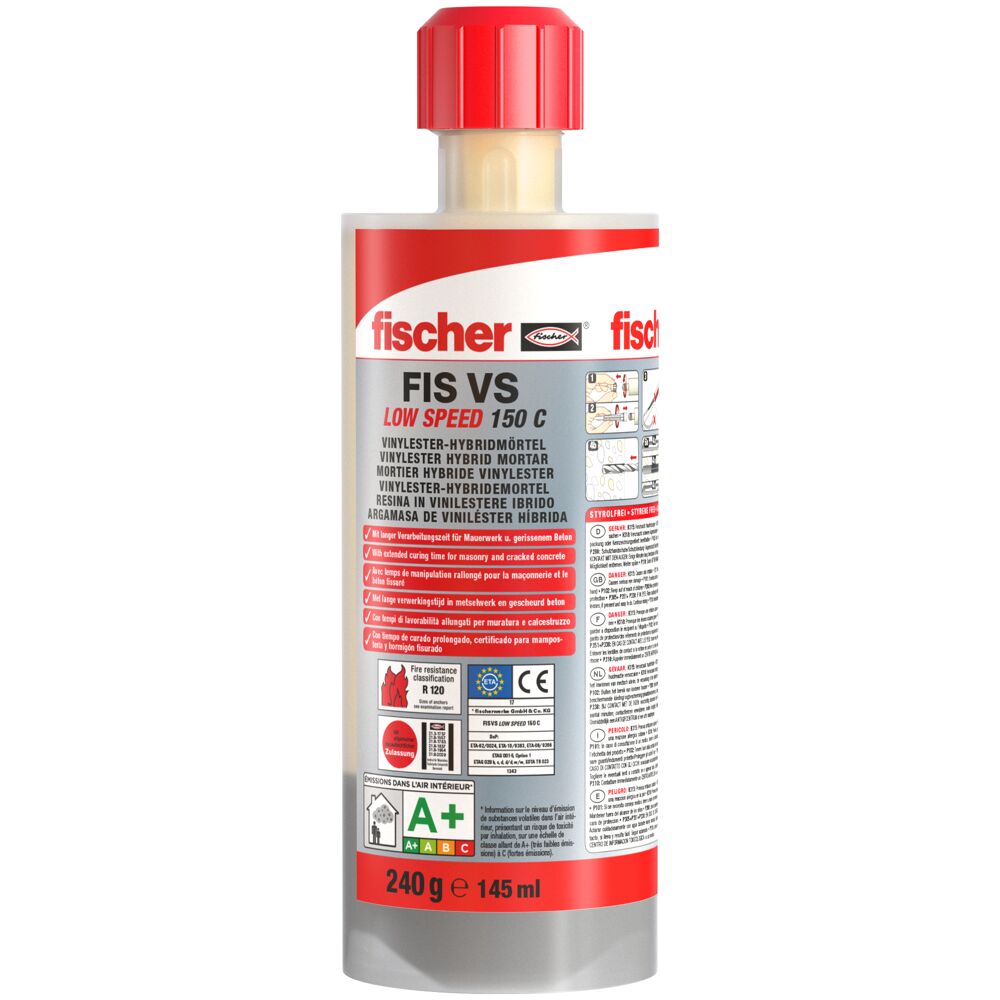

fischer injection mortar FIS VS 150 C Low Speed [45302]

Barcode: 4006209453025
Pack Size: 1
£9.28

Usually shipped in 1-2 days

fischer injection mortar FIS VS 150 C Low Speed [45302] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer high-performance mortar FIS V is a versatile and reliable solution for a wide range of fixing applications. The styrene-free vinyl ester hybrid mortar is approved for use in cracked and non-cracked concrete, as well as in masonry. It is also compatible with a variety of system components, including rebar connections, wall ties, and stand-off systems. The FIS V mortar is available in two variants: FIS VS LOW SPEED and FIS VW HIGH SPEED. The FIS VS variant has a longer processing time, making it ideal for use in high-temperature environments or when drilling deep holes. The FIS VW variant has a shorter hardening time, which is useful for applications where quick work progress is required. The fischer FIS V mortar is a high-quality product that offers excellent performance and durability. It is easy to use and comes with a variety of accessories to make installation simple.

Technical Datasheet

Curing Time Document:

Declaration of Performance Document:

Environmental Product Declaration Document:

European Technical Approval (ETA) Document:

Fire Test Document:

Load Table Document:

Safety Data Document:

Tech Datasheet:

Applications

Steelwork constructions
Timber constructions
Guard rails
Façades
Staircases
Steel brackets
Machines
Masts
Awnings
Canopies
Gates
Consoles
Pipelines
Gratings
Satellite antennas

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid brick
Approved for:
Rebar connections
Remedial wall tie VBS 8
Weather facing reconstruction system FWS II
Stand-off installation TherMax
You can find detailed information on building materials in the registration document.

Certifications

ETA-02/0024
ETA-08/0266
ETA-10/0383
DoP No. 0188
DoP No. 0189
DoP No. 0229
DoP No. 0304
ESR-2786
21843_3enshort
EPD­DBC­FIW­20220088­IBE2­DE

Features

The injection mortar FIS V has a range of system approvals, for cracked and non-cracked concrete, masonry, and rebar connections, for example: FIS V is therefore the universal injection mortar family with guaranteed safety for almost every application.
FIS VW HIGH SPEED has a significantly shorter hardening time than FIS V: Ensures swift work progress even at low temperatures.
FIS VS LOW SPEED has an extended processing time that prevents the premature hardening of the mortar at higher temperatures: Ideally suited to large drill hole depths.
The extensive range of accessories is perfectly tailored to the injection mortar family FIS V: Increases the high flexibility of the system, and thus enables a broad range of applications.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-02/0024
    ETA-08/0266
    ETA-10/0383
    DoP No. 0188
    DoP No. 0189
    DoP No. 0229
    DoP No. 0304
    ESR-2786
    21843_3enshort
    EPD­DBC­FIW­20220088­IBE2­DE
  • Functionality
    FIS V is a 2-component injection mortar based on a vinyl ester hybrid concept.
    Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
    The mortar is extruded bubble free from the drill hole base.
    The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
    The injection cartridges are quick and easy to use with the fischer dispensers.
    Partially used cartridges can be reused by changing the static mixer.
  • GTIN/EAN/ASIN
    4006209453025
  • Package Contents

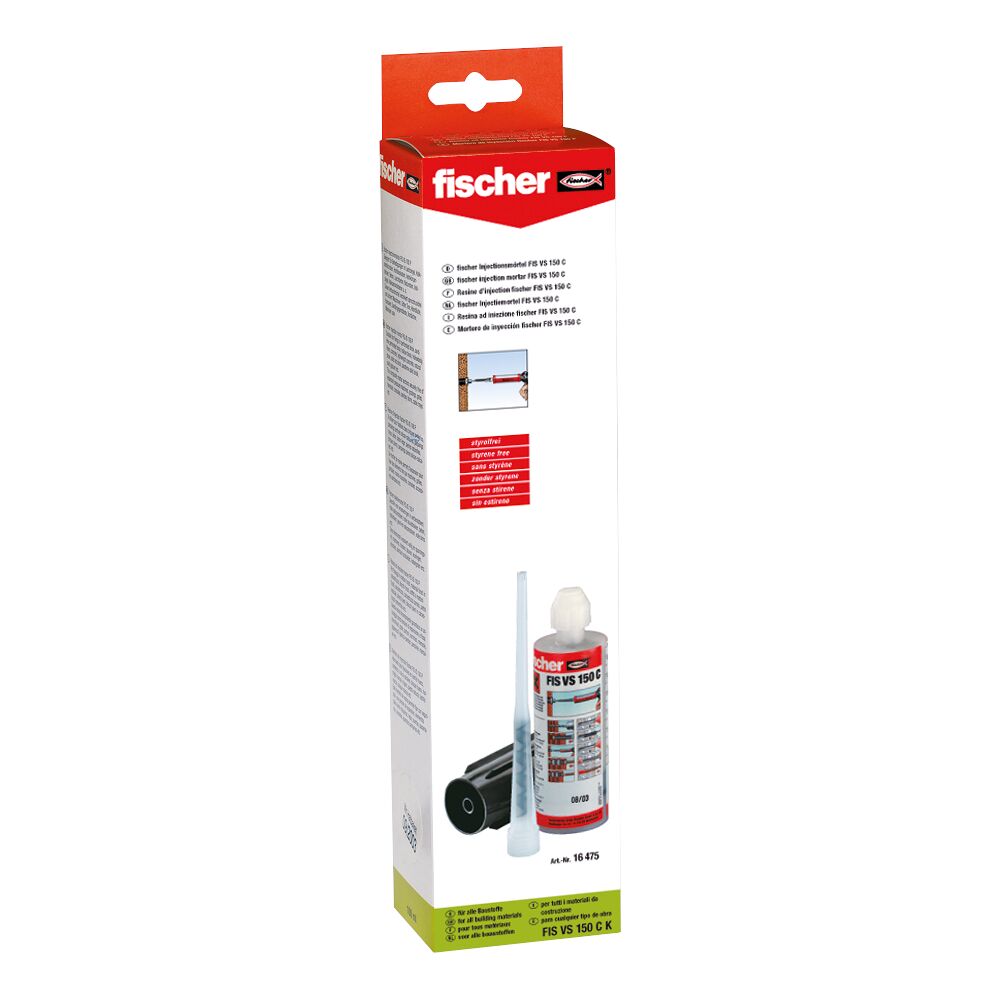

    1x cartridge 145ml,2x static mixers FIS MR Plus
  • Pack Size
    1
  • Type
    Injection resin
  • Volume (ml)
    145ml
