fischer injection mortar FIS HB 345 S [33211]

Barcode: 4006209332115
Pack Size: 1
£155.95

Usually shipped in 1-2 days

fischer injection mortar FIS HB 345 S [33211] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer Highbond special mortar FIS HB 345 S is a versatile and reliable solution for fixing railings, machines, and steel constructions in cracked and non-cracked concrete. The styrene-free vinyl ester mortar is compatible with a variety of fischer Highbond anchor rods, including zinc-plated steel, stainless steel, and highly corrosion-resistant steel. When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall to create a secure and durable fixing. The fischer Highbond system FHB II is approved for use in both internal and external areas, making it a versatile solution for a wide range of applications. It is also backed by fischer's comprehensive product guarantee, which provides peace of mind for both

Technical Datasheet

Curing Time Document:

Declaration of Performance Document:

Environmental Product Declaration Document:

European Technical Approval (ETA) Document:

Filling Quantities Document:

Load Table Document:

Safety Data Document:

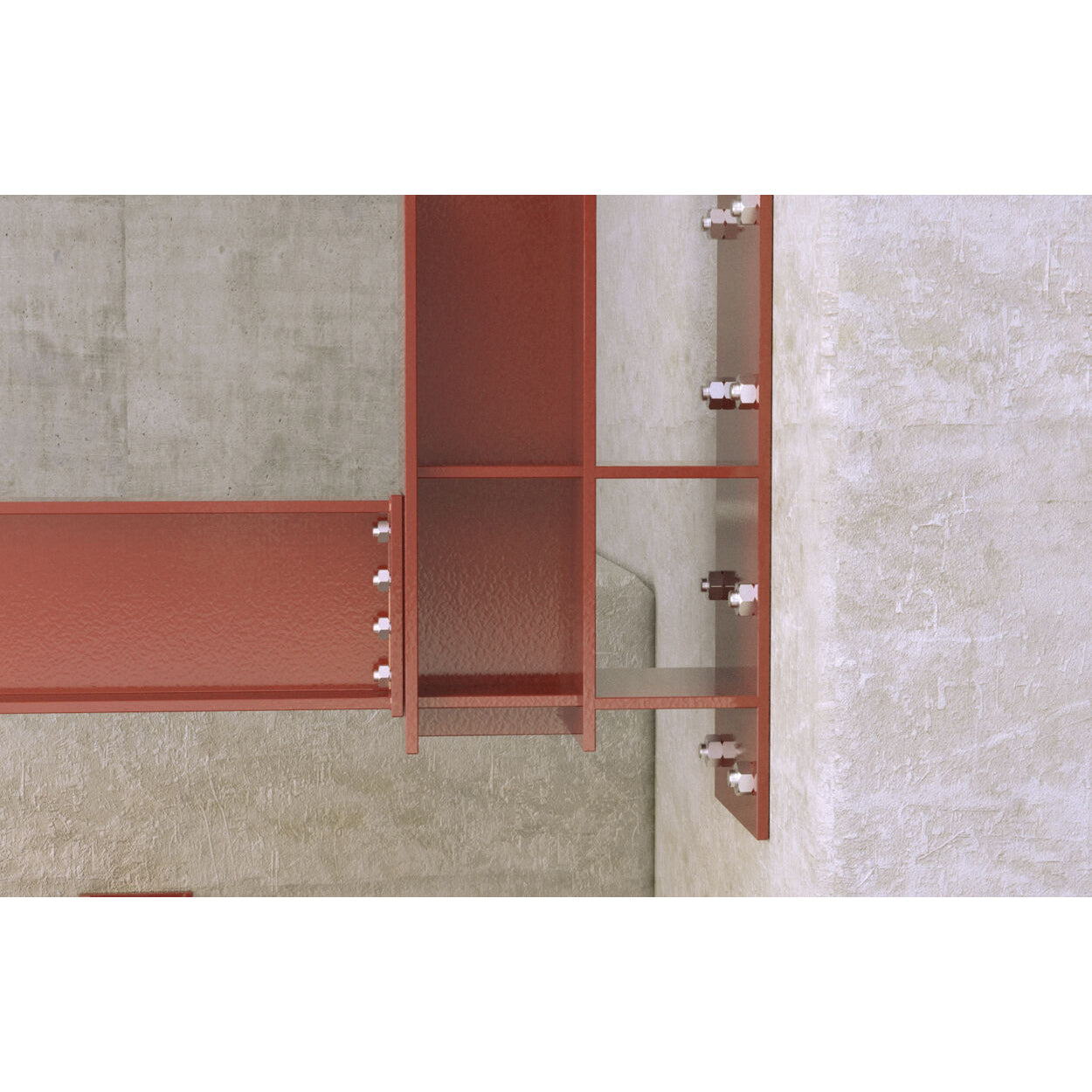

Applications

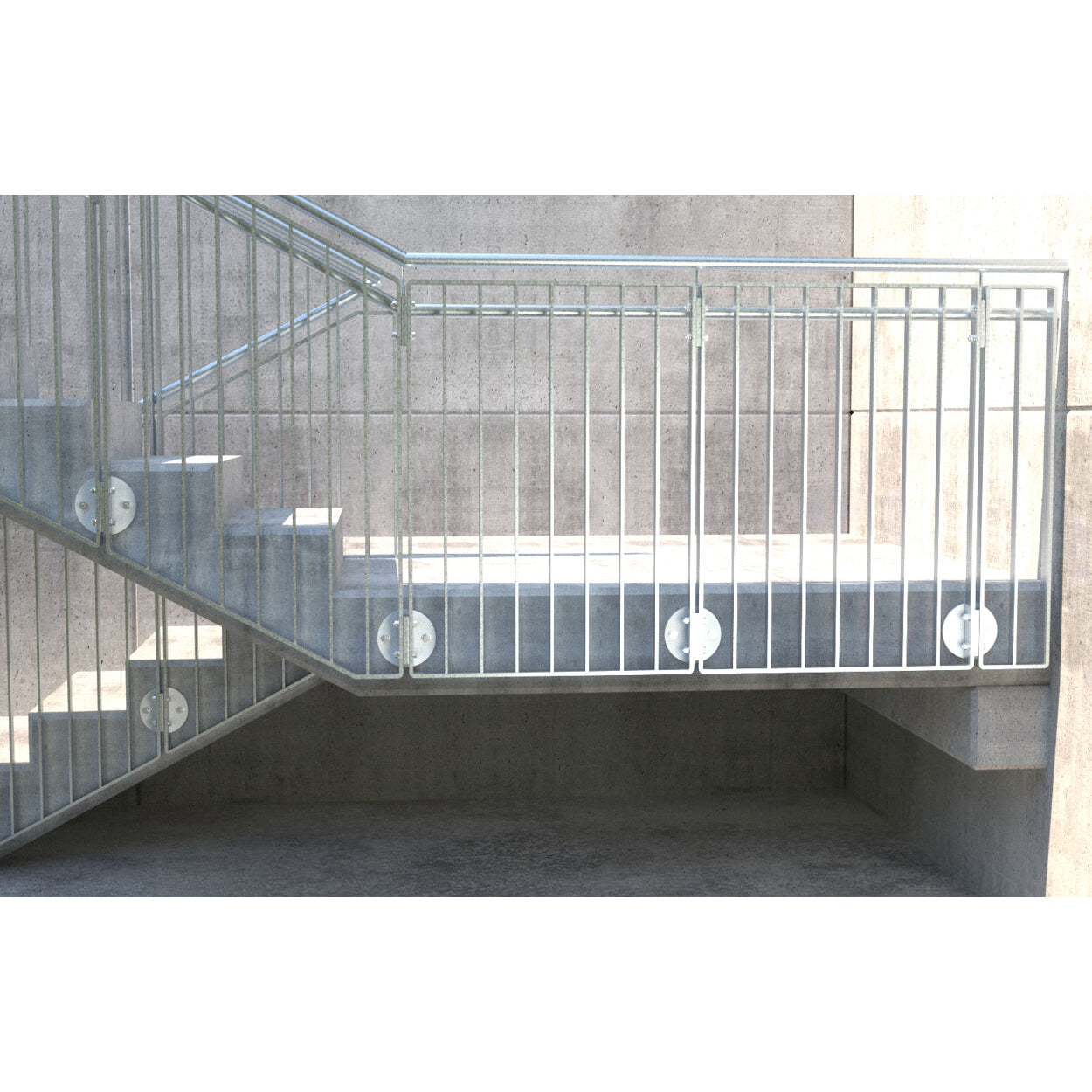

Guard rails
Façades
Staircases
Steel brackets
Machines
Silo installations
Masts
Rash protection
Steelwork constructions
Timber constructions

Building Materials

Approved for:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Concrete C12/15
You can find detailed information on building materials in the registration document.

Certifications

ETA-05/0164
ETA-06/0171
ETA-16/0637
ETA-21/0948
DoP No. 0280
DoP No. 0281
DoP No. 0282
DoP No. 0293
DoP No. 0327
EPD­DBC­FIW­20220088­IBE2­DE

Features

The Highbond system FHB II achieves the highest load values in cracked concrete: Fewer fixing points and smaller anchor plates are required.
The injection mortar FIS HB can be worked with the threaded rod FHB II-A S (short version ) or L (long version): You can select the most economical solution based on requirements.
Large container shape of the injection mortar FIS HB: Ideally suited to series installation.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-05/0164
    ETA-06/0171
    ETA-16/0637
    ETA-21/0948
    DoP No. 0280
    DoP No. 0281
    DoP No. 0282
    DoP No. 0293
    DoP No. 0327
    EPD­DBC­FIW­20220088­IBE2­DE
  • coated
    No
  • Functionality
    The injection mortar FIS HB is suitable for pre-positioned and push-through installation.
    Resin and hardener are stored in two separate chambers and are only mixed and activated in the static mixer when dispensed through the injection cartridge.
    FIS HB can be used with the threaded rods FHB II-A S and FHB II-A L and glues the threaded rod completely in the drill hole.
    When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall.
    The styrene-free vinyl ester mortar fully seals the drill hole.
  • GTIN/EAN/ASIN
    4006209332115
  • Package Contents
    1x cartridge 360ml,2x static mixers FIS MR Plus
  • Pack Size
    1
  • Type
    Injection resin
  • Volume (ml)
    360ml

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer injection mortar FIS HB 345 S [33211]

£155.95
The fischer Highbond special mortar FIS HB 345 S is a versatile and reliable solution for fixing railings, machines, and steel constructions in cracked and non-cracked concrete. The styrene-free vinyl ester mortar is compatible with a variety of fischer Highbond anchor rods, including zinc-plated steel, stainless steel, and highly corrosion-resistant steel. When tightening the hexagon nut, the anchor rod cones are pulled into the mortar shell, which expands against the drill hole wall to create a secure and durable fixing. The fischer Highbond system FHB II is approved for use in both internal and external areas, making it a versatile solution for a wide range of applications. It is also backed by fischer's comprehensive product guarantee, which provides peace of mind for both

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Injection resin

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

1x cartridge 360ml,2x static mixers FIS MR Plus

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The Highbond system FHB II achieves the highest load values in cracked concrete: Fewer fixing points and smaller anchor plates are required.
The injection mortar FIS HB can be worked with the threaded rod FHB II-A S (short version ) or L (long version): You can select the most economical solution based on requirements.
Large container shape of the injection mortar FIS HB: Ideally suited to series installation.
