fischer injection mortar FIS EM 1500 S [544167]

Barcode: 4048962312171
Pack Size: 1
£492.65

Usually shipped in 1-2 days

fischer injection mortar FIS EM 1500 S [544167] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

The fischer injection mortar FIS EM Plus 1500 S is a high-quality epoxy resin mortar that provides maximum load-bearing capacity in cracked and non-cracked concrete. It is used with reinforcement steel and the approved system components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths to optimize the use of materials and ensure that the system is ideally adjusted to the load to be supported. The FIS EM Plus 1500 S is suitable for fixings in indoor and outdoor areas, such as shear connectors for concrete layers, high racks, and heavy-duty steel constructions.

Technical Datasheet

Applications

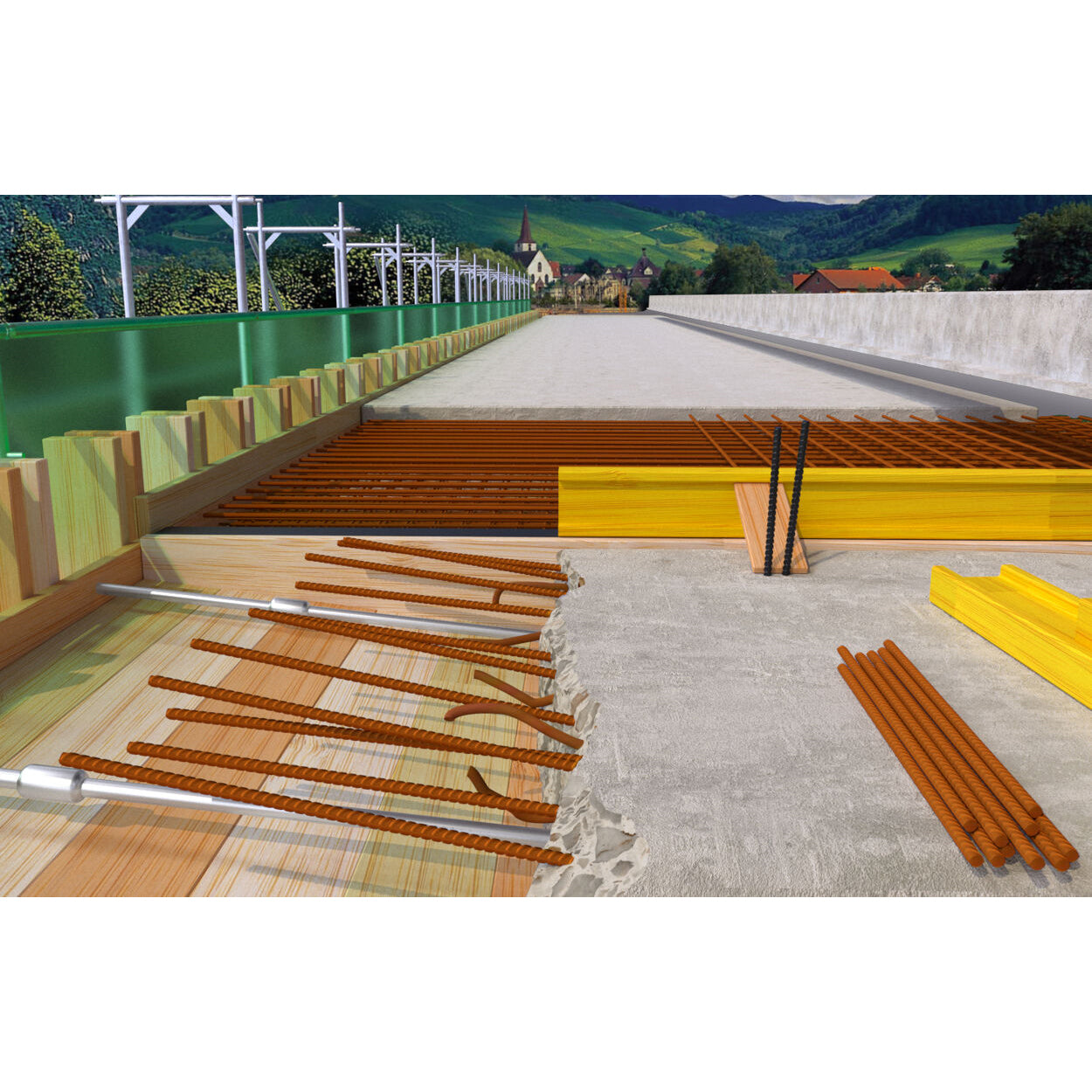

Post-installed rebar connections
Jointers for concrete layers
Rim beam anchorings
Seismic applications
Anchorings in diamond-drilled or in waterfilled drill holes

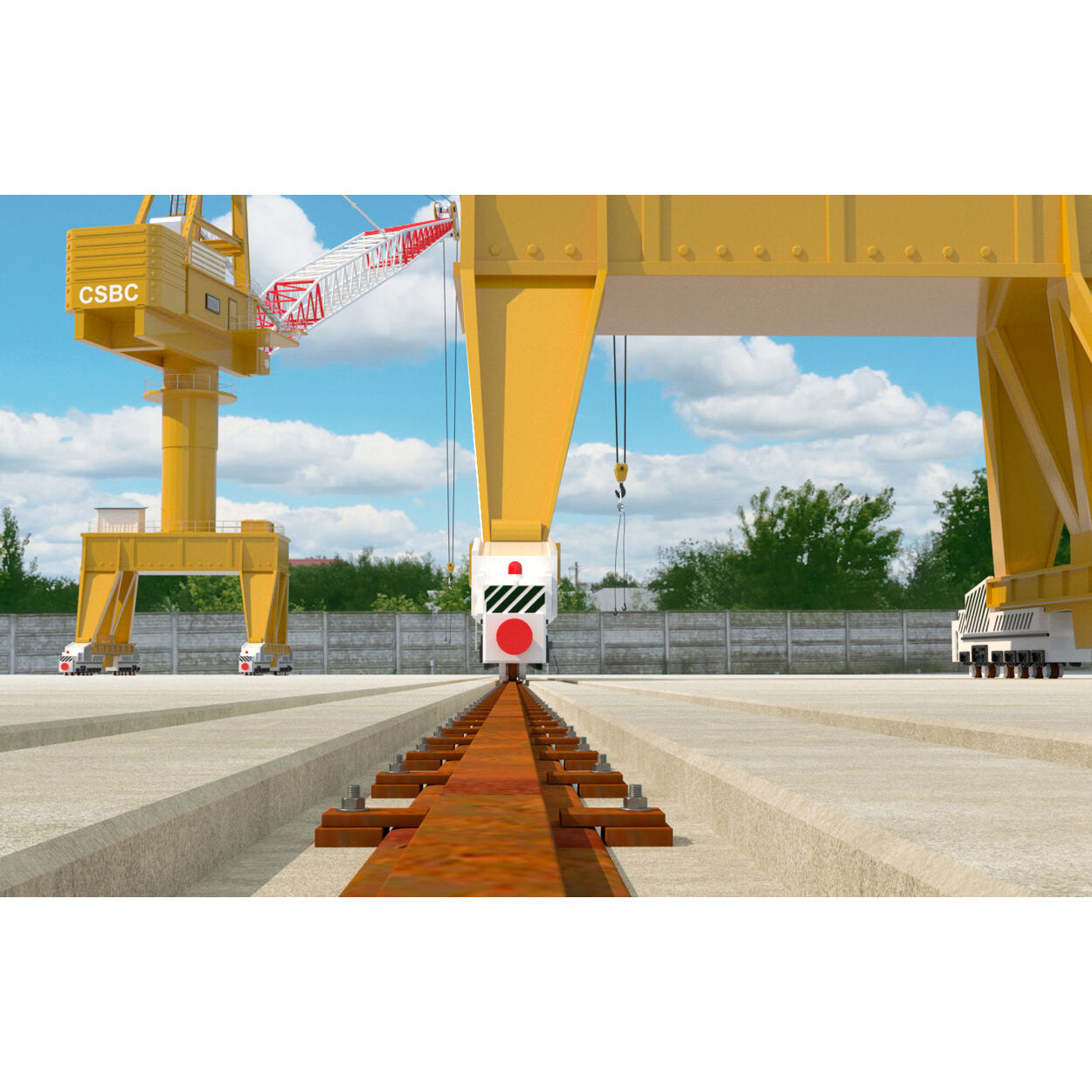

Heavy steel constructions
Silo installations
Tall shelving
Sound barriers
Temporary or removable fixings (with internal threaded anchor RG M I)
Anchorings in sealing surfaces according to WRL (Water Ressources Law)

Building Materials

Approved for anchorings in:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Natural stone with dense structure
You can find detailed information on building materials in the registration document.

Certifications

ETA-17/0979
ETA-17/1056
ETA-22/0001
DoP No. 0190
DoP No. 0218
DoP No. 0236
DoP No. 0308
Z-74.8-199
Report No MRF 19 26082687/C

Features

The ETA assessment guarantees a service life of 100 years. The expert report of IEA Stuttgart even confirms a working life up to 120 years: Underlines the reliability and durability of the FIS EM Plus.
Optimised formulation: Leads to improved load values in cracked and non-cracked concrete.
The mortar can be used for rebar connections from diameter 8 to 40: Including seismic applications.
With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.The mortar is approved for diamond drilled and water-filled drillholes as well as seismic applications: Offers safety under extreme conditions.
FIS EM Plus can be processed at low temperatures down to -5°C: For practical use on the building site.

Specifications

  • Brand
    Fischer
  • Certifications
    ETA-17/0979
    ETA-17/1056
    ETA-22/0001
    DoP No. 0190
    DoP No. 0218
    DoP No. 0236
    DoP No. 0308
    Z-74.8-199
    Report No MRF 19 26082687/C
  • coated
    No
  • Functionality
    The epoxy mortar FIS EM Plus combined with the FIS A threaded rod, is suitable for pre-positioned and push-through installation and with the internal threaded anchor RG M I for pre-positioned installation.
    Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
    The mortar is injected bubble-free from the drill hole base.
    The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
    The anchor is set manually by lightly rotating it until it reaches the drill hole base.
    During push-through installation, the annular gap between the anchor rod and attachment is filled with FIS EM Plus.
  • Package Contents
    1x cartridge 300ml,2x static mixers FIS MR Plus
  • Pack Size
    1
  • Type
    Injection resin
  • Volume (ml)
    300ml

Reviews (0)

Delivery & Returns

For full delivery details, please see our delivery page

For information on our returns policy, please see our returns page


NEED IN A HURRY?


Call us on 0161 672 3333 to discuss options


LOOKING FOR INTERNATIONAL DELIVERY?

Call us on 0161 672 3333 to discuss options

Safe & Secure

  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Buy now pay later with Shop Pay

Fischer

fischer injection mortar FIS EM 1500 S [544167]

£492.65
The fischer injection mortar FIS EM Plus 1500 S is a high-quality epoxy resin mortar that provides maximum load-bearing capacity in cracked and non-cracked concrete. It is used with reinforcement steel and the approved system components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths to optimize the use of materials and ensure that the system is ideally adjusted to the load to be supported. The FIS EM Plus 1500 S is suitable for fixings in indoor and outdoor areas, such as shear connectors for concrete layers, high racks, and heavy-duty steel constructions.

Clamping Range (MM)

N/A

Diameter (MM)

N/A

Drill Diameter (MM)

N/A

Drill Hole Depth (MM)

N/A

Installation Torque (TINST) (NM)

N/A

Washer Height (MM)

N/A

Washer Diameter (MM)

N/A

Type

Injection resin

Torque Moment (NM)

N/A

Thread Length (MM)

N/A

Thread

N/A

Size

N/A

Pack Size

1

Package Contents

1x cartridge 300ml,2x static mixers FIS MR Plus

Material

N/A

Length (MM)

N/A

Min Drill Hole Depth for Through Fixings (MM)

N/A

Max Usable Length HEF Stand/HEF Min

N/A

Max Fixture Thickness (MM)

N/A

Width Across Nut (MM)

N/A

Features

The ETA assessment guarantees a service life of 100 years. The expert report of IEA Stuttgart even confirms a working life up to 120 years: Underlines the reliability and durability of the FIS EM Plus.
Optimised formulation: Leads to improved load values in cracked and non-cracked concrete.
The mortar can be used for rebar connections from diameter 8 to 40: Including seismic applications.
With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.The mortar is approved for diamond drilled and water-filled drillholes as well as seismic applications: Offers safety under extreme conditions.
FIS EM Plus can be processed at low temperatures down to -5°C: For practical use on the building site.
