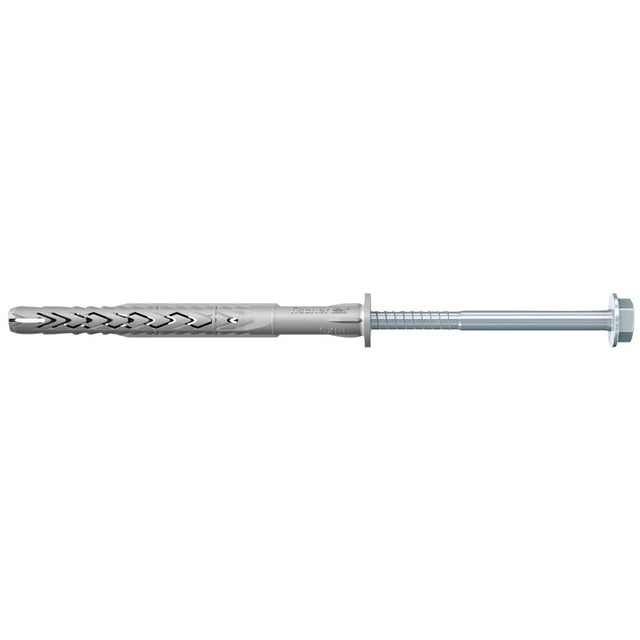

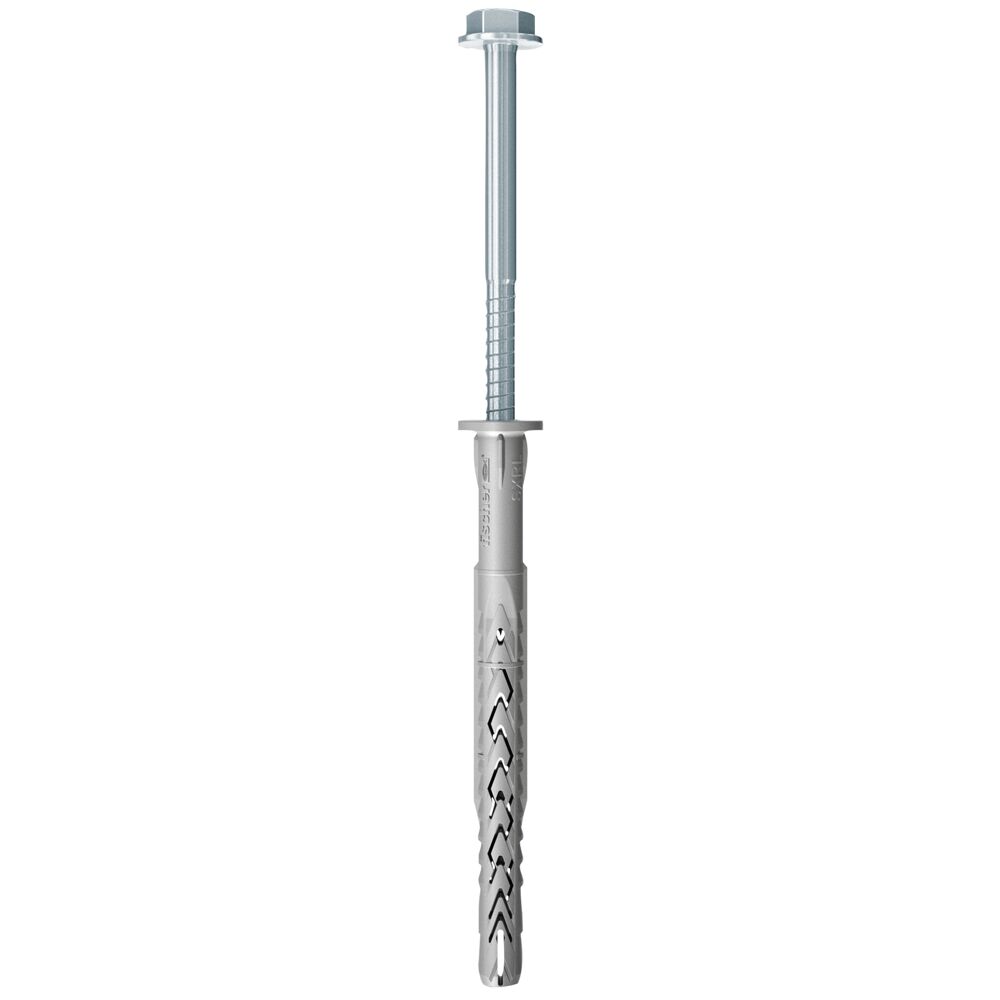

fischer SXRL 10 x 100 FUS hex flange zinc steel nylon frame fixing [522720]

Barcode: 4048962180954
Pack Size: 50
£45.50

Usually shipped in 1-2 days

fischer SXRL 10 x 100 FUS hex flange zinc steel nylon frame fixing [522720] is backordered and will ship as soon as it is back in stock.

NEED HELP OR ADVICE? Call 0161 672 3333

FOUND IT CHEAPER ELSEWHERE?

Call us, and we should be able to price match or even beat it.

Learn more about our price match policy

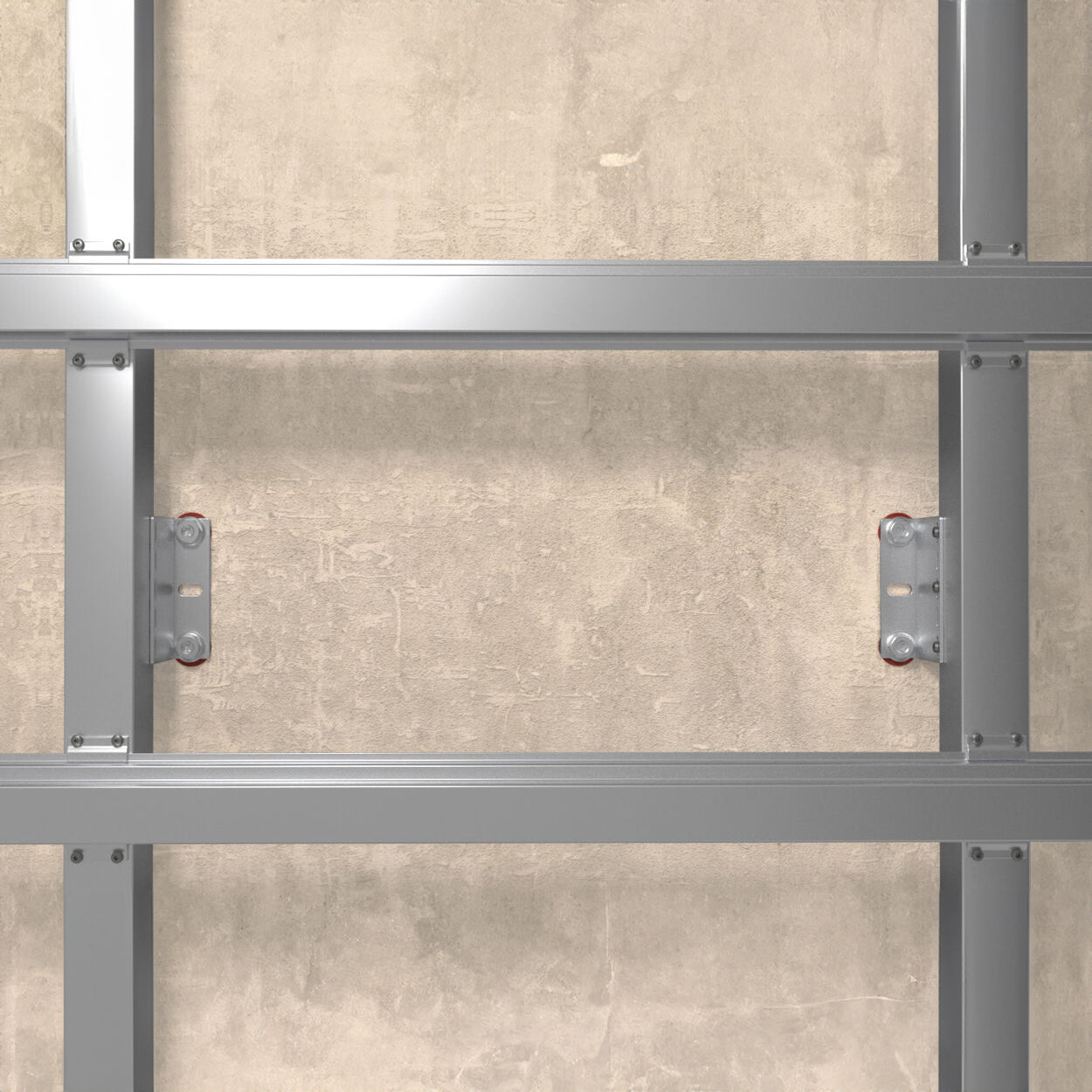

The fischer frame fSXRL 10 x 100 FUS zinc is a versatile and reliable option for securing non-load-bearing systems in masonry, concrete, and aerated concrete. It is made of zinc-plated steel and is suitable for fixings of façade, ceiling, and roof substructures made of metal. The two expansion zones in the fixing induce forces equally into perforated masonry, while combining to form a long expansion element in aerated concrete and solid building material. The frame fixing is approved along with the fischer hexagon head screw with moulded washer and integrated bit holder TX40, which ensures a secure and easy installation.

Technical Datasheet

Declaration of Performance Document:

European Technical Approval (ETA) Document:

Fire Test Document:

Load Table Document:

Applications

Façade, ceiling and roof substructures made of metal
Squared timbers
Joist hanger
Windows
Gates and doors
Fire protection doors
Blinds / folding shutters
Handrails
Wardrobes
Kitchen hanging cabinets
TV consoles
Shelves
Lighting
Wall covering
Metal brackets
Metal supports
Guide rails
Cable ducts
Cable trays
Radiators
Air conditioning units
Beams

Building Materials

Approved for:
Vertically perforated brick
Aerated concrete
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Thermal insulation blocks
Solid block made from lightweight and normal weight concrete
Solid brick
Solid sand-lime brick
Concrete ≥ C12/15
Also suitable for:
Natural stone with dense structure
Solid panel made from gypsum
You can find detailed information on building materials in the registration document.

Certifications

ETA-07/0121
DoP No. 0329
Z-21.2-2092
21-009-1(2)

Features

Long expansion element with multiple anchorage depths of 50, 70 and 90 mm: Extremely versatile product.
Special geometry plug: Retention forces are evenly distributed in the drill hole.
Approval for single-point fixing in cracked concrete: Designated specialist in concrete particularly for tasks such as the installation of awning roofs and outdoor railings compared to steel anchors.
When it is to be set deep, the longer ribs prevent the plug from turning during installation: Ease of setting.

Specifications
  • Brand
    Fischer
  • Certifications
    ETA-07/0121
    DoP No. 0329
    Z-21.2-2092
    21-009-1(2)
  • Drill Diameter (MM)
    10
  • Driver Type
    TX40 / SW13
  • Functionality
    The SXRL is suitable for push-through installation.
    In perforated brick masonry a force transmission that protects the substrate is guaranteed through the two expansion zones. The porous block fillets are not crushed by the second expansion zone an therefore serves to transmit the force.

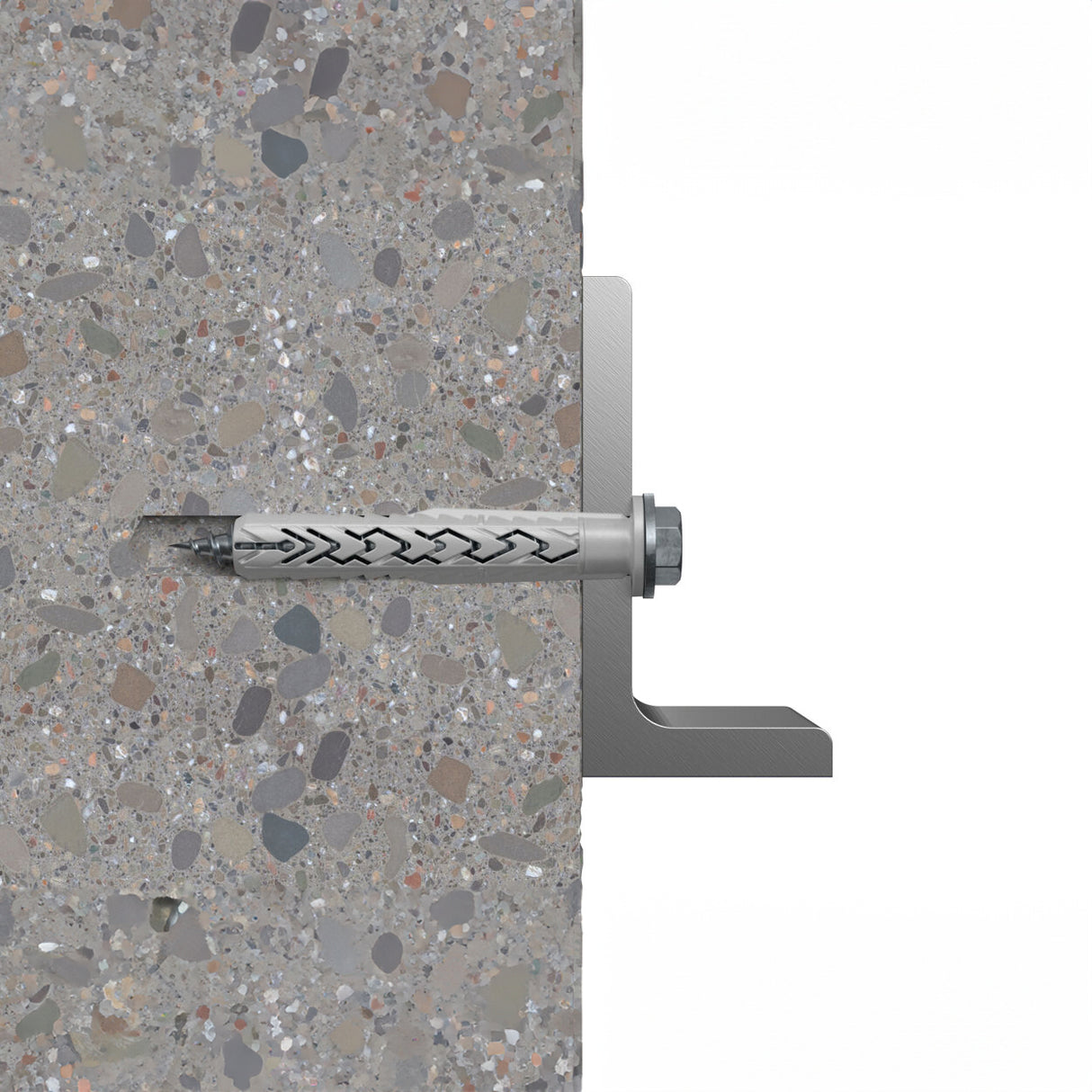

    In aerated concrete and solid building materials, the two expansion zones combine to form one long expansion element, thus providing for a uniform and flat distribution of the load into the substrate.
    Recommended for the fixing of metal constructions
    The SXRL-T with countersunk head screw is recommended for the fixing of wood constructions.
  • Head Type
    Hexagonal
  • Length (MM)
    100
  • Material
    Zinc-Plated
  • Min Drill Hole Depth for Through Fixings (MM)
    110
  • Pack Size
    50
  • Type
    Frame fixing
  • Usable Length at Anchorage Depth 50 (mm)
    50.00
  • Usable Length at Anchorage Depth 70 (mm)
    30.00
